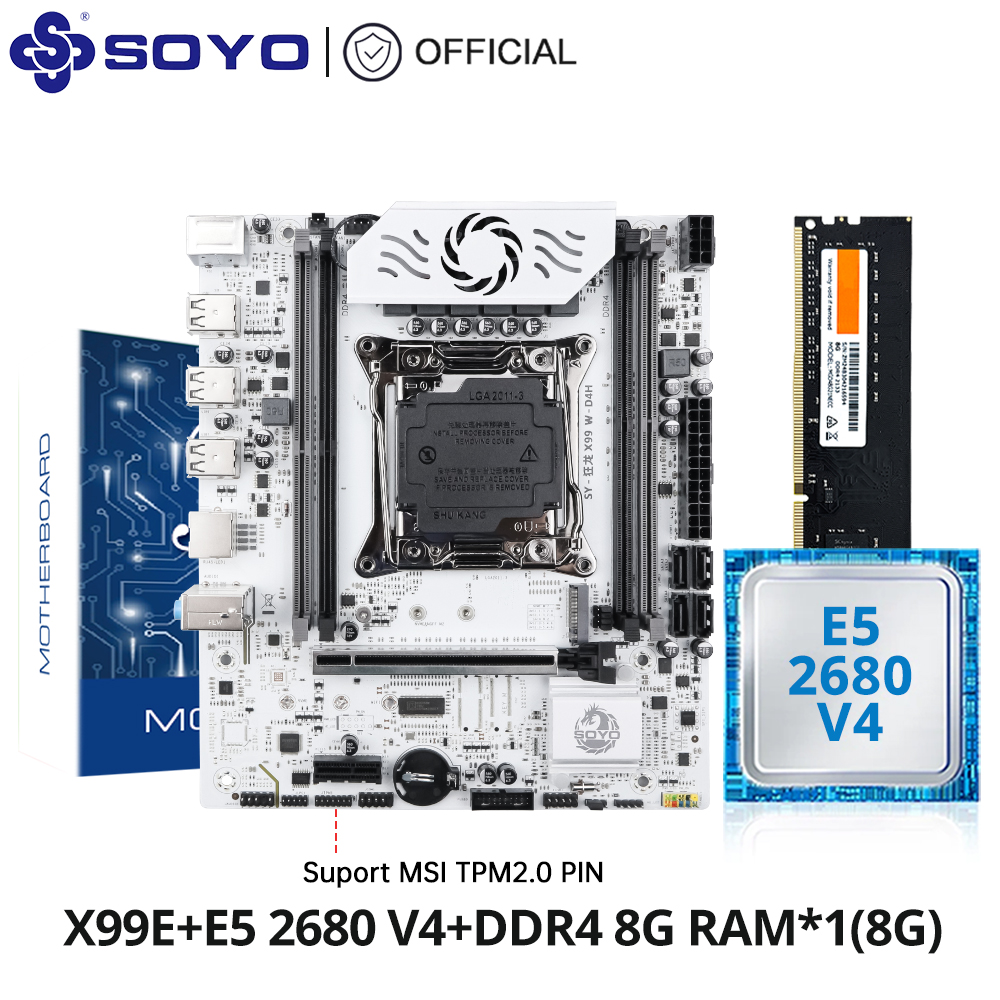

SOYO X99 Motherboard Set Kit With LGA2011-3 Xeon E5 2680 V4 CPU DDR4 8GB(1*8G) 2133MHz RAM NVME M.2 SATA for Desktop Computer

(62 reviews)
(%)
View Cart

This motherboard only supports MSI’s TPM 2.0 module. Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don’t send CPU and memory. Please check carefully. Differences between packagesMotherboards: 1*SY-X99 D4 motherboardMotherboard+CPU: SY-X99 D4+E5 2682 V4 CPUMotherboard+CPU+RAM: SY-X99 D4+E5 2682 V4 CPU*DDR4 8G*1 (8G)Please confirm the differences between the…

Product Details

This motherboard only supports MSI’s TPM 2.0 module.

Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don’t send CPU and memory. Please check carefully.

Differences between packages

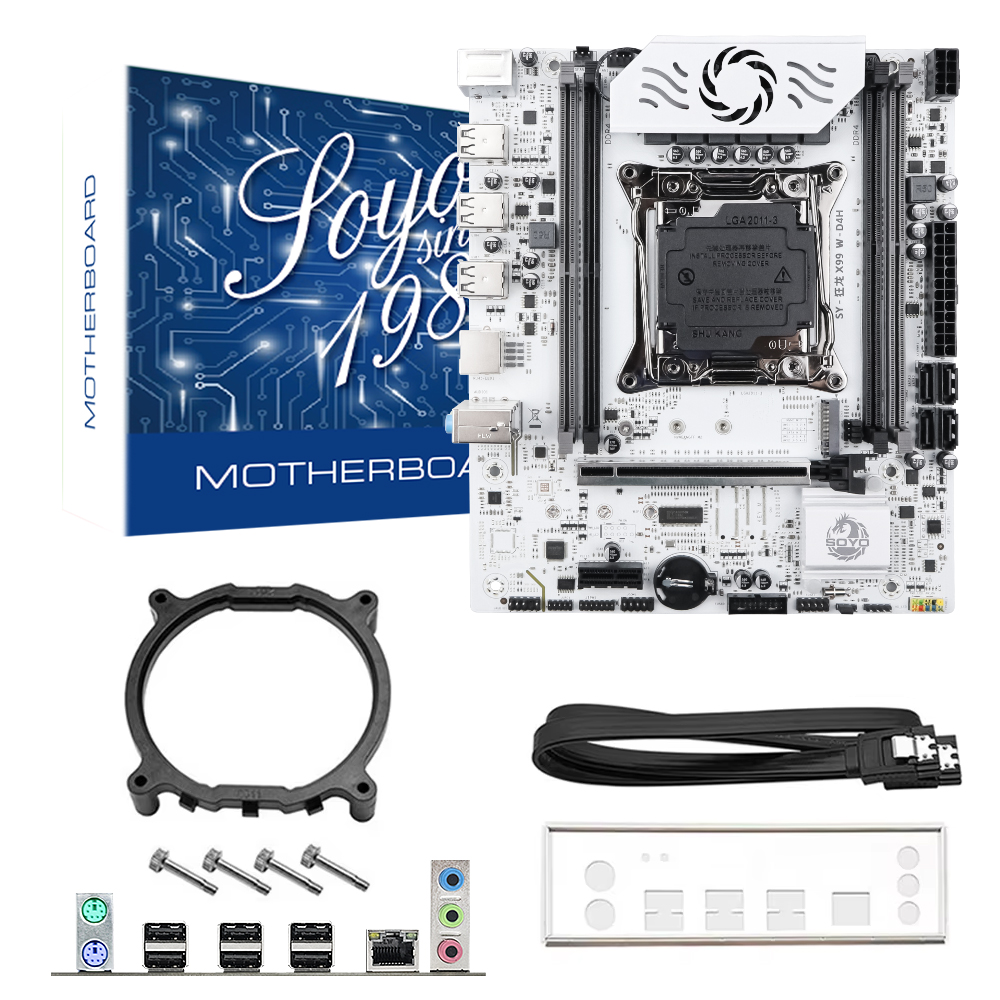

Motherboards: 1*SY-X99 D4 motherboard

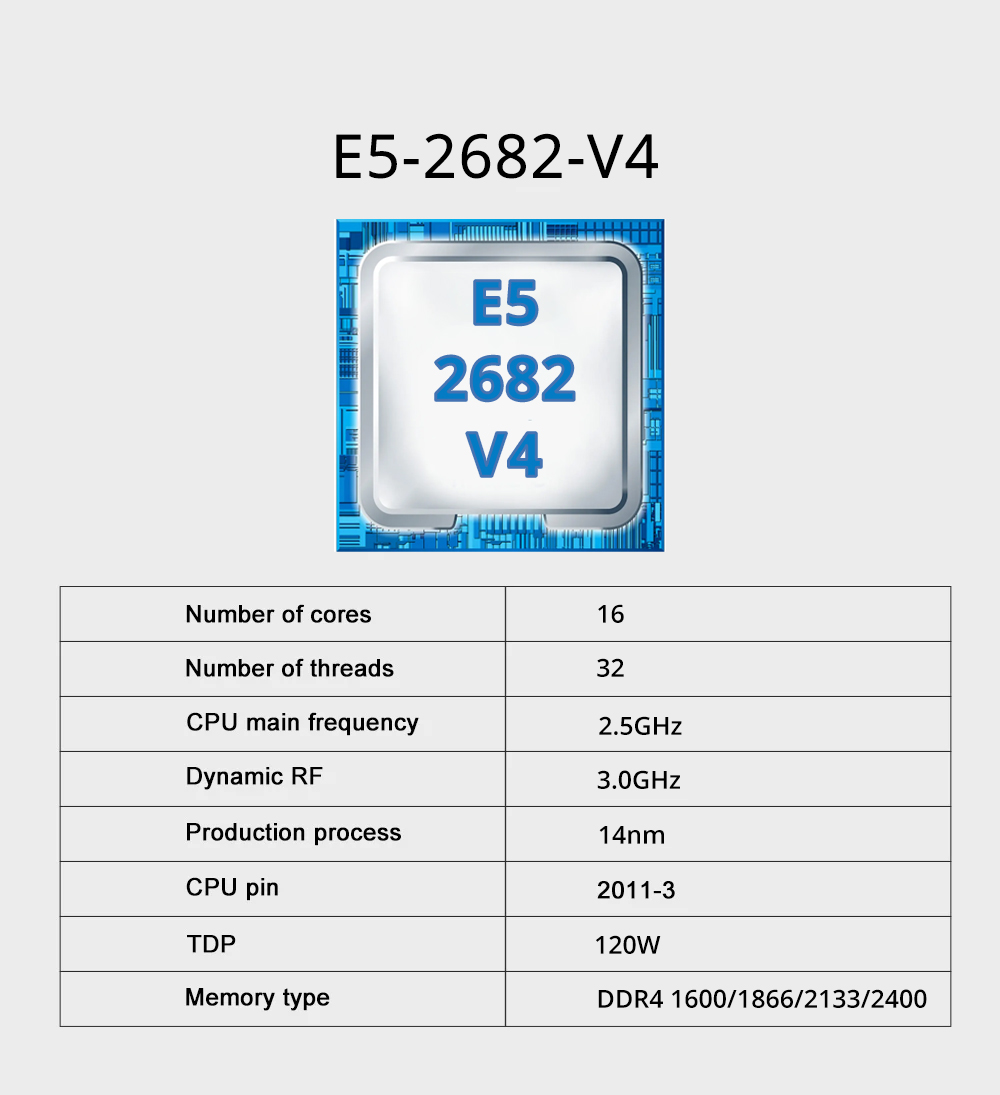

Motherboard+CPU: SY-X99 D4+E5 2682 V4 CPU
Motherboard+CPU+RAM: SY-X99 D4+E5 2682 V4 CPU*DDR4 8G*1 (8G)
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

CPU:

Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

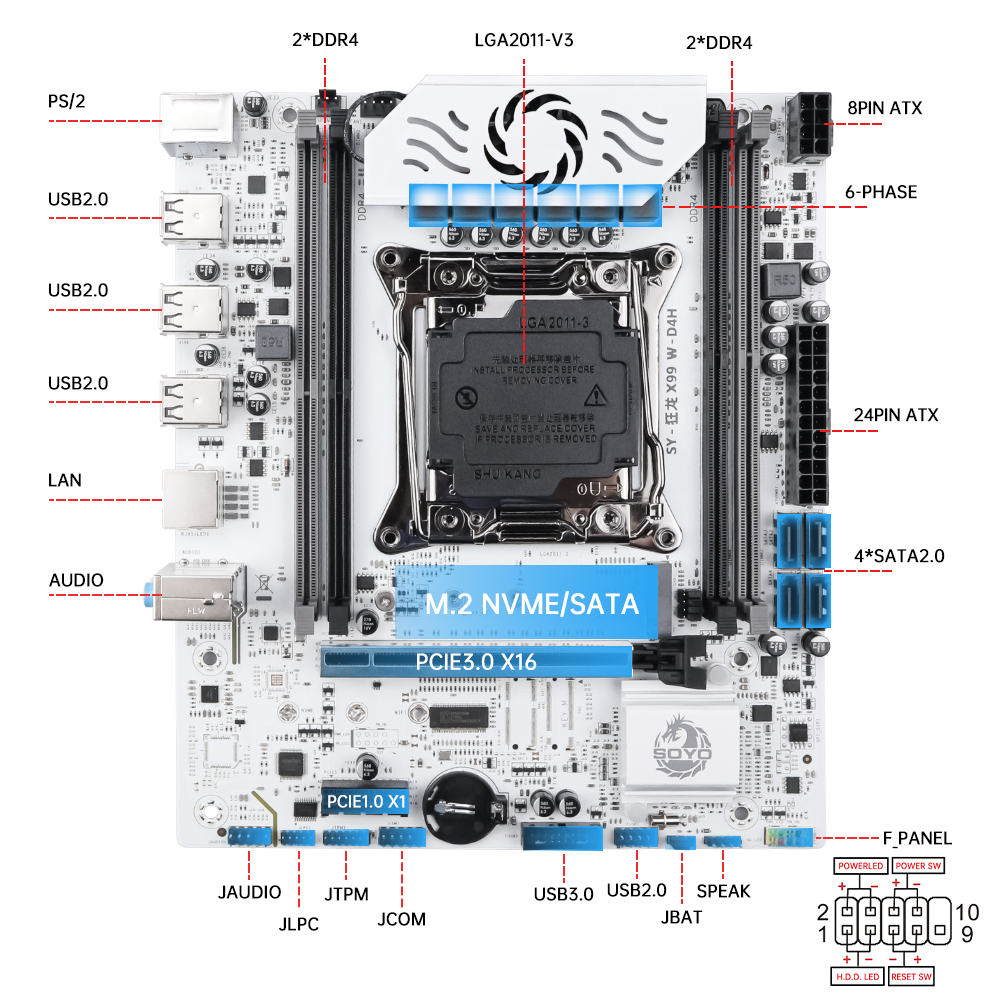

🔥 Key Features

⚡ Supports Intel Xeon E5 V3/V4 Processors

  • LGA2011-V3 socket – compatible with E5-2629V3, 2666V3, 2673V3, 2676V3, 2678V3, 2696V3, 2684V4, 2696V4 and more

  • Multi-core, multi-thread design ideal for rendering, virtualization, and server workloads

  • Excellent performance-to-cost ratio for building high-value workstations and servers

💾 Large DDR4 Memory Capacity

  • 4 × DDR4 DIMM slots – dual-channel support, up to 2400MHz

  • Maximum 128GB capacity, 32GB per slot

  • Gray slots are the primary channel; black slots are the secondary channel for easy identification

128GB
Max Memory
4 × DIMM
Dual-Channel DDR4
2400MHz
Memory Speed

💿 Dual-Mode M.2 Slot + SATA Expansion

  • 1 × M.2 slot – supports NVMe 3.0 x4 / NGFF 2.0 mode, switchable via jumper

  • 4 × SATA 2.0 ports – for traditional HDDs and SSDs

🔌 Rich I/O – Comprehensive Connectivity

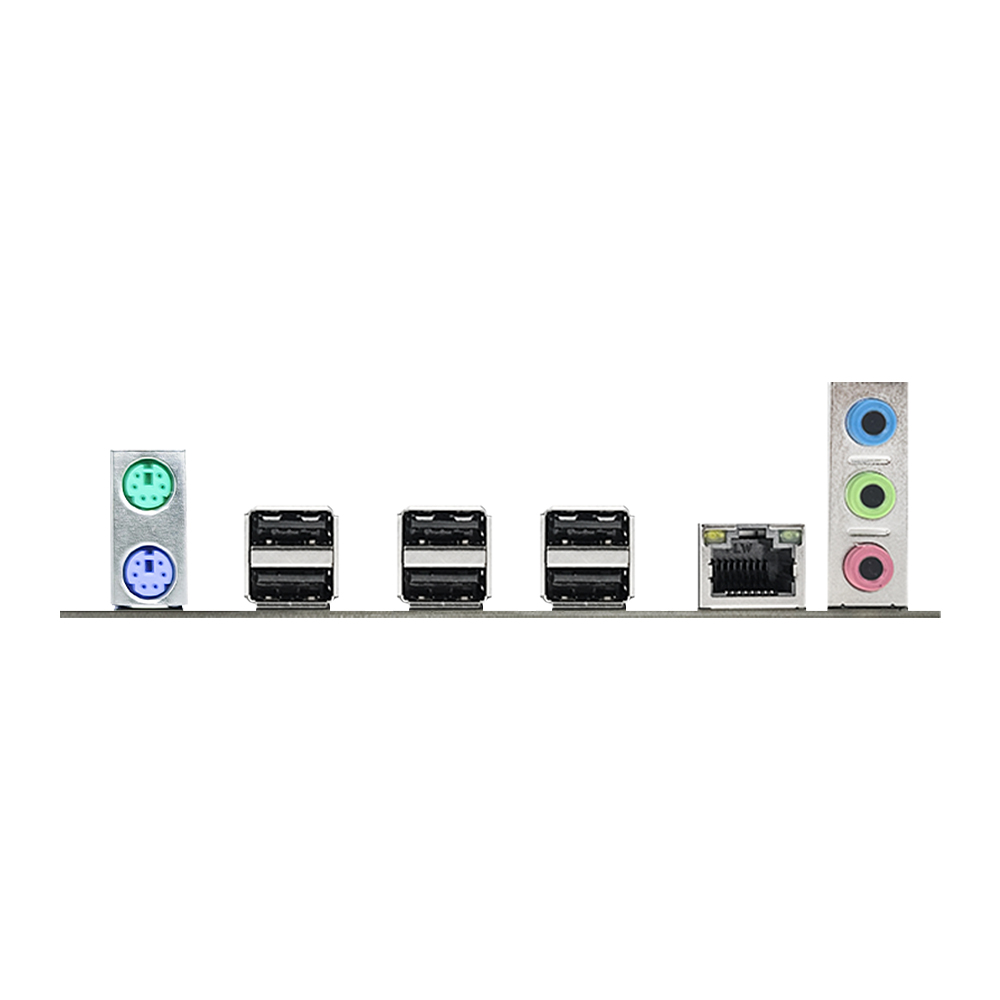

  • Rear I/O: 6 × USB 2.0, PS/2 keyboard/mouse, Gigabit Ethernet, 3 × audio jacks

  • Internal headers: Expandable 4 × USB 2.0, COM (serial) port, front panel audio, TPM module

  • PCIe expansion: 1 × PCIe X16 3.0 (from CPU), 1 × PCIe X1 1.0 (from PCH)

🌐 Gigabit Ethernet with Advanced Networking Features

  • Realtek Gigabit LAN controller – stable and reliable

  • Supports PXE network boot and Wake-on-LAN (WOL)

  • Perfect for diskless systems, remote management, and server applications

🛠️ Professional-Grade Headers & Features

  • 1 × TPM 14-pin header (compatible with MSI 14-pin TPM modules)

  • 1 × COM header (RS232 mode)

  • CPU fan, system fan, and MOS fan headers for precise cooling control

  • Speaker (Speak) and diagnostic card (JLPC) headers for debugging

💪 Stable Power Delivery

  • 24-pin + 8-pin ATX power connectors – ensures stable power under heavy loads

  • Idle power consumption: 130–170W; Full load: 300–350W (including discrete GPU)

🪟 Multi-OS Support

  • Fully compatible with Windows 7, Windows 10, Windows 11 and Linux distributions

  • Meet your preferred operating system needs


📊 Detailed Specifications


🎯 Ideal Use Cases

  • High-Performance Workstations: 3D rendering, video editing, engineering design, scientific computing

  • Servers & Virtualization: Multi-core processors + 128GB memory, ideal for ESXi, Proxmox, Docker, etc.

  • Multi-Tasking & Game Instances: Powerful multi-threading capability for running multiple game clients or applications

  • Home Lab & Development: TPM, COM, diagnostic headers for experimentation and debugging

  • NAS / File Server: 4 × SATA + M.2 storage for file sharing and backups

  • Diskless Systems / Cyber Cafés: PXE boot support for easy network deployment

Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.


(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Grey slots) first. The motherboard’s Black RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!

Item Specifics
Brand Name:
SOYO
Chipset:
h55
Onboard LAN:
1x RJ45
Maximum Ram Capacity:
128 GB
Battery Included:
No
Processor compatibility:
Intel Xeon
Processor compatibility:
Intel Xeon E Series
With CPU:
Yes
Support Memory Type:
DDR4 ECC
Number of PCI:
1
Special Features:
NONE
Storage Interface Type:
SATA 2
Storage Interface Type:
M.2 (NVMe)
Storage Interface Type:
M.2 (SATA)
Package:
Yes
RAID Supported:
Yes
Application:
Desktop
Chipset Manufacturer:
Intel
Back I/O Ports:
1x RJ45
Back I/O Ports:
6 x USB 2.0
Back I/O Ports:
3 x Audio Jacks
Back I/O Ports:
PS/2
PCI - E standards:
PCI-E 3.0
Socket Type:
LGA 2011-3
High-concerned chemical:
None
Usage Scenario:
Enthusiast & Overclocking
Usage Scenario:
Gaming
Usage Scenario:
Audio & Video
Usage Scenario:
Household
Usage Scenario:
Office
Usage Scenario:
Design
Usage Scenario:
Scientific Computing
Usage Scenario:
Video Rendering
Usage Scenario:
MaxCompute
Origin:
Mainland China
Number Of Memory Slots:
4
Ports:
PCI-Express X1
Support USB Type:
USB 2.0
Number of PCIe x 4:
1
Number of PCIe x 16:
1
Onboard Connectors & Header:
24-pin Main Power Connector
Onboard Connectors & Header:
AAFP Connector
Onboard Connectors & Header:
Chassis(SYS) Fan Connector(s)
Onboard Connectors & Header:
8-pin +12V Power Connector
Onboard Connectors & Header:
Speaker Connector
Onboard Connectors & Header:
USB 2.0 Connector
Number of SATA Ports:
2
SATA RAID:
0
Max LAN Speed:
1000Mbps
Number of PCIe x 1:
1
Supports M.2 SSD:
2242
Supports M.2 SSD:
2280
Number of M.2:
2
Shipping & Payment

SHIPPING

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have been shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:
Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
Asia 10-20 Business days
Africa 15-45 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

RETURNS

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

  • If you did not receive the product within the guaranteed time( 45 days not including 2-5 day processing) you can request a refund or a reshipment.
  • If you received the wrong item you can request a refund or a reshipment.
  • If you do not want the product you’ve received you may request a refund but you must return the item at your expense and the item must be unused.

We do not issue the refund if:

  • Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
  • Your order did not arrive due to exceptional circumstances outside the control of Exquisite Goods (i.e. not cleared by customs, delayed by a natural disaster).
  • Other exceptional circumstances outside the control of

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

Reviews
(62 reviews)
Write a Review
Verified Buyer
Customer
27 Apr 2026 00:00

It arrived exactly within the stipulated time frame. I haven't tested it yet because I still need to buy other parts, but I will open it to check if everything is in order.

Verified Buyer
Customer
25 Apr 2026 00:00

Working perfectly, the only thing I recommend to anyone who is going to buy is to get the Xeon kit with 16GB of RAM, 8GB of RAM is very limited. In the meantime, it's working perfectly, it's just that the 8GB of RAM is really limited.

Verified Buyer
J***r
19 Apr 2026 00:00

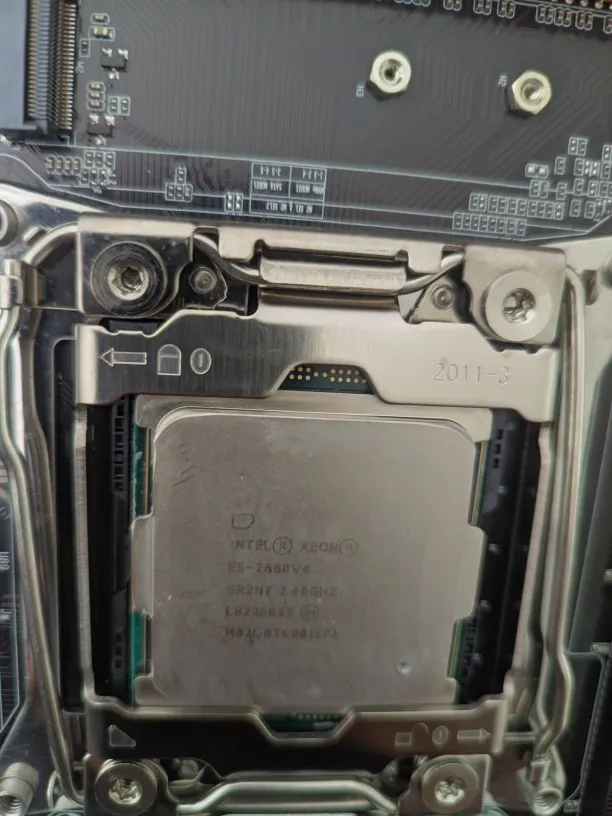

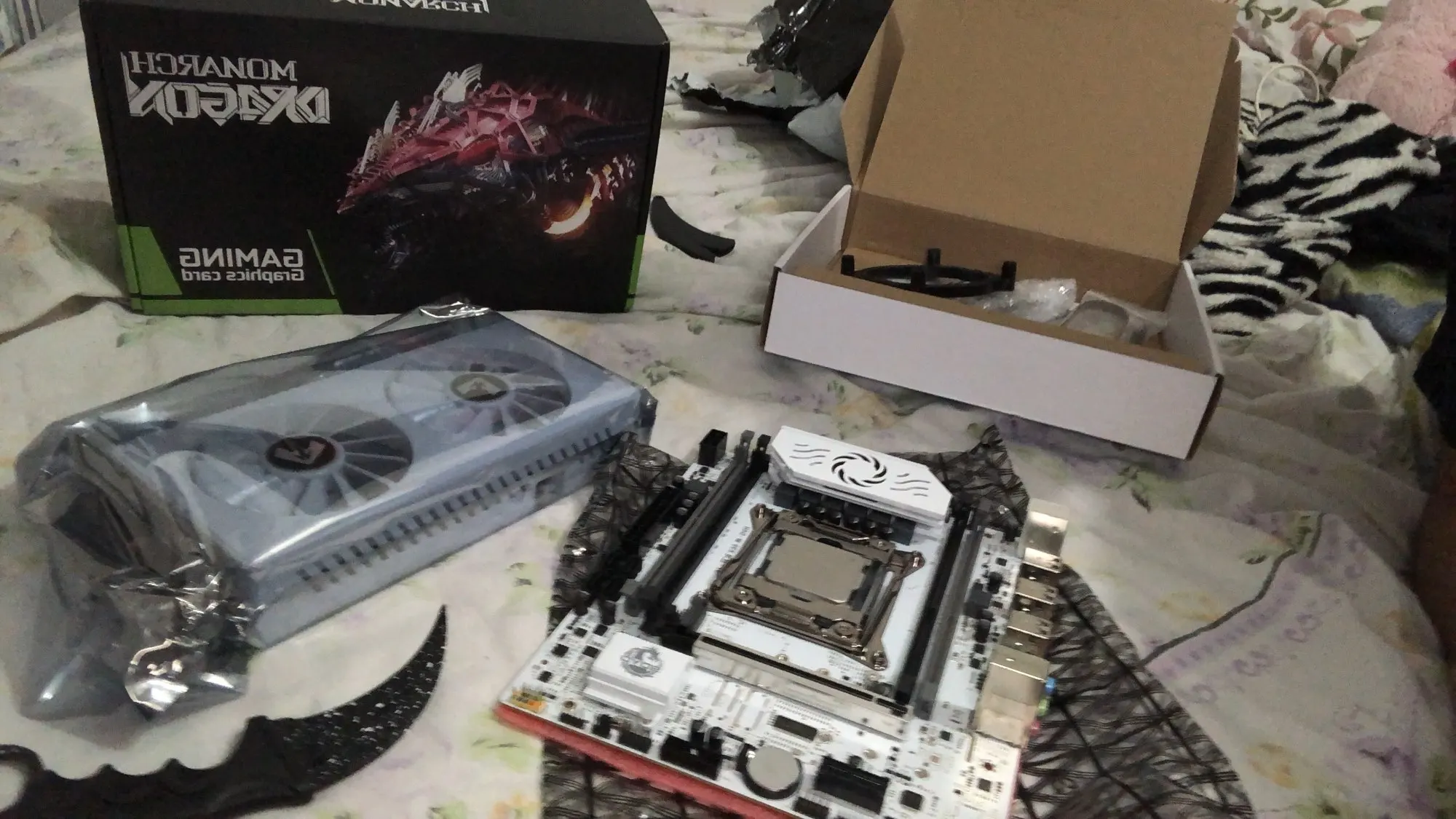

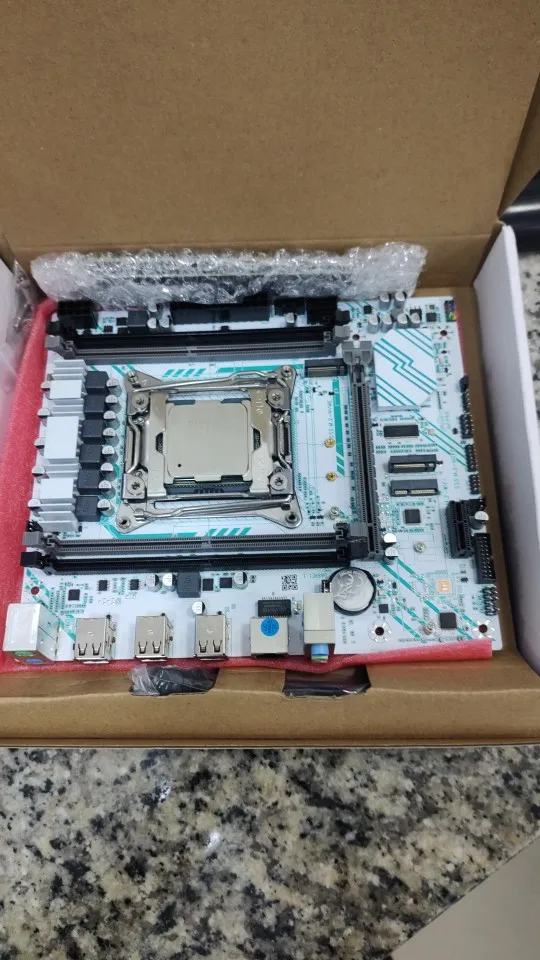

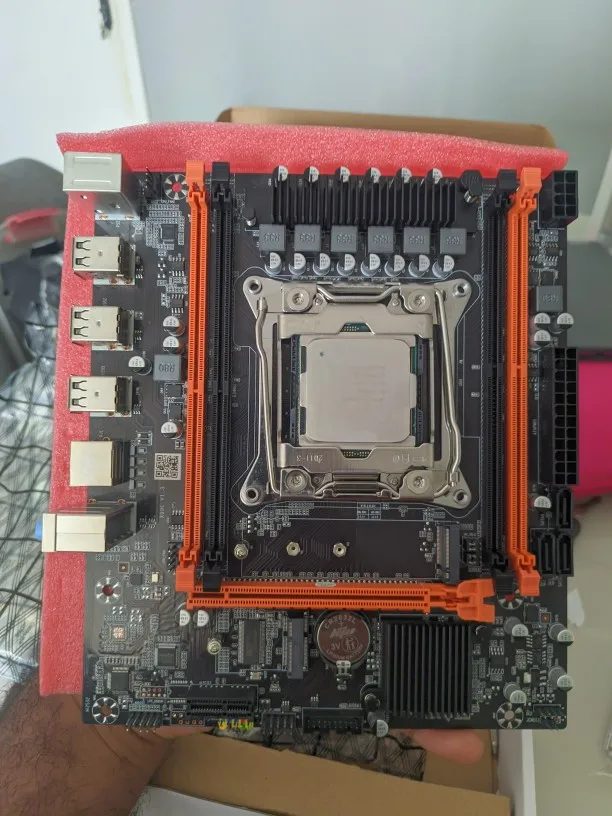

Very beautiful board with heatsinks on the VRM and chip, the processor arrived in perfect condition, and the RAM was packaged in bubble wrap, super well protected. Super fast delivery, arrived in 7 days, and everything was working without any issues.

Verified Buyer
Customer
22 Mar 2026 00:00

So far everything is normal, folks. I haven't tested it yet.

Verified Buyer
Customer
31 Jan 2026 00:00

Arrived on time, now it's just a matter of testing.

Verified Buyer
Customer
26 Jan 2026 00:00

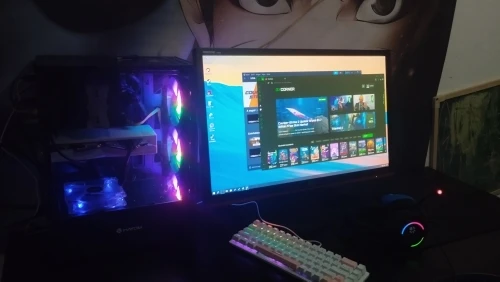

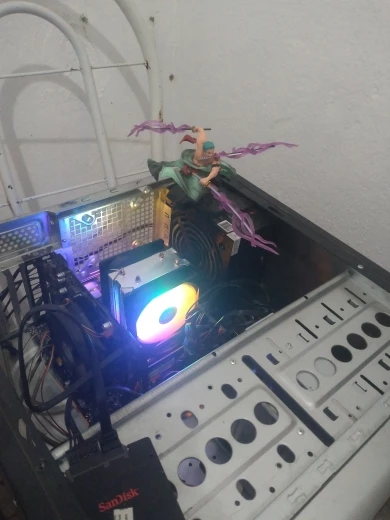

Very good, I installed it with a 6GB 1060 graphics card and it's running a lot of games smoothly; I'm playing Arcraiders at 85 fps.

Verified Buyer
O***a
10 Jan 2026 00:00

Everything arrived okay, I haven't tested it yet, waiting for more parts, I'll update once I test it.

Verified Buyer
J***r
7 Jan 2026 00:00

Great kit, everything working perfectly.

Verified Buyer
F***L
2 Jan 2026 00:00

Very correct, there was a mistake in my address, and the package was returned, but I am fully refunded.

Verified Buyer
5***r
6 Dec 2025 00:00

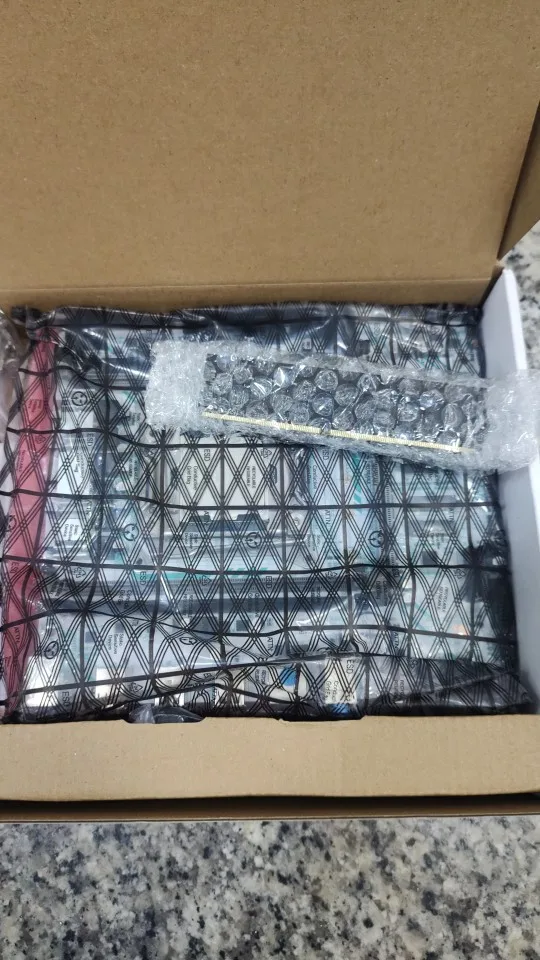

Everything arrived well packaged, I will assemble it in a few days, I am waiting for the other parts to arrive.
