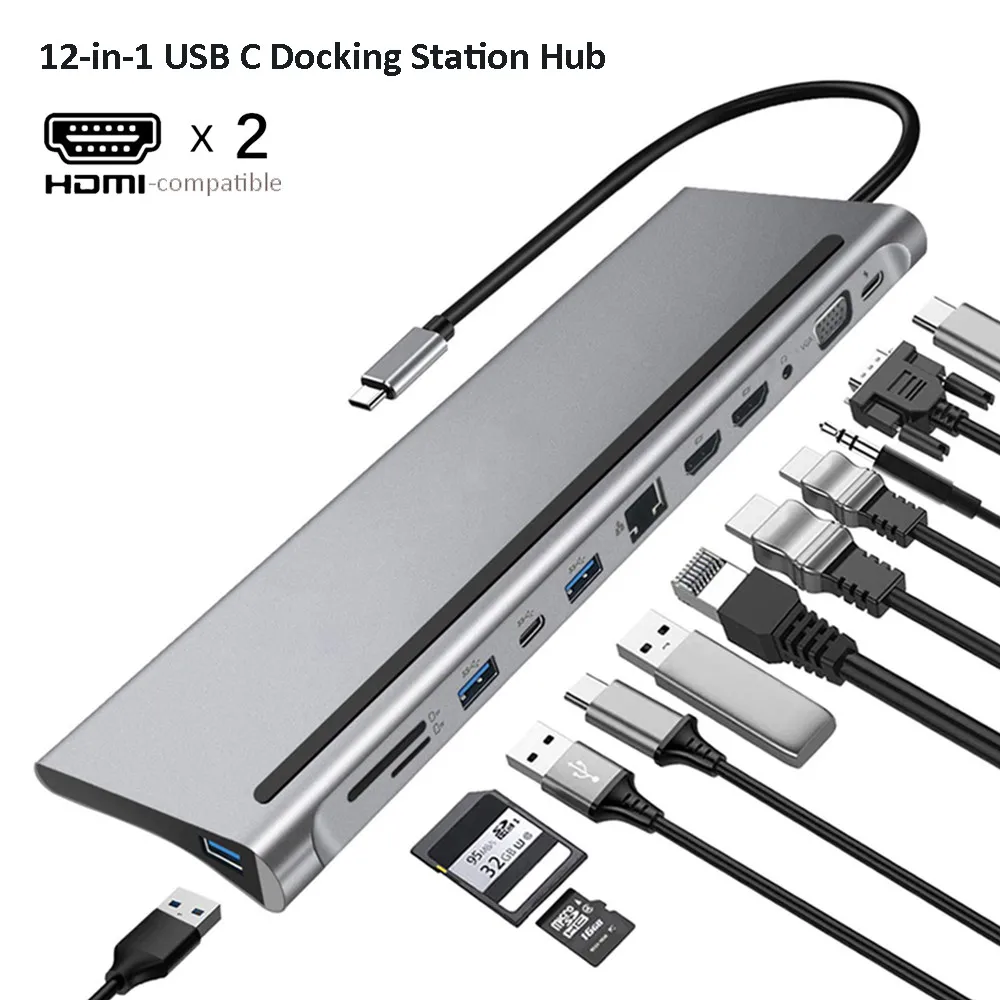

>>>12-in-1 2xHD4K VGA, 2*HD4K + VGA:
4K HDMI-Compatible@30Hz*2, VGA*1(1080P/60Hz),
USB 3.0*2, USB 2.0 *1, USB-C Data transfer *1,
RJ45*1(100Mbps), PD 100W *1, SD*1, TF*1, Audio*1;
12 in 1 model has MST function (For windows system, extended monitors in extend mode can show different screens).![]()

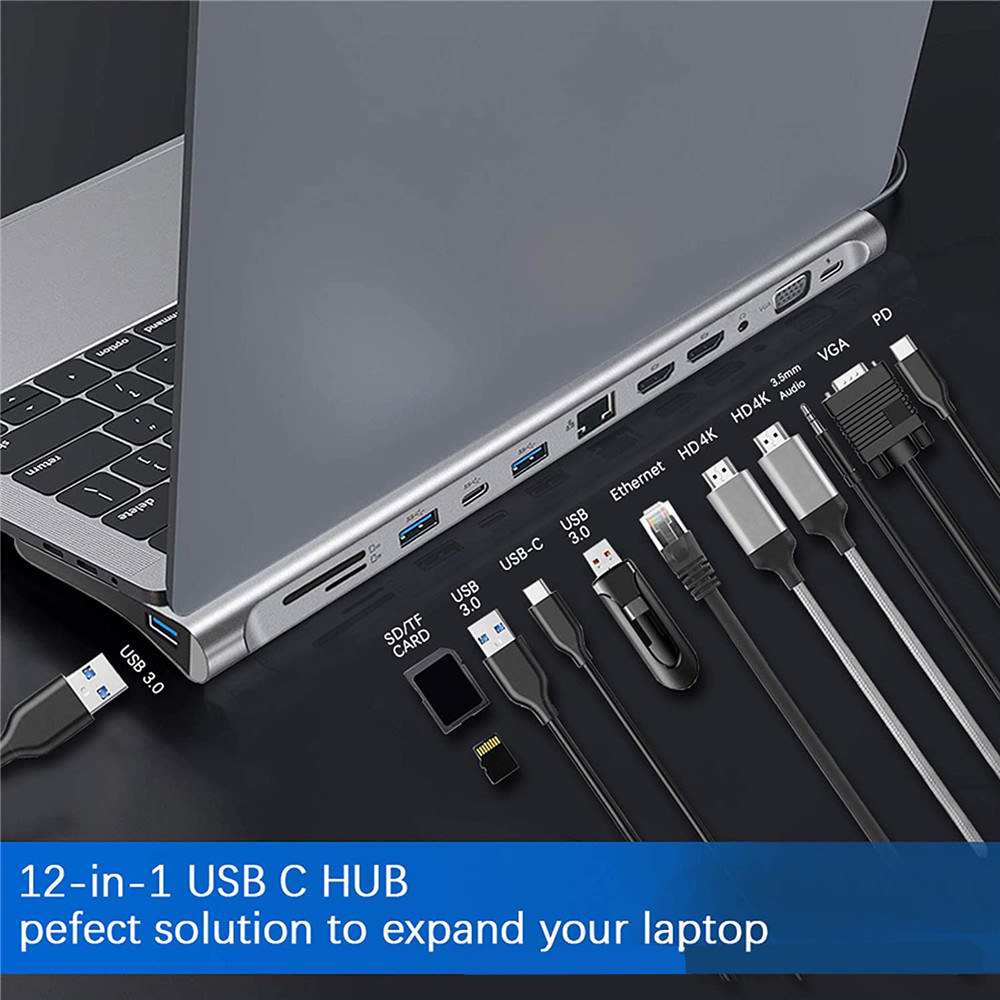

12-IN-1 Docking Station USB C Hub Functions:
Function-1: Connecting Keyboard, Mouse, USB Flash, Printer etc;
Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card (use one at a time, cannot be used at the same time);
Function-3: Connecting Lan via RJ45, Enjoy more reliable network than wireless;

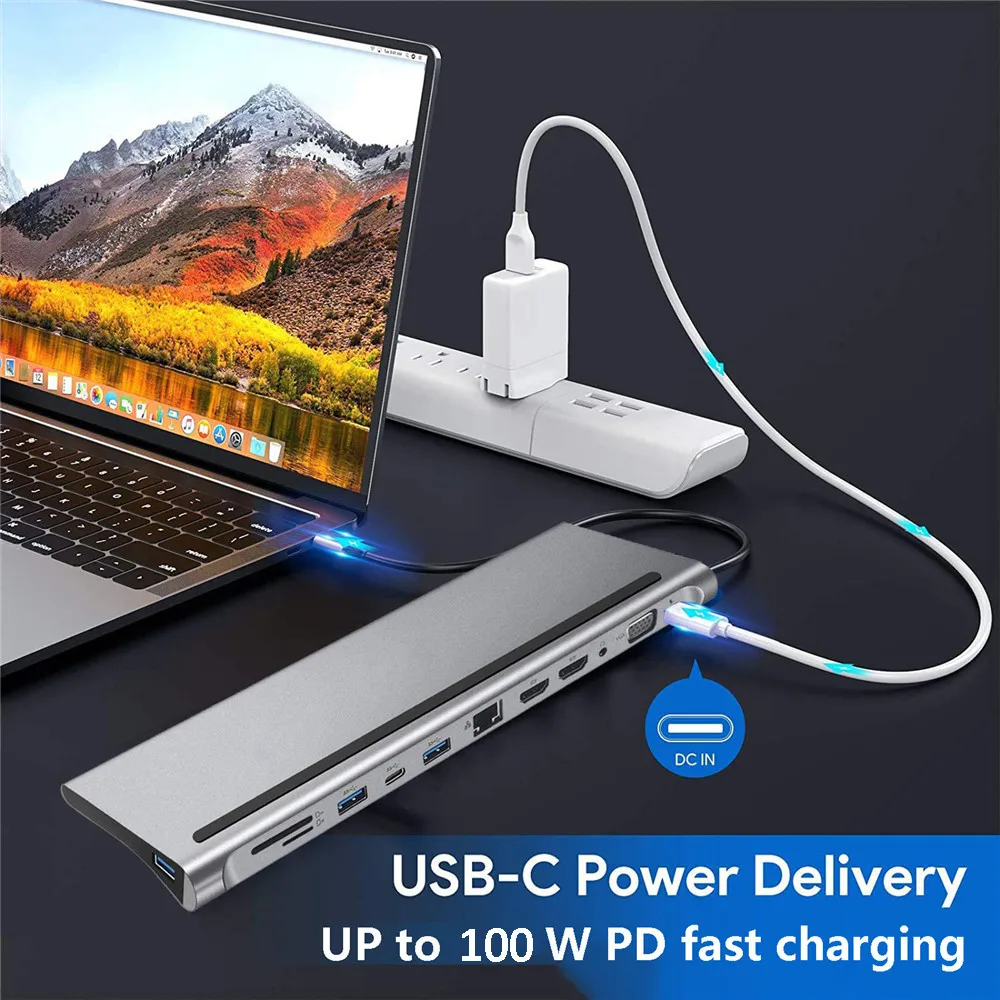

Function-4: Supporting USB C Power Delivery, Keep laptop the best performance;
Function-5: Extending a Larger Screen via HDMI-Compatible or VGA;
Function-6: Connecting Projector, Monitor, HD-TV, HDMI-Compatible up to 4K 3840×2160 30Hz;
Function-7: 2 HDMI-Compatible and VGA, Support Mirror Mode and Extended Mode;
Function-8: Supporting MST for windows system, Extend mode support Extend 2 monitors to show different contents on Windows.
ONLY For Windows supports Extend 2 monitors to show the different screens(MST).
For Macbook Mac IOS system doesn’t support (Extended monitors only can show the same content, but they can be different content with laptop itself).

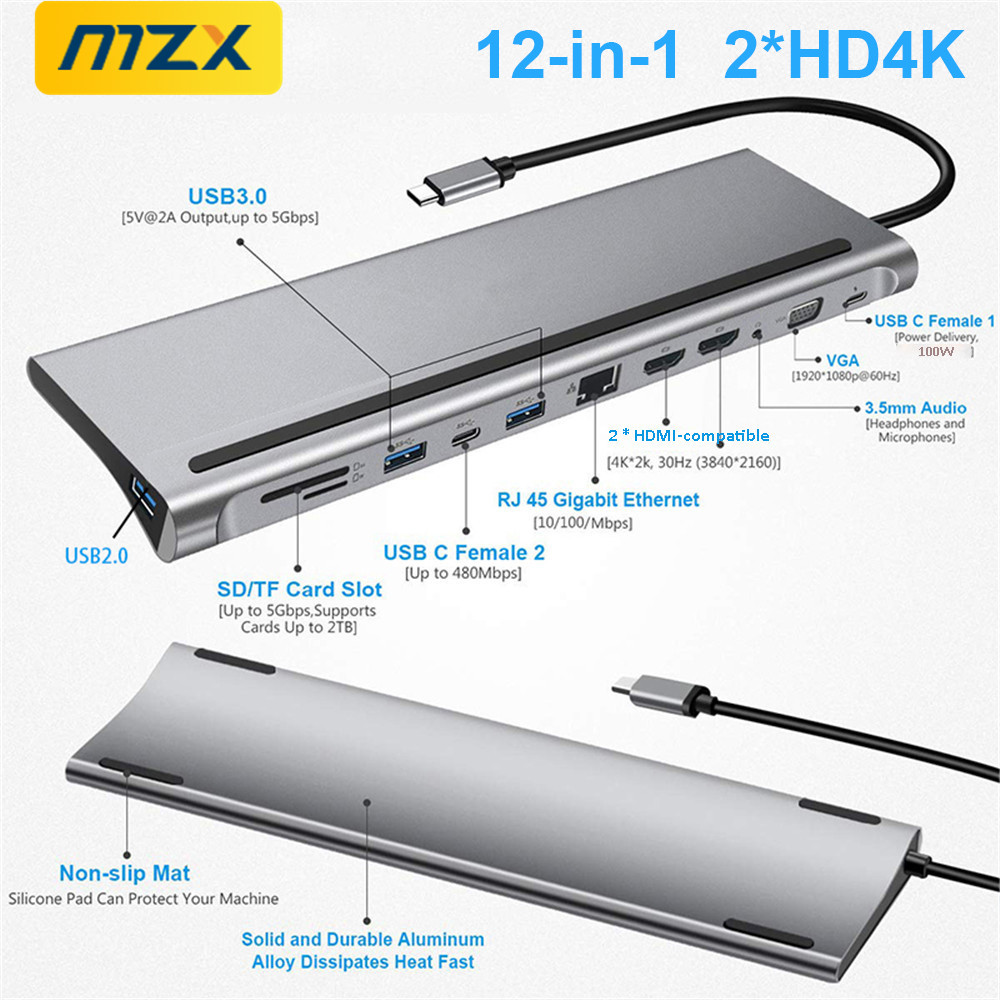

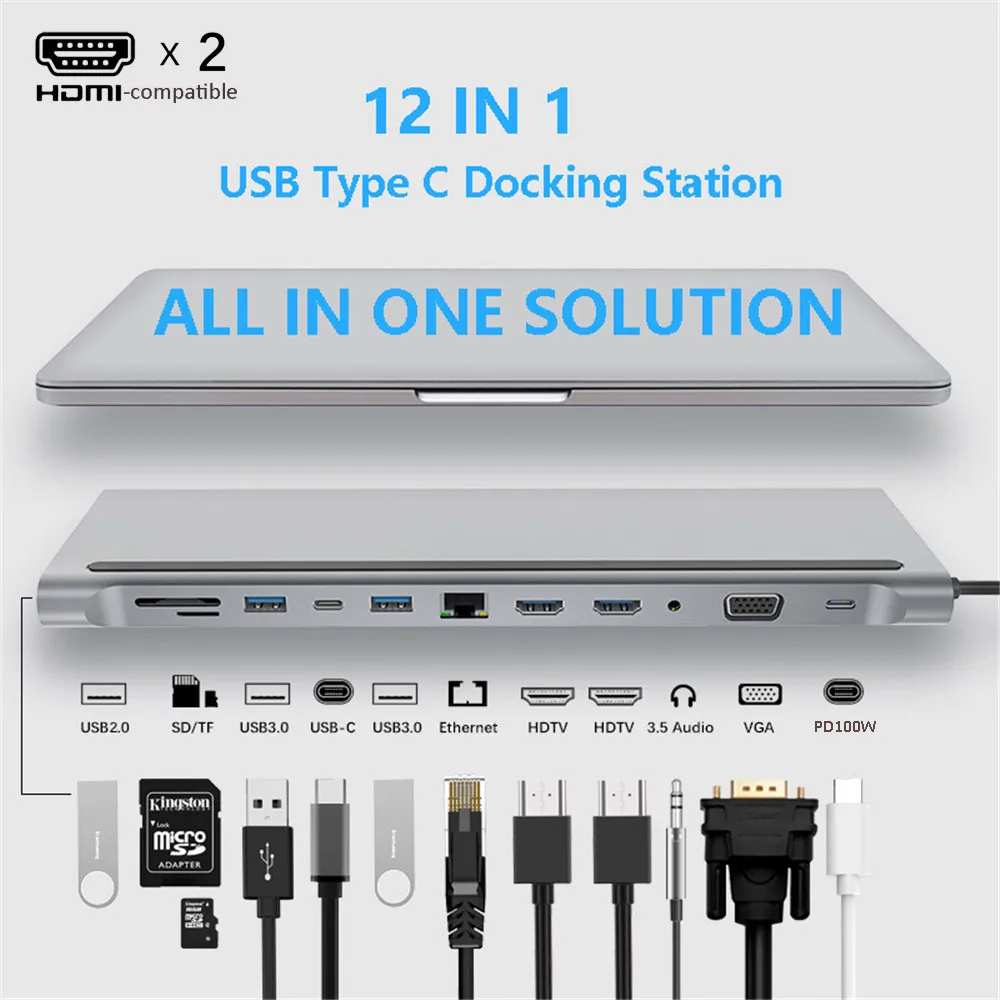

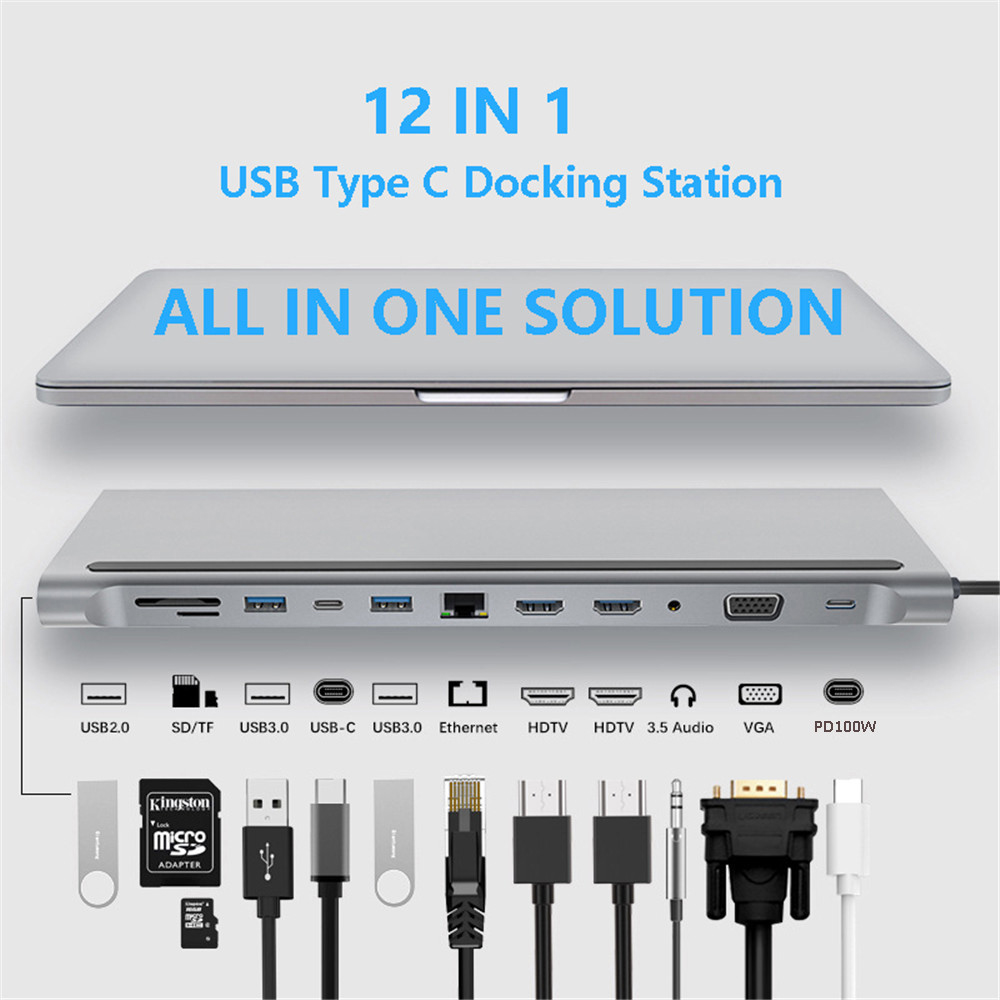

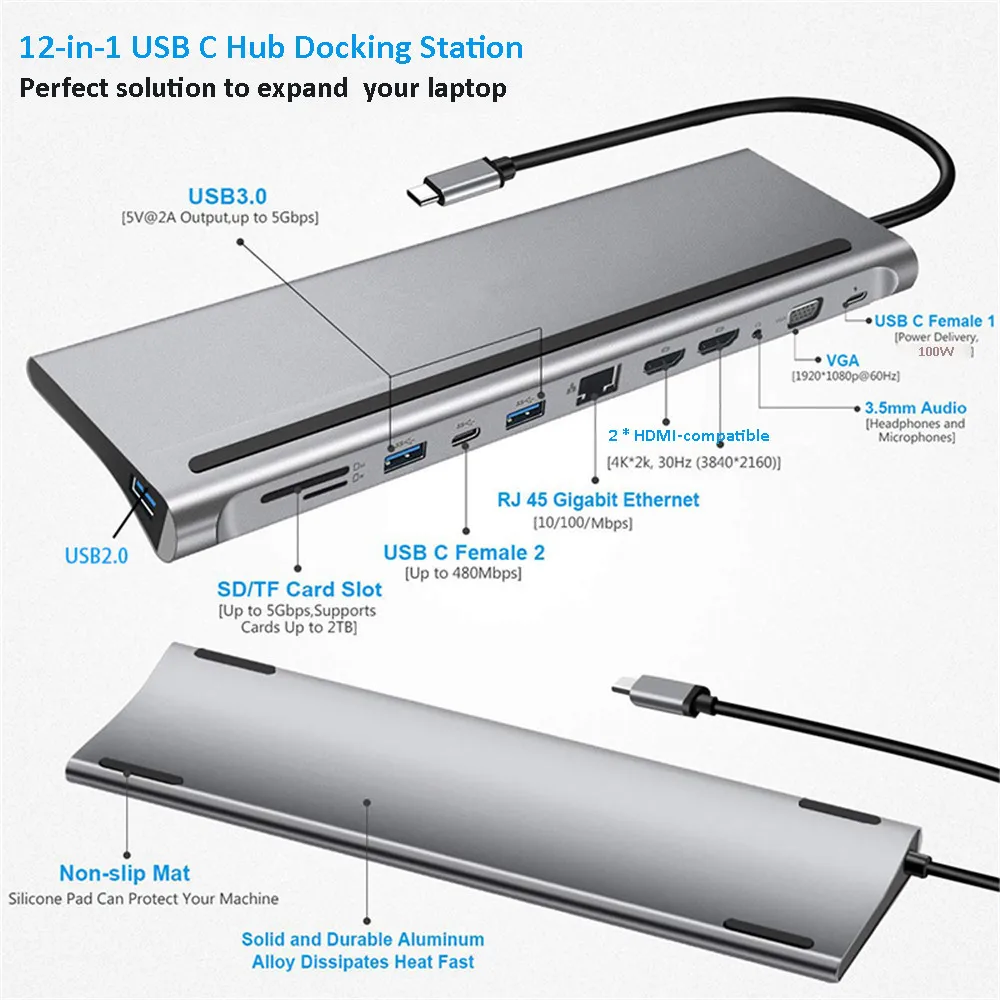

12-IN-1 Docking Station USB C Hub Specifications:
Color: Gray;
Material: Aluminum alloy + ABS;
Size: 274mm*80mm*(16mm, 8mm)/10.79*3.15*(0.62, 0.31)inch;
Length of Cable: 290mm/11.42inch;
Interface: USB Type C male port;
Port-1: USB 2.0, Type A Female Port;
Port-2: SD Card Slot;
Port-3: Micro SD Card Slot, TF Card Slot;
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W;
Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W;
Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W;
Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, NOT support 1000Mbps;
Port-8: HDMI-Compatible max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc;
Port-9: HDMI-Compatible max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc;
Port-10: DC 3.5mm Audio Jack Port;
Port-11: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc;
Port-12: USB Type C PD Input Charging Port, needs to use this port to supply power for the docking station, and charge your laptop (if your laptop supports it) from a power adapter.
The host device MUST require:
– The USB-C port of the host device(laptop, tablet, smartphone) MUST be a full function one, at least a USB-C 3.1 Gen 2, or 3.2 Gen 2, or above version, Compatible for Thunderbolt 3 or 4 port;
– The host device must support “DisplayPort Alternate Mode” (DP Alt Mode) to output video via the USB-C port.
It’s not compatible with devices which do not support the protocol of “DP Alt Mode”;
– The USB-C port of the host device is also a AC(power) port which can be used to charge the laptop, or you don’t want to power the laptop via this docking station.
WARNING TIPS:
1. If you are not sure whether this docking station is compatible with your laptop,
Before purchasing, please contact the seller to confirm whether the docking station hub supports your Type-C device.
2. You MUST make sure the host USB-C port is on the left side of your laptop.
Because the length of cable may be not long enough to connect USB-C port in the right side when placing this Docking station under the laptop.
Or you don’t want to place this docking station under the laptop.
3. A 4K-capable display and HDMI-compatible cable are required to achieve 3840×2160 resolution.
It supports 4K or 2K when only one HDMI-Compatible monitor is connecting. When connecting more than one monitor, their resolution will be downward to 1080p.
4. When you use the docking station to extend monitors, please connect to monitors first, and then connect to your laptop.
HDMI-Compatible or VGA Hot plug is not supported.

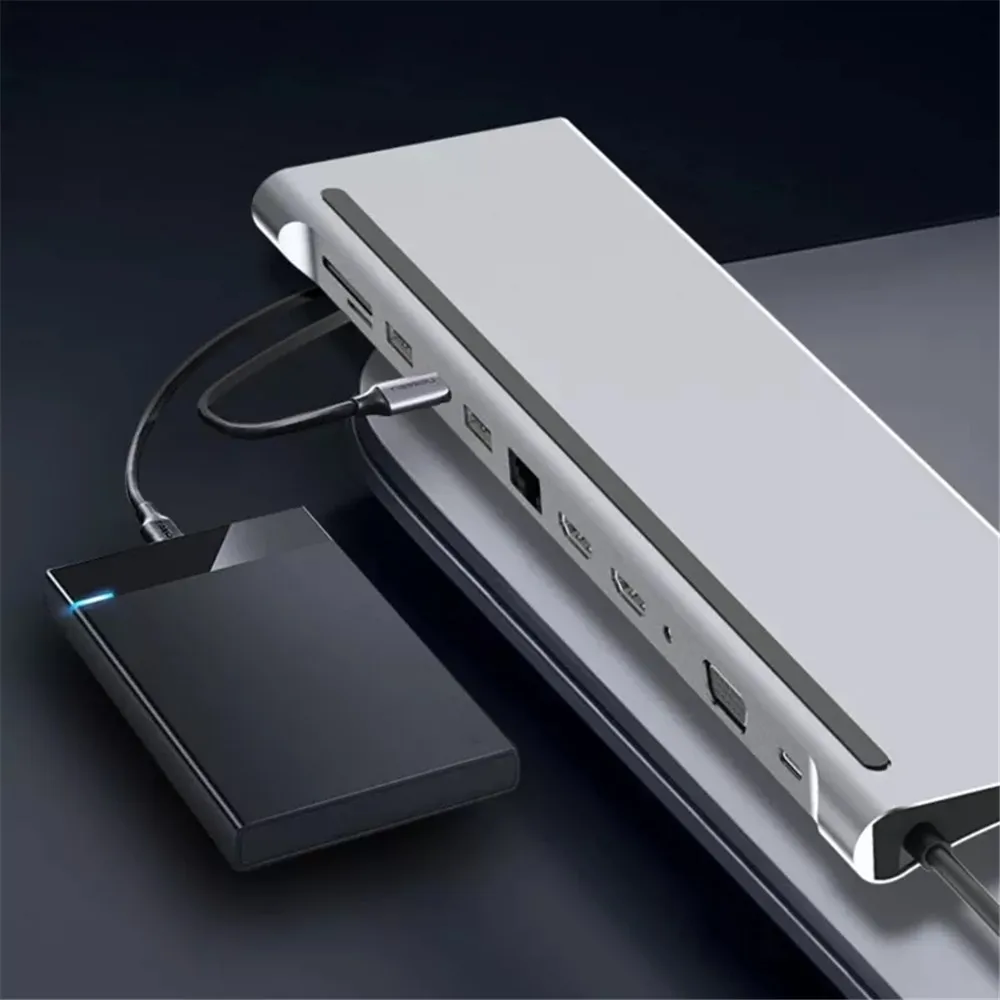

5. Cannot read hard drive which cannot bring the Power Source, Cannot read hard drives more than 2TB, Cannot support the USB Hard Drive Power more than “5V 900mA”.
6. The TF / SD card reader comes with a single drive chipset, read only one card at a time (cannot be used at the same time).
7. The 3.5mm jack Audio has Output function only for headphone or speaker, does not have input for Microphone.
About audio no sound, please check with seller. Maybe because the Audio should be used together with VGA or HDMI-compatible at the same time, for some models.
Not all laptops shift to the Audio model automatically, if no sound when headphones plugs in, please choose the sound channel to earphone mode manually.
8. HP charging problem was caused by HP and HP doesn’t allow the third party charger to charge their computer, HP must use the original charger.
9. For stable connection, connect a power adapter to the hub when using high-power devices.
10. The working temperature of the hub is about 40℃/104F.
11. If your USB devices have connection performance problem, please change your WIFI to WIFI 5G to resolve interference between USB 3.0 and 2.4GHz WIFI Tips.
12. USB Type C PD 100W Input Charging Port, needs to use this port to supply power for the docking station, and charge your laptop from a power adapter (the laptop must support charge via this Type C port).

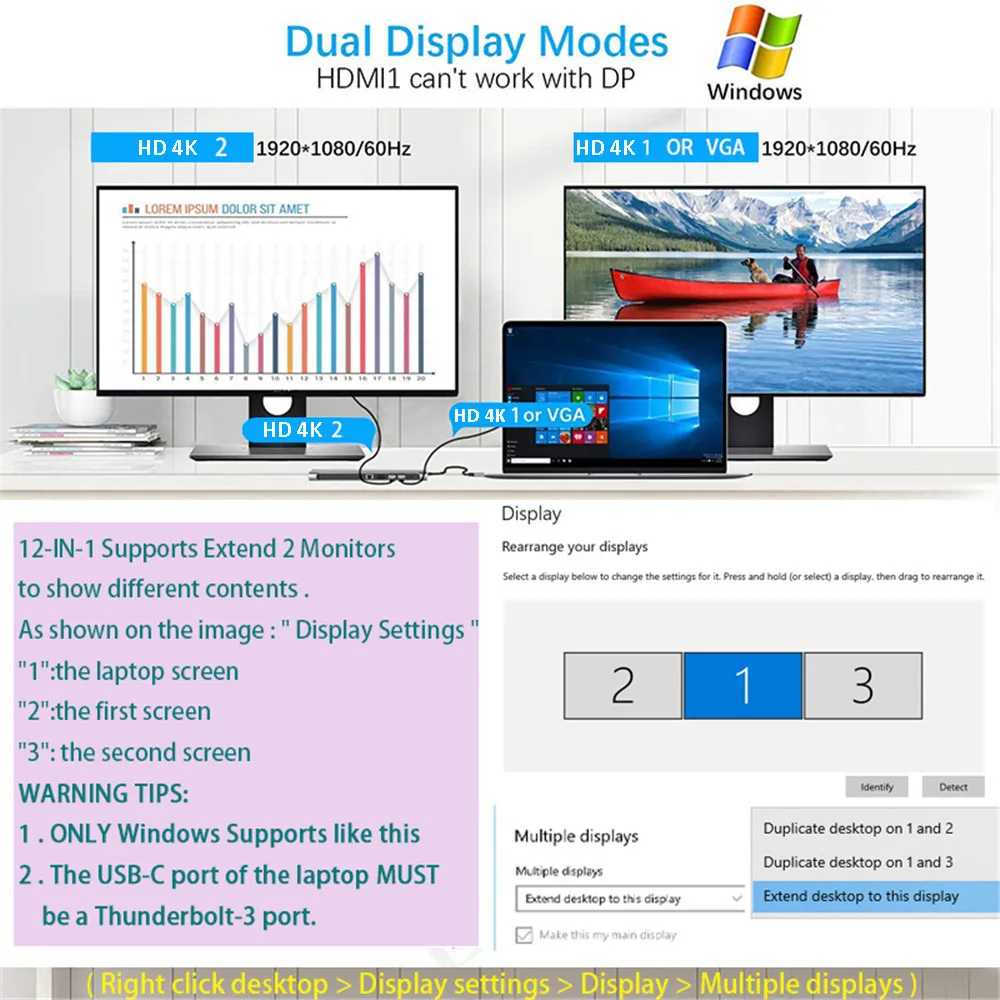

13. ONLY For Windows supports Extend 2 monitors to show the different screens(MST). For Macbook Mac IOS system doesn’t support;

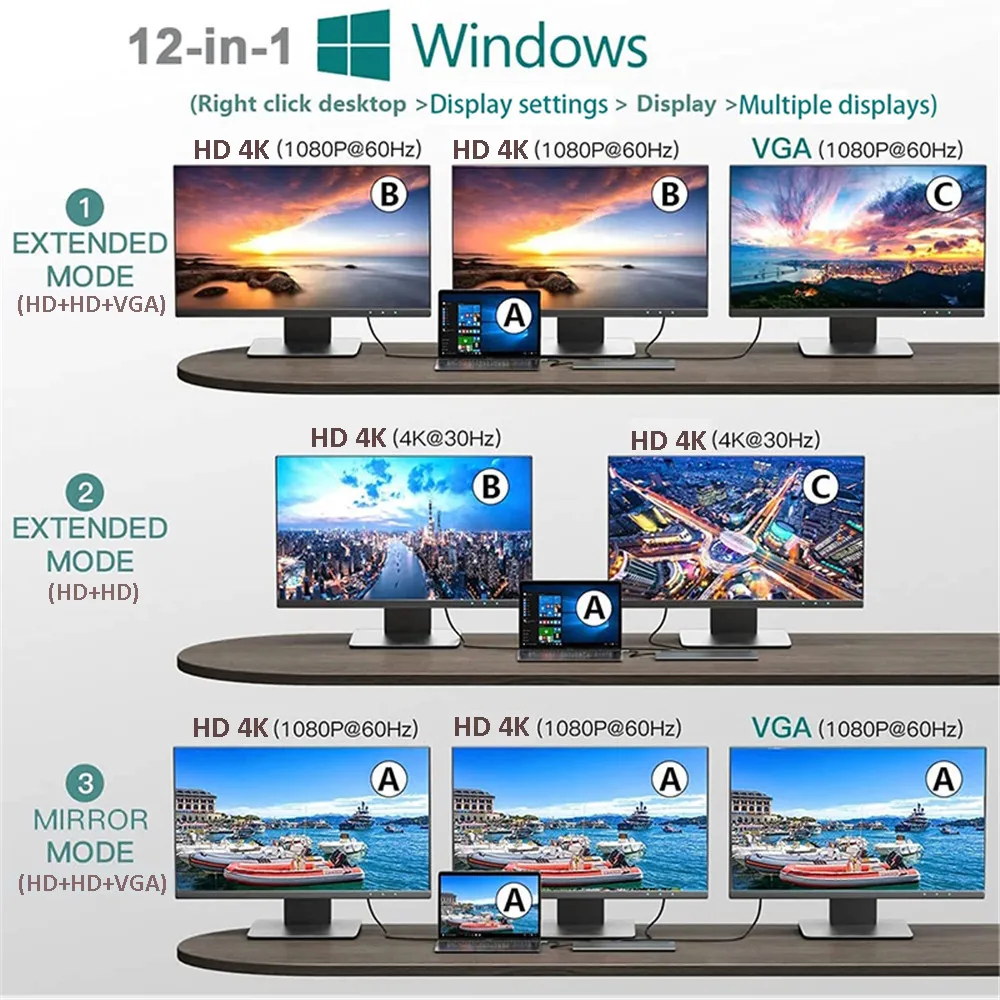

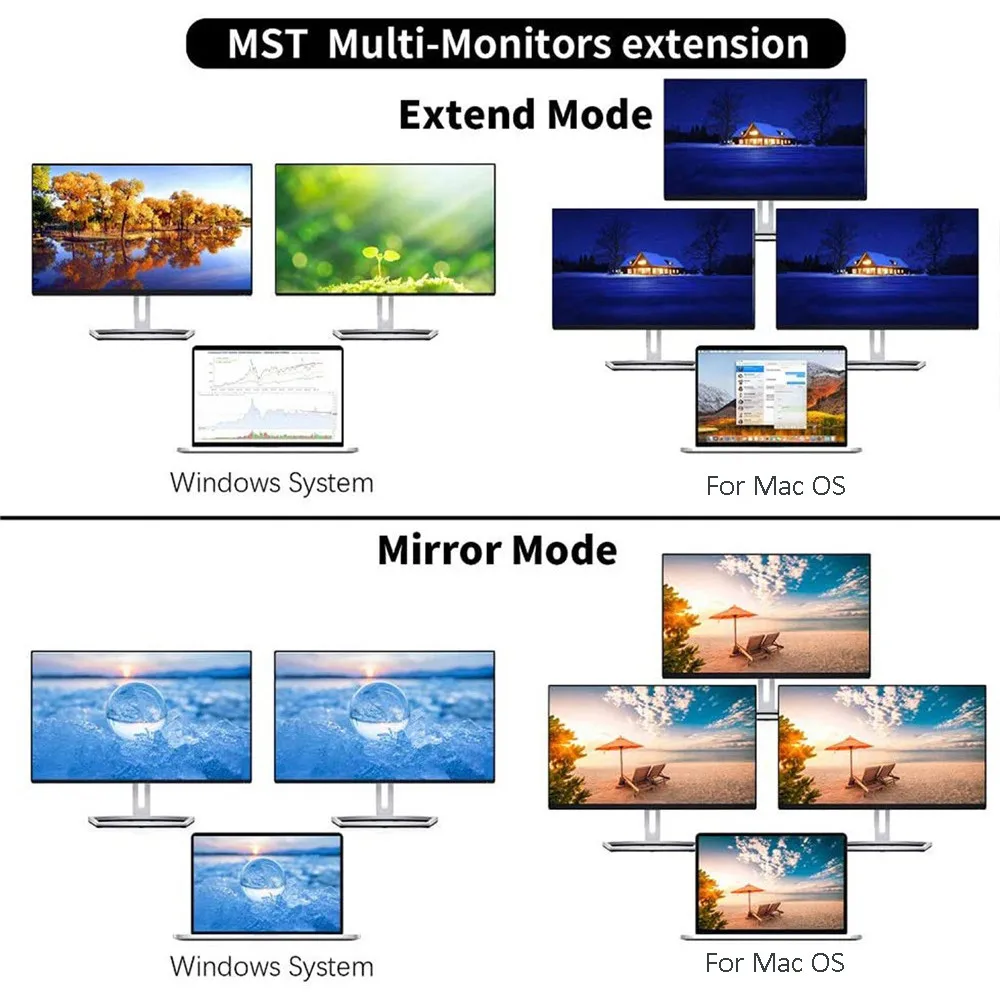

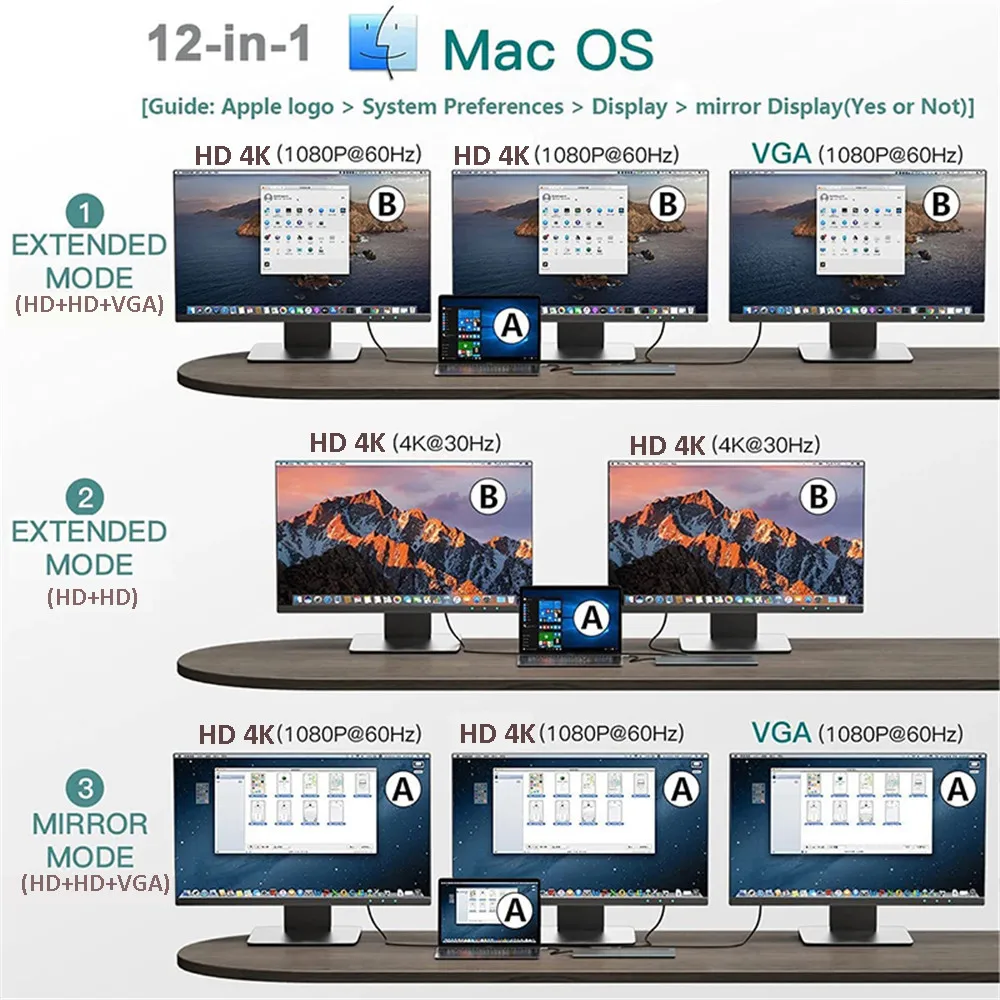

14. For Mirror/Copy mold:
All screens are showing the same content;
15. For Extend mold:
Windows system supports MST, the 2 extended monitors can show different content;
For Macbook Mac IOS system, the 2 extended monitors can only show same content, but they can be different content with laptop itself;

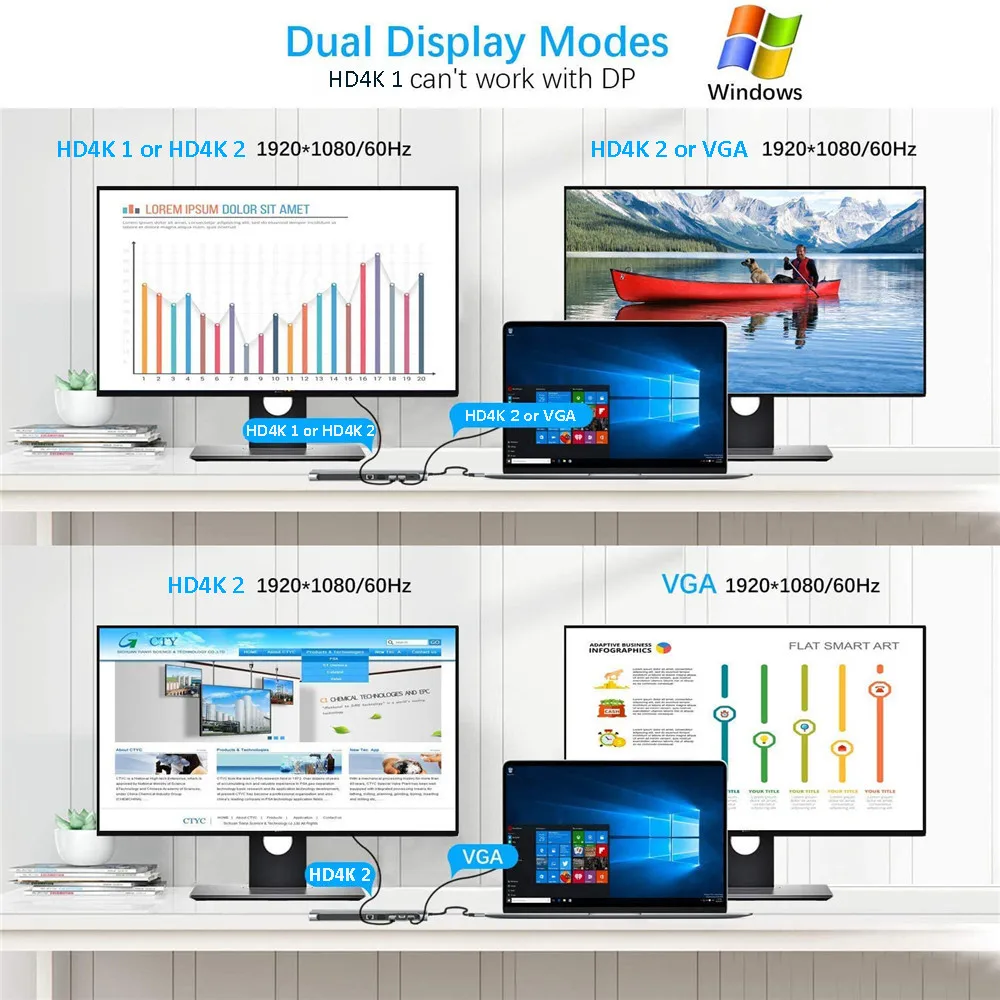

16. It supports 4K or 2K when only one HDMI-Compatible or DP monitor is connected.
When connecting more than one monitor, the resolution will be downward to 1080p.
When only HDMI-Compatible or DP is connected, the output resolution is 4K.
When both HDMI-Compatible(or DP) and VGA are connected, the output resolution is 1080P.

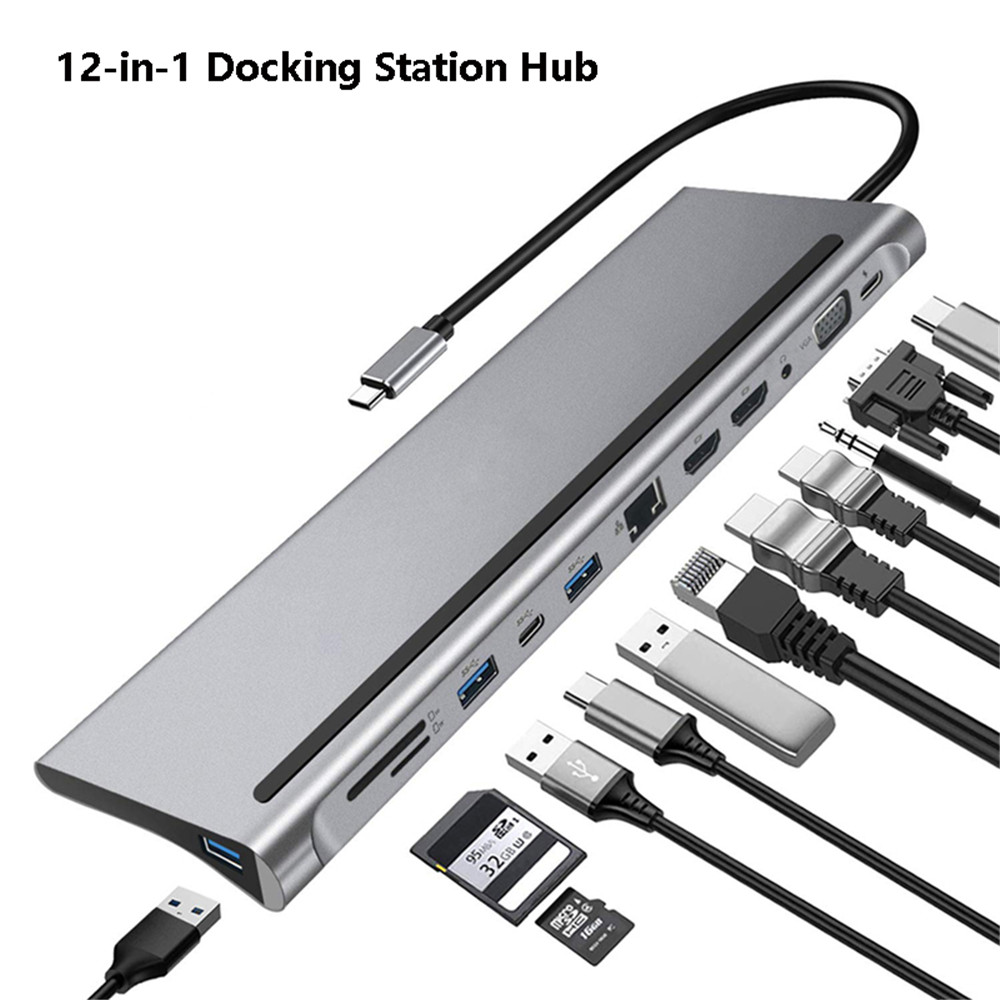

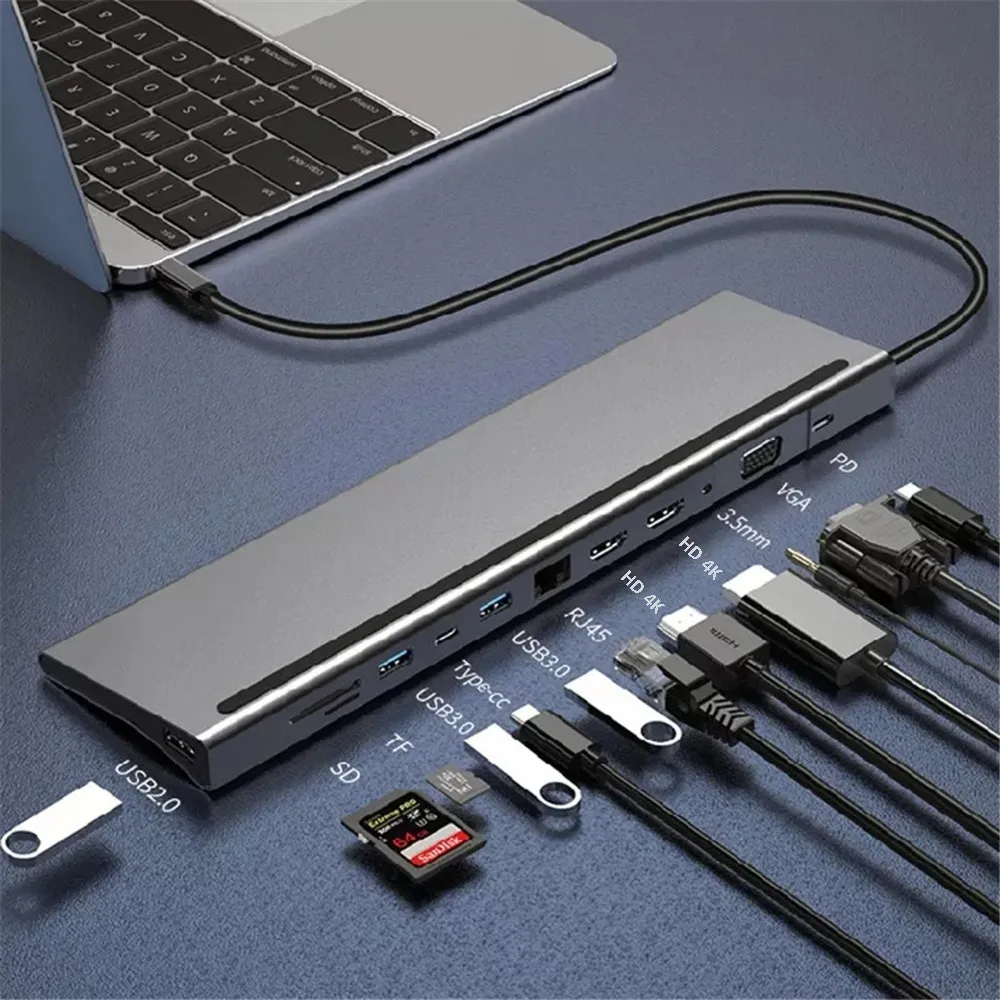

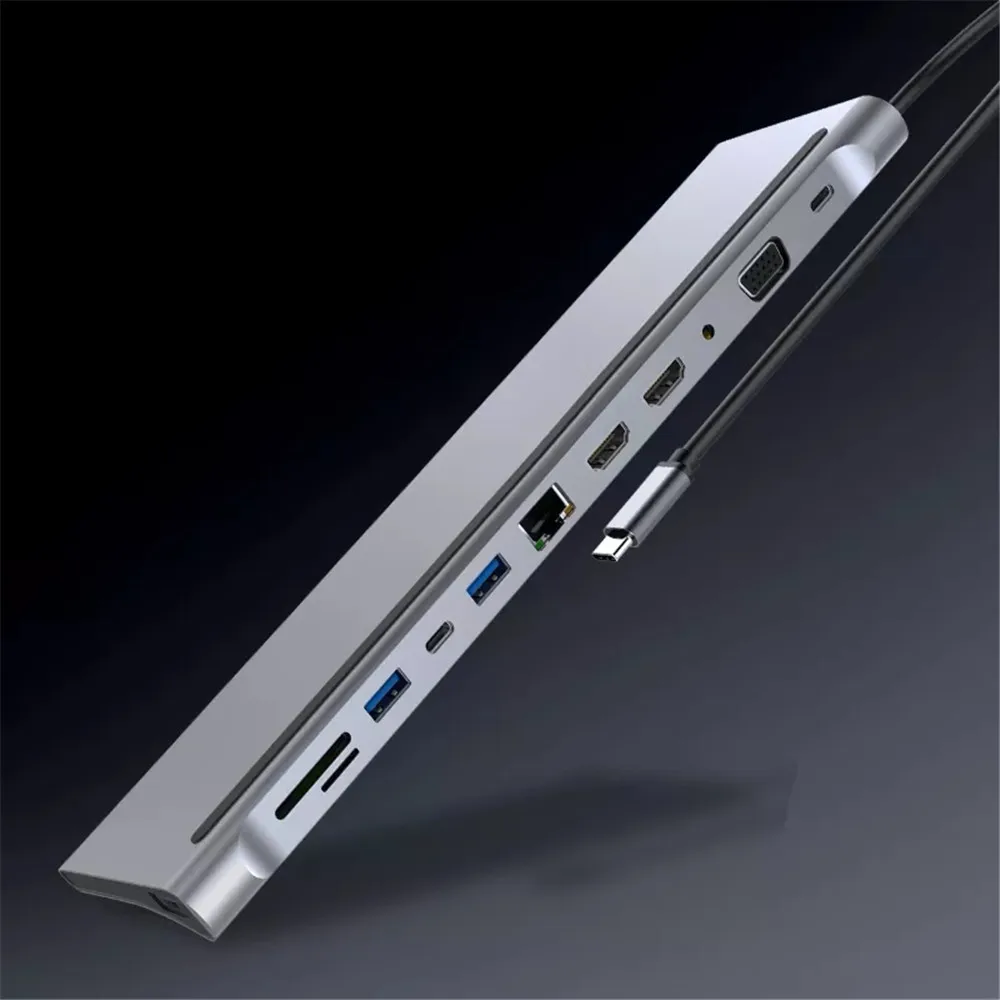

12-IN-1 Docking Station USB C Hub pictures:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
Windows system supports MST, the 2 extended monitors can show different content:![]()
For Macbook Mac IOS system, the 2 extended monitors can only show same content, but they can be different content with laptop itself:![]()
![]()
![]()
![]()
>>>12-in-1 2xHD4K VGA, 2*HD4K + VGA:
4K HDMI-Compatible@30Hz*2, VGA*1(1080P/60Hz),
USB 3.0*2, USB 2.0 *1, USB-C Data transfer *1,
RJ45*1(100Mbps), PD 100W *1, SD*1, TF*1, Audio*1;![]()

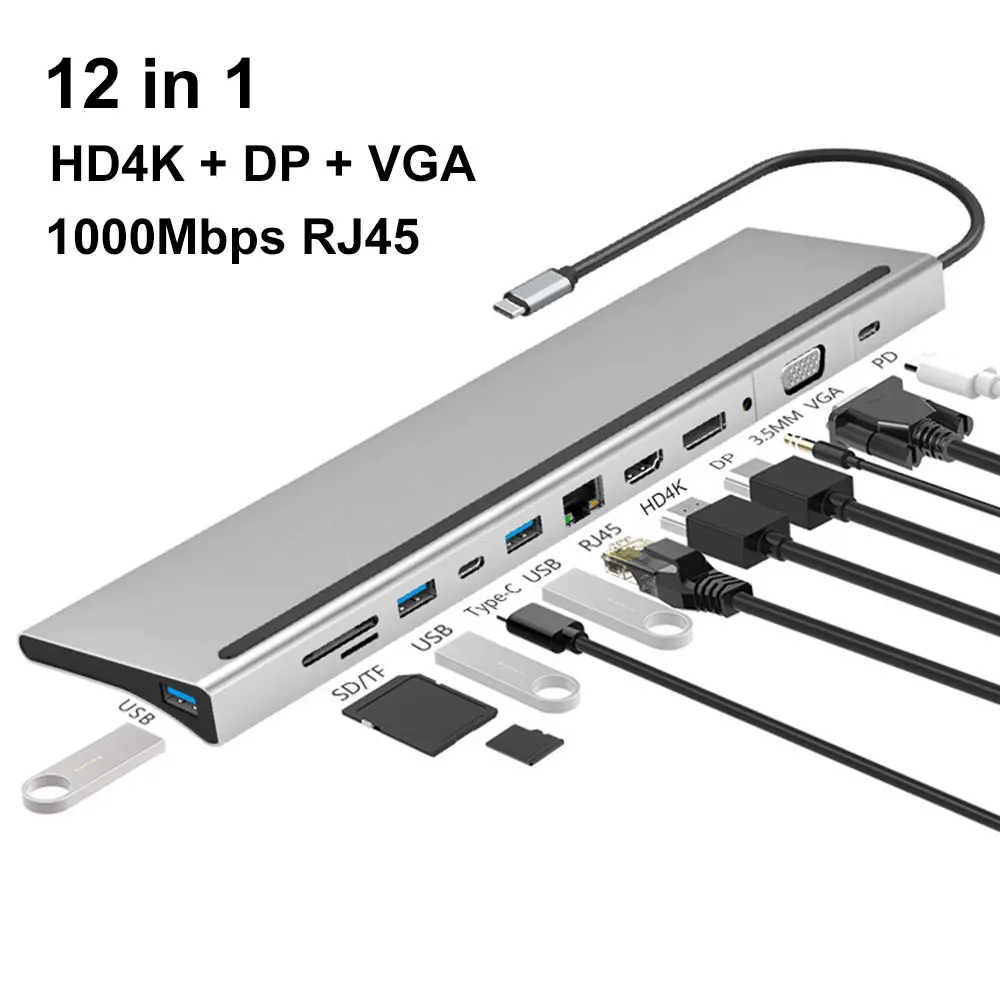

>>>12-in-1 4K DP 1000M, 1*HD4K + PD + VGA:
4K HDMI-Compatible@30Hz&1, DP*1, VGA*1(1080P/60Hz),
USB 3.0*2, USB 2.0 *1, USB-C Data transfer *1,
RJ45*1(1000Mbps), PD 100W *1, SD*1, TF*1, Audio*1;![]()
MZX 12in1 MST Docking Station Multi Hub USB C Type A HDMI-Compatible Concentrator Extensior RJ45 Adapter Dock Hubs for Laptop PC, Multi Multiple Ports Concentrator Extension Extensor Extensior Multi-hub HDMI-Compatible Rj45 SD TF Card Reader USB 3.0 2.0 USBC Type-C TypeC USB-C PC Desktotps Notebook Computer Laptop Accessories for HDMI Macbook Pro Mac Air Thunderbolt 3 4 Nintendo switch stream deck macbook air pro m1 m2 steamdeck play station 4 mac mini usb c to hdmi splittertop PC Accessories Multi Ports Multiple Ports Extension to HDMI-Compatible Rj45 SD TF Card Reader USB 3.0 2.0 for Macbook Pro HDMI 4K 30Hz Air Thunderbolt 3 4![]()
![]()
![]()
![]()
Rigorous test:
100% inspection. Each product must be tested and inspected one by one before entering products facilities, any unqualified materials are rejected immediately.We provide quality control testing and analysis for each product line.
Multiple testing:
All products are produced in accordance with requested technical document.
The first several products of each day will be checked first by the worker, then by our full time QC inspector.
Mass production will be started only if the sample products have been tested and all have been passed inspection.
Professional QC team:
During mass production, the QC team will periodically check products to ensure randomized testing.
The QC team completely a tour of inspection and parts are spot checked before they are able to move on to the next step in production.
Finished products are 100% inspected one by one to make sure no quality issue.
