Fanxiang S660 SSD 2TB 1TB 500GB 5000MB/s M.2 NVMe PCIe4.0x4 SSD Internal Solid State Drive For PS5/PlayStation5 Desktop
Installation video as below
Specification
Brand:Fanxiang
Name:S660
Heatsink Material:Aluminum Alloy
Interface Type:M.2 2280 NVMe PCIe 4.0×4
Storage Medium:3D TLC NAND Flash
Capacity:
S660-1TB:Sequential Read Speed up to 5000 MB/s;Write Speed up to 4500 MB/s.Max to 700TBW
S660-2TB:Sequential Read Speed up to 4800 MB/s;Write Speed up to 4200 MB/s.Max to 1400TBW
S660-4TB:Sequential Read Speed up to 5000 MB/s;Write Speed up to 4500 MB/s.Max to 2800TBW,Only S660-4TB is QLC
Supported System:For PS5/Windows 7/8/10/11.Linux/Unix
Storage Temperature:-20℃∽+85℃
Operating Temperature:0℃∽+70℃
Size:80*22*2.4mm
Weight:≈40g
Warranty:5-year

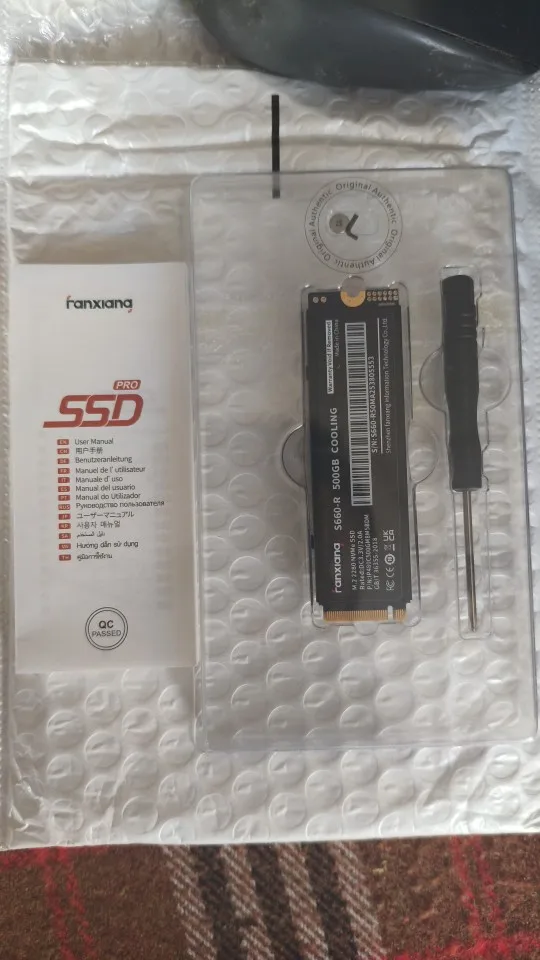

Package Contents:
S660 SSD x 1
Heatsink x 1
Screwdriver x 1
Screw x 1
Note to buyers:
✬On PS5,S660 will not reach the maximum speed marked 5000MB/s,and the estimated reading speed of S660 is about 4500MB/s.If buyer mainly uses it to expand PS5,please pay attention to the points in advance.
✬All products are 100% original brand products from our Fanxiang factory,if you find counterfeit products,you can contact us for a full refund
✬The capacity of storage products is 1TB=1000GB,so after plugging into the computer,you will find that the actual capacity is lower than the rated capacity,which is a normal phenomenon
✬We provide a 5-year warranty for the product.During this period, if the product itself fails (not caused by human damage or water),you can contact us for a free replacement
✬The rated speed of the product needs to be matched with the corresponding motherboard to basically achieve it.If you find a speed problem,please contact our customer service first.

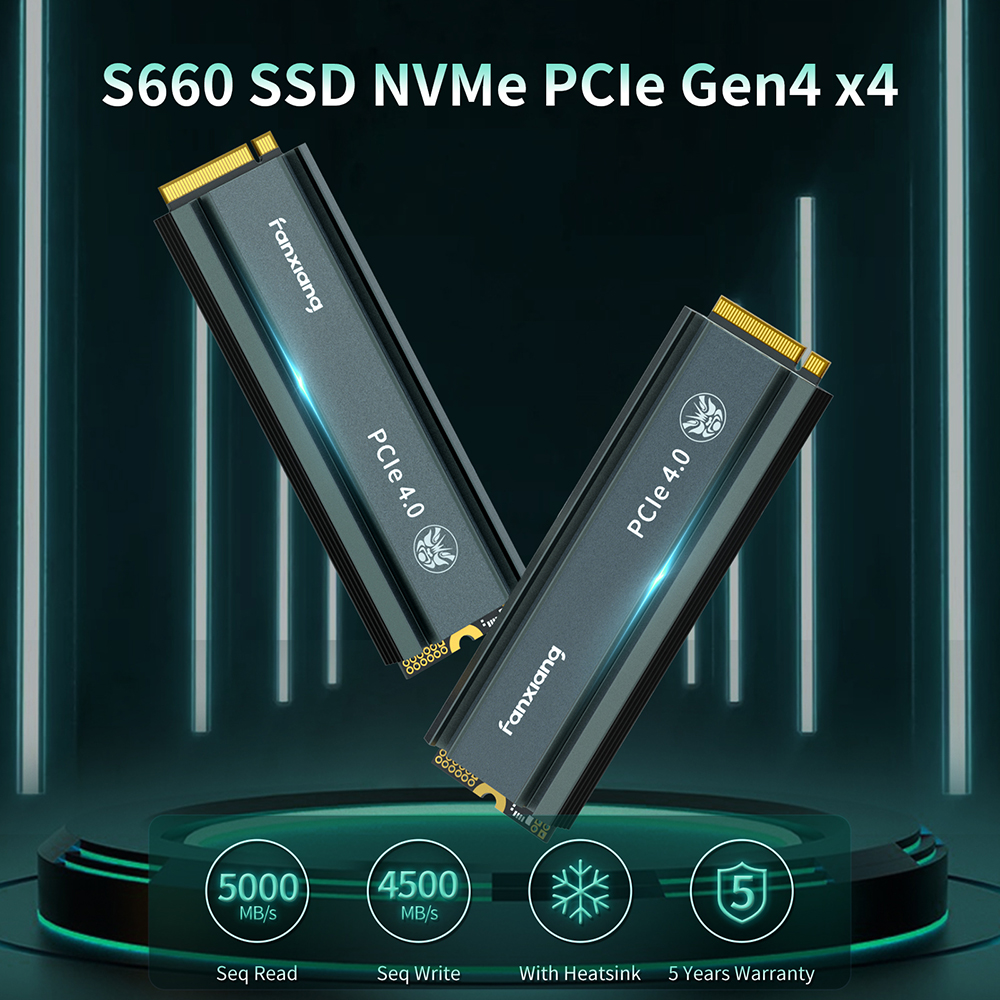

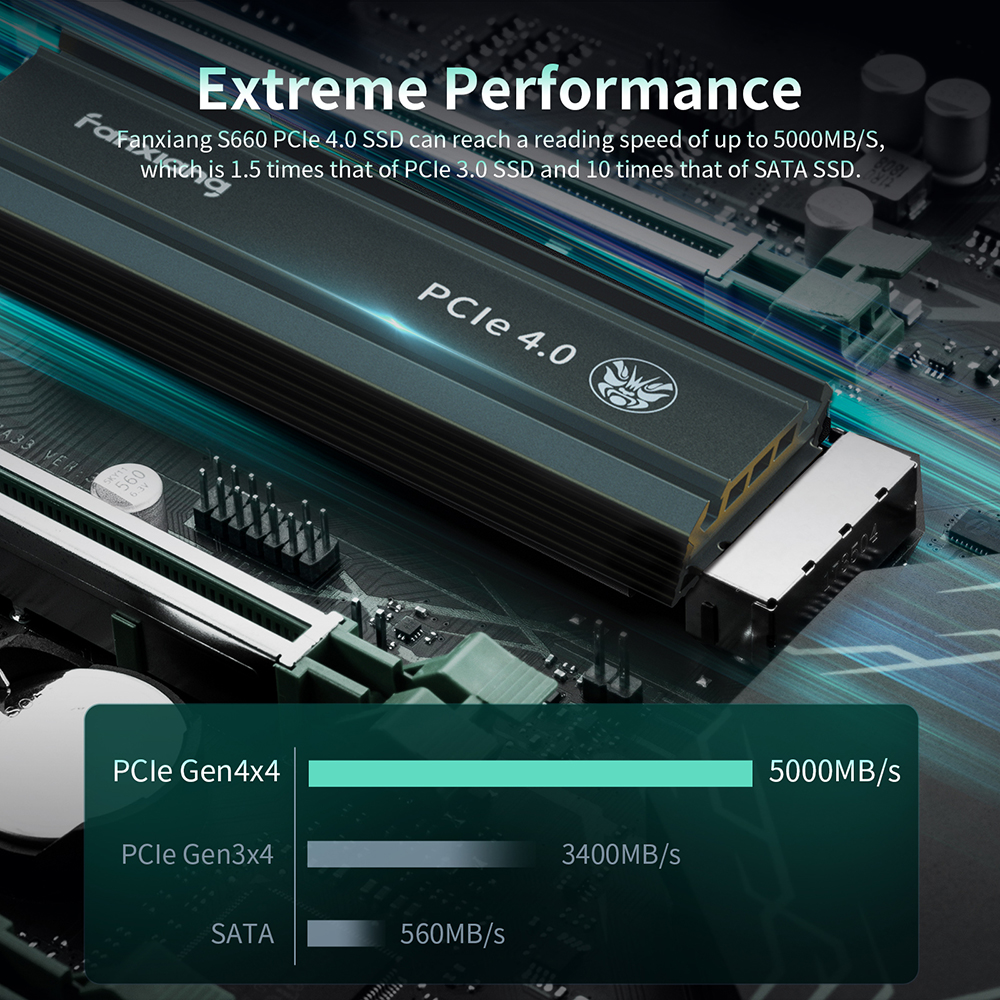

Top-tier Performance
The S660 M.2 SSD features PCIe 4.0 technology with up to 5000MB/s maximum read speeds and up to 4500MB/s maximum write speeds,ensuring lightning-fast file transfers and game load times
Stable And Reliable
Our NVMe SSD adopts high-quality flash memory chips and cutting-edge controller technology,and has undergone 80 hours of rigorous testing and 5 times of strict inspection to ensure long-term stability and reliability.Our 5-year warranty and 700TBW give you peace of mind

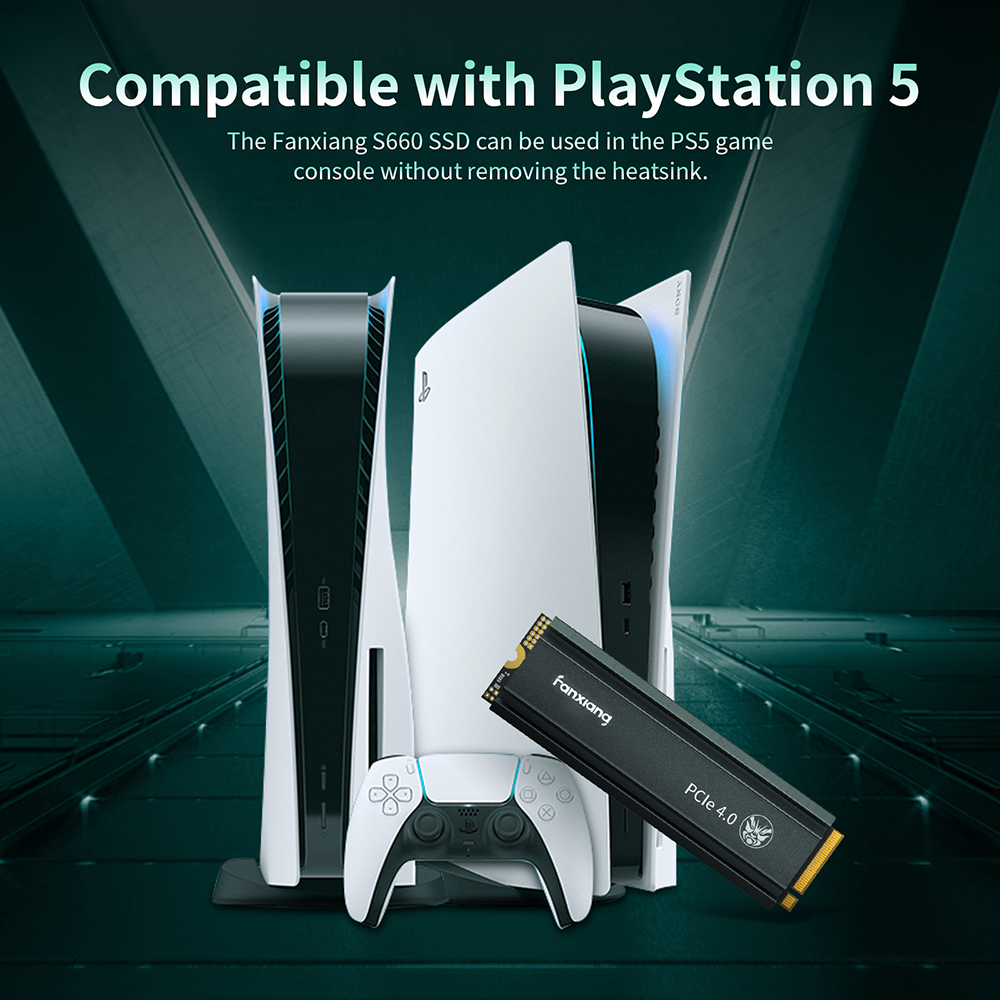

Perfectly Compatible
There is a heat sink (not installed) in the solid state drive box,which is perfectly compatible with PS5,effectively reducing the temperature of the hard drive,ensuring stable operation under high load,allowing you to play games more smoothly and enjoy a better gaming experience
Flexible Capacity Options
Our hard drive provides a range of storage options from 500GB to 2TB, satisfying various user needs and providing ample storage space for work, study, or entertainment
Widely Compatible
Internal SSD is compatible with Windows7,8,10,11,Mac OS10.9, and later.Compatible with laptops, desktops,and all-in-one computers (computer motherboard must be equipped with M.2 2280 interface)

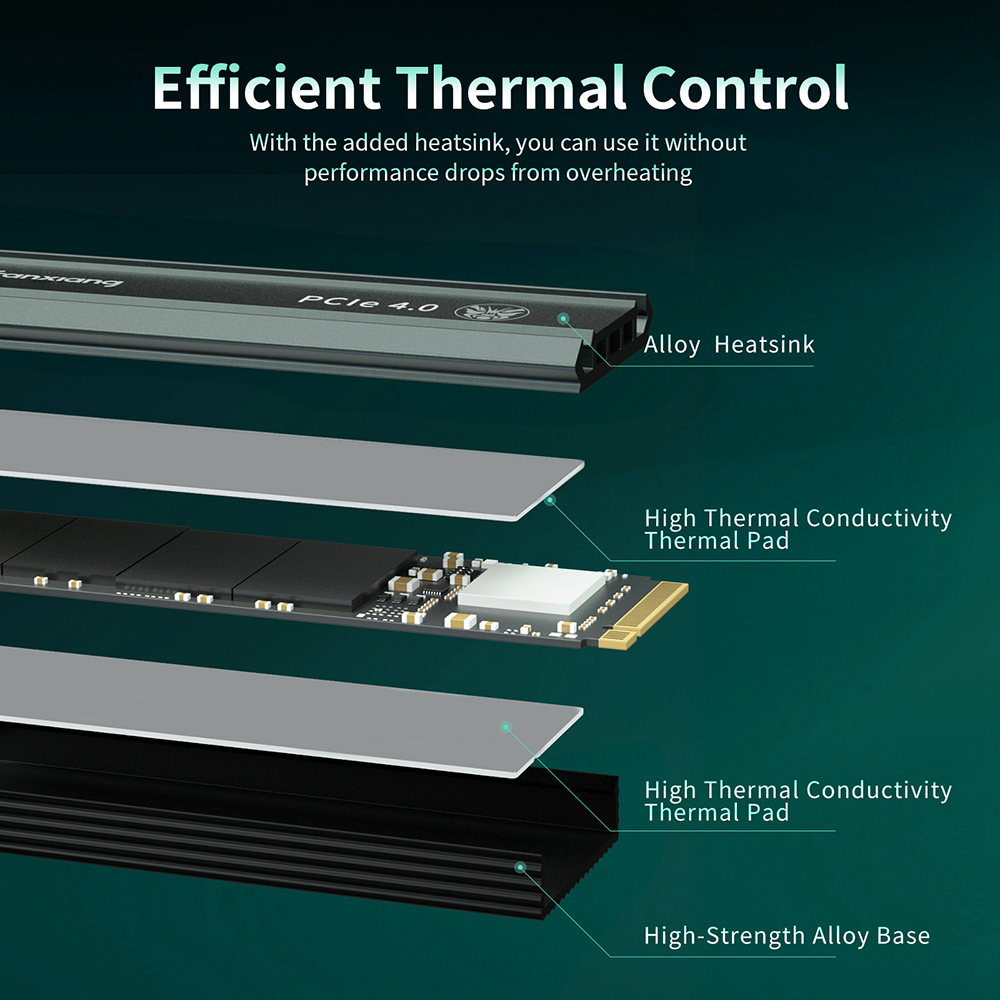

How to install fanxiang S660 SSD?
Firstly, please choose 1 thick and 1 thin from the 4 thermal pads that come with the product.
1. Tear off the plastic film on one of the thermal pads, and place it on the heat sink base;
2. Place the SSD on the thermal pad (note that the chip needs to be placed upwards);
3. Adjust the SSD to a proper position so that the screw holes and the M.2 interface leak out;
4. Tear off the plastic film of the other thermal pad, and stick it on the bottom of the heat sink;
5. Insert one side of the heat sink into the slot of the base. After adjusting the position, press the other side of the heat sink firmly, and when you hear a “click”, it means that the heat sink is installed in place;
6. Fix the SSD with the heat sink installed with screws or the buckles that come with the motherboard.
Good, I like it!!! It's a brand I can trust and use.
The delivery was fast and the speed was better than expected. The heat sink isn't bad either, so I'll use it well. ps. I ordered two items and canceled one, but I ended up being blacklisted. 😢 It's my mistake, I will try to fix it. Still, the product is good, so I'm giving it a 5-star rating.
Excellent device is as per description for this once when buying one an ssd device from alliexpress. Thankfully this device works perfectly with the sony ps5. Install and forget it’s that simple. This has been working away now in my ps5 pro for at least a month without any issues. I can highly recommend this device for use in a ps5.
Very good quality SSD drive with large storage capacity and high speed, I recommend buying it.

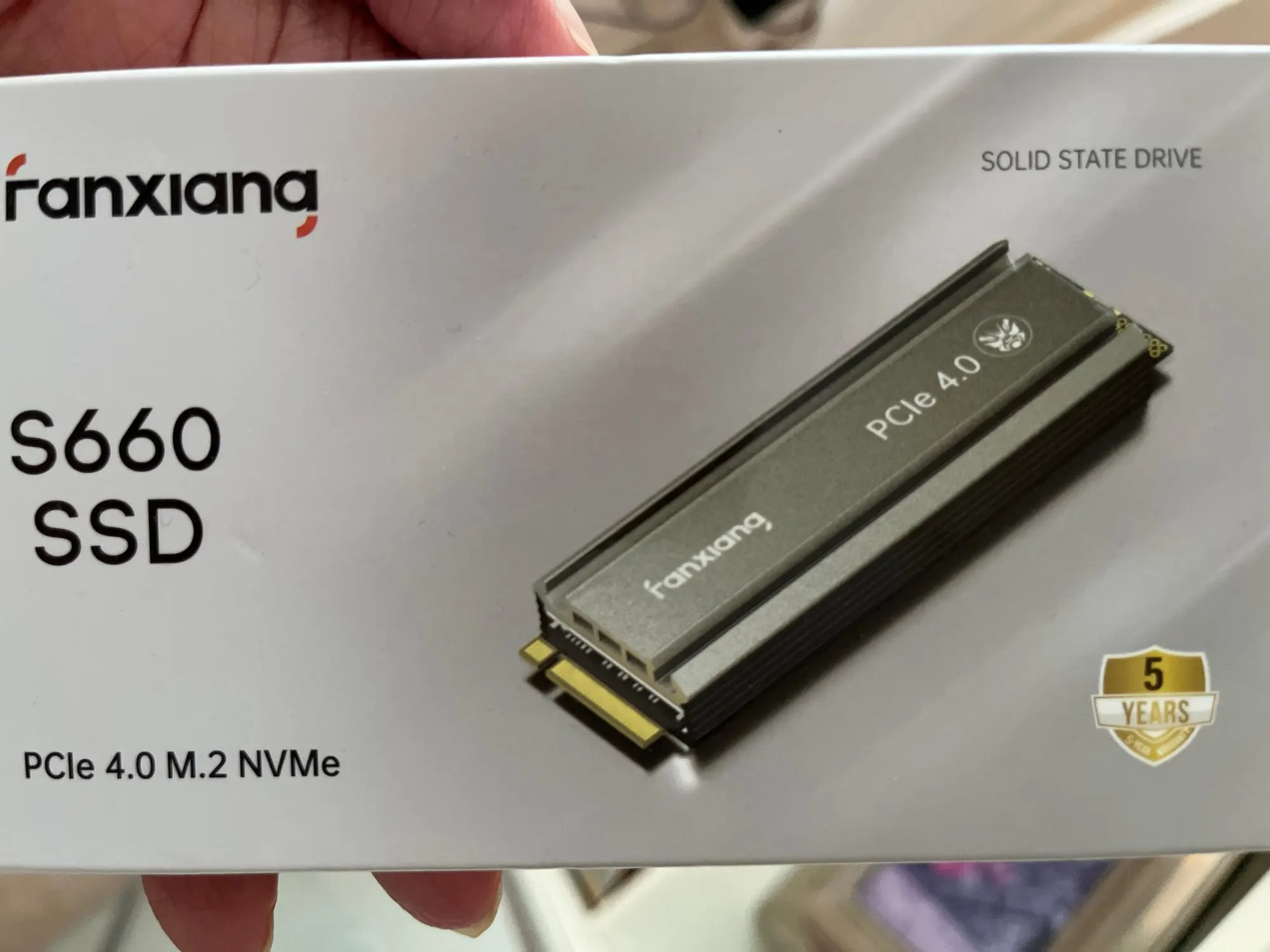

Prima Gen4 m.2 SSD, fast enough for my purposes. Very affordable as a 1TB version for under 85 euros - it's also practical that a cooler is included.

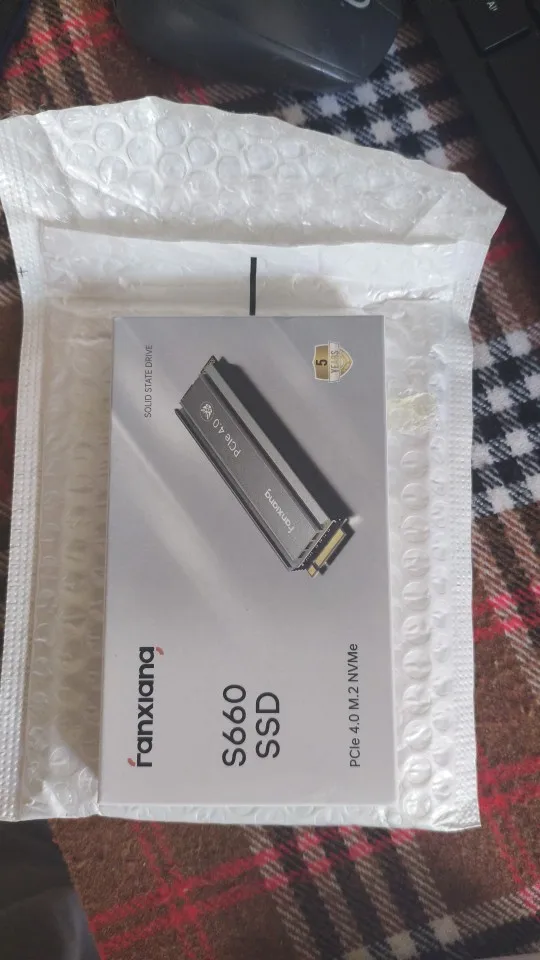

I ordered it for the PS5. It arrived quickly, everything was in good condition, all intact. The console accepted the memory and diagnosed it. It seems to be working without any problems.

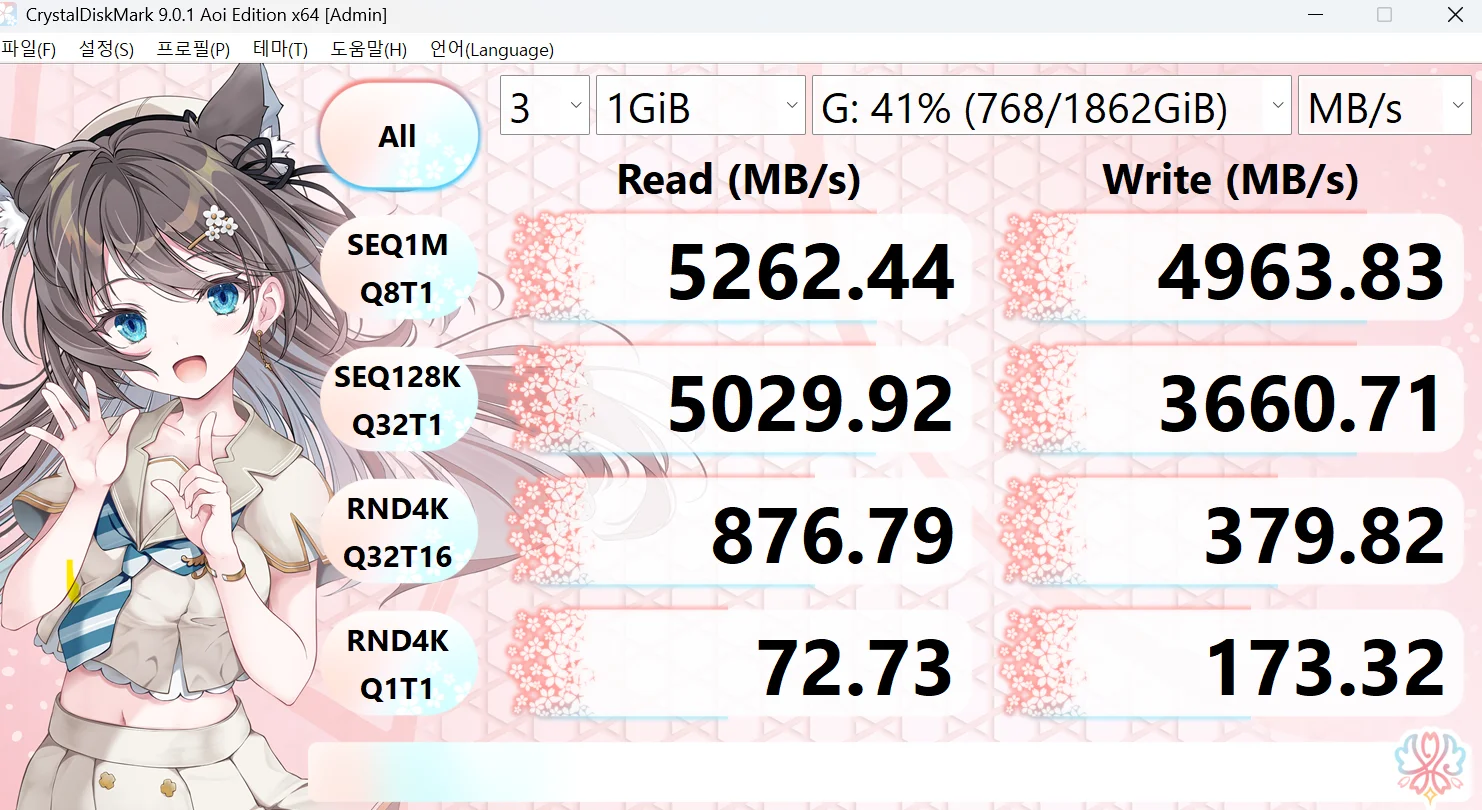

The speed is fast and there's not much heat generation. It seems much better than expected. Except for the lack of RAM, it's worth recommending as a cost-effective PCIe 4.0 product.

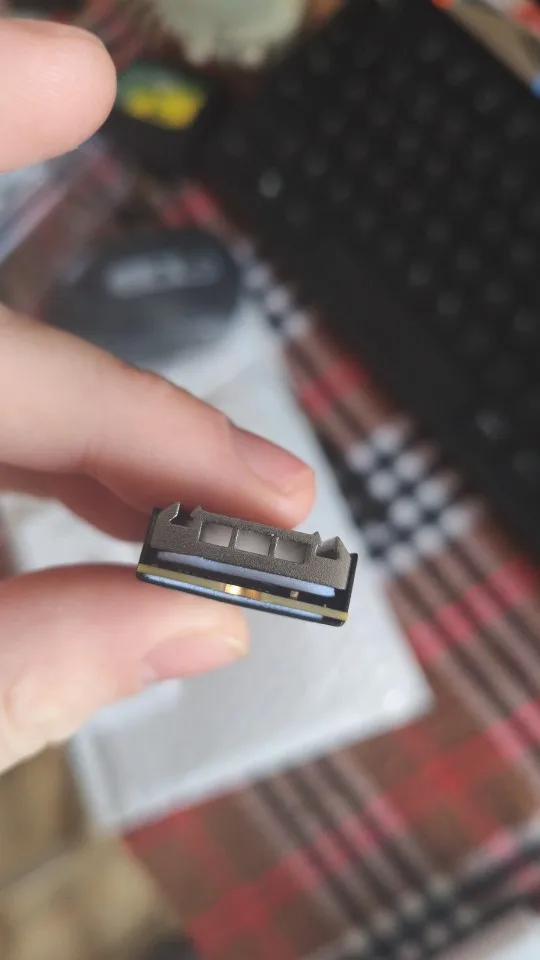

The radiator is already glued, after ~17% the recording speed drops to 500MB which is normal in this budget. Delivery is fast, I recommend it.
I recommend the product and the seller. This is not my first time buying here.

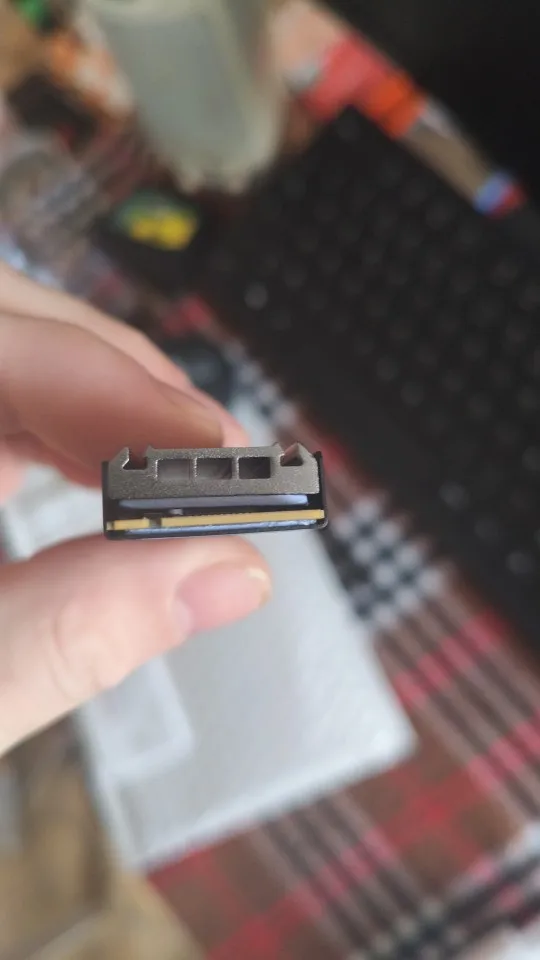

It works as expected. Too bad it was already assembled at the heatsink level because I would have liked to apply the thermal paste myself.
Fully satisfied
