Product Details

Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don’t send CPU and memory. Please check carefully.

Differences between packages

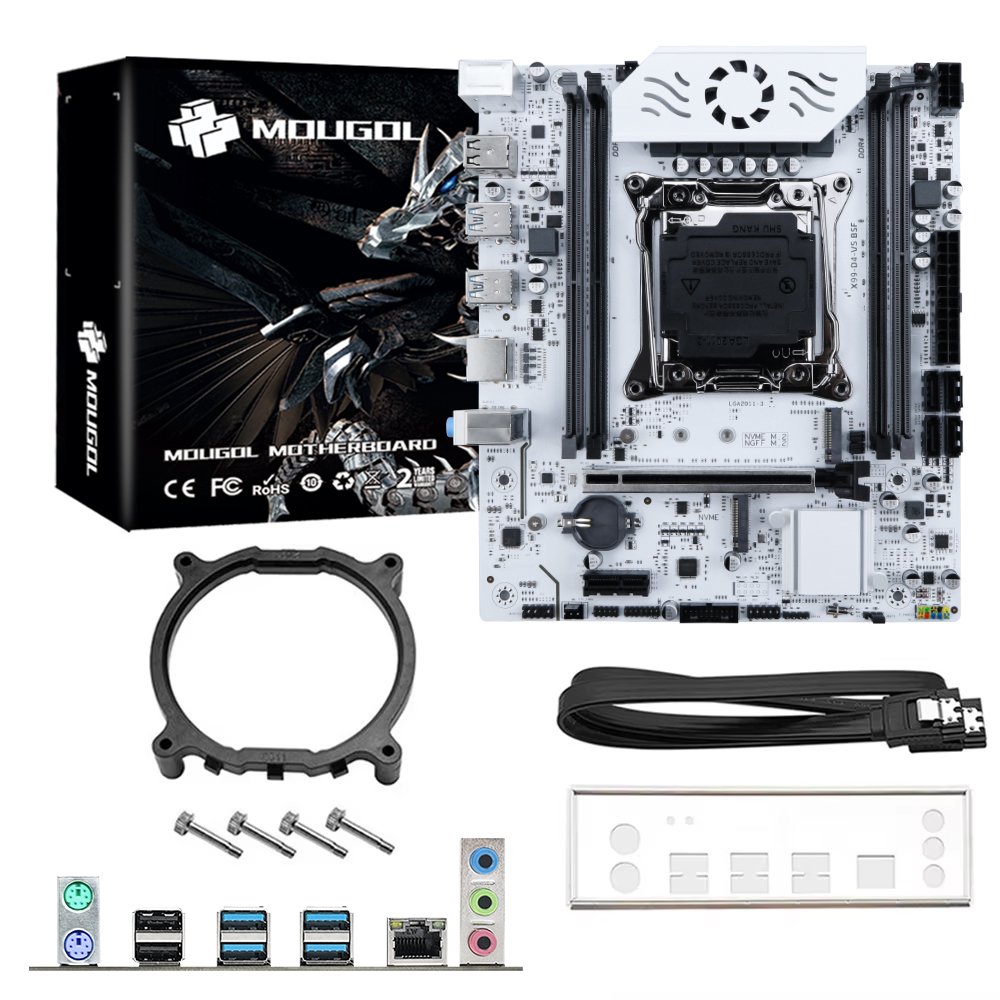

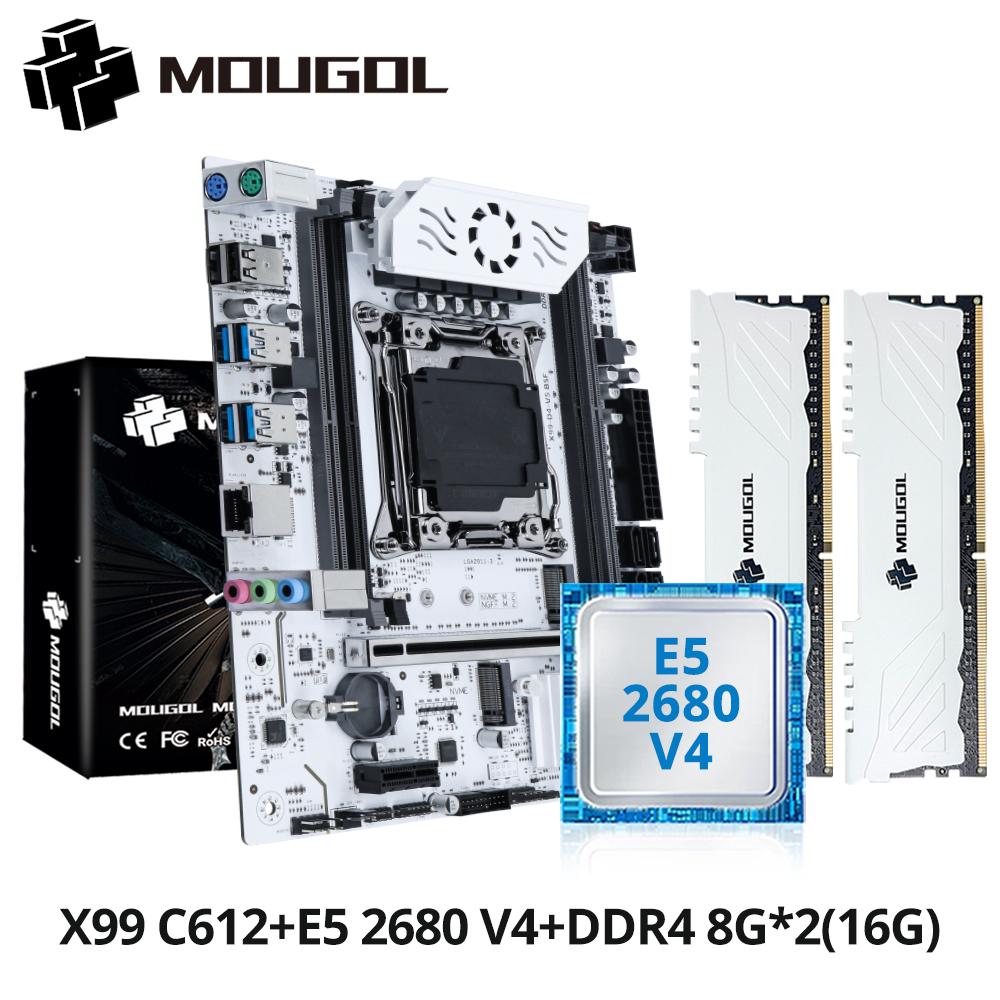

Motherboards: 1*MG-X99 C612 motherboard

Motherboard+CPU: 1*MG-X99 C612+1*E5 2680 V4 CPU

Motherboard+CPU+RAM: 1*MG-X99 C612+1*E5 2680 V4 CPU+2*DDR4 8G

Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

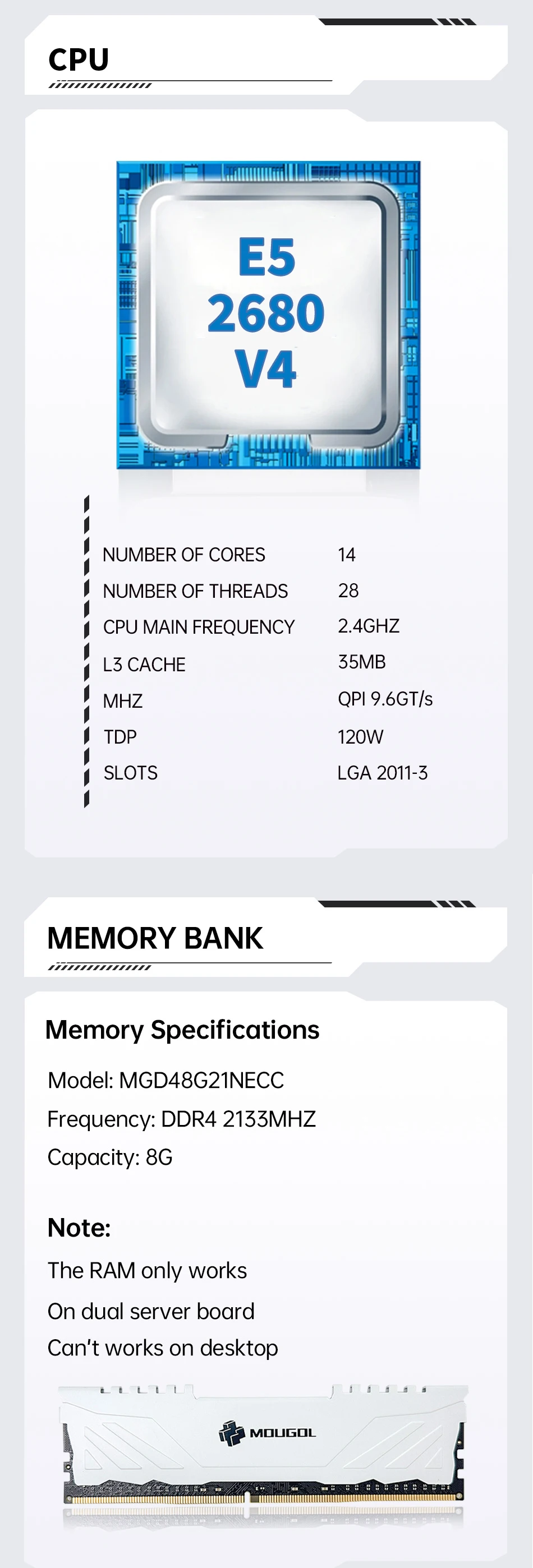

CPU:

Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage:120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)

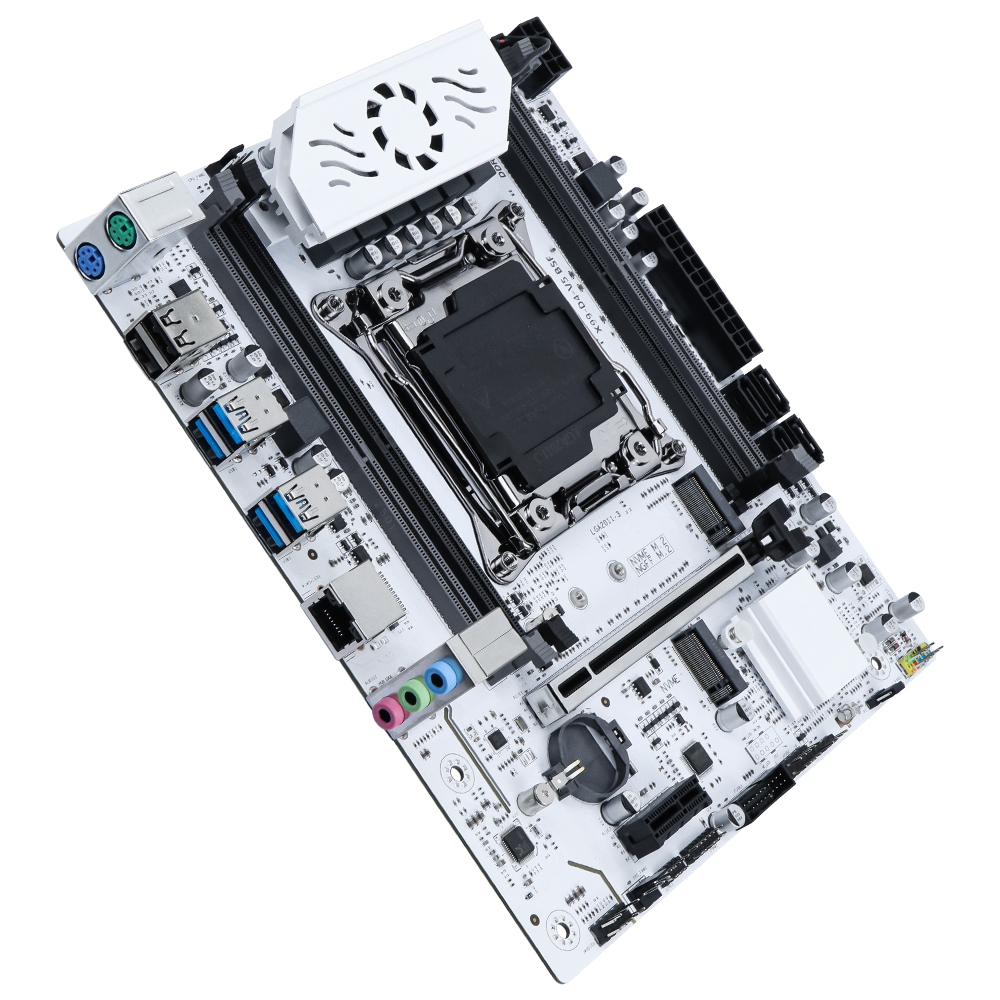

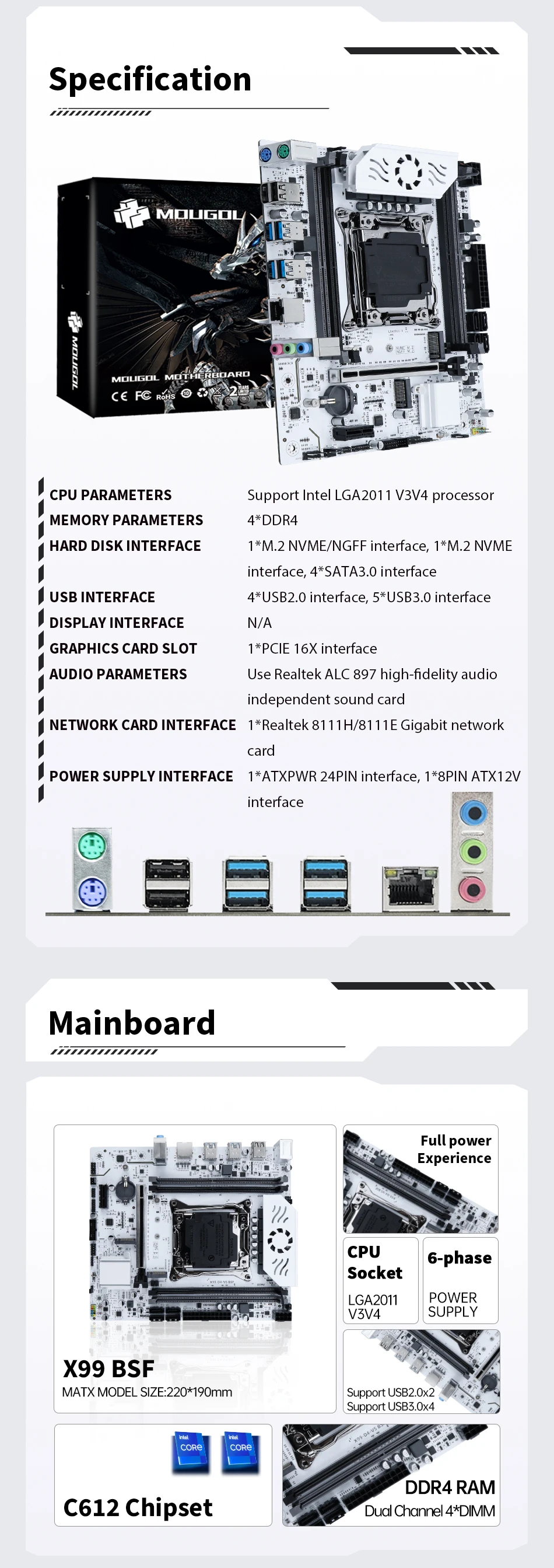

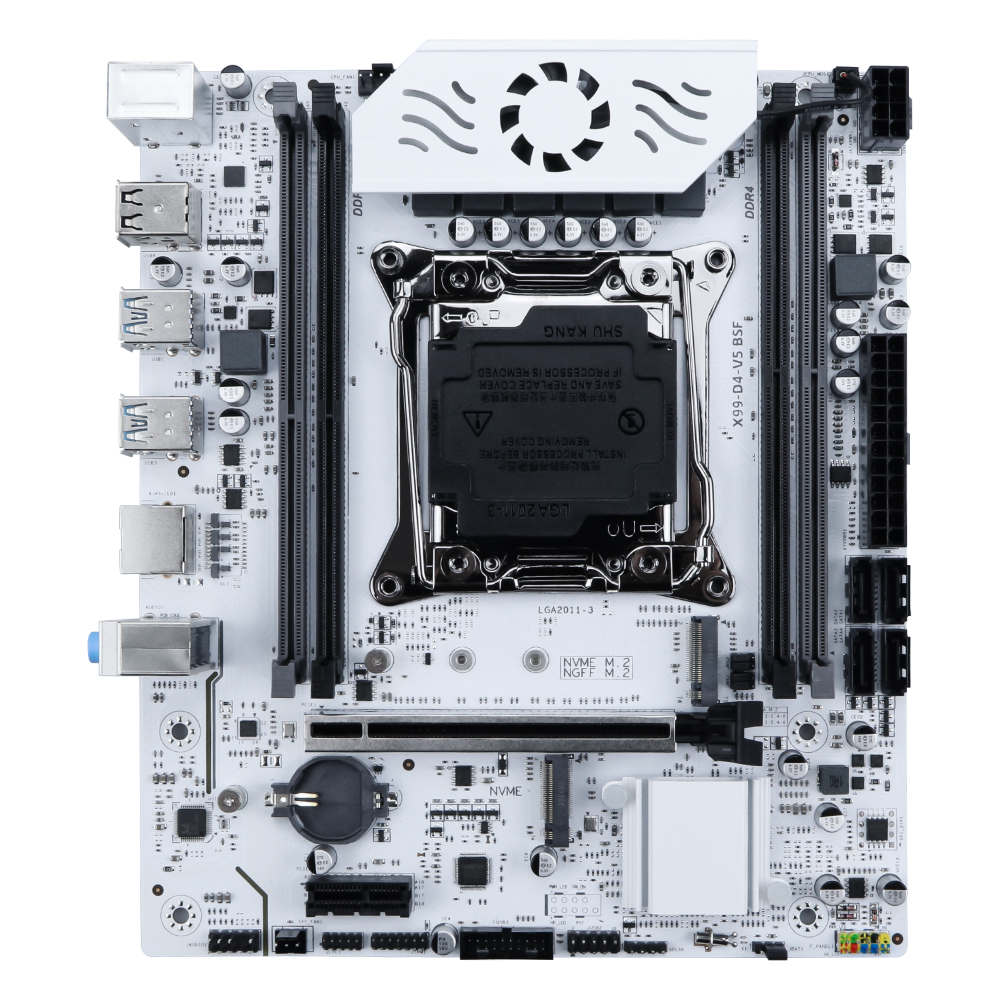

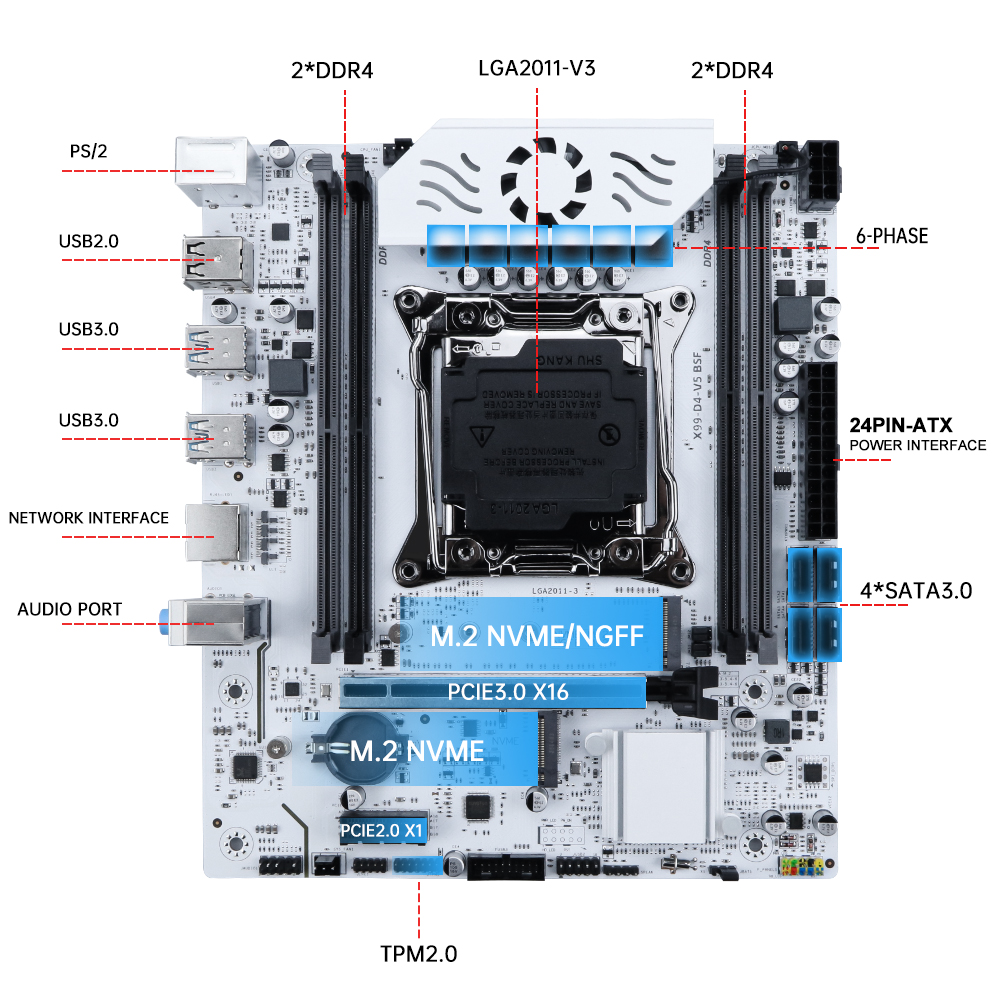

Specification:

Chipset
C612

CPU
Intel Xeon E5 LGA2011-V3 Socket CPU

Memory
4*DDR4 DIMM slots, 2133/2400MHz (Max)
Supports up to 128GB (32GB*4)
Black slots are primary channels

Storage
2*M.2 slots:
Upper slot: NVMe Protocol (PCIe 3.0 x4/SATA3.0)
Lower slot: NVMe Protocol (PCIe 3.0 x4)
4*SATA interfaces (SATA3.0)

TPM
1*14PIN header (compatible with MSI 14PIN/TPM2.0 module)

Network
1*RJ45 port
LAN Chip: RTL8111H Gigabit Ethernet

PS/2
1*KB (Keyboard) port + 1*MS (Mouse) port

Audio
Ports: 1Line Out, 1MIC In, 1*Line In
Internal header: 1*F_Audio
Audio Chip: Realtek ALC897 HD Audio

USB Interfaces
Rear I/O: 2*USB2.0 + 4*USB3.0

Internal headers:
1*USB2.0 header (expandable to 2 USB2.0 ports)
1*USB3.0 header (expandable to 2 USB3.0 ports)

PCIE Slots
PCIE1: PCIE x16 3.0 slot (from CPU)
PCIE2: PCIE x1 2.0 slot (from PCH)

Functional Headers
1FPANEL (Front Panel header), 14Pin CPU Fan, 1*3Pin Fan, 1*JBAT, 1JLPC, 1SPEAK

Power Input
24Pin + 8Pin ATX power connectors

Dimensions
220 x 190mm

Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Gry slots) first. The motherboard’s Black RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots

(5) For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°)This is normal. The actual temperature can be tested with a body thermometer.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!

Item Specifics

Brand Name:

MOUGOL

Chipset:

C612

Onboard LAN:

1x RJ45

Maximum Ram Capacity:

128 GB

Battery Included:

Processor compatibility:

Intel Xeon

Processor compatibility:

Intel Xeon E Series

With CPU:

Yes

Support Memory Type:

DDR4

Number of PCI:

Special Features:

Cooling Armor

Storage Interface Type:

SATA 2

Storage Interface Type:

SATA 3

Storage Interface Type:

M.2 (NVMe)

Package:

Yes

RAID Supported:

Yes

Application:

Desktop

Chipset Manufacturer:

Intel

Back I/O Ports:

1x RJ45

Back I/O Ports:

3 x Audio Jacks

Back I/O Ports:

4x USB 3.2/3.1 Gen 1

Back I/O Ports:

PS/2

PCI - E standards:

PCI-E 3.0

Socket Type:

LGA 2011-3

High-concerned chemical:

None

Usage Scenario:

Gaming

Usage Scenario:

Audio & Video

Usage Scenario:

Household

Usage Scenario:

Office

Usage Scenario:

Design

Usage Scenario:

Video Production

Origin:

Mainland China

Number Of Memory Slots:

Ports:

PCI-Express X1

Support USB Type:

USB 2.0

Support USB Type:

USB 3.0

Number of PCIe x 16:

Onboard Connectors & Header:

24-pin Main Power Connector

Onboard Connectors & Header:

CPU Fan Connector(s)

Onboard Connectors & Header:

AAFP Connector

Onboard Connectors & Header:

Chassis(SYS) Fan Connector(s)

Onboard Connectors & Header:

8-pin +12V Power Connector

Onboard Connectors & Header:

Speaker Connector

Memory channel:

Double

Number of SATA Ports:

Audio Channels:

7.1

SATA RAID:

Max LAN Speed:

1000Mbps

Number of PCIe x 1:

Form Factor:

Micro-ATX

Supports M.2 SSD:

2242

Supports M.2 SSD:

2280

Number of M.2:

Choice:
