###: The motherboard will be shipped with a processor base protective cover. Please feel free to buy.
>>Please pay attention to the bundle options before purchasing. Purchase a single motherboard. We do not send CPU and memory. Please check carefully.
>>SKU 1: Motherboard .
>>SKU 2: Motherboard + E5 2630 V4 .

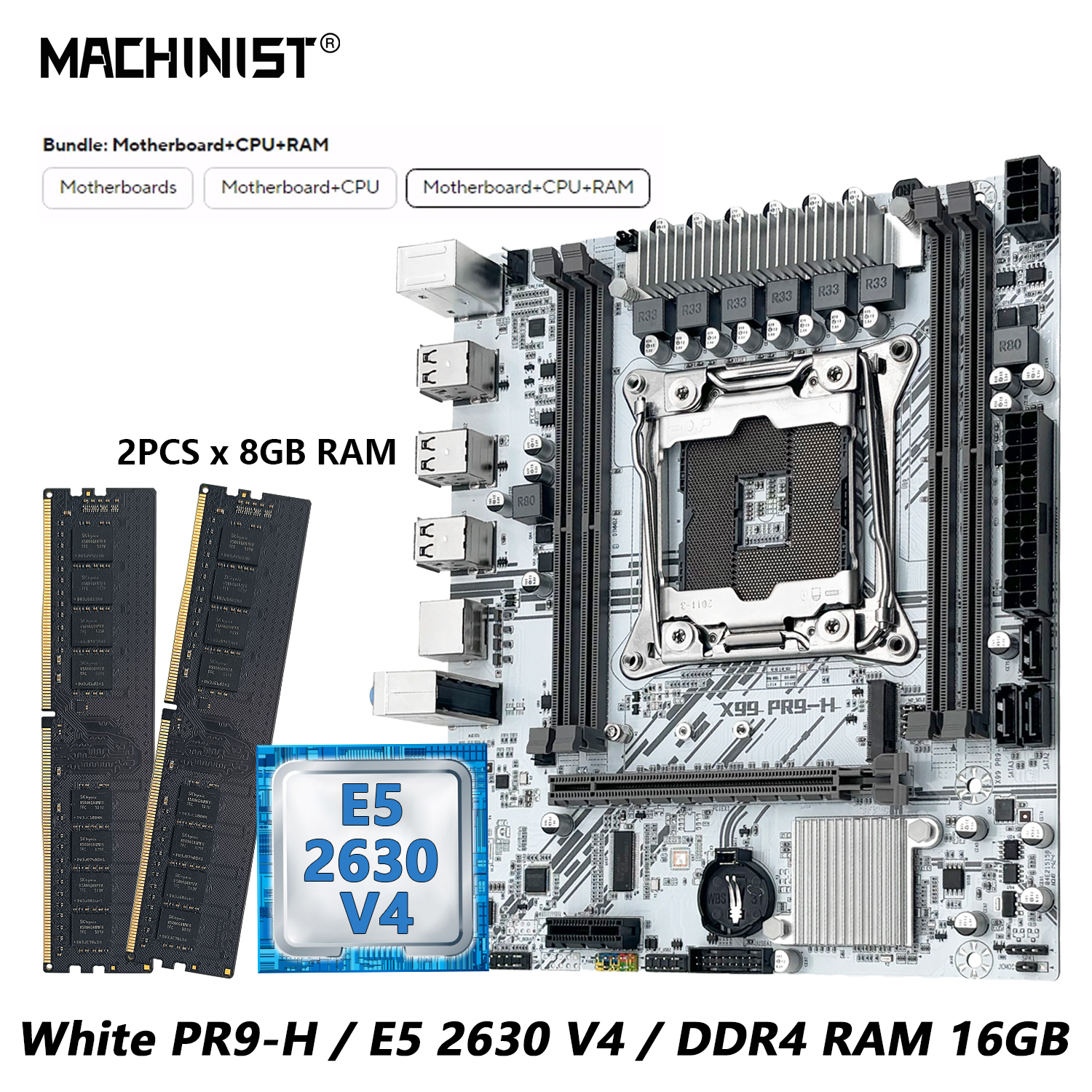

>>SKU 3: Motherboard + E5 2630 V4 + DDR4 2*8GB 2133MHz Desktop RAM.
>>Motherboard information:
Brand:MACHINIST.

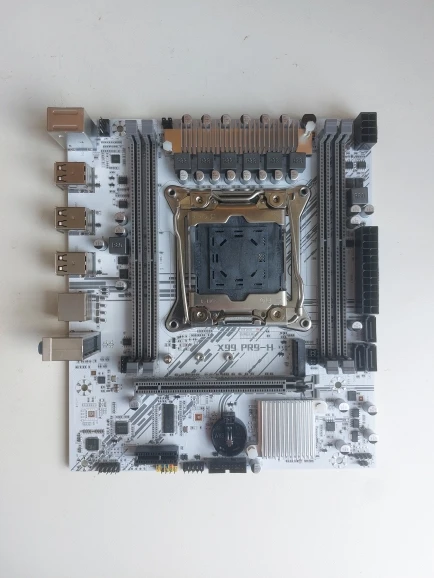

Motherboard model: X99 PR9-H white.
Processor: Support LGA 2011-3 series.
Chipset: HM55/H55 Chipset.
>>Memory:
Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity :128GB (32Gx4).
Memory slot: 4*288 PIN DDR4
.(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)
>> Post I/O:
PS/2: 1 KB interface + 1 MS interface.
USB interface: 6 USB2.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).
SATA interface: 3 (SATA2.0).M. 2:1 (nvme/sata).
PCIe: 1 PCIe 16x, 1 PCIe 1x.
>>Outline dimensions: 215mm * 185mm.
>>For installing memory. All RAM needs to be installed first in slot #1 and slot #4 (the outermost slot). The middle memory slots (#2/#3) of the motherboard cannot work alone.
>>Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
As described, great quality, well-built, well-packaged, with accessories, fast delivery.
I haven't tested it yet, but it arrived well-packaged and in good condition.
Well packaged, arrived correctly and before the deadline.
I ended up returning the board because it does not support TPM 2.0. I bought another board. The seller shipped the product very quickly and it was well packaged.
Very good, highly recommend, unfortunately this one doesn't have the fan to cool down.
The board is working perfectly, but I ended up activating the "UEFI only" mode which corrupted the BIOS, so I will have to reflash the BIOS. Do not mess with the board's boot mode! Leave it as it comes.
Great quality, arrived on time, nothing to complain about, delivered what was shown.
Arrived before the deadline
In perfect condition, I took a while to get it working because the design of the fpanel is upside down haha the black colored one is the power. The battery must be a CR2032. GLOWAY brand ram memory

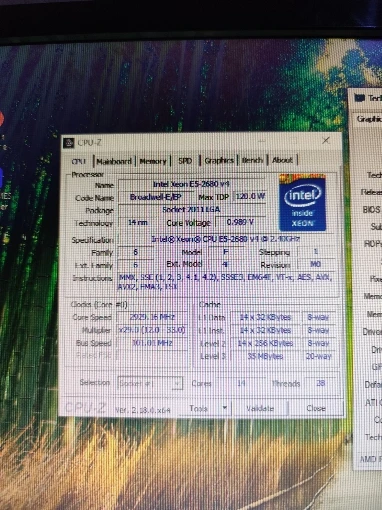

Product with excellent finish, very beautiful! without any damage to the box, but since it's an import from another country, better packaging with more protection could be used. I tested it and it worked well with Xeon E5 2680 V4.
Well, I have to say that I made the purchase quickly and didn't realize the IMPORTANT DETAIL that it doesn't have USB 3.0😡 and it also doesn't have the ability to install a TPM module, so it's very limited.
Very good product, arrived within the stipulated timeframe, already in use.

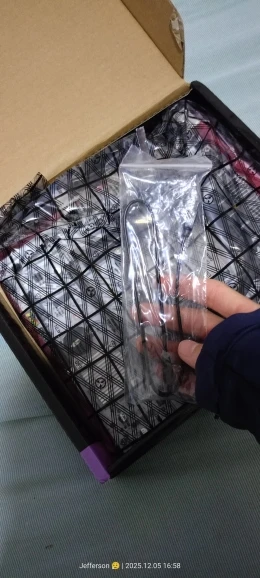

The motherboard arrived in excellent condition, well packaged. I haven't tested it yet, but it seems everything is okay.

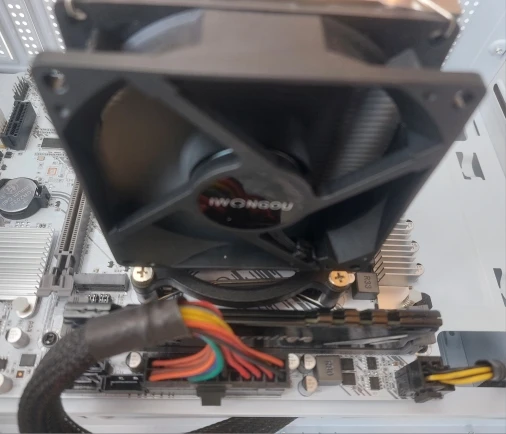

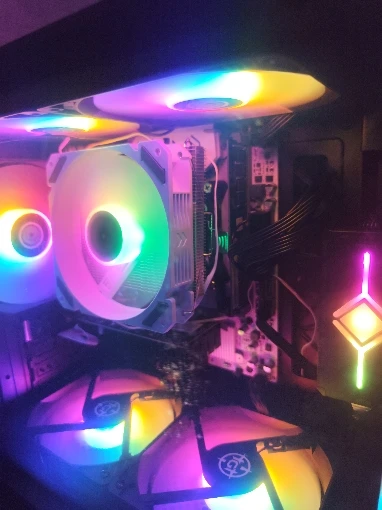

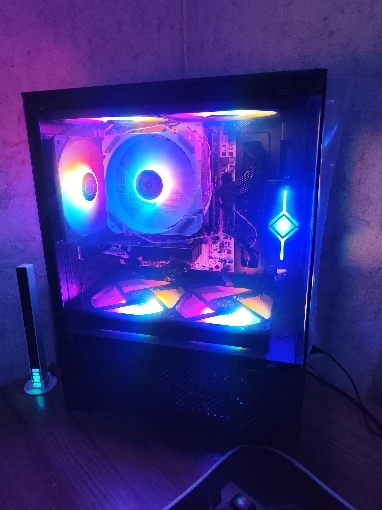

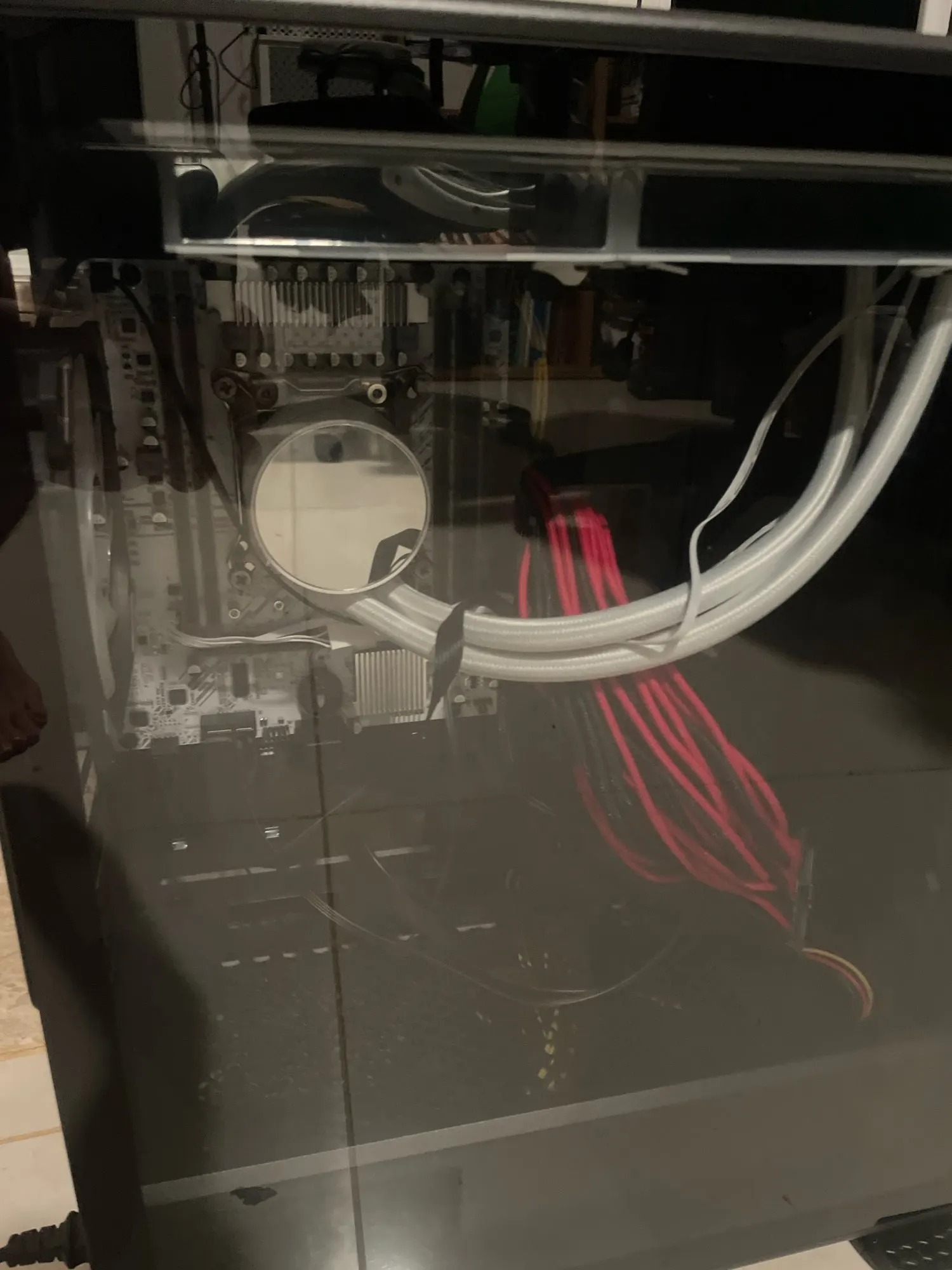

arrived on the last day of the deadline. strong motherboard and cost-effective. I spent a few hours trying to turn it on until I realized that I had bought a battery that doesn't work with this motherboard. changing the battery fixed everything and it worked smoothly. the processor remained stable and cool even with an air cooler with only 2 heatpipes. I suggest using a water cooler, which is what I did. This is my second imported motherboard without fees. You can buy without fear.
It looks good, we're going to try it.

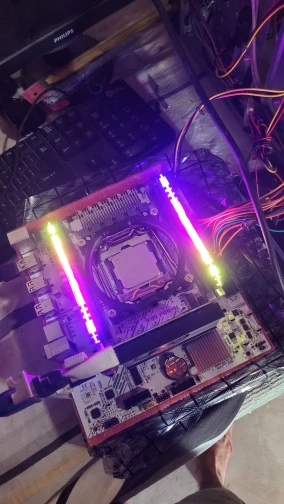

It arrived in great condition, it has been checked and works without any issues, you just need to configure UEFI so it starts properly and set up the RAM.
Everything arrived, I just hope it's working when I assemble the PC.
Excellent product, super fast negotiation and shipping, very secure packaging, everything is a 10/10, highly recommended.
Everything arrived well and well packaged.
very clean the motherboard is a macro ATX and it is quite compact, it is usually used in small computers that do not take up too much space to maneuver
Everything arrived correctly.
The product arrived as advertised, thank you. Everything is working fine, I will buy again.

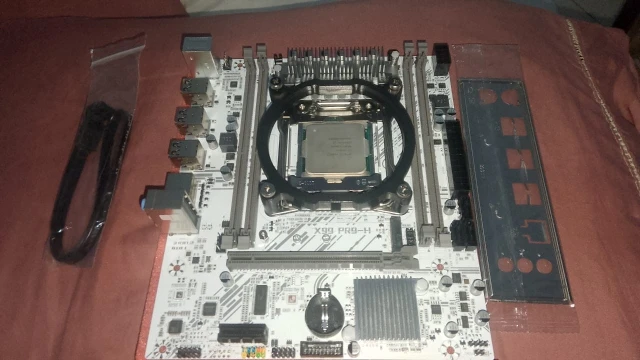

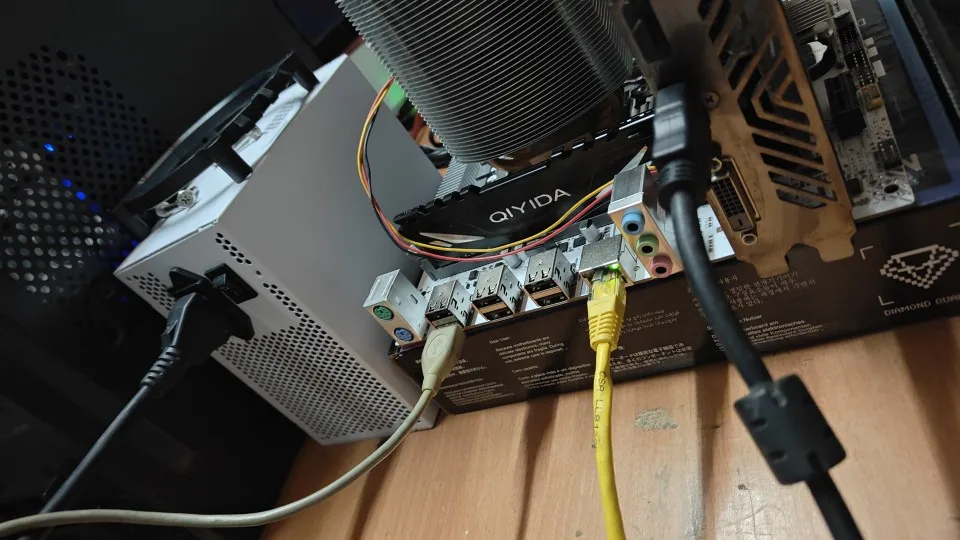

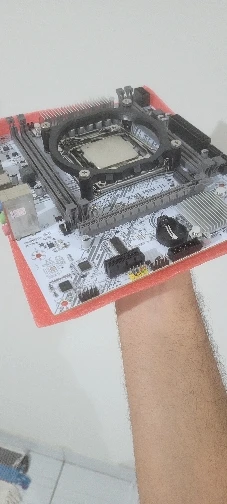

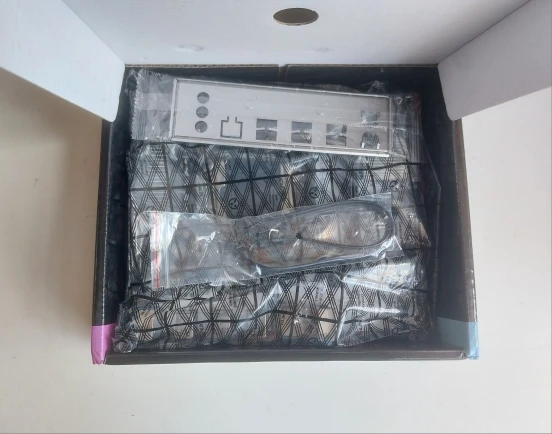

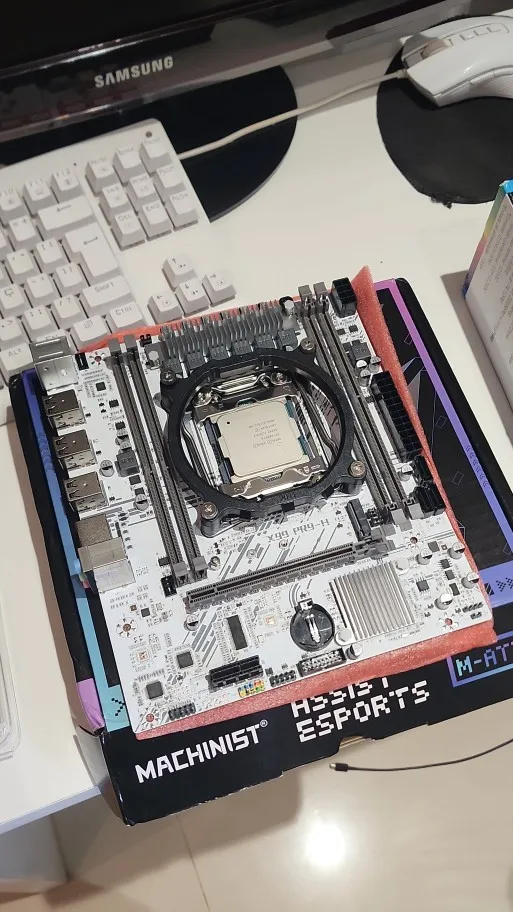

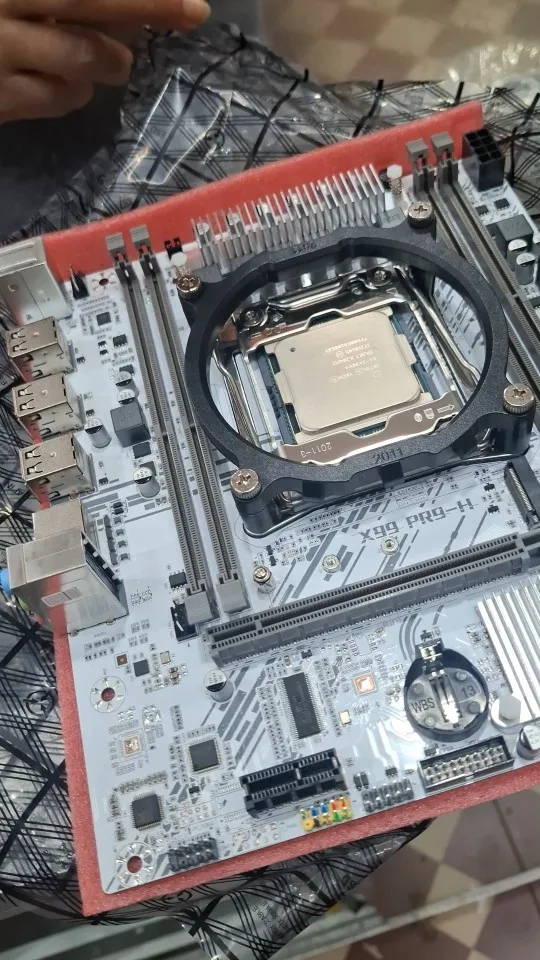

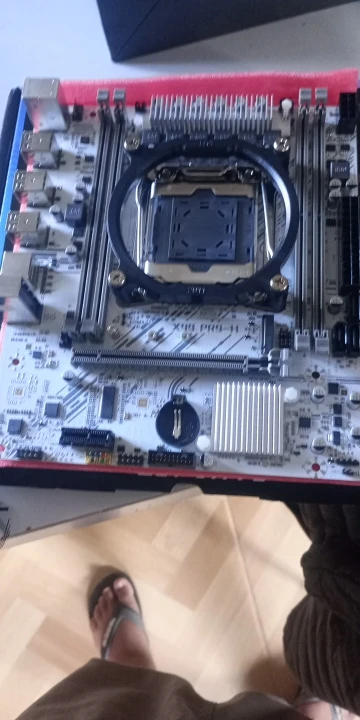

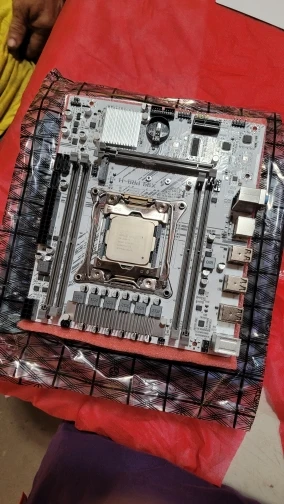

Motherboard is a bit small, it comes with a nice package and if you choose the cpu combo it already comes connected to the socket which is nice although cmos battery is not included and i received only one sata cable and no other additions, motherboard has no integrated gpu which means you have to put a gpu inside in order to run anything, overall price is very cheap so i’ll say it’s worth for the low price

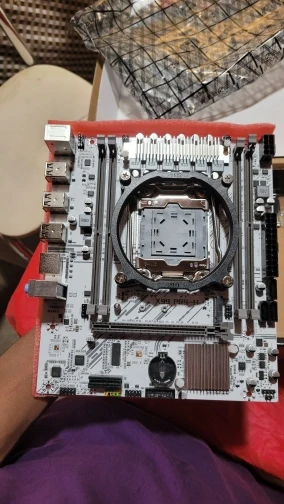

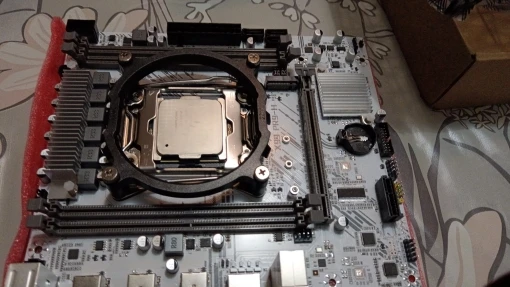

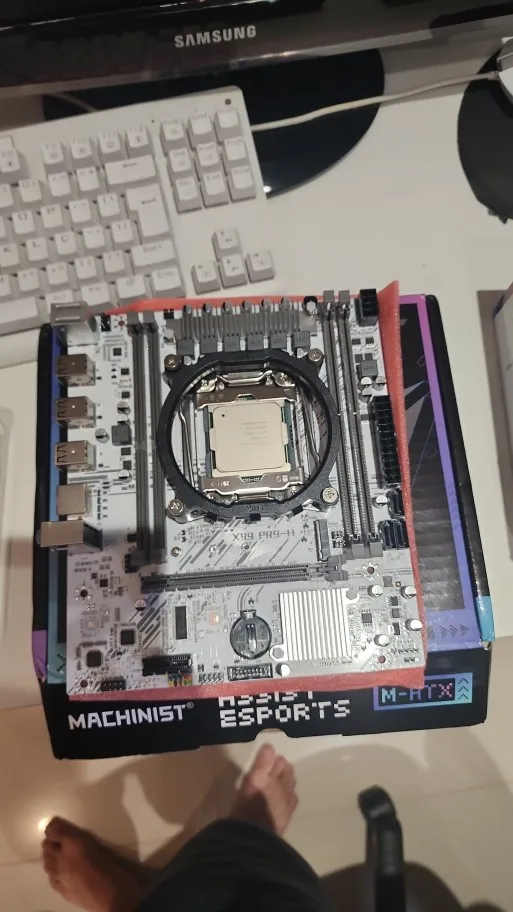

It took a little while but understandable since it's an international purchase. It arrived in great condition, apparently with the CPU already integrated into the motherboard. I will still assemble the PC completely, but for the great price and excellent products, I recommend it! 👍

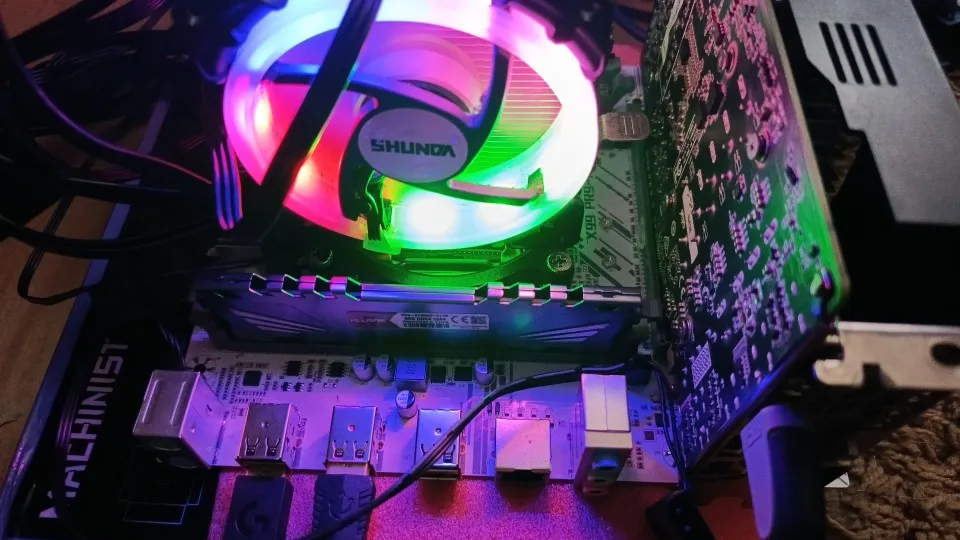

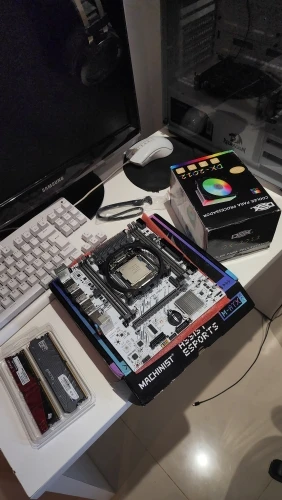

All set! The motherboard arrived quickly at my location and is working perfectly! My first Machinist X99 motherboard in white. I recommend it to everyone.
