RGBIC LED Strip Immersive Computer Backlight PC/TV Monitor Screen Color Sync Light Strips Smart Software Control Ambient Lamps

RGBIC LED Strip Immersive Computer Backlight PC/TV Monitor Screen Color Sync Light Strips Smart Software Control Ambient Lamps

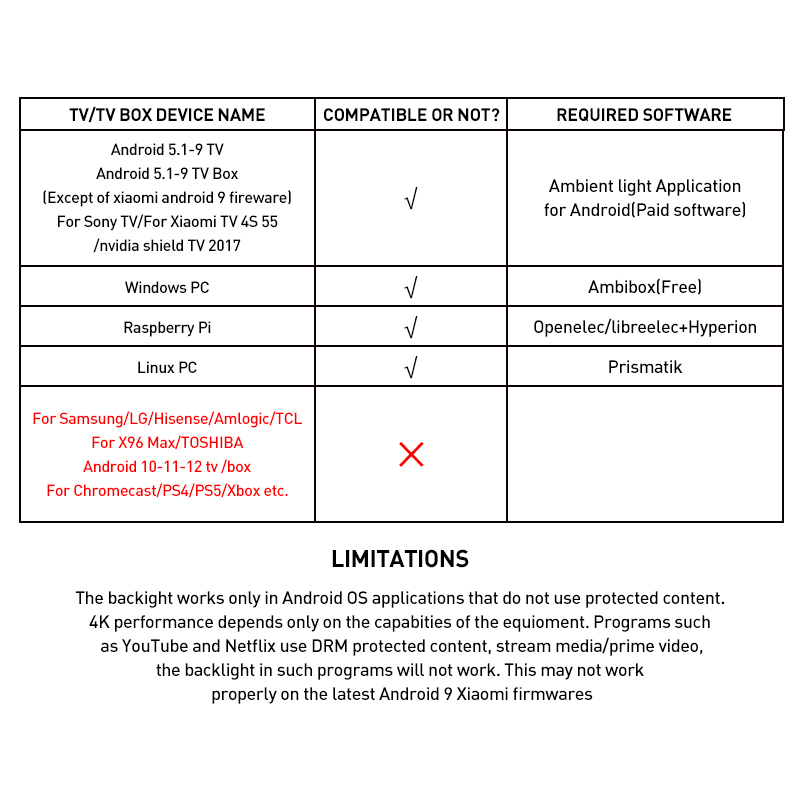

Note:

Do not work for PS4/5 or other game box~

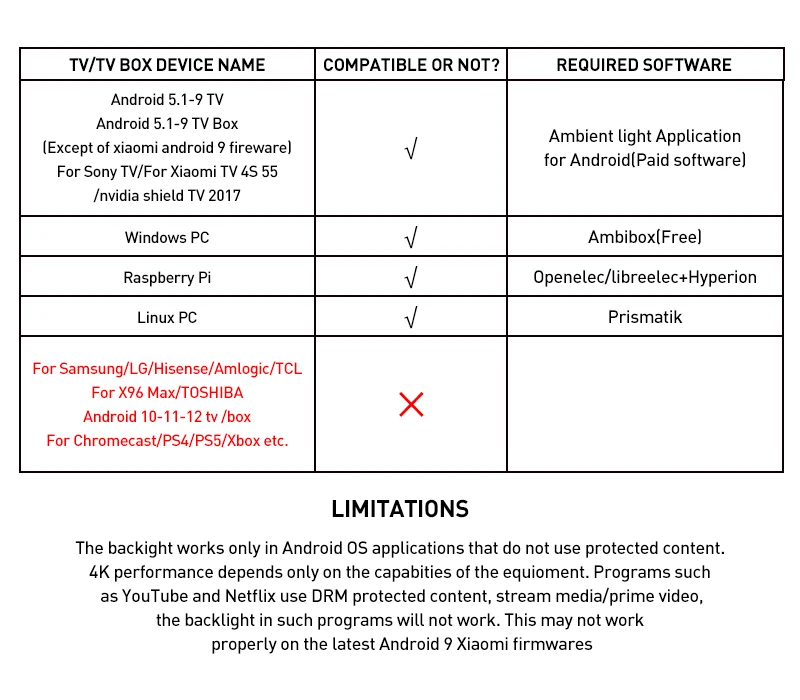

it only works on Android TV, Sam sung/L G/ TC L/ TOSHI BA/ HISEN SE, Those TV are NOT belong to Android Operating System.
If you want to use it with non-Android TV, you must connect an extra Android TV box to your TV first, then can be used with our product.

About software:

FOR PC:

Windows: Ambibox or Prismatik (//drive.google.com/file/d/1aR1z_wcBfGw2ixTBYI01CshD_q8RMxxc/view?usp=sharing)

                                               or:（//drive.google.com/drive/folders/1AFZ0dOTx-KgijjCOf6T0NR26M1eVFidx?usp=sharing）
Raspberry Pi: Openelec/libreelec+Hyperion (//www.youtube.com/watch?v=kBDaC_c6VfI)

Linux PC: use Prismatik

FOR TV:
Android TV/TV boxs (Android 5.1 to 9.0 version): Ambient light Application for Android (Paid software)

(Or, the video signal of the computer is output to TV, TV as monitor.)
(Or, install or run Openelec/libreelec+Hyperion on your TV/TV box.)

Important !!

The analog TV signal is not processed by the Android OS level, so the backlight application will not work with regular TV channels. The backlight works only with Android OS applications that do not use protected content. 4K performance depends only on your hardware.
Unfortunately, programs such as YouTube and Netflix use protected content (DRM), this application has no ability to work with them. In order to make it work you should use the special client. For example SmartYoutube.

Warm Prompt: The setup of this item is a bit complicated, if the product does not work properly, please make sure to contact us first, instead of opening a dispute or writing negative feedback directly, we will definitely help you solve the problem!

USE IT ON COMPUTER:

Connect everything well and set up capture area in Ambibox first. If everything is ok after testing, then you can stick the strip on the monitor and cut LED strip by demand.
Install and Ambibox set up guide://youtu.be/UAUyKvEt7aE
Step 1: Install LED light on your monitor

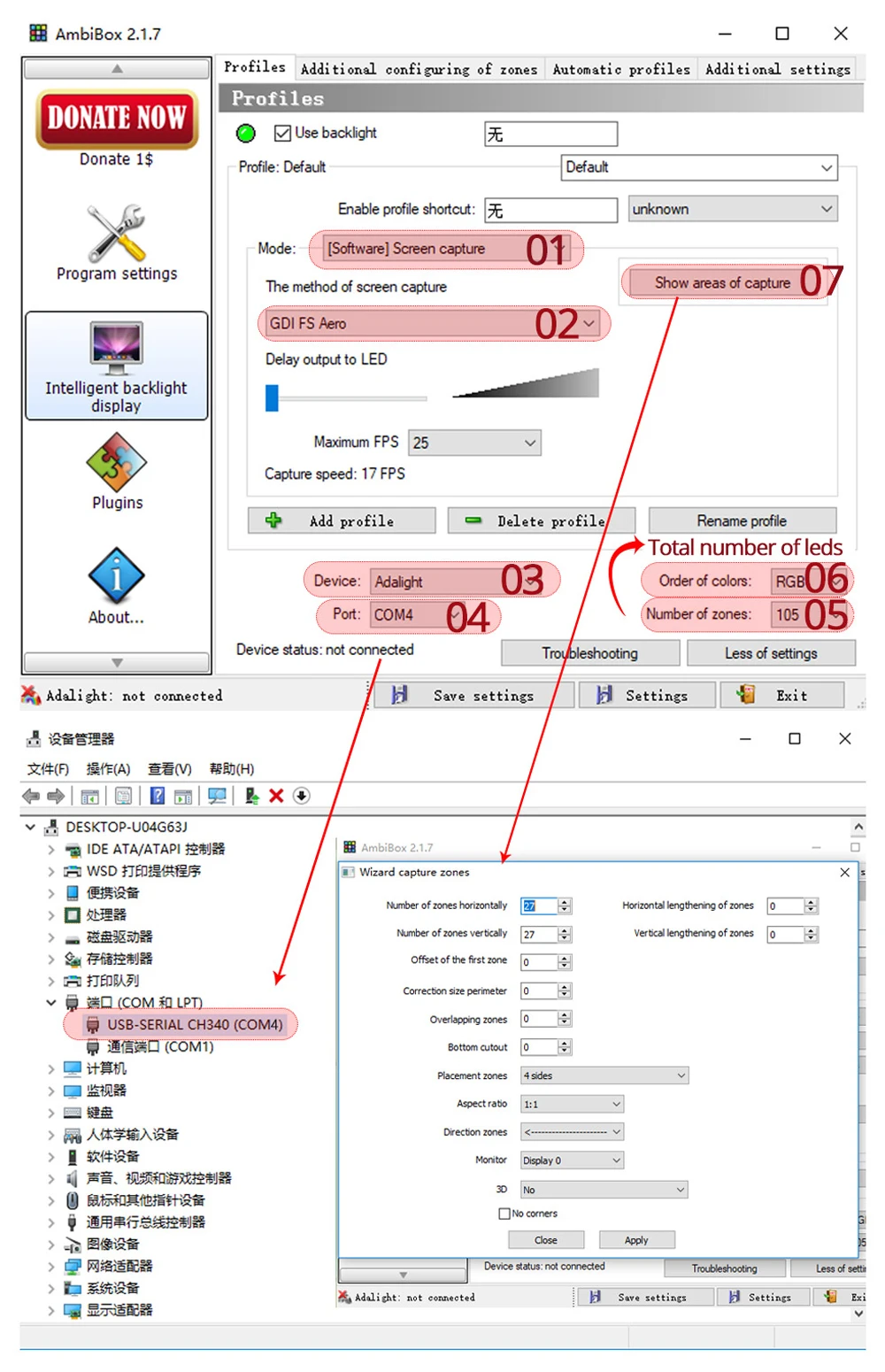

Step 2: Setting up the Ambibox Capture Software

2.1. Ambibox software(Shareware);
Download link://drive.google.com/file/d/1aR1z_wcBfGw2ixTBYI01CshD_q8RMxxc/view?usp=sharing
2.2. Run the Ambibox software, when installing, it recommends to use PlayClaw, I wouldn’t recommend to using it.
2.3. Select device and set this as “Adalight”, under menu of “Intelligent backlight display”, select the Port and the COM Port that your device has been detected. If select correctly, you can see Device Status: Connected, also down the bottom left it will say Adalight: connected. If cannot find USB driver/COM port, please download USB CH340: //drive.google.com/file/d/1GS5FrjN5620I_RKJMOe5IAGNSqlke9jC/view?usp=sharing

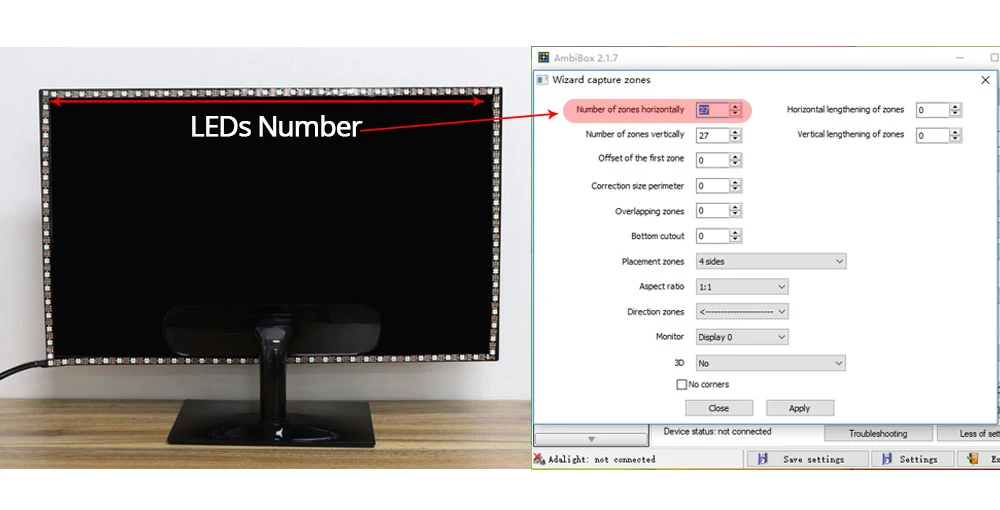

2.4. Once you setted up, you can select the “Wizard capture zones” which will automatically generate all capture zones for you.

PRO TIPS: if you find your colours are washing out or seem very white rather than colourful, adjust your gamma settings, if you getting a white backlight on a pure black screen, increase the size of sample zones, It will take a bit of fine tuning but worth it!

USE IT ON Android TV:

Operational procedures:

Step 1: Install LED strip light on your TV

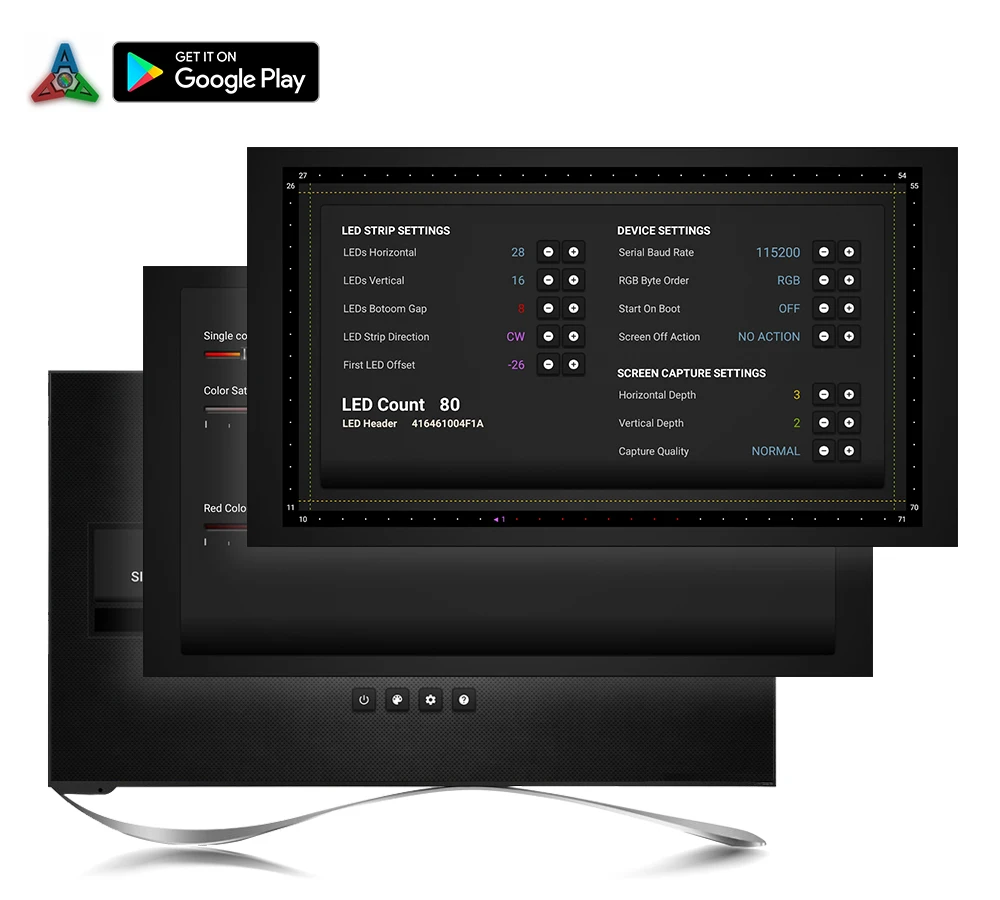

Step 2: Purchasing a Paid Software on Google Play: Ambient light

//ambilight. tender-complex.ru/en/software_setup/

Needs: Android TV/TV boxs(Android 5. 1/6/7/8/9): ‘Ambient light Application for Android’ Paid software)

Note: Please confirm if your TV/TV boxcan run this app before purchasing.

(Or, the video signal of the computer is output to TV, TV as monitor.)

(Or, install or run Openelec/libreelec+Hyperion on your TV/TV box.)

The analog TV signal is not processed by the Android OS level, so the backlight application will not work with regular TV channels. The backlight works only with Android OS applications that do not use protected content. 4K performance depends only on your hardware.

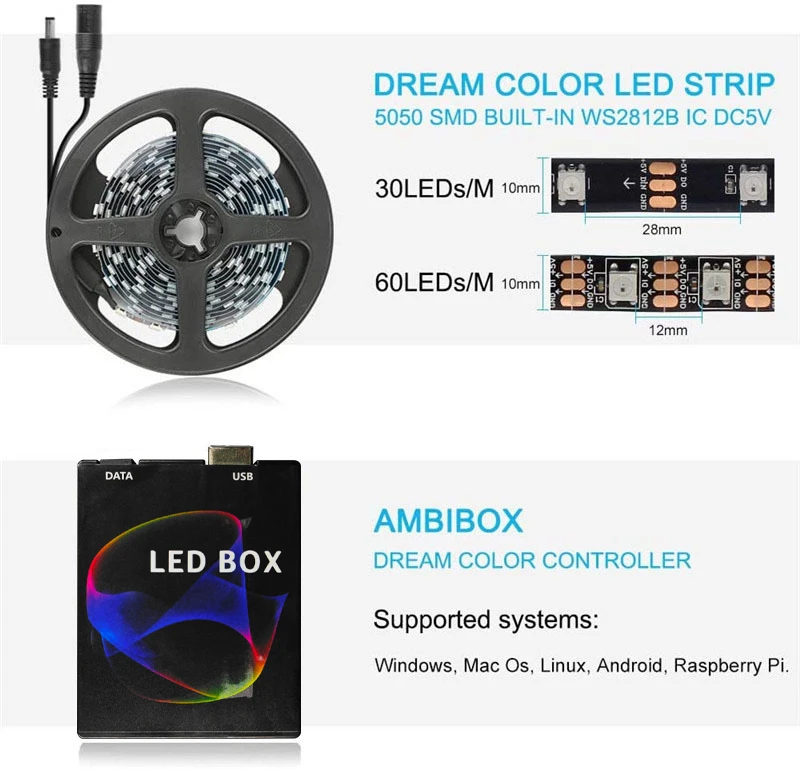

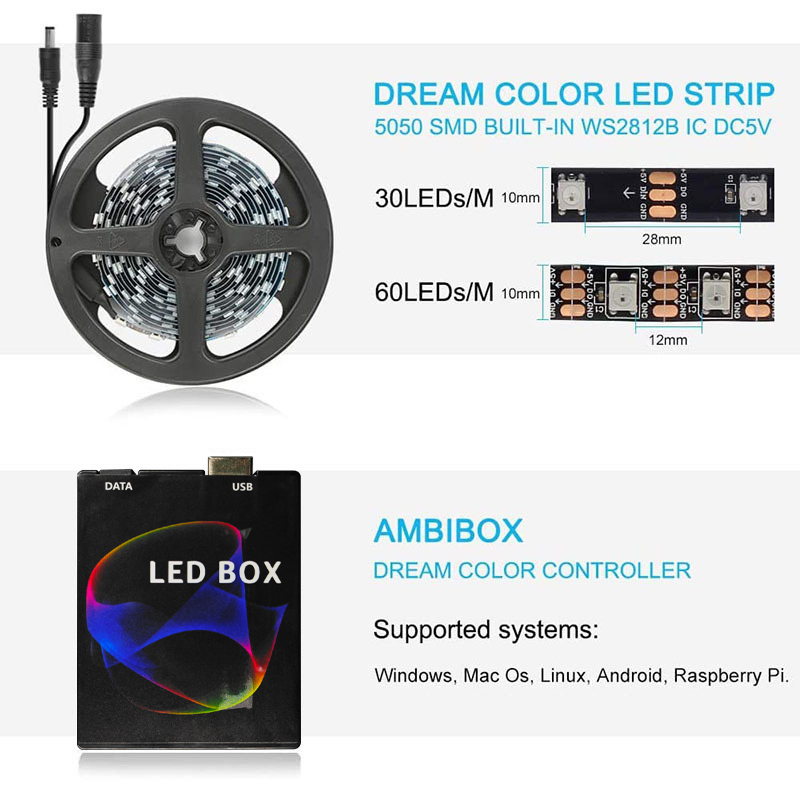

Specification:

Voltage: DC5V

LED Type: SMD5050

IC Model: WS2812B

LED Quantity: 30/60 LEDS/m

Waterproof: IP30 not waterproof

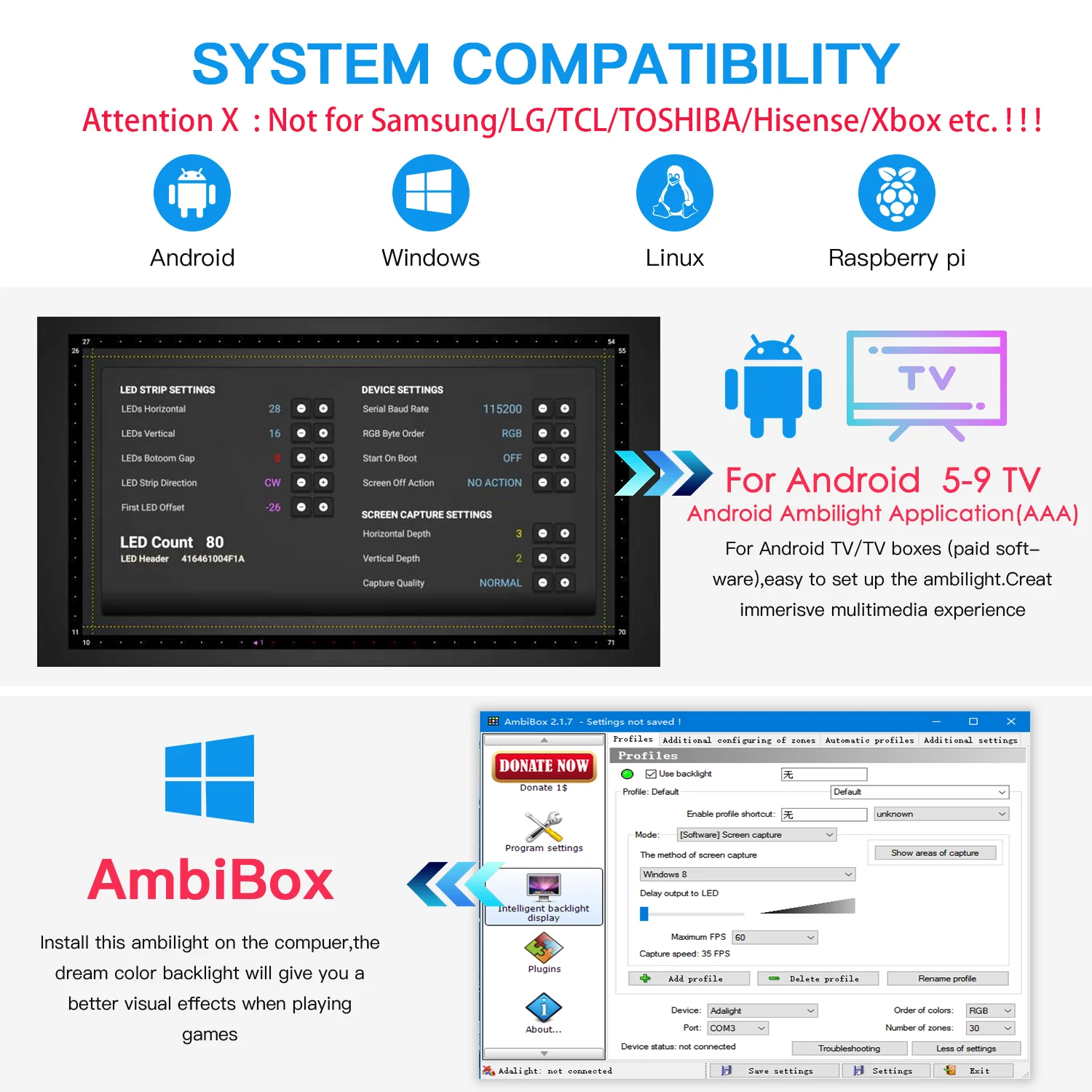

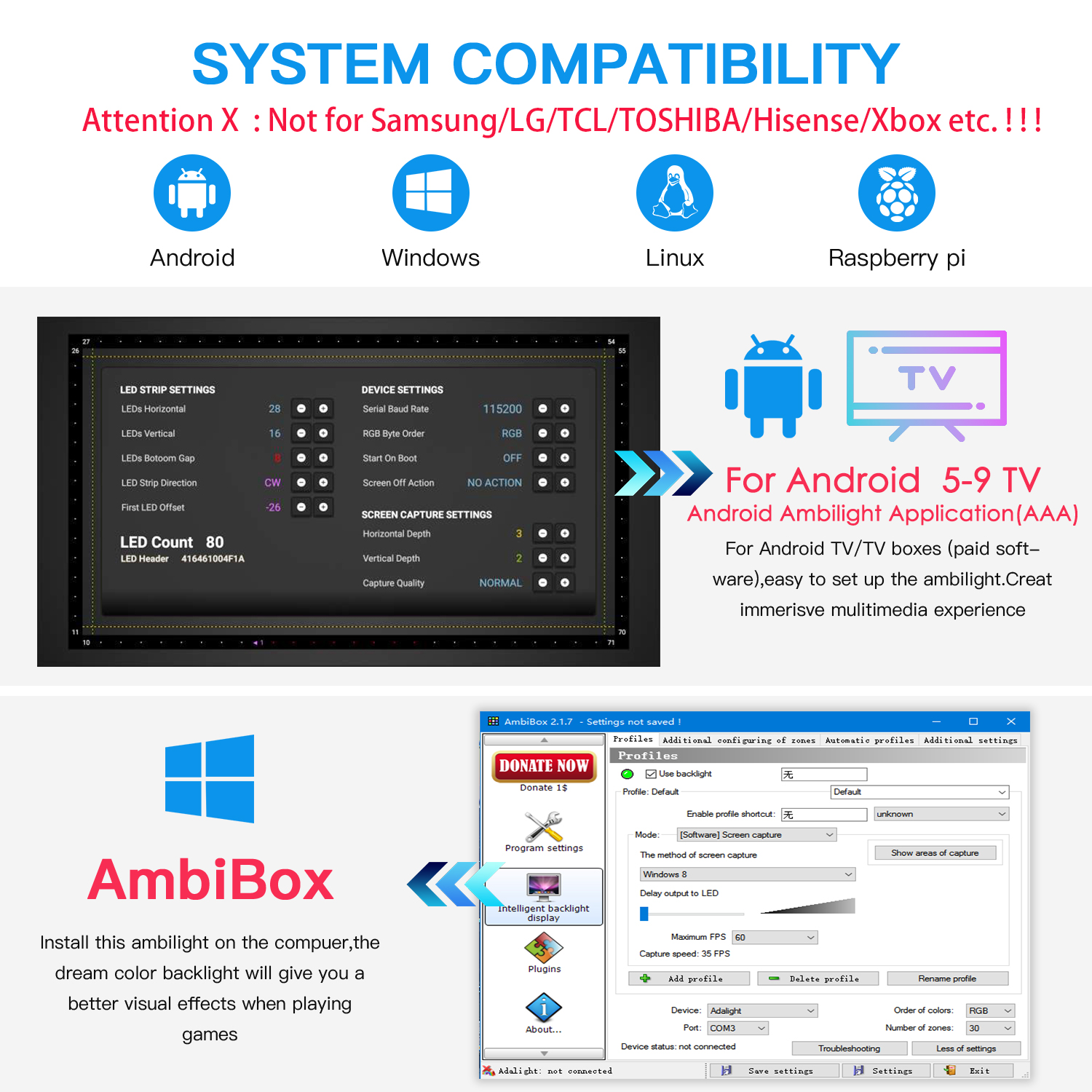

Support:Windows, Android, Mac OS, Linux, Raspberry pi

Light color: RGB-IC (display multiple colors at the same time)

Control method: APP/physical buttons

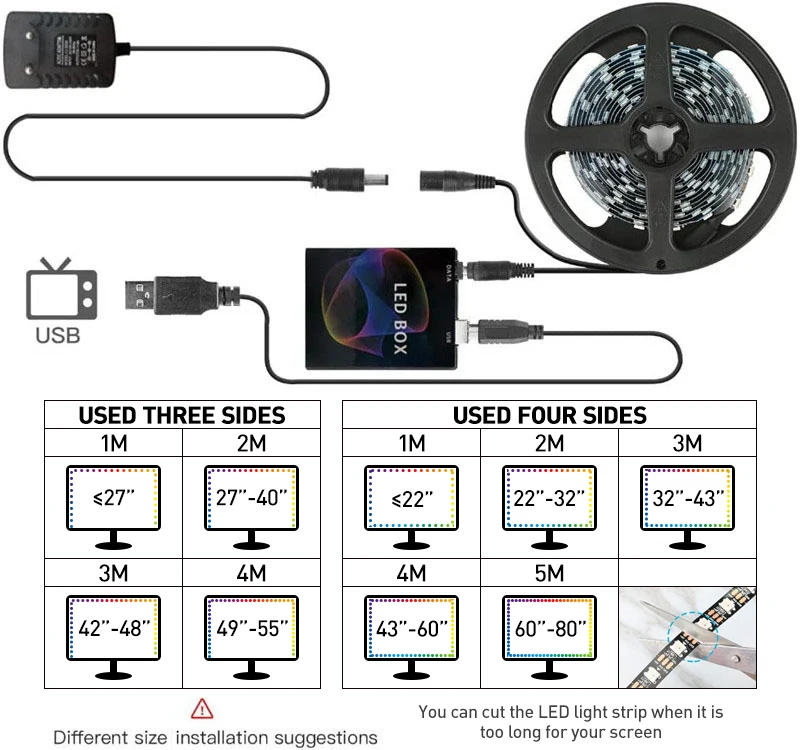

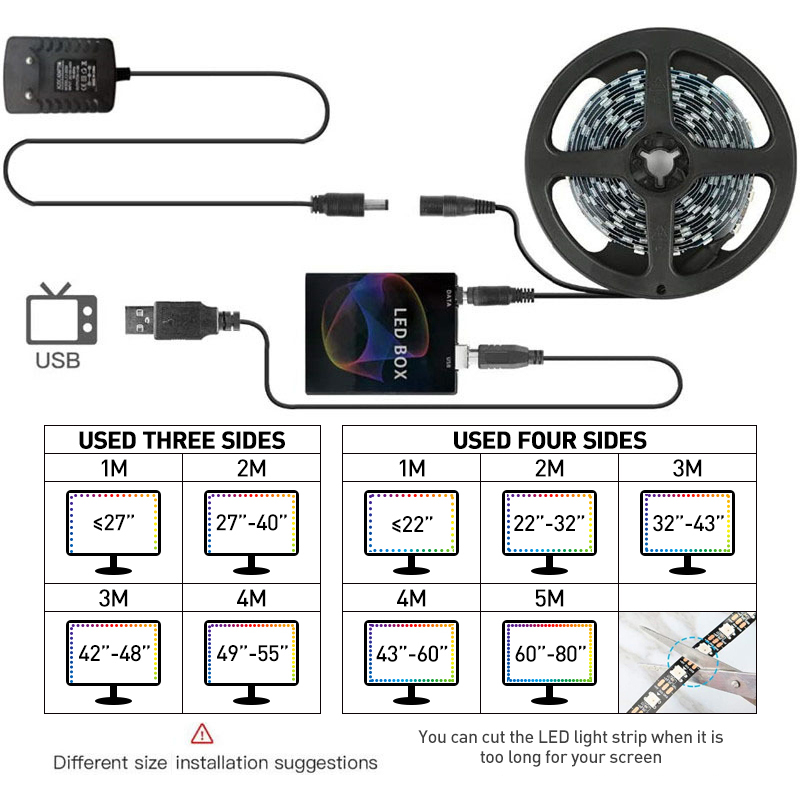

Size:

1M For 17-22inch, 2M For 22-32inch

3M For 32-43inch, 4M For 43-60inch

5M For 60-80inch

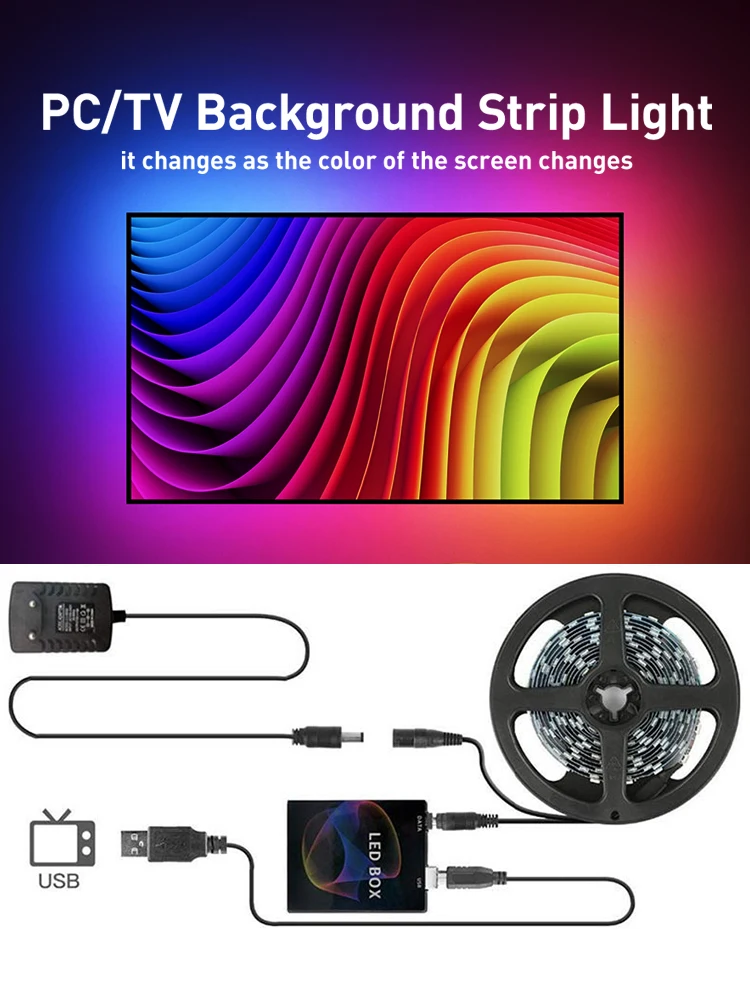

▽- USB PC Immersive RGBIC LED Strips -▽

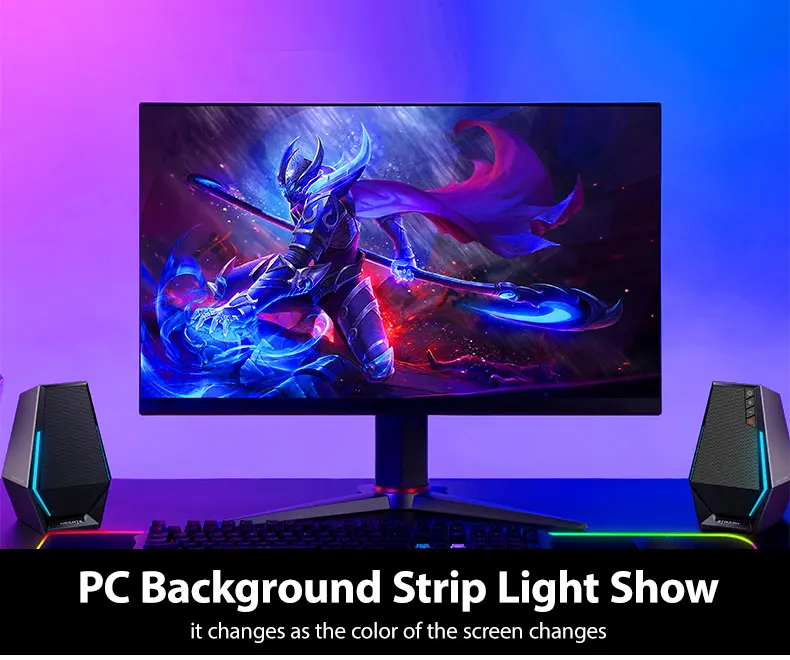

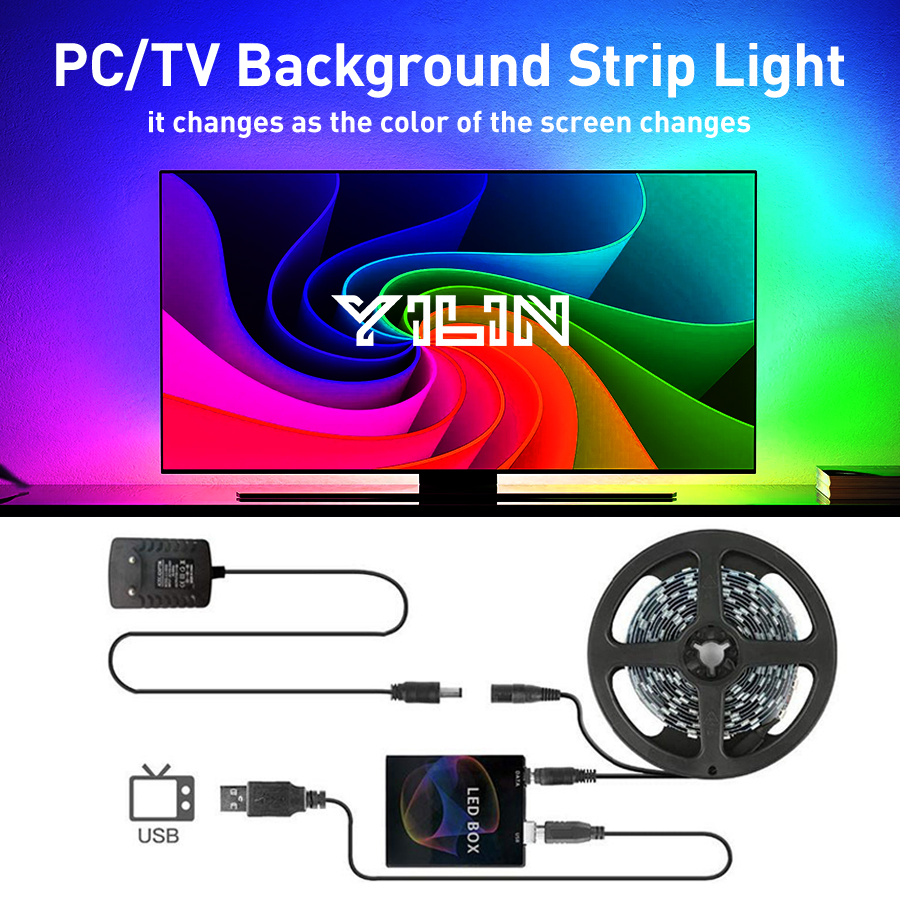

Connect the computer with USB (lights follow the PC screen display color automatically synchronize color), Only can be used in Windows System
