Differences between packages
Motherboard+CPU: 1*MG-X99 D4+1*E5 2680 V4 CPU
Motherboard+CPU+RAM: 1*MG-X99 D4+1*E5 2680 V4 CPU*DDR4 8G*2
CPU:
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)
Specification:
Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 6 USB ports 2 0 interface
PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)
Internal connectors
SATA interface: 3 SATA interfaces (1 SATA3.0 2 SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATAM. 2)
:M-ATX【215 x 190】mm
Note:
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (orange slots) first. The motherboard’s gray RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
It took a while to arrive, but that's okay since it's an international purchase; it worked perfectly.
Received it well and am roughly assembling it for testing. Very good, I will reorder.

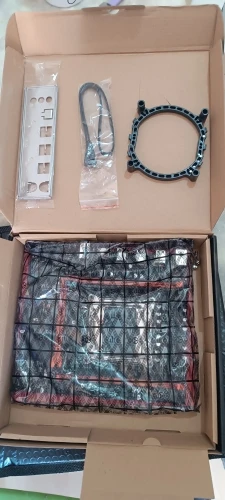

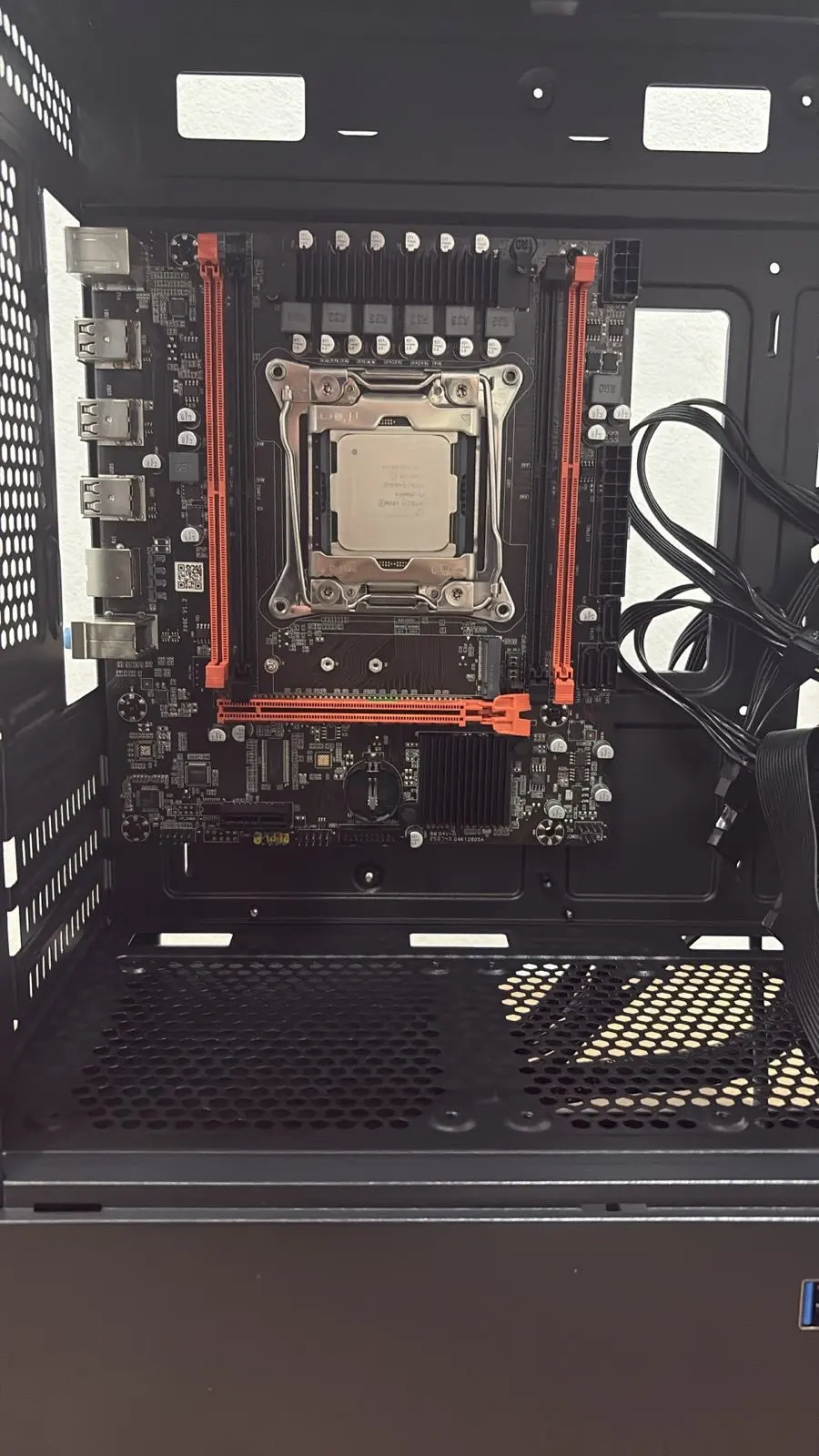

The package arrived quickly and without any problems. The motherboard works well with Xeon 2680 V4 and modern AMD Radeon and RTX Nvidia cards. The BIOS offers many options, operates stably, has Resizable BAR, and allows for unlocking CPU boost. The DDR4 2133 MHz memory is functioning properly. in quad mode. For your information, the disadvantages of this board are: the PCI-E x1 slot is too close to the PCI-E x16, which prevents the graphics card from being used. All SATA ports on the board are 2.0 – SATA 3.0 requires an additional controller. Advantages: stable and fast performance, no issues in daily use and gaming, efficient operation of the M.2 drive. Everything works smoothly, better than I expected. Packaging: board protected with bubble wrap, but smaller items, e.g. The screws were thrown in bulk (they should be secured). Summary: The motherboard and processor met my expectations, the units I received work perfectly and flawlessly.
Highly recommended!
Looking great! Gotta buy a cr2032 battery for it tho
The item arrived on time, in good condition, and works perfectly. To clarify a general question, this combo IS compatible with desktop DDR4 RAM, not just server RAM, but I believe it only works correctly when it has more than 4 chips on the front. If it has 8, for example, or even 16 on the back, it works perfectly.
Excellent board, quick delivery, cpu worked good. No issues with server and desktop memory
It arrived exactly as advertised. I will assemble it soon, I'm waiting for other parts.
Great product, exceeded my expectations, I recommend it. It arrived very well packaged.
Great product working perfectly ...

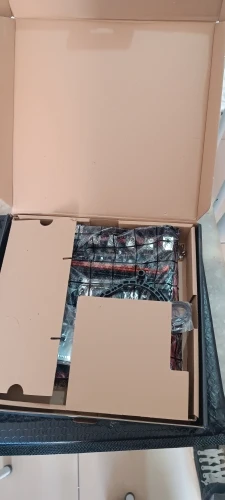

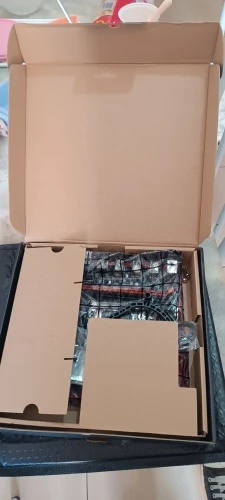

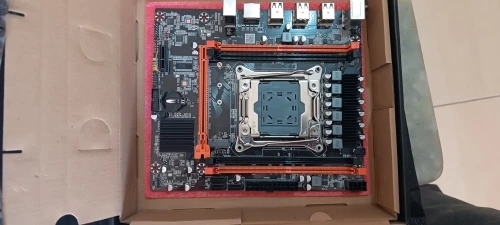

The product was delivered quickly. Although the box was dented, the motherboard works well. The motherboard is new. I recommend this seller.
Matches description. Everything works as expected. Lovely little board and cpu for updating my home server.
Very good
It arrived working! Great board.
The motherboard works great and was a great deal with the cpu. Unfortunately the ram was out of stock. It has no manual but all the information you need is on the product listing pictures such as the layout for the front panel connections.
This mougol x99 board paired with a nice xeon is really a great base for a system. Only down is that it doesn't have tpm 2.0. you need to buy a separate module.
Very good quality, very easy to build and put together, cpu was preinstalled.
Very simple motherboard. Only two fan headers (both 4 pin pwm), no tpm header and basic heatsinks. But it works with my ddr4 ram and xeon e5 2630 v4.
Arrived quickly, super reliable delivery, very good product that met expectations.
Fast delivery, product 100% working, I recommend.
Everything arrived as described.
I received the product, but I haven't tested it yet; apparently everything is fine.
It's working perfectly, I just wouldn't say it's one of the best Xeon kits. I couldn't extract the maximum performance from the Xeon, but it's already very good compared to my old i5 2300. The delivery was even faster than expected, I recommend J&T Express!
Worked out of the box and had no issues with cpu, ram or gpu compatibility. Worthwhile to note that there are only 2 fan headers and no rgb header, so make sure to pick up fan splitters + rgb controller if you have rgb fans
Everything working perfectly. The build quality is good. Very much worth the money!
