NOTE：
Different pixel quality and output interface for you to choose:
Interface options: USB/HDMI/VAG/Type-C
Pixel quality can be selected: 13MP/38MP/48MP/55MP(4K)
The number of frames transmitted per second: 30Fps/60Fps
Please pay attention to the picture and the parameter description in the packing list when purchasing!

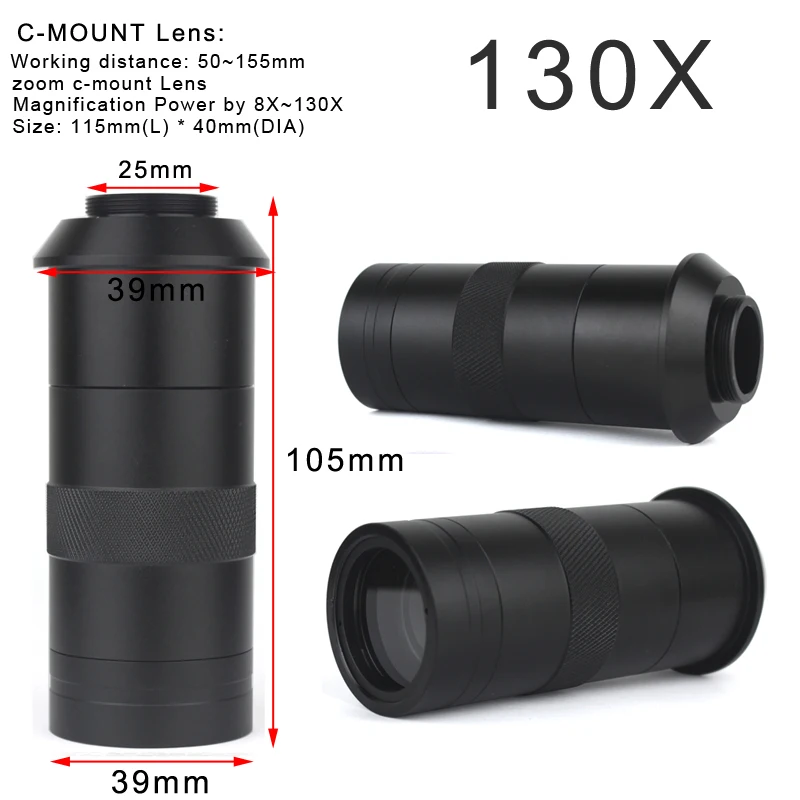

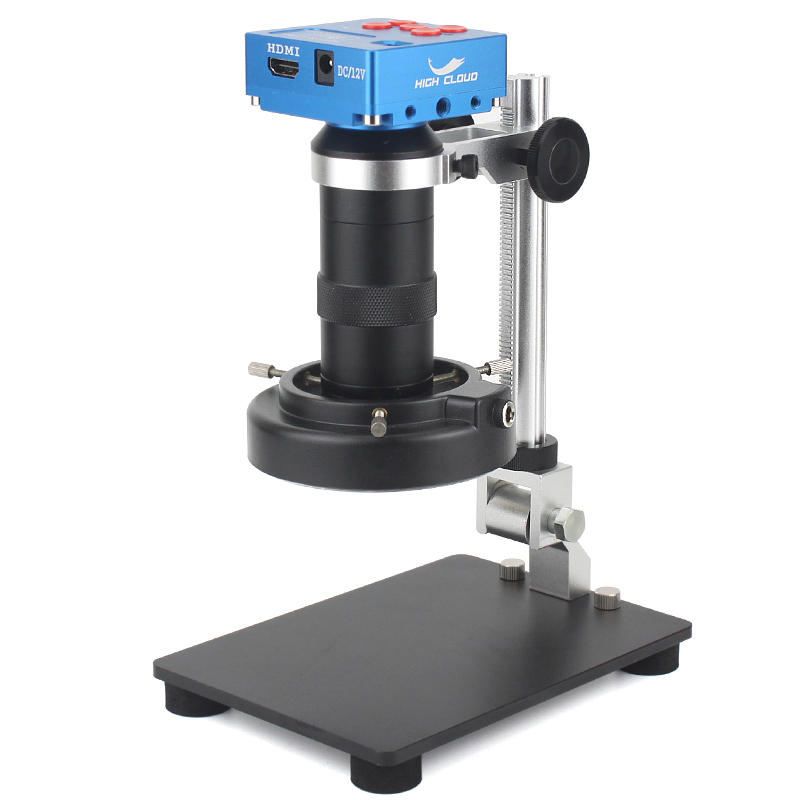

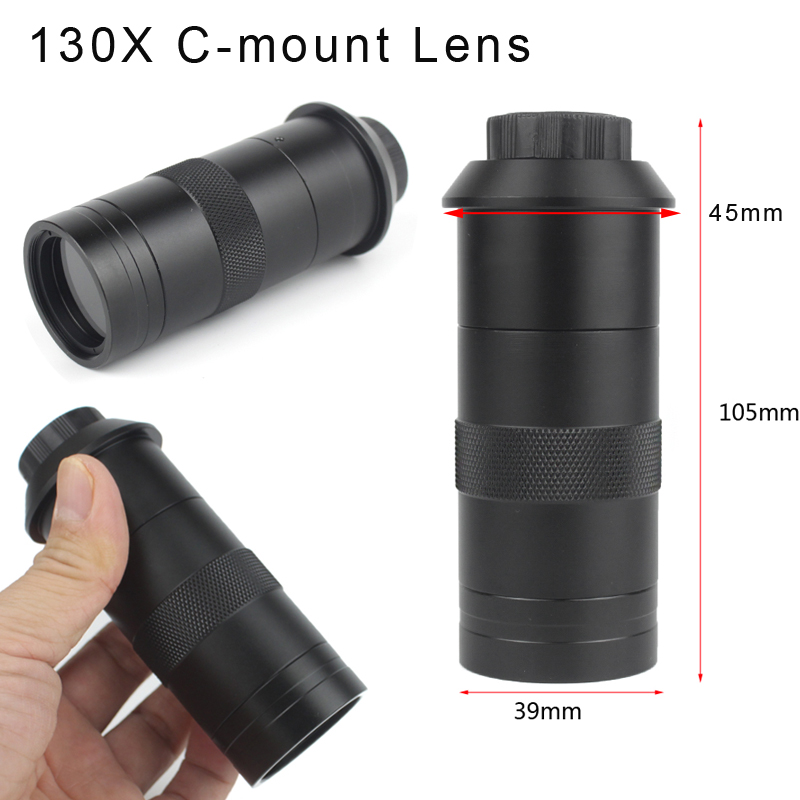

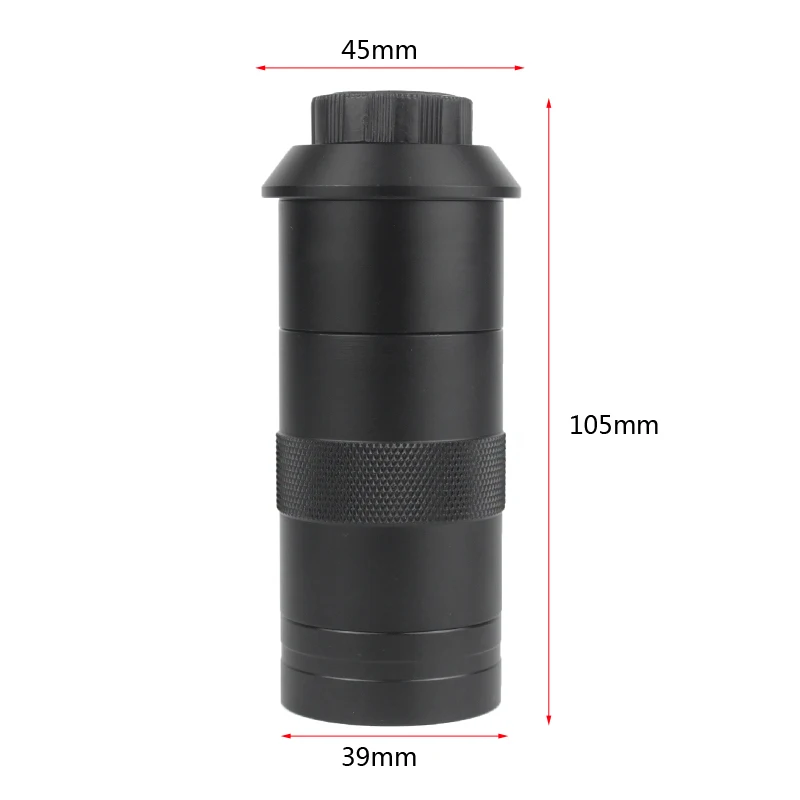

130X C-MOUNT Lens:Magnification Power by 0.12 – 2X (about 8X – 130X on the display)Work distance: 50-155mmVisual field :2.4mm-32mmSize: 115mm(L) * 40mm(DIA)Weight: 210g

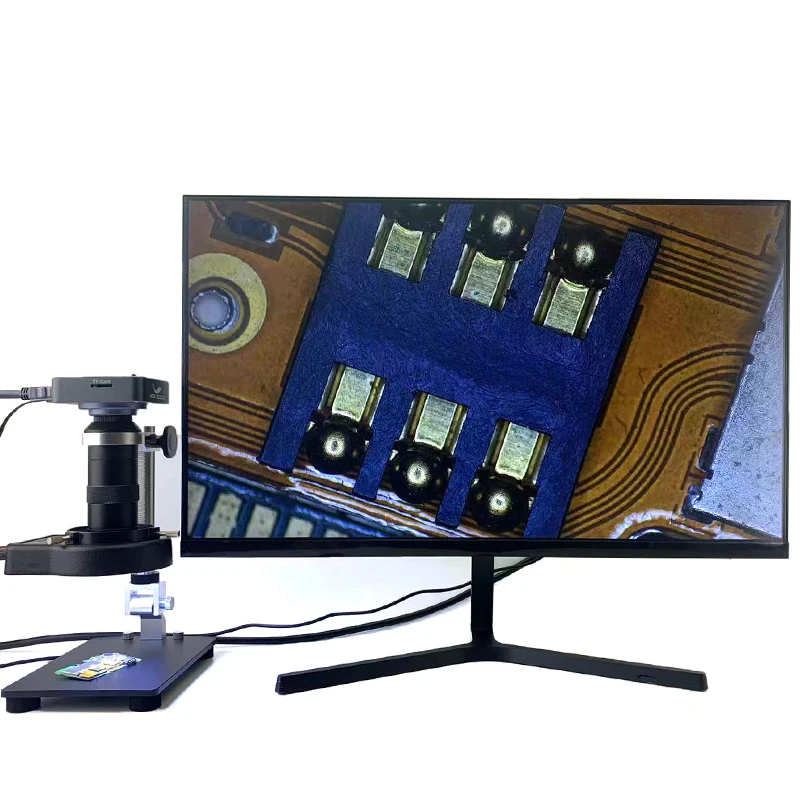

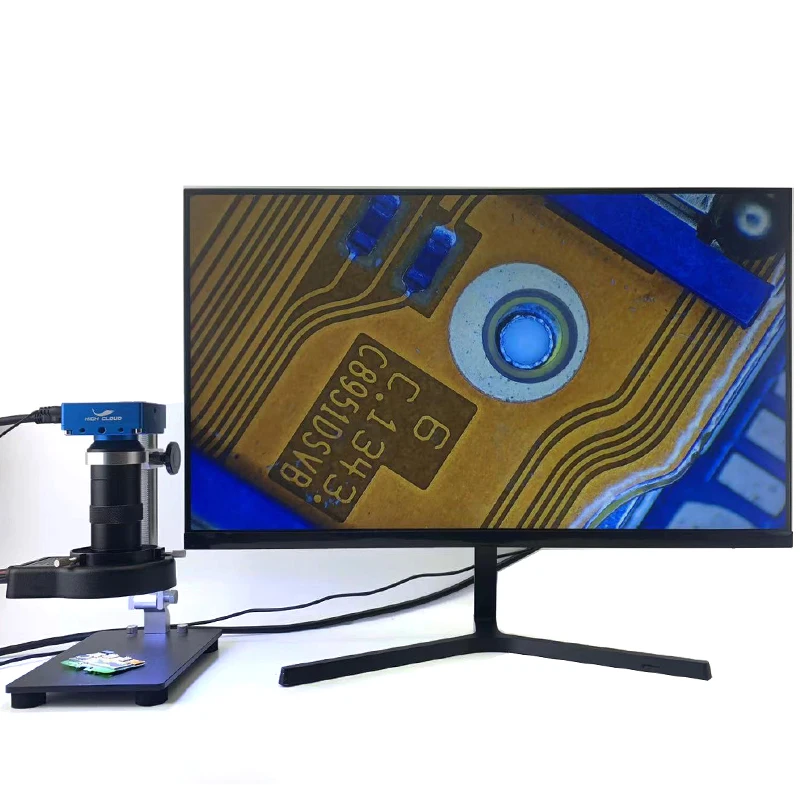

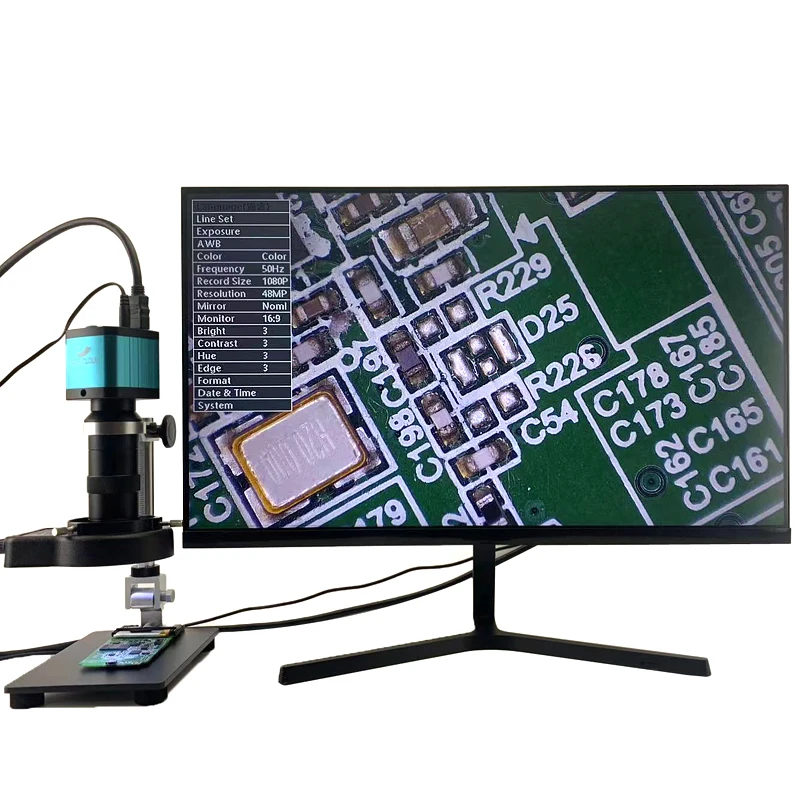

Applicable scenarios: mobile phone repair/computer repair/watch repair/jewelry repair/various circuit board repair/various motherboard repair/any scene that needs to be enlarged can be used!

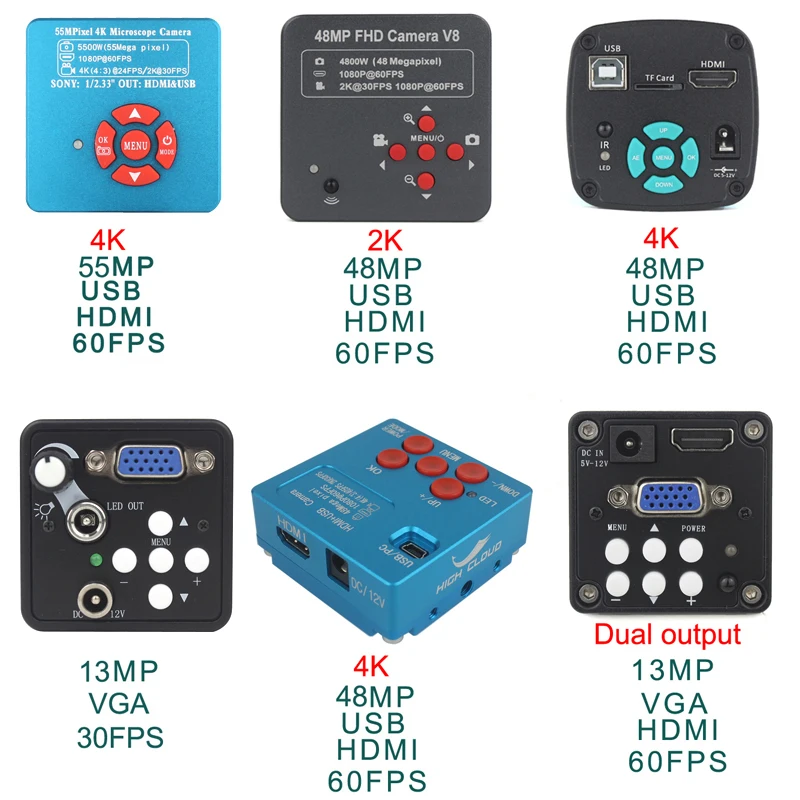

The link has multiple SKU options, each representing a different model of camera. Please refer to.

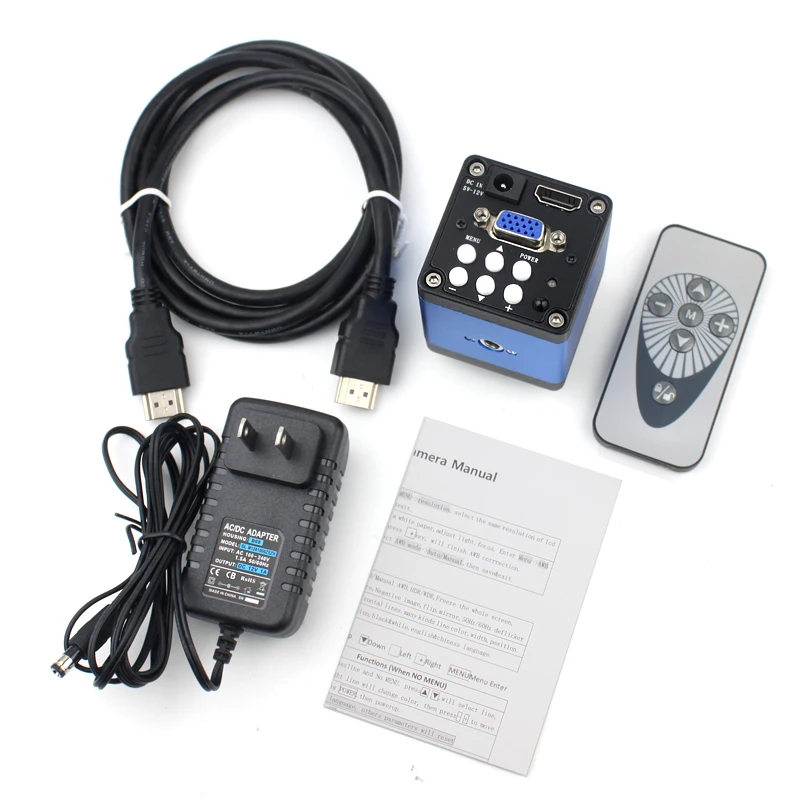

Packing List:
A set
1* Camera set (HDMI USB 48MP 4K 60Fps)

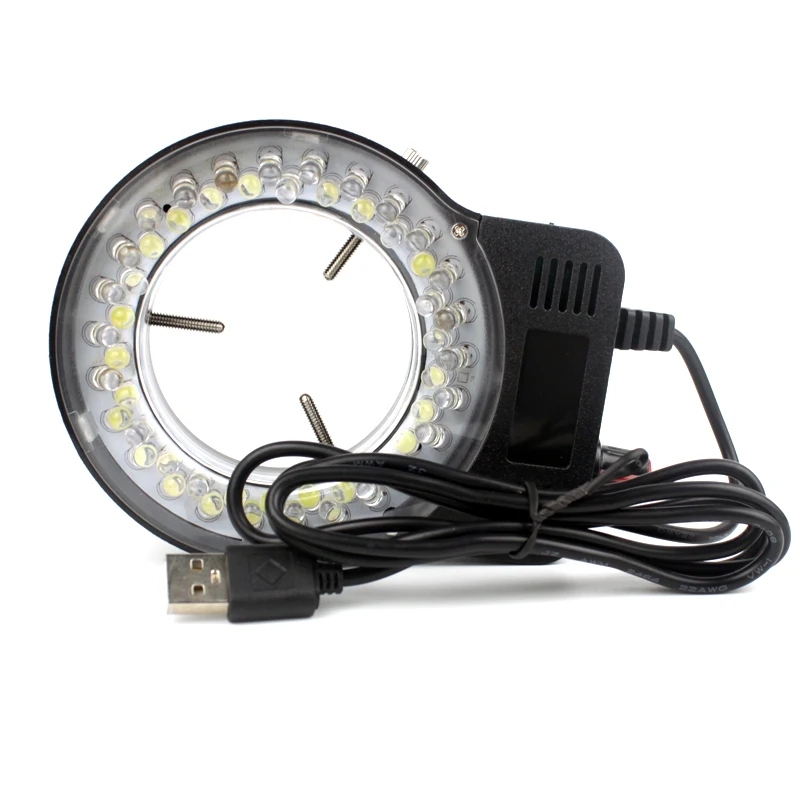

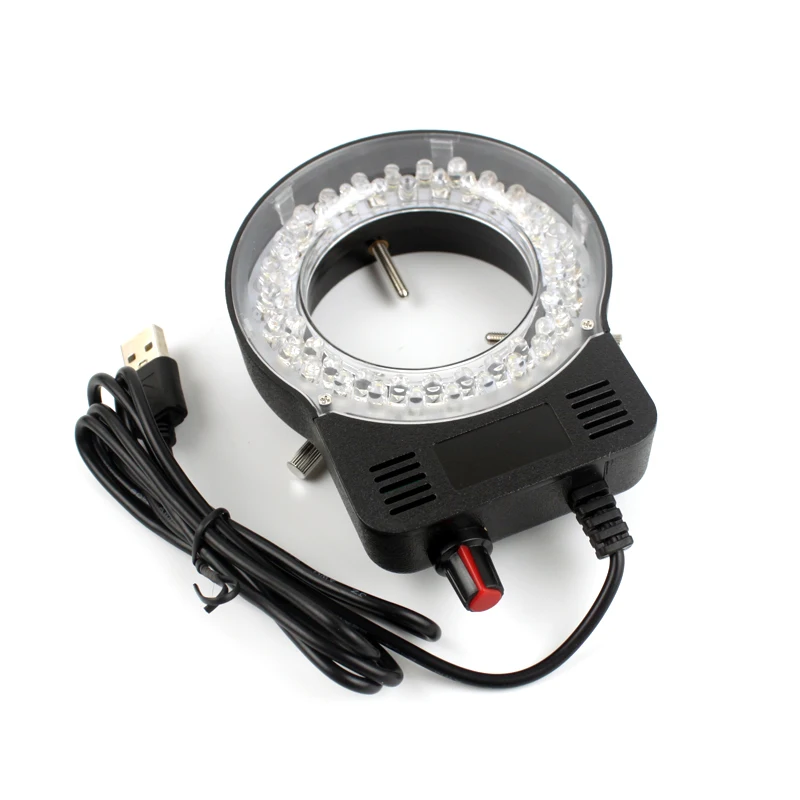

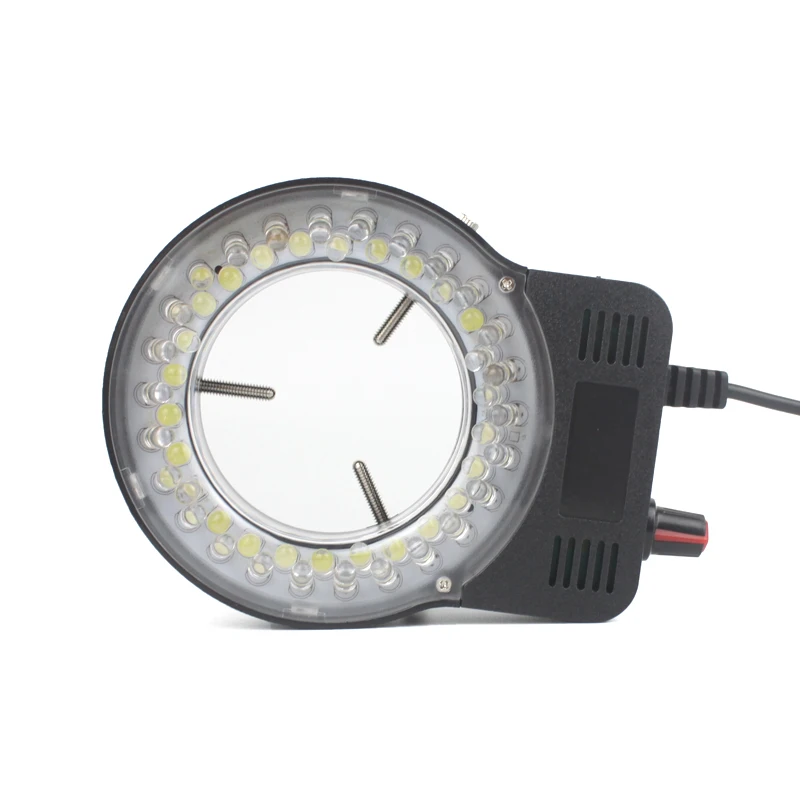

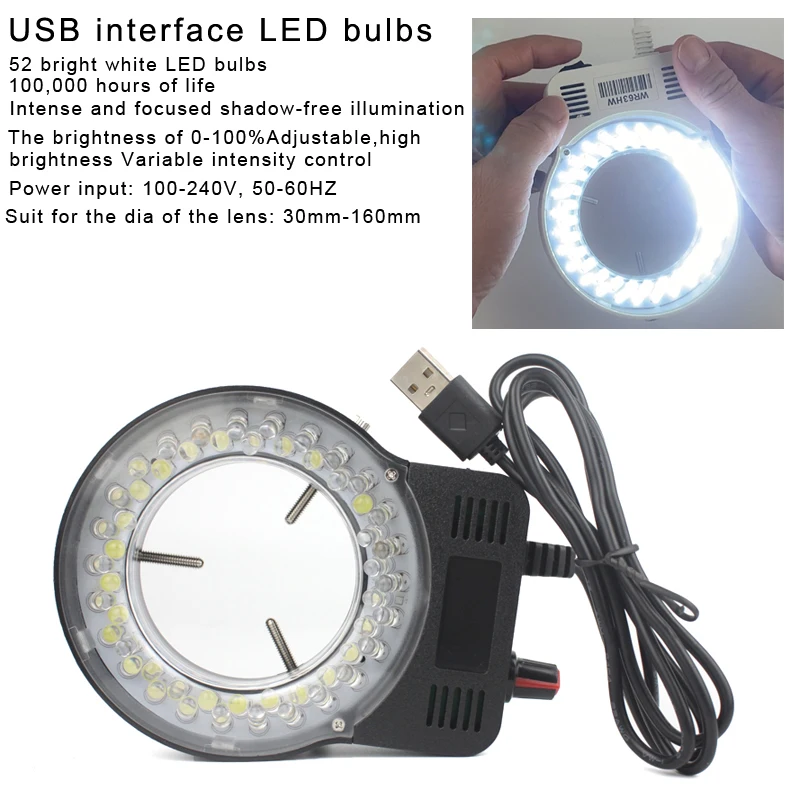

1* LED ring light （USB plug）
1* 130X zoom lens

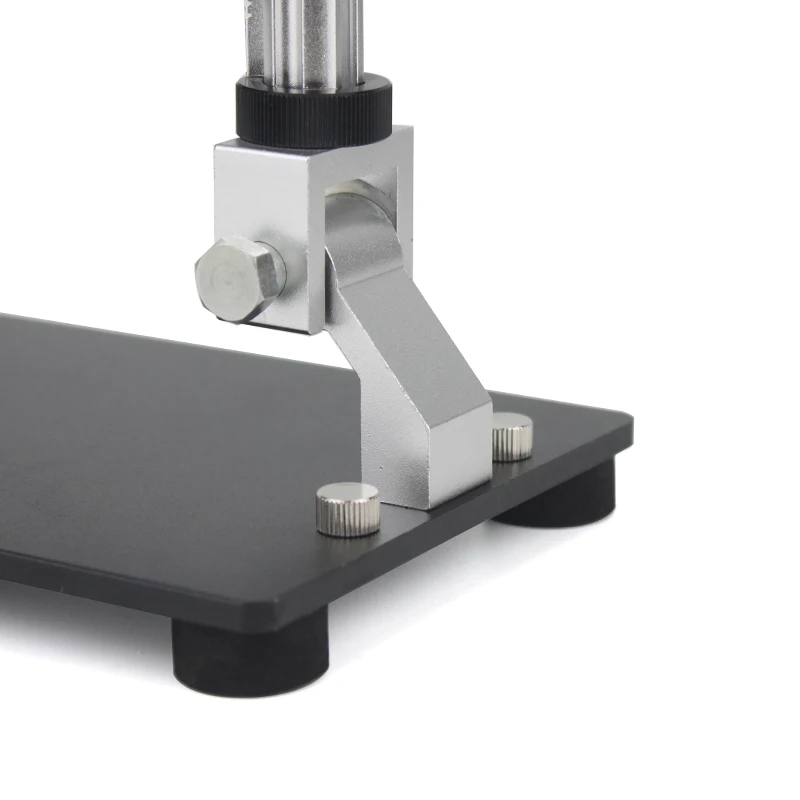

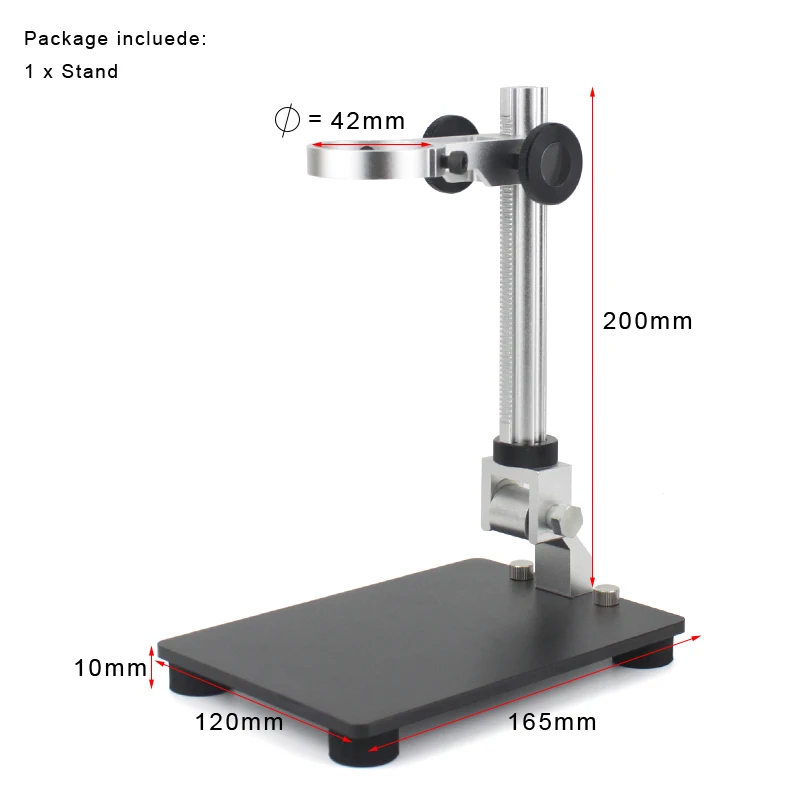

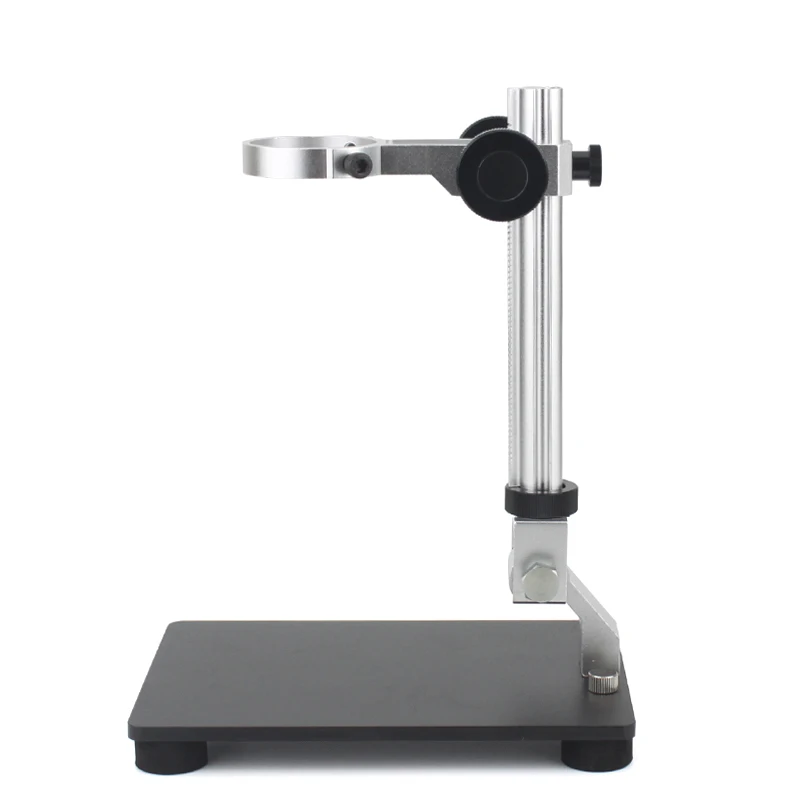

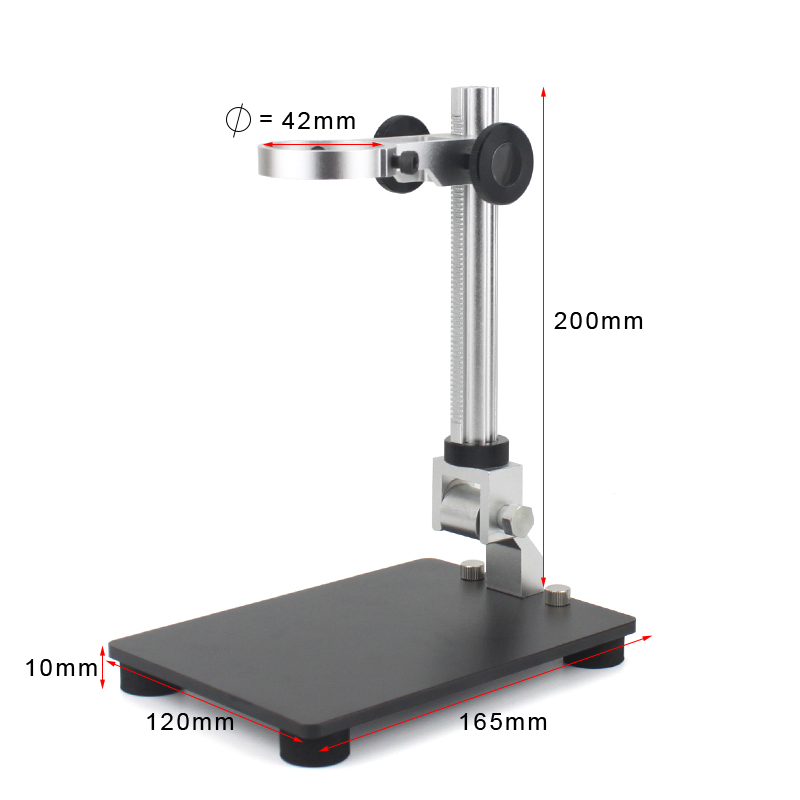

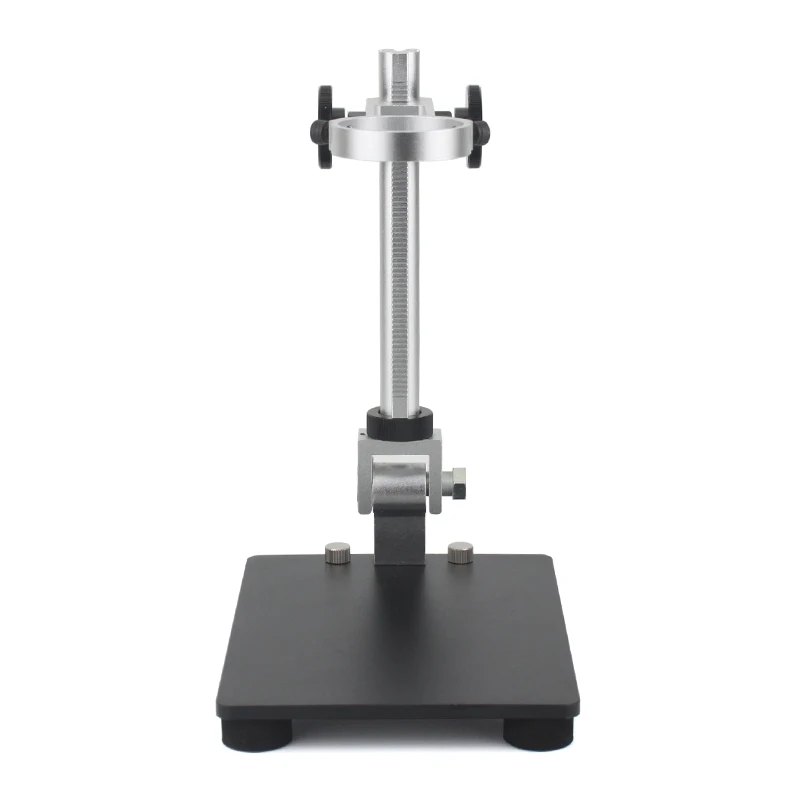

1* Microscope bracket
B set
1* Camera set (HDMI USB 48MP 4K 60Fps)
1* LED ring light （USB plug）
1* 130X zoom lens
1* Microscope bracket
C set 130X
1* Camera set (HDMI USB 55MP 4K 60Fps)
1* LED ring light （USB plug）
1* 130X zoom lens
1* Microscope bracket
D set
1* Camera set (HDMI USB 48MP 2K 60Fps)
1* LED ring light （USB plug）
1* 130X zoom lens
1* Microscope bracket
E set
1* Camera set (HDMI VGA 2K 60Fps)
1* LED ring light （USB plug）
1* 130X zoom lens
1* Microscope bracket
F set
1* Camera set (VGA 13MP 30Fps)
1* LED ring light （USB plug）
1* 130X zoom lens
1* Microscope bracket

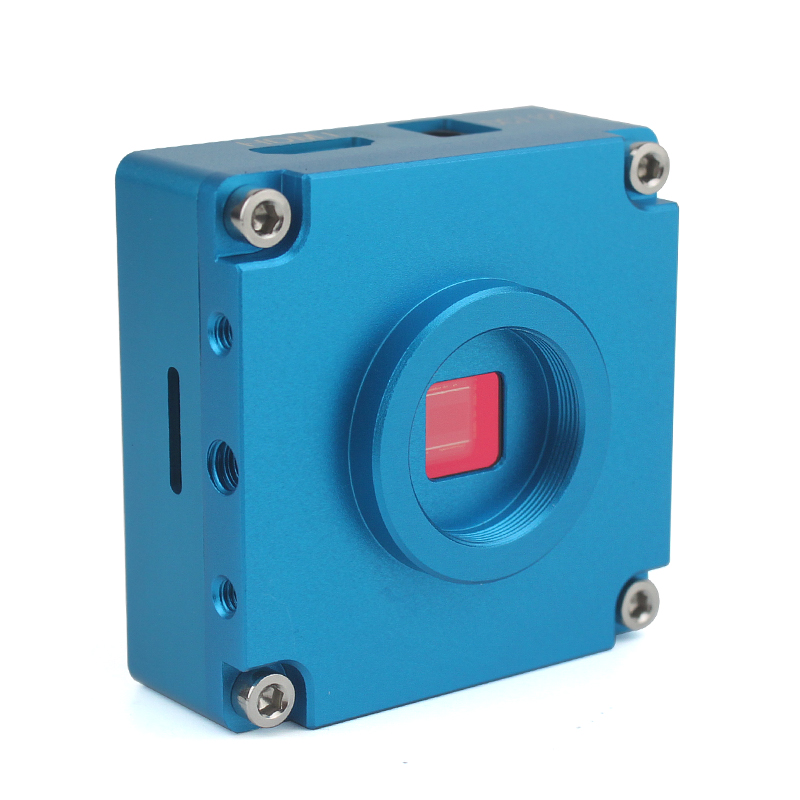

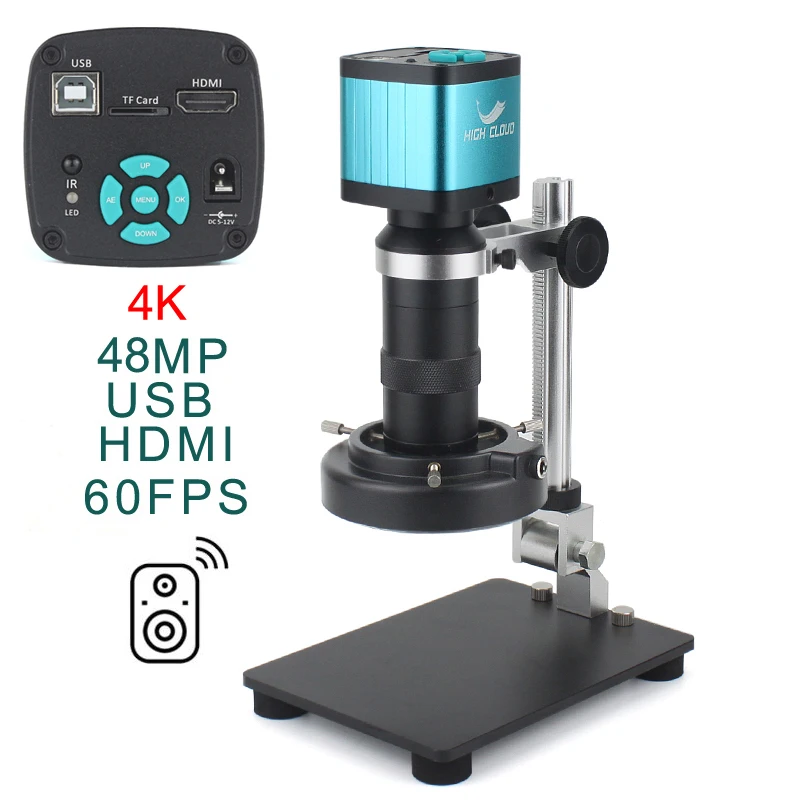

A：48MP USB HDMI 4K 60FPS
Product features
◆ 48 million pixel imported Panasonic CMOS image sensor;
◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
◆USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
◆48 million photos, JPG format, photo size 4608×3456;
One-click freezing/thawing function;
◆48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
◆ Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
◆ Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
◆ Strong metal shell;
The sensor:1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size:1.335µm ×

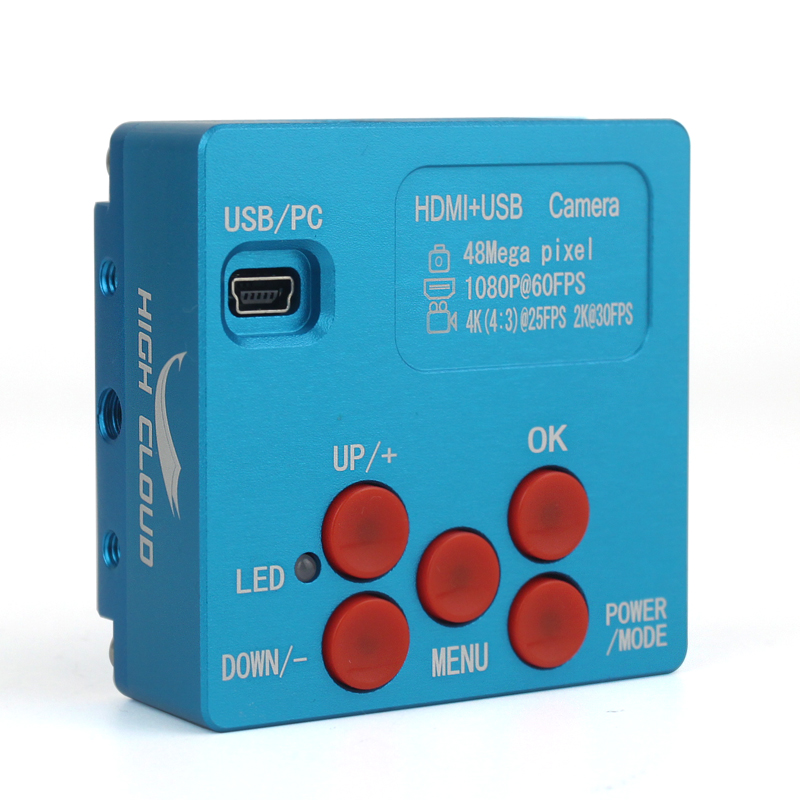

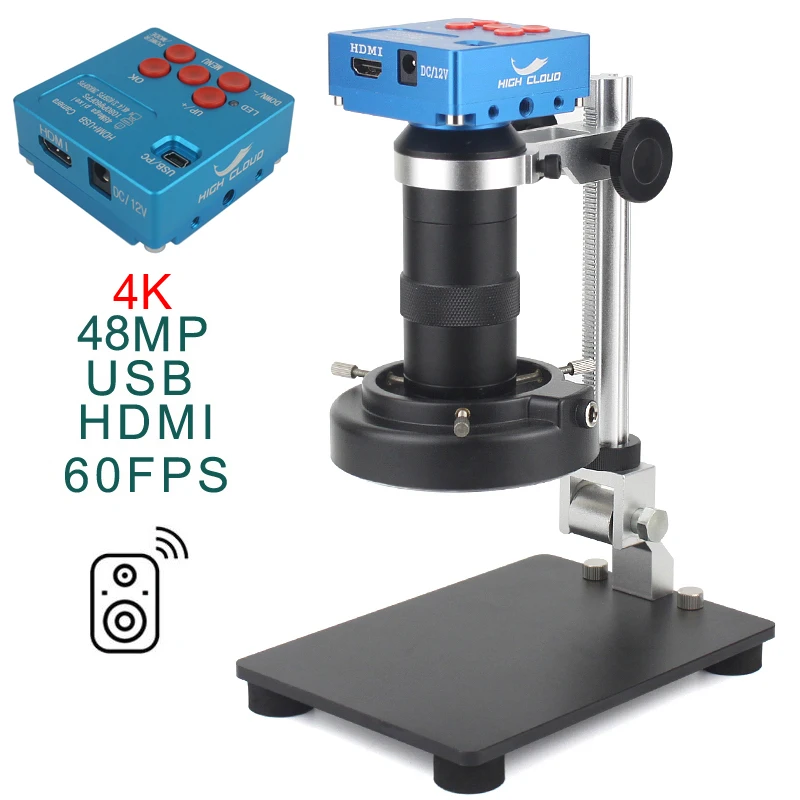

B 48MP USB HDMI 4K 60FPS
Specification:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 1920*1080 60F/S @ HDMI output
Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)
Housing: All metal
Support:C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format:MOV
HDMI interface: HDMI/USB output
Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Language:Chinese/English
Mirroring: Support
Frequency:50Hz/60Hz
Monitor:16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size
Power supply:5-12V 1A

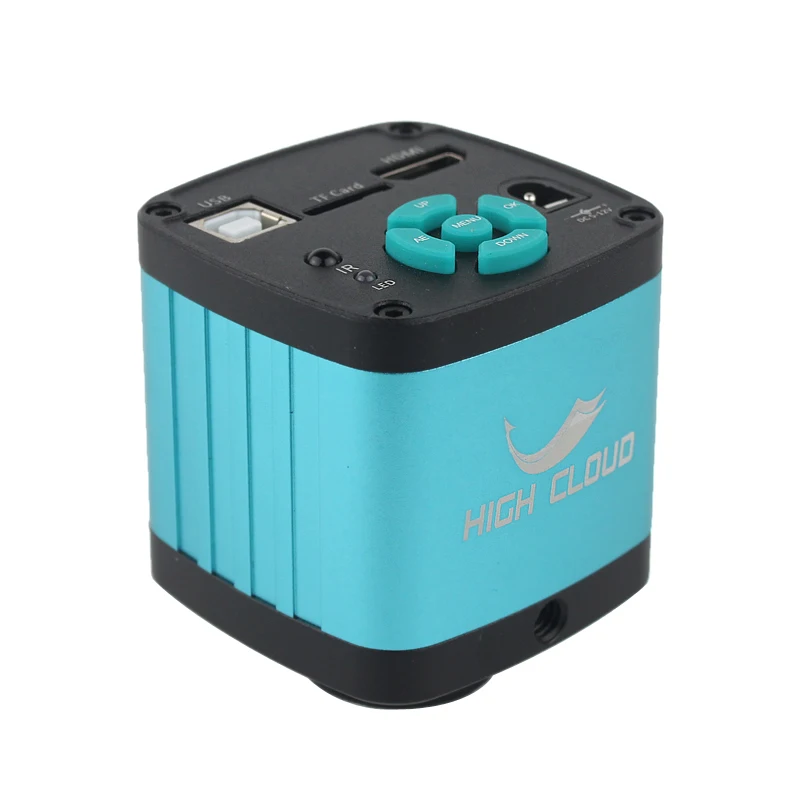

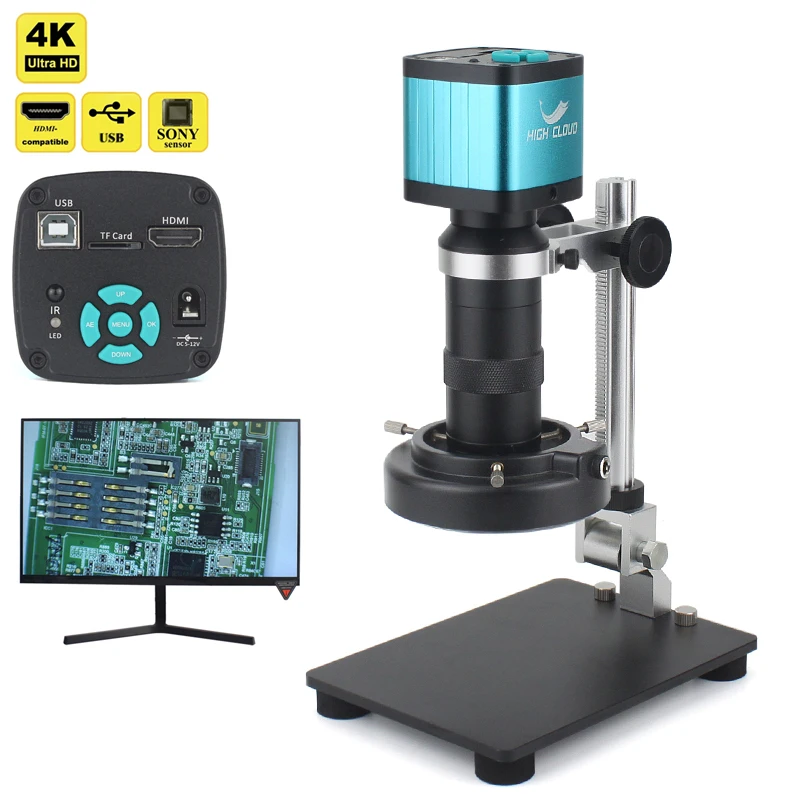

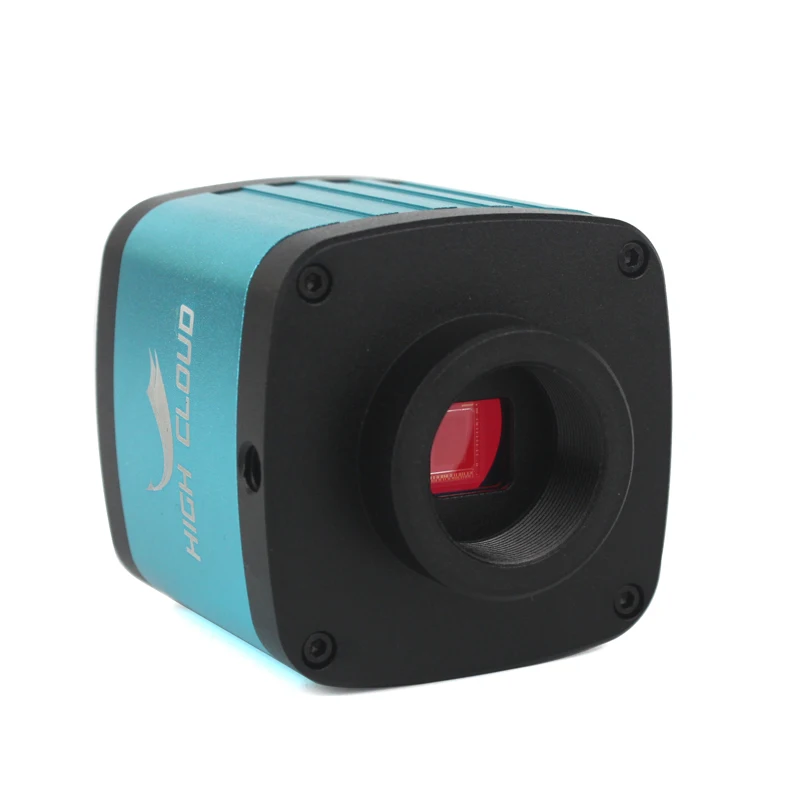

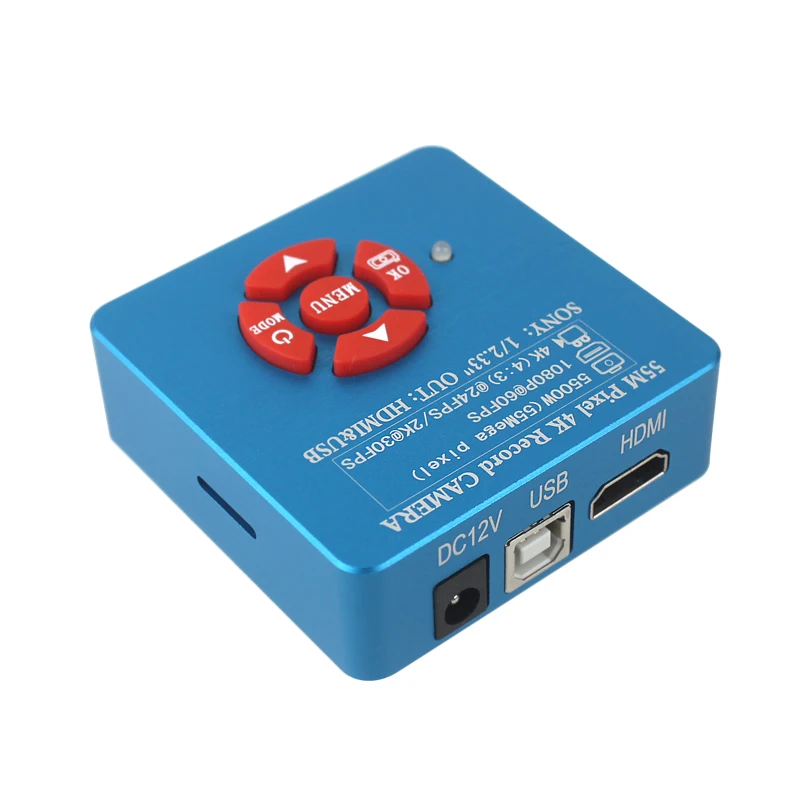

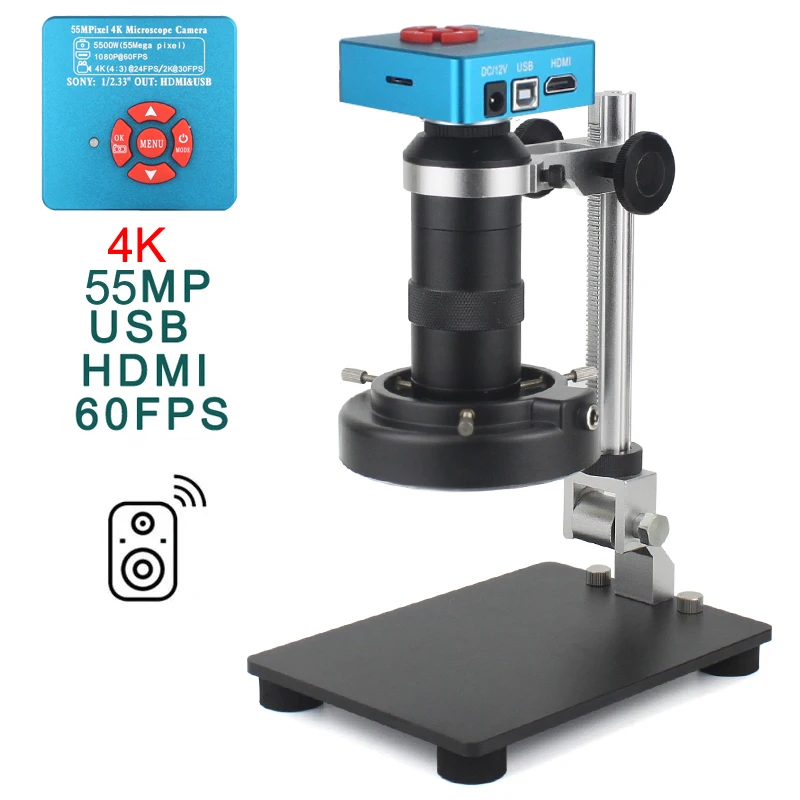

C 55MP USB HDMI 4K 60FPS
55MP 2K 4K TF HDMI USB Feature:
Picture Pixel: 9885X5560 55M Pixel 9280X5220 48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY 1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max）
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70℃

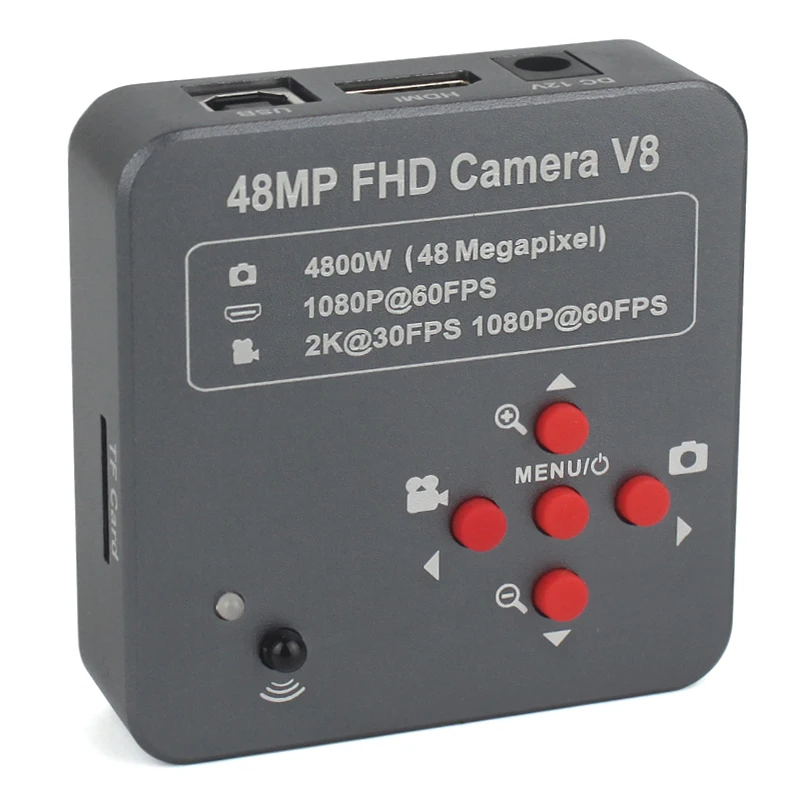

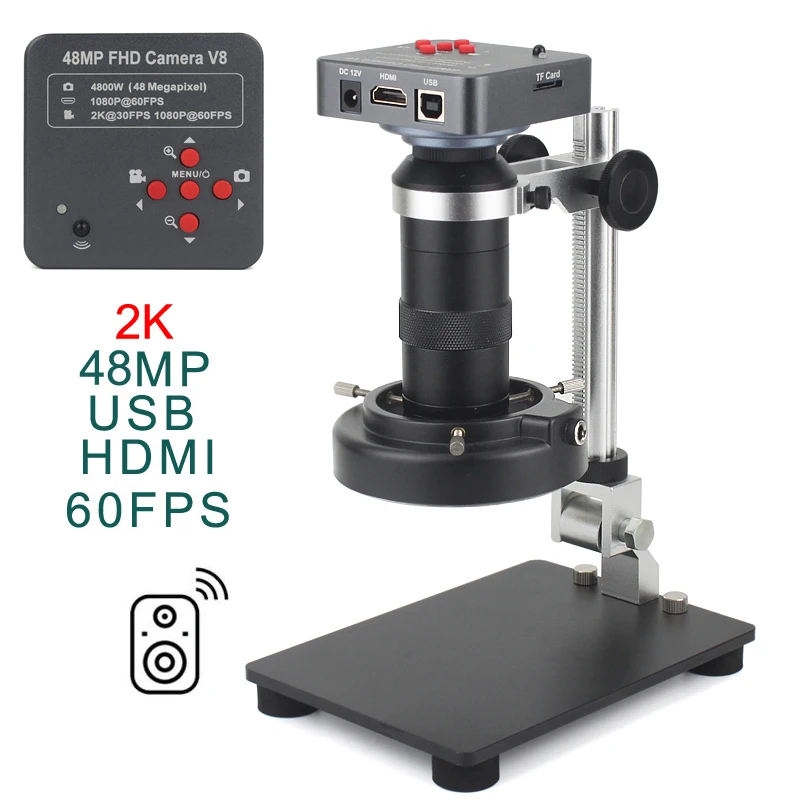

D：48MP 2K USB HDMI 60FPS
Overall dimension: 20*70*70mm
Video Interface:HDMI
USB2.0 (Drive gratis): 1920*1080 @ 30FPS 1280*720 @ 30FPS 640*480 @ 30FPS
Lens:CS
Working voltage:12V
Working current:120mA
Stroomverbruik: MAX 0.15 W 12 V, 0.12A
Optical format:1/2.3″
Pixel size:1.4um*1.4um
Pixel array:48MP(4632*3488)
TV Lines:2000TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 5 horizontal and vertical Color / line width adjustable
B/W:allow
Freeze:allow
Output of display resolution: HDMI：1920*1080
HDMI schaal: Ondersteuning 4:3, 16:9, 16:10 scherm

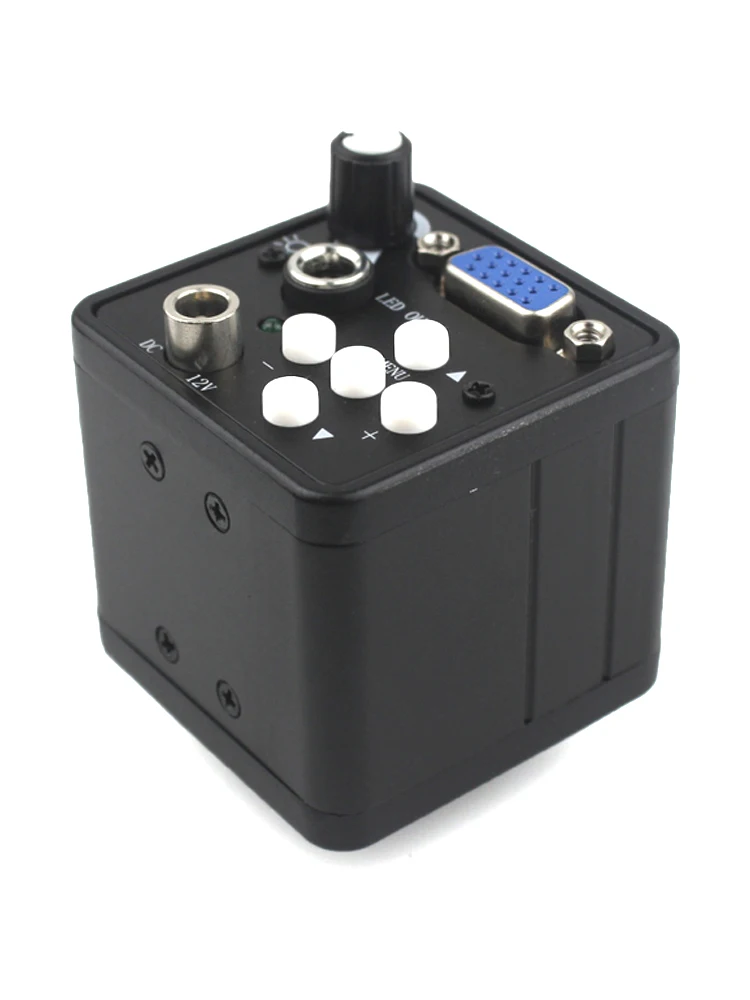

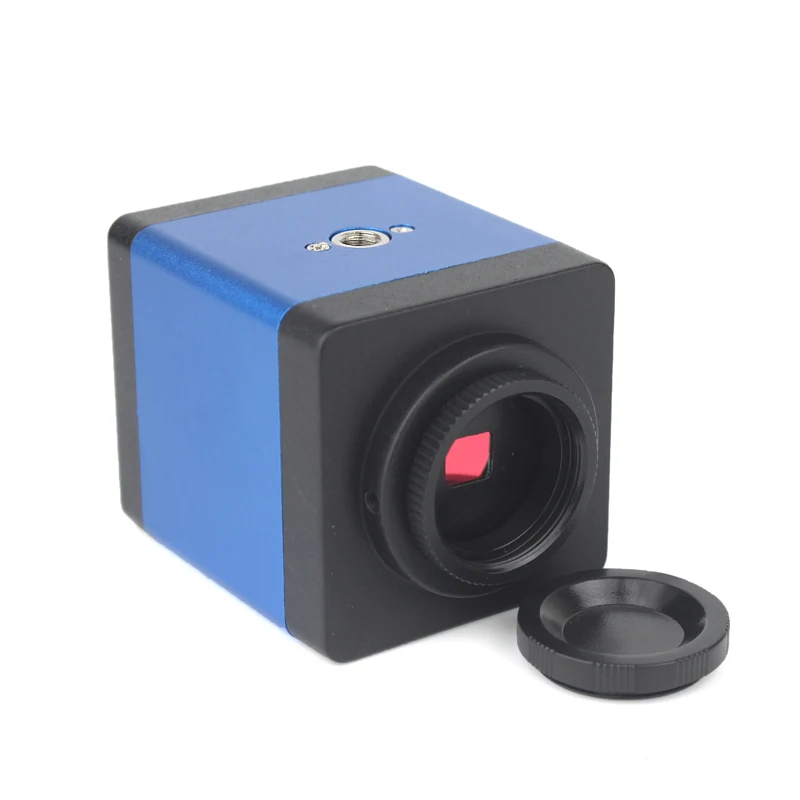

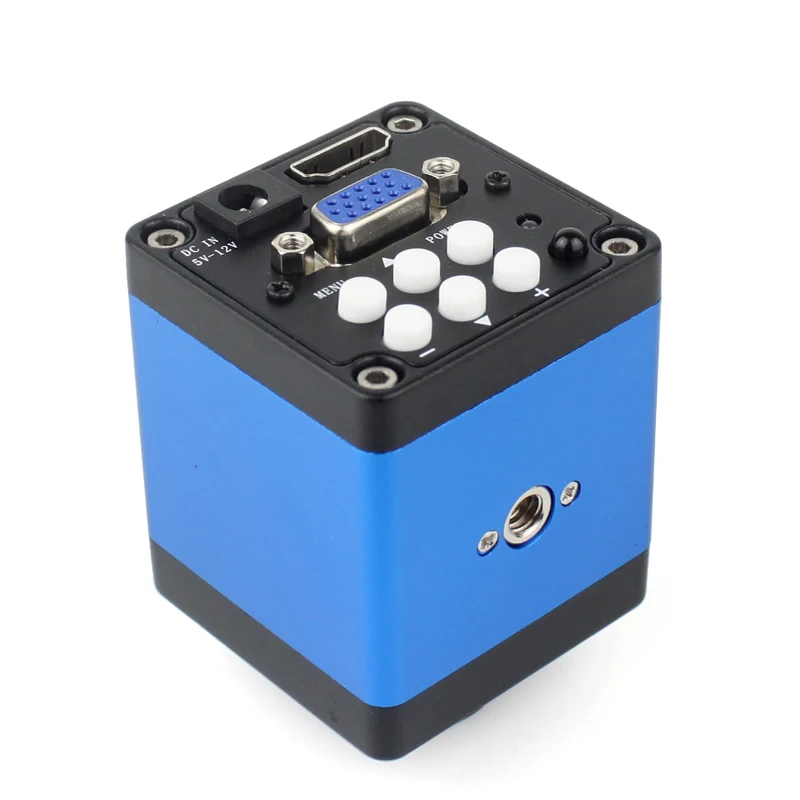

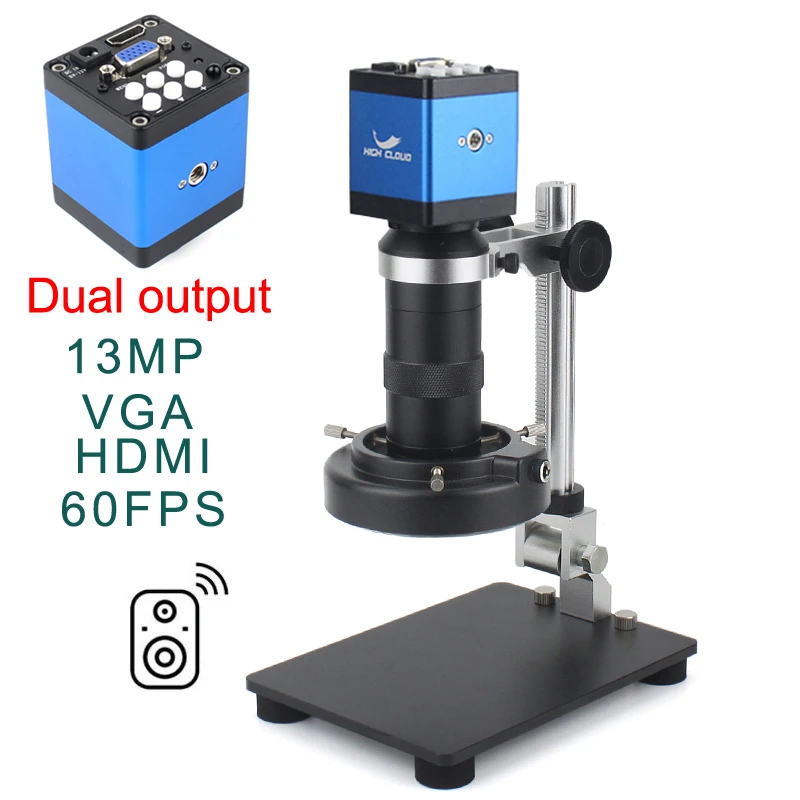

E ：13MP HDMI VGA 60FPS（Dual output）
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3″
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

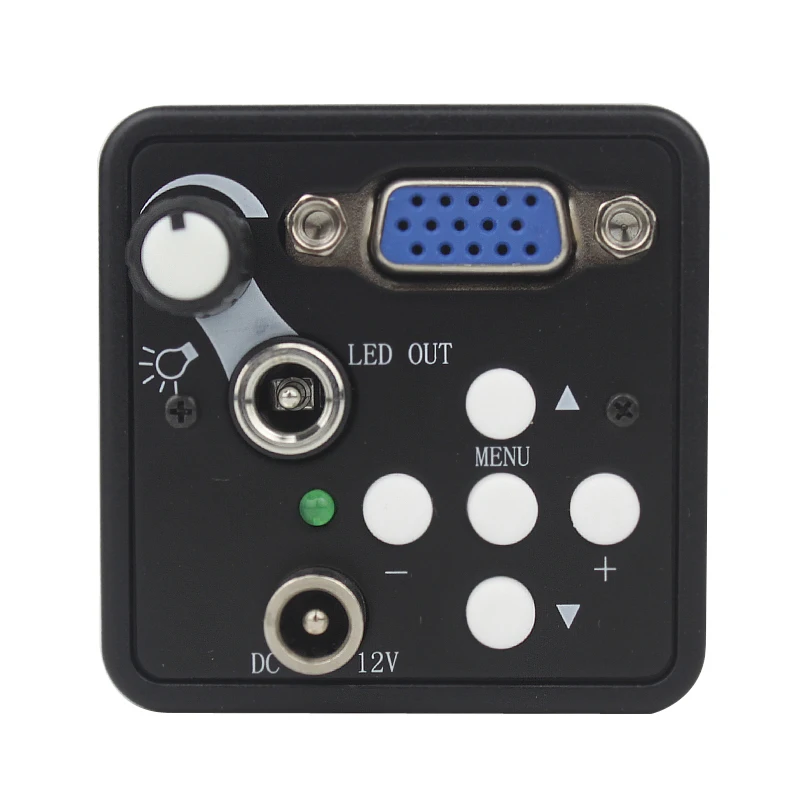

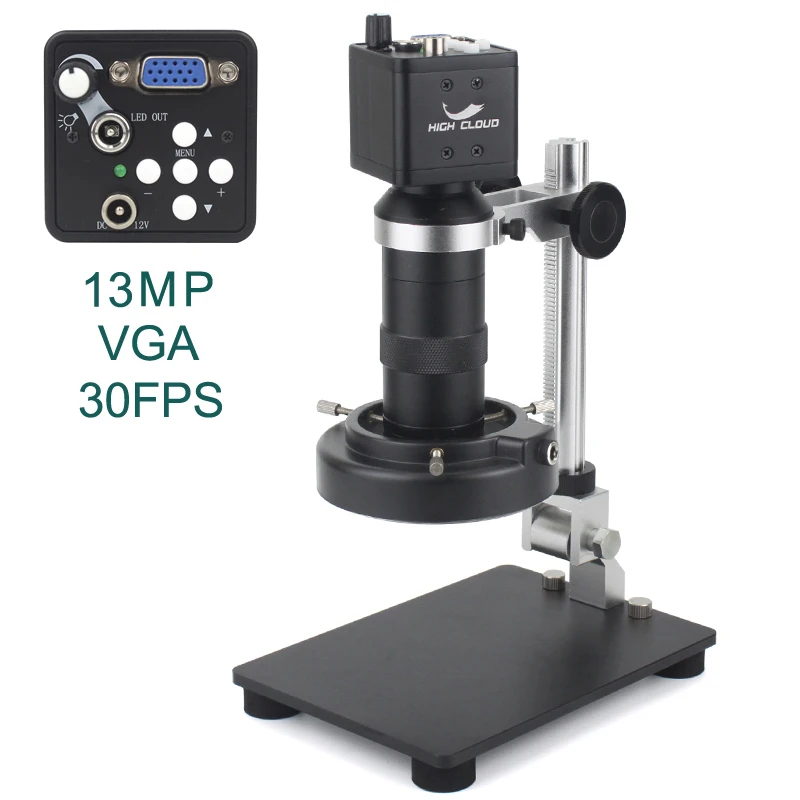

F 13MP VGA 30FPS
Feature:
Overall dimension: 70*50*50mm
Video Interface:VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/2.7″
Pixel size:3.0um*3.0um
Pixel array: 1920*1080
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)

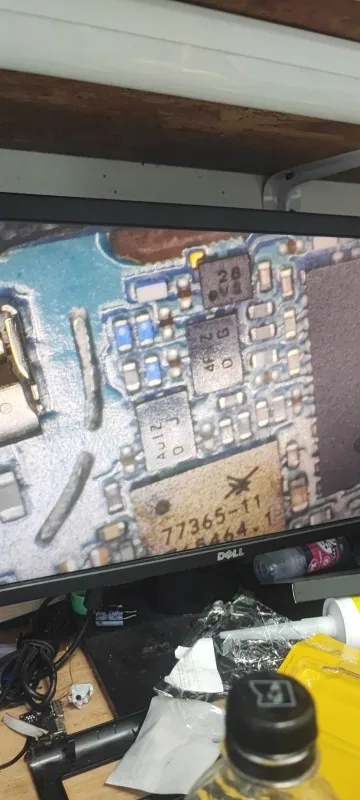

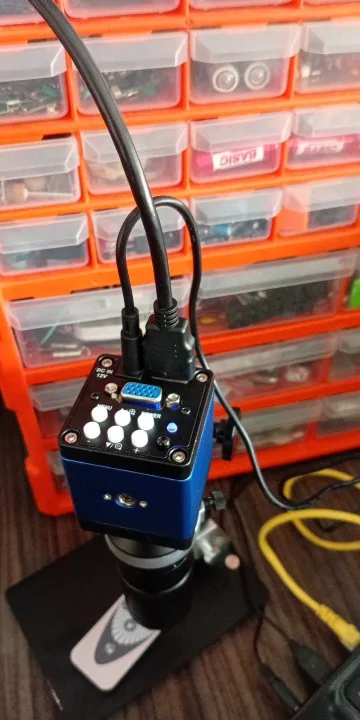

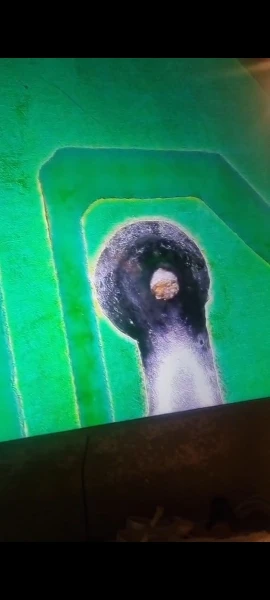

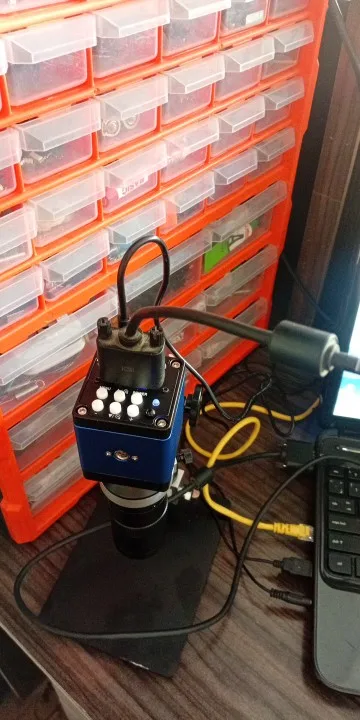

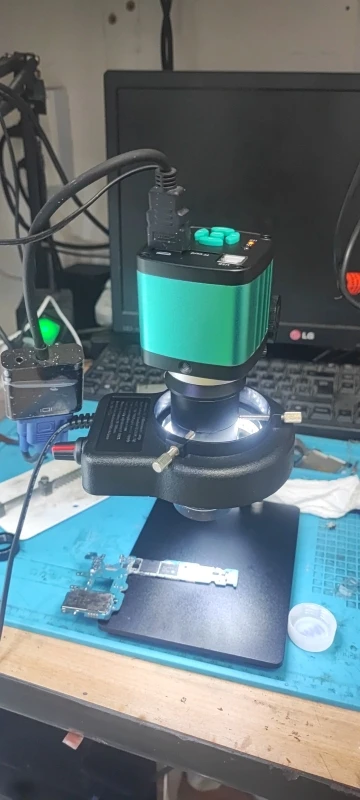

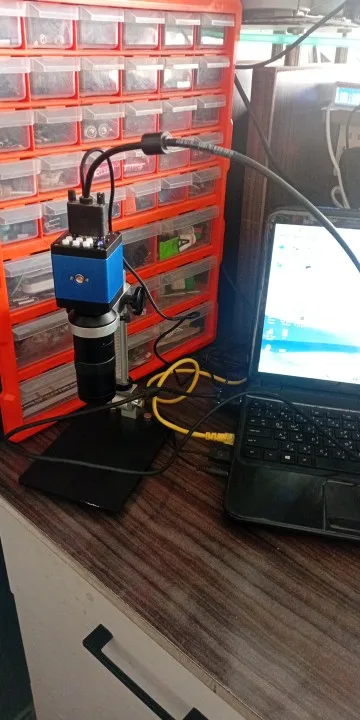

Great camera, thank you. I will be able to weld again.
