Installation prompt!
Memory installation instructions: It should be inserted into the black main slot first. Inserting into the gray slot does not work.
Mixing different specifications of memory is not allowed. We need four unified specifications of memory.
Differences between packages

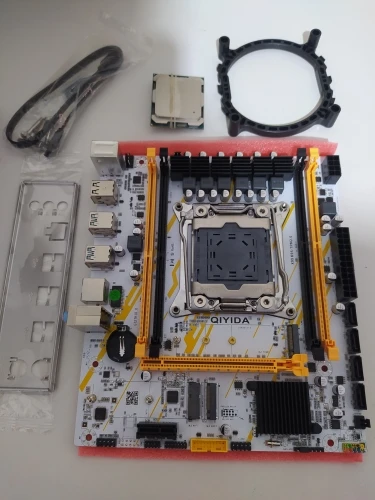

Motherboards: 1*X99 D4 Motherboard
Motherboard+CPU: 1*X99 D4+1*E5 2630 V4 CPU
Motherboard+CPU+RAM: 1*-X99 D4+1*E5 2630 V4 CPU+1*DDR4 16GB RAM
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order
Attention: This X99 motherboard supports TPM 2.0 only for ASUS-defined TPM modules (such as the ASUS TPM 2.0 module). Please note that the set does not include a radiator, only a radiator clip is included as a gift.
CPU:
Model number: E5 2630 V4
Processor Speed: 2.2GHz
Maximum core frequency: 3.1GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133
The number of CPU cores: 10
The number of threads: 20
L3 cache size (MB): 25 MB
Wattage: 85 Watts
cpu will be final double tested before shipping
The CPU is used , please don’t buy it if you mind
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)
**Product Specifications**
**CPU Support**
– Intel LGA 2011-3 Socket
– Compatible with Intel Xeon E5 V3 & V4 Series Processors
– FSB Speeds: 2133/2400/2666 MHz
**Chipset**
– Intel HM55 Express Chipset
**Memory**
– DDR4 Support: 2133/2400/2666 MHz
– Maximum Capacity: 128GB
•Dual-channel architecture
**Storage**
– 3x SATA 2.0 (3 Gb/s) Ports
– 1x NVME M.2 Slot
– 1x NGFF M.2 Slot
– 1x WIFI M.2 Slot
**I/O Ports**
– **Rear Panel:**
– 2x PS/2 Ports
– 6x USB 2.0 Ports
– 1x RJ45 Gigabit LAN Port (10/100/1000 Mbps)
– 1x 3-in-1 Audio Port (Line In/Line Out/Mic In)
– **Front Panel Headers:**
– 1x F_AUDIO (Front Audio)
– 1x F_PANEL (Front Panel Controls)
– 1x F_SPEAKER (System Speaker)
**Onboard Connectors**
– 1x 24-Pin ATX Power Connector
– 1x 8-Pin ATX12V Power Connector
– 2x USB 2.0 Headers (Supports 4x USB 2.0 Ports)
– 2x Fan Headers (CPU_FAN + SYS_FAN)
**Audio**
– Realtek ALC 6-Channel HD Audio Codec
– Front Audio and Stereo Mic Support
**Networking**
– Integrated Realtek Gigabit LAN (10/100/1000 Mbps)
**Expansion Slots**
– 1x PCI Express x16 Slot
– 1x PCI Express x4 Slot
**Additional Features**
– 1x LPC Debug Header
– 1x TPM Header (Security Module Support)
– 1x JCMOS Header (CMOS Clear)
**Form Factor**
– Micro-ATX Design (18.8 x 21.5 cm)
Note:
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (orange slots) first. The motherboard’s gray RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
Works great
Everything perfect, works very well, received very quickly before the promised date, super happy with the motherboard. I recommend it.
Motherboard works great i see a lot of people asking what tpm it takes it takes a 14pin msi tpm 2
best x99 cost-performance ratio with TPM 2.0 support
Good motherboard with TPM 2.0 NOT INCLUDED, I listened to the reviews and bought the MSI TPM and everything works well, it supports quadchannel with KSLLIRE RAM (32GB), everything works with 1650v4 and a 3060ti.
This is my third order with this moterboard. Have built 3 computers and all working great...msi tpm board and windows11 running great.

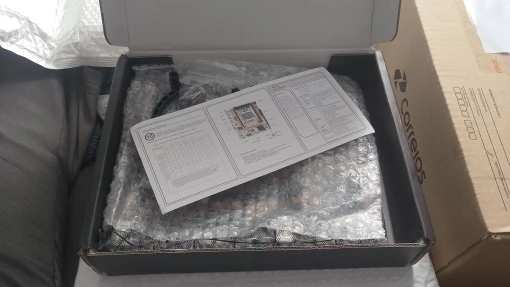

Well protected, good seller
Works great with my Xeon 2680 V4

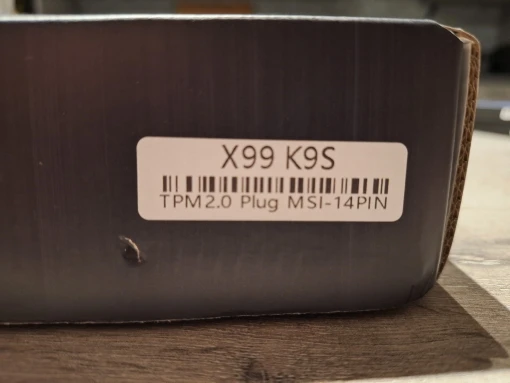

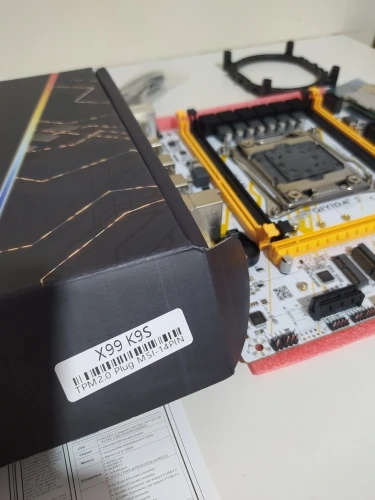

Beautiful plate, exactly as advertised. The box states that the TPM card is MSI 14-pin, but I went ahead and ended up buying the wrong one.
Best Xeon motherboard CxB currently. Working perfectly. I recommend it.
Very good motherboard! It already has support for TPM 2.0, meaning it's already updated for Windows 11 with security! Just configure it correctly in the BIOS and you'll be happy. I recommend it.

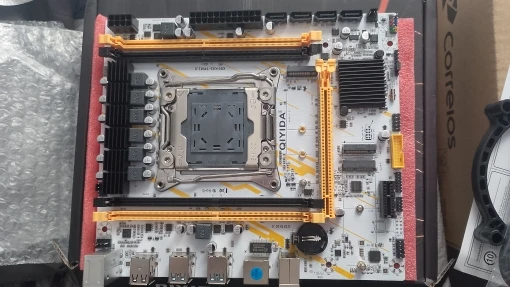

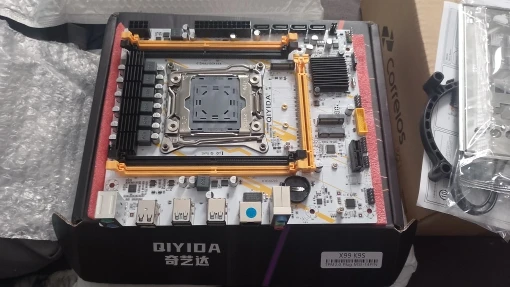

A good motherboard, white with beautiful colors, simple but functional, highly recommended, great value for money.

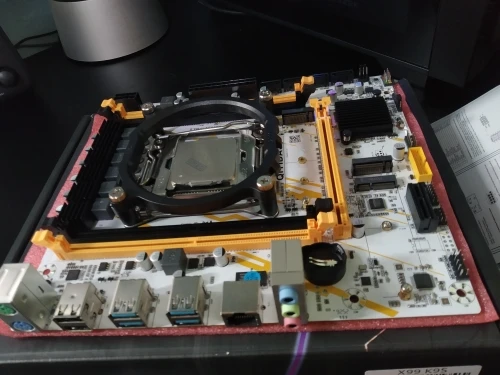

Very good, the board is already installed and working!
Working perfect. In the bios there is above 4g decoding and resizable bar is also available . Best motherboard for x99 platform.

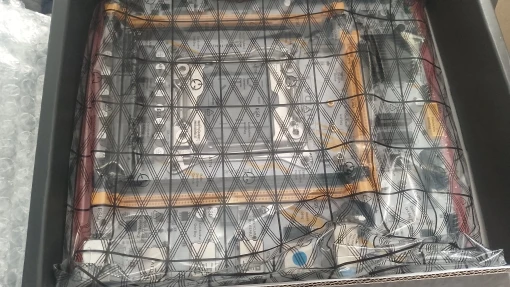

product working perfectly as described in the advertisement, arrived well-packaged and quickly without any bureaucracy
I was very surprised with the quality of this motherboard. When I tried to test it with a dead CPU, it held up and didn't fail... I managed to get a CPU in good condition from another seller and it worked on the first try. The BIOS is well-designed, thank you :)

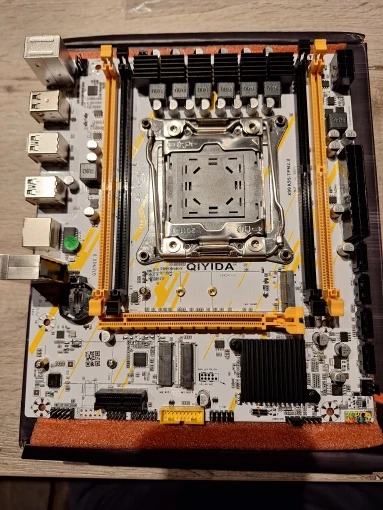

This is the second board I've bought from this brand Qiyida. In fact, it's an upgrade of the same board I had before, and now it comes with an input for the TPM 2.0 14-pin adapter and an extra slot for NVME. I am very satisfied at the moment. I am using the Xeon E5-2667 v4 processor with an RTX 2060 Super. I am pleased with the performance in games. It is a simple and reliable motherboard, and congratulations to the seller for the honesty and quality of the product. I bought the TPM 2 adapter. 0 from MSI and it worked well, and during installation I had no problems, but it's important to remember that the partition of the SSD or NVMe where your operating system is installed must be in GPT format if it's in MBR, some games that require TPM 2. 0 will not work like Warzone and Battlefield RedSec or even Valorant.
Excellent!
Delivery took 4 days, works well. The chipset is C612. The description says it's dual-channel, but it turned out to be quad-channel because of a mistake in selecting the chipset. When I plug in the tpm module, it recognizes well which is nice.
works perfectly with tpm2.0 for Windows 11
Works great tpm2.0 support
installed and worked perfectly, including with TPM 2.0 and secure boot... approved!
Product received successfully. Satisfied.
Arrived in perfect condition, very beautiful sign. I highly recommend it and would buy again if there's a promotion and enough coupons to make it worth it. Unfortunately, due to these taxes in Brazil, shipping was as expected, but apart from that, it was very worth it with the coupons. I highly recommend it.
Very nice top board, I installed a 2650 v3 and it looked great. It captured video from the first video card 1660 super.
