Differences between packages
Motherboard+CPU: 1*SY-X99 C612+1*E5 2680 V4 CPU
Motherboard+CPU+RAM: 1*SY-X99 C612+1*E5 2680 V4 CPU+2*DDR4 8G
Battery:
The CR2032 battery soldered to the motherboard will be removed before shipping, CN Post and the Chinese Customs have clear restrictions on the export of lithium batteries.
CPU:
Model: Intel Xeon
Model Number: E5 2680 V4
CPU Frequency: 2.4 GHz
Maximum Core Frequency: 3.3 GHz
Socket Type: LGA2011-3
Manufacturing Process: 14nm
Memory Type: DDR4 1600/1866/2133/2400
Number of CPU Cores: 14
Number of Threads: 28
L3 Cache (MB): 35MB
Power Consumption: 120W
The processor will be tested twice before shipping.
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don’t place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)
Chipset:
Intel C612
CPU:
Intel Xeon E5 LGA 2011-V3 socket processors
Supported models: E5-2603V3, 2666V3, 2673V3, 2680V3, 2678V3, 2696V3, 2684V4, 2696V4, etc.
Memory:
4 x DDR4 DIMM slots
Supports 2133/2400MHz (Max), up to 128GB (32GB x 4)
Red slots indicate primary channels
Storage:
2 x M.2 slots:
Upper slot: NVMe protocol (PCIe 3.0 x4/SATA3.0)
Lower slot: NVMe protocol (PCIe 3.0 x4)
4 x SATA3.0 interfaces
Networking:
1 x RJ45 port
LAN chip: Realtek RTL8111H Gigabit Ethernet
PS/2 Ports:
1 x PS/2 Keyboard port
1 x PS/2 Mouse port
Audio:
Rear I/O: 1 x Line Out, 1 x MIC In, 1 x Line In
Internal header: 1 x Front Audio header
Audio chip: Realtek ALC897 HD Audio
USB Ports:
Rear I/O: 2 x USB 2.0, 4 x USB 3.0
Internal headers:
1 x USB 2.0 header (expandable to 2 ports)
1 x USB 3.0 header (expandable to 2 ports)
PCIe Slots:
PCIe1: PCIe x16 3.0 slot (from CPU)
PCIe2: PCIe x1 2.0 slot (from PCH)
Functional Headers:
1 x FPANEL (front panel)
1 x 4-pin CPU fan
1 x 3-pin system fan
1 x JBAT (CMOS clear)
1 x JLPC (LPC debug)
1 x SPEAK (system speaker)
Power Input:
24-pin ATX + 8-pin EPS connectors
Dimensions:
220 x 190mm (4-layer PCB)
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can’t, we don’t recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Black slots) first. The motherboard’s Red RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
Very satisfied with the order.

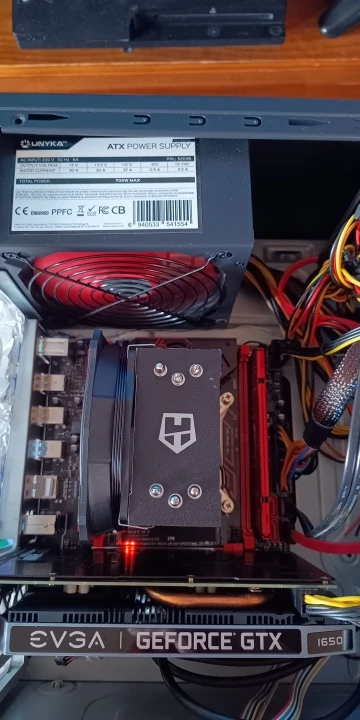

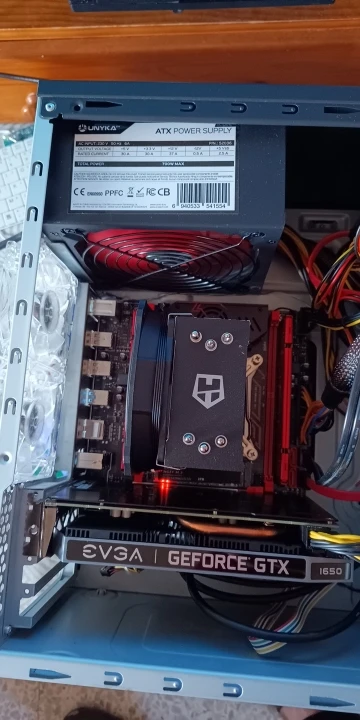

The motherboard, RAM, and processor were purchased, and they were tested and all work perfectly. Some pictures of the test were attached, and they will be tested extensively in the coming days. The delivery was fast and the packaging was well done.
Everything worked on the first try.
Haven't tried it yet but it looks good. I'll write another review later.
everything is correct, RAM at 2133MHz, it would be great if they started offering the option to include the TPM module with the kit.
I'm a pc builder, great for budget servers
Title: Complete motherboard, perfect functioning and arrived in perfect condition I bought this motherboard kit with C612 chipset and TPM 2.0. It arrived within the usual timeframe (3-4 weeks) and with the same good packaging as other products I have ordered from this seller. The good thing: The operation is perfect. The motherboard is very complete: it has all the connectors I needed, the C612 chipset responds well, and the TPM 2.0 works without problems (important for Windows 11). The installation was simple and so far there have been no errors, no strange restarts or instabilities. Quality: It looks sturdy, the components are well soldered, the socket pins are in perfect condition (arrived well protected). For the price it has, it's a real bargain for building a Xeon or a home server. Conclusion: Very satisfied with the purchase. Highly recommended for those looking for an old but reliable motherboard with modern features such as TPM 2.0. I would buy again without hesitation.
At the moment I'm installing drivers and controllers, it looks good, I would like to leave a review playing games like Fortnite or GTA 5 online, which is what I will be installing.
Great value, postage was a bit slow though!
10/10, the TPM 2.0 works with MSI 14 pin as indicated.
Hello, it arrived today in Versa. I do not live in the United States, but I have a locker or courier in Miami. The package arrived safely, everything is new. I am satisfied for now and will proceed to assemble it. Thank you very much for all the responses to my questions.
Excellent product, it's a shame that the complete set arrived incomplete; the RAM memories were missing. It must be a packaging error or something similar, but the finishes and design are excellent. I am in dispute waiting for a response, but I would still buy again. In fact, I have it in my shopping cart in case I need another one.
Very complete motherboard kit, 4 USB 3.0 ports, 2x M.2 slots, 1x M.2 WiFi, cooled northbridge...
Fast delivery. Product well packaged. z Corresponds to the advertisement. I didn't have time to test it.
Everything is correct, the only thing is that my m.2 drive was not recognized, but I am very satisfied with the rest.
I have already bought another one before and they are of very good quality, I really recommend them.
Fast delivery speed, the board is simple but functional.
I've been testing it for about 15 days so far, and the Xeon is working well. It's suitable for basic tasks and for gaming if you want, but that depends on the graphics card that can accompany it. It has excellent temperatures and so far I haven't had any problems. I haven't installed the TPM yet, but maybe I will do that later.
Quick
It works for 5 miss then shutdown do to over heat of cpu socket / the motherboard reads 16gb stick of corsair xmp ram drr4 3200mhz , but doesn't tell me what proccer that's in it i put a xeon 2630 v4 and i also got temp video b4 it over heated the socket , i like soyo good brand but i wish it had a better bios to let u see which processor is in the socket
Very good product, everything came working perfectly, thank God. RAM memory, processor, everything came correct. I haven't tested the TPM 2.0, but the board is great and very cool.
Works as expected, just note you will need to buy a tpm 2.0 module separately to play games like battlefield 6, Msi 14pin. I paired mine with a rtx 2060.
It looks good, I haven't tried it yet.
Good motherboard for the price. Negative: The audio pin came bent and the capacitor was bent. I managed to straighten it out and everything is fine now. The first 2 photos. Positive: It has a nice design, a good heatsink on the VRM, and the possibility of installing a TPM 2.0.
I was missing some components to finish assembling the PC, and yesterday I finished it without any problems during assembly; only a few more connections were needed, but nothing worrying, everything works perfectly.
