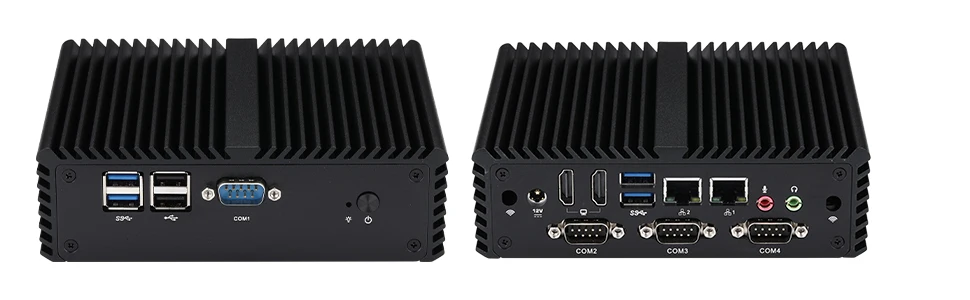

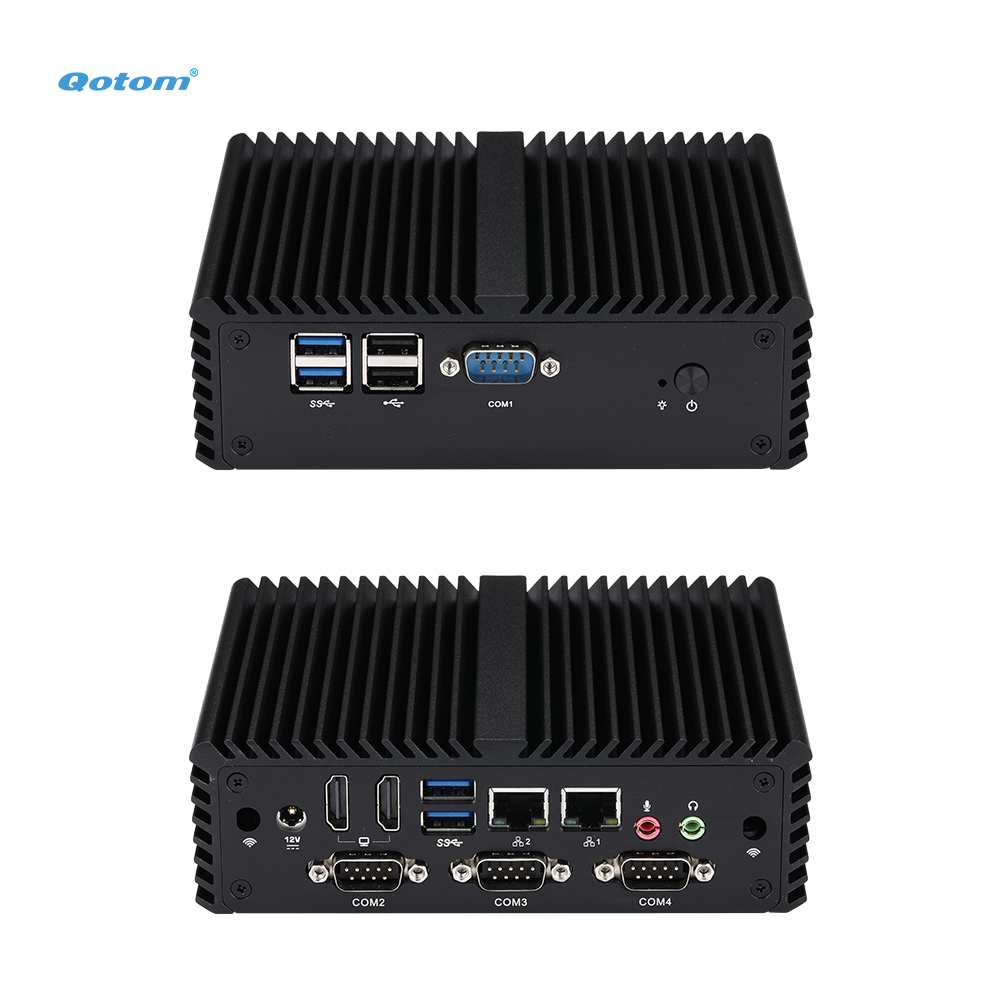

Q30400P Series S08 PC Cae
• COM 1 By cable
• COM 2/3/4 By daughter card
• Fanless design
• Dimension: 155 x 127 x 48mm

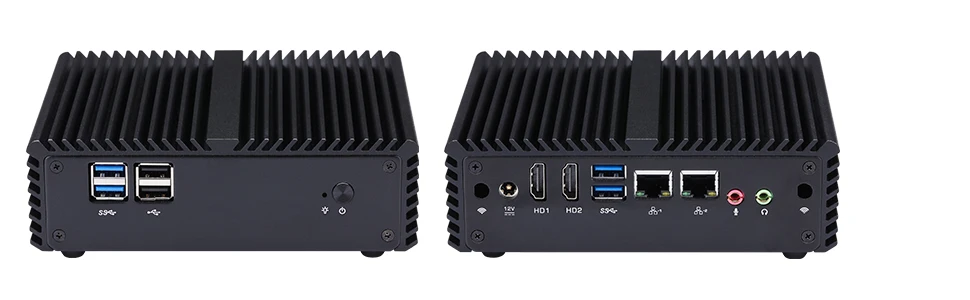

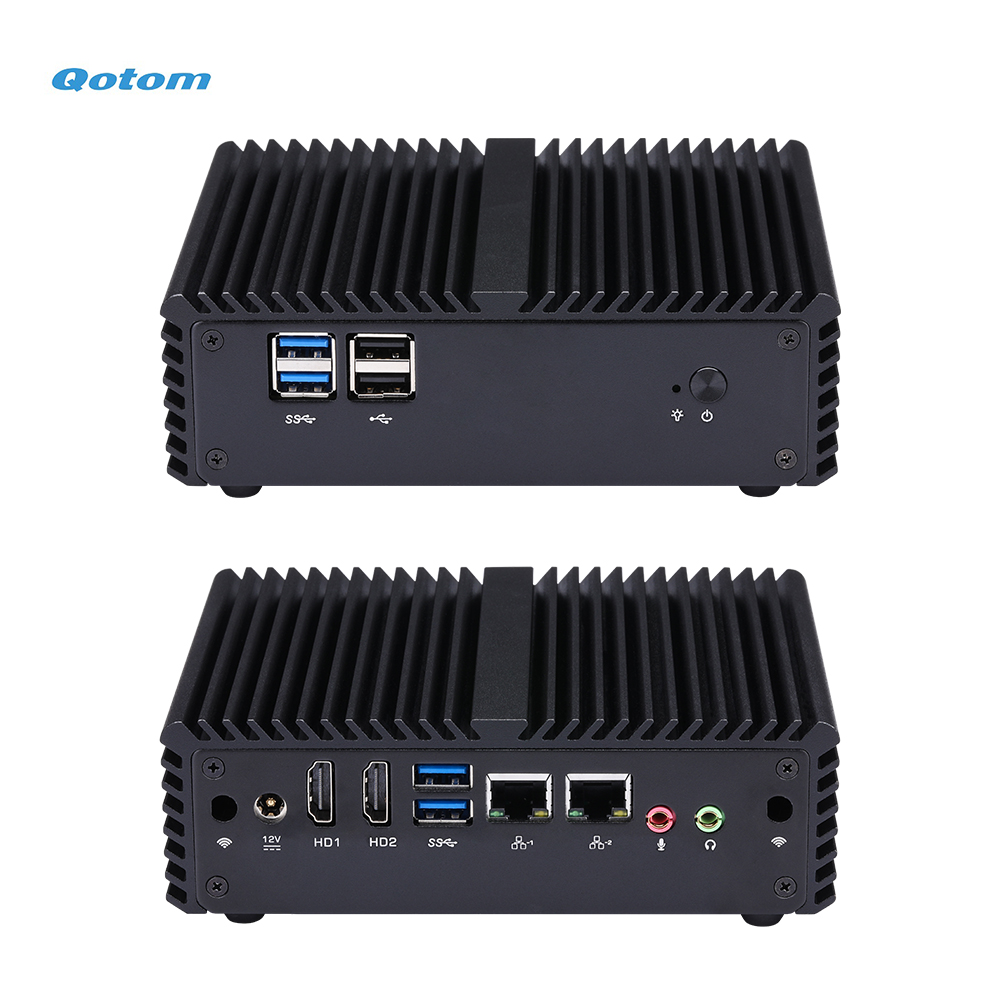

Q30400S Series S08 PC Cae
• No COM by defualt [contact us if you need 1 COM]
• Fanless design
• Dimension: 155 x 127 x 48mm

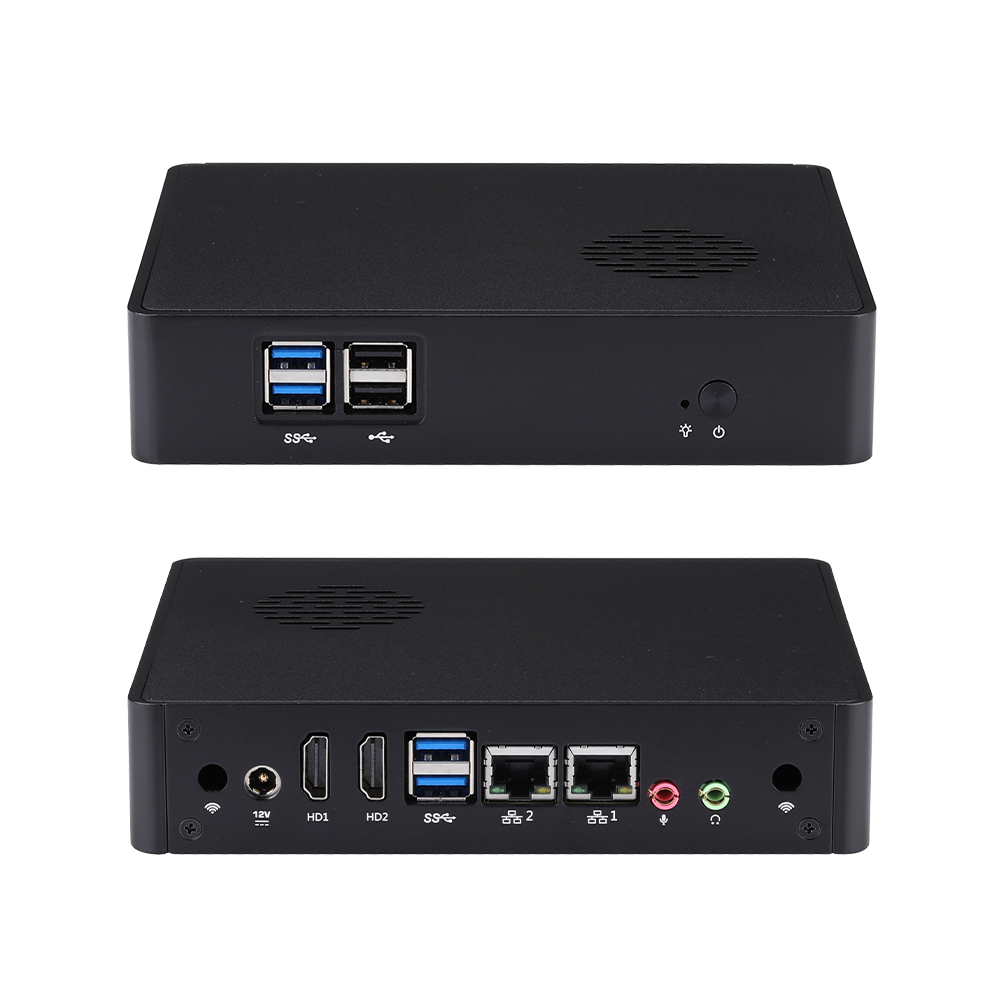

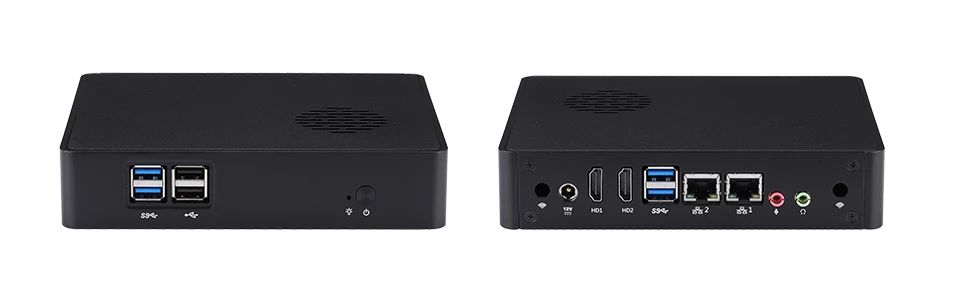

Q30400S Series S03 PC Cae
• Fan-Active cooling
• Dimension: 166 x 130 x 35mm
Processor onboard
• Q30411S/P: Intel Celeron 2955U Processor, 2M Cache, dual core 1.4 GHz
• Q30512S/P: Intel Celeron 3215U Processor, 2M Cache, dual core 1.7 GHz
• Q30431S/P: Intel Core i3-4005U Processor, 3M Cache, dual core 1.7 GHz
• Q30531S/P: Intel Core i3-5005U Processor, 3M Cache, dual core 2.0 GHz
• Q30451S/P: Intel Core i5-4200U Processor, 3M Cache, dual core 1.6 GHz, up to 2.6 GHz
• Q30471S/P: Intel Core i7-4500U Processor, 4M Cache, dual core 1.8 GHz, up to 3.0 GHz
• CPU TDP: 15W
1. Rich I/O Connectivity for Multi-Device Integration
• Dual HD outputs support independent dual displays-ideal for digital signage, surveillance walls, or multi-monitor workstations.
• 4x USB 3.0 ports deliver high-speed data transfer for cameras, storage, and peripherals; plus 2x USB 2.0 ports for legacy devices like keyboards, mice, or serial adapters.
• Dual Realtek Gigabit Ethernet ports enable network redundancy, VLAN segmentation, or direct device-to-device communication-critical for POS systems, factory networks, and security applications.
2. Industrial-Grade Fanless Design for 24/7 Reliability
• S08 PC Case fully fanless operation with a solid aluminum alloy chassis ensures silent, dust-free performance-ideal for harsh or noise-sensitive environments like factories, hospitals, retail kiosks, and transportation systems.
• S03 PC case Upgraded from fanless to efficient internal fan enabling sustained high CPU performance under heavy workloads.
3. Extensive RS232 Serial Port Support (Q400P Model)

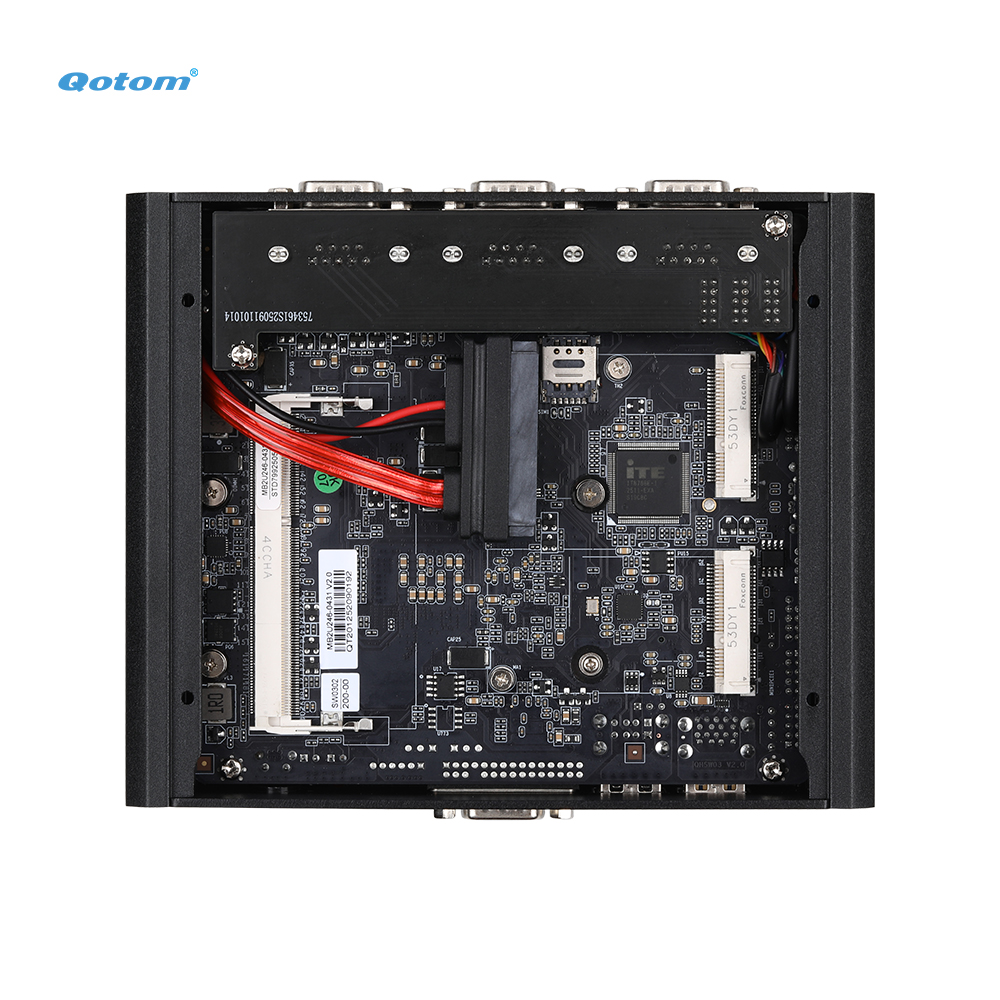

• Delivers 4 native RS232 COM ports (COM1 via external COM cable; COM2/3/4 via internal expansion card)-perfect for connecting legacy industrial equipment such as PLCs, barcode scanners, CNC machines, and access control panels.
• If just need 1 COM or 3 COM ports, just contact us.
4. Dual Storage Flexibility + DDR3 Memory
• Supports 1x mSATA SSD (for fast OS boot) + 1x 2.5″ SATA HDD/SSD (for bulk data storage)-enabling optimized system architecture and easy upgrades.
• Equipped with 1x DDR3 SO-DIMM slot (up to 8GB), offering balanced performance for multitasking and embedded applications.
5. Dual BIOS Boot Modes: UEFI + Legacy Compatibility
• BIOS supports both modern UEFI and traditional Legacy boot modes, ensuring seamless compatibility with Windows 7/8/10, various Linux distributions, and older industrial software that requires DOS or non-UEFI environments.
6. Ultra-Compact & Mountable Form Factor
• Mini PC size saves valuable space; supports VESA mounting-ideal for tight enclosures, behind displays, or inside machinery.
7. Energy-Efficient Intel Haswell/Broadwell Processor
• Powered by low-voltage 4th/5th Gen Intel Core i3/i5 or Celeron CPUs (15W TDP), delivering reliable computing performance while maintaining low power consumption-perfect for always-on deployments.

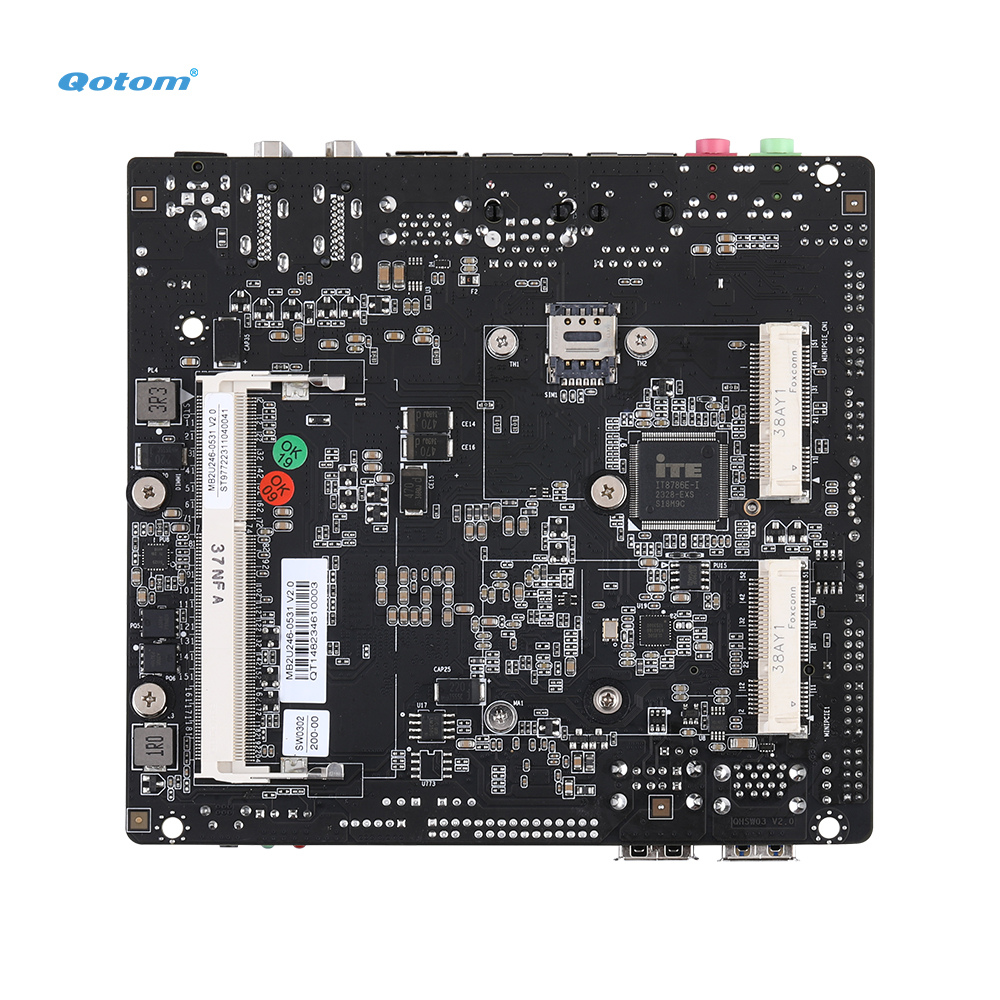

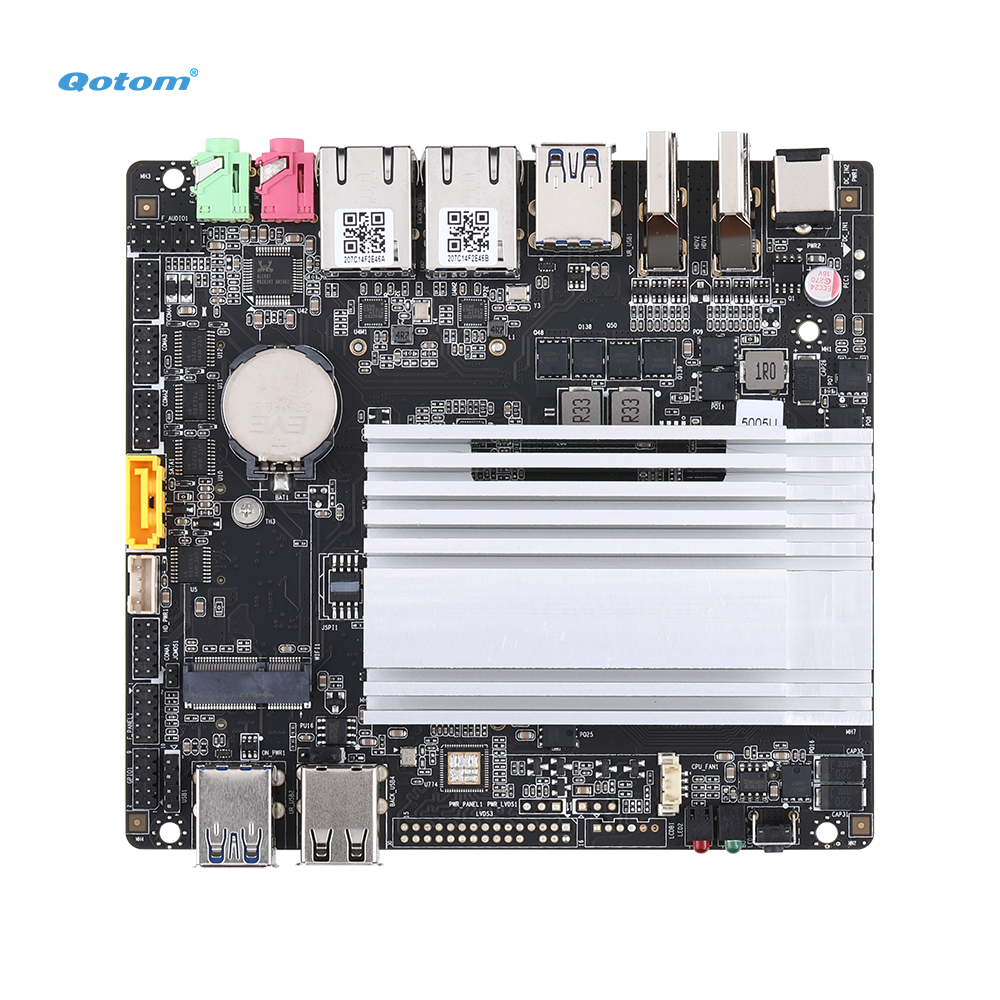

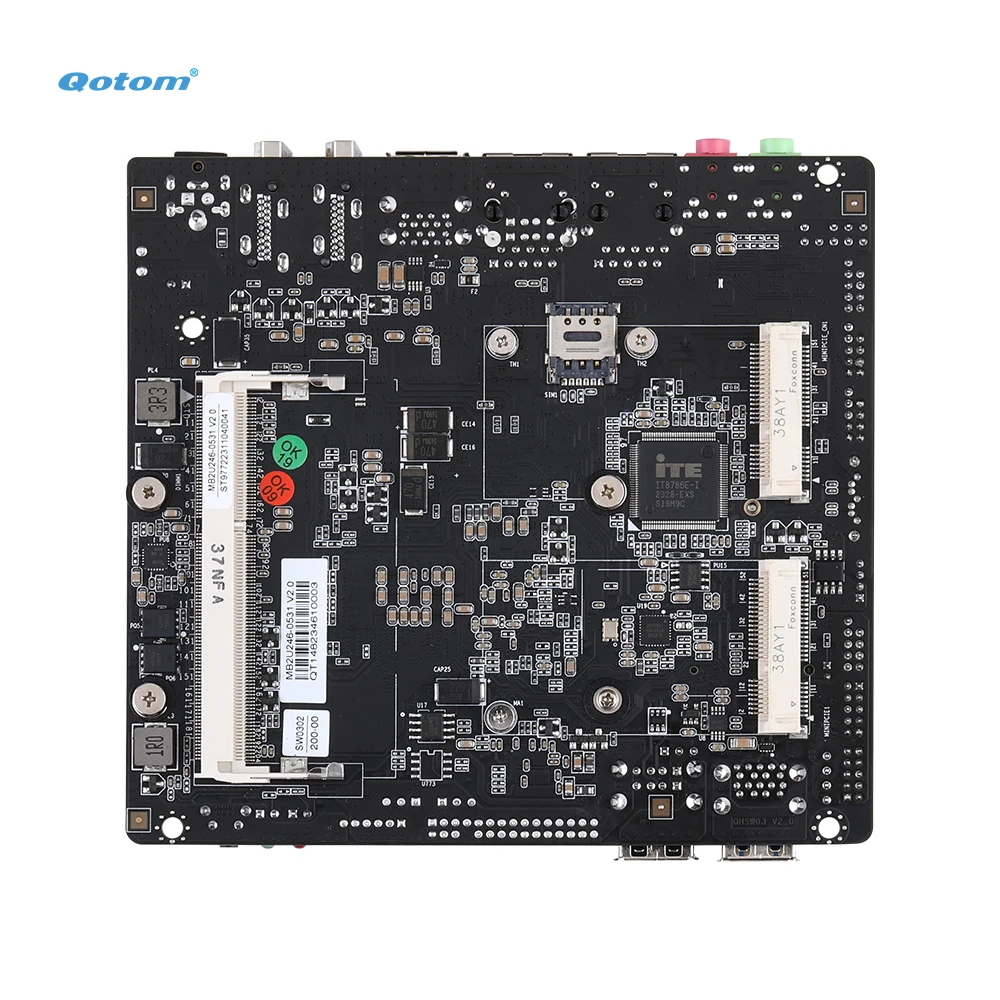

Mini Motherboard
• S08 PC Case: Fanless design
• S03 PC case: Fan-Active cooling

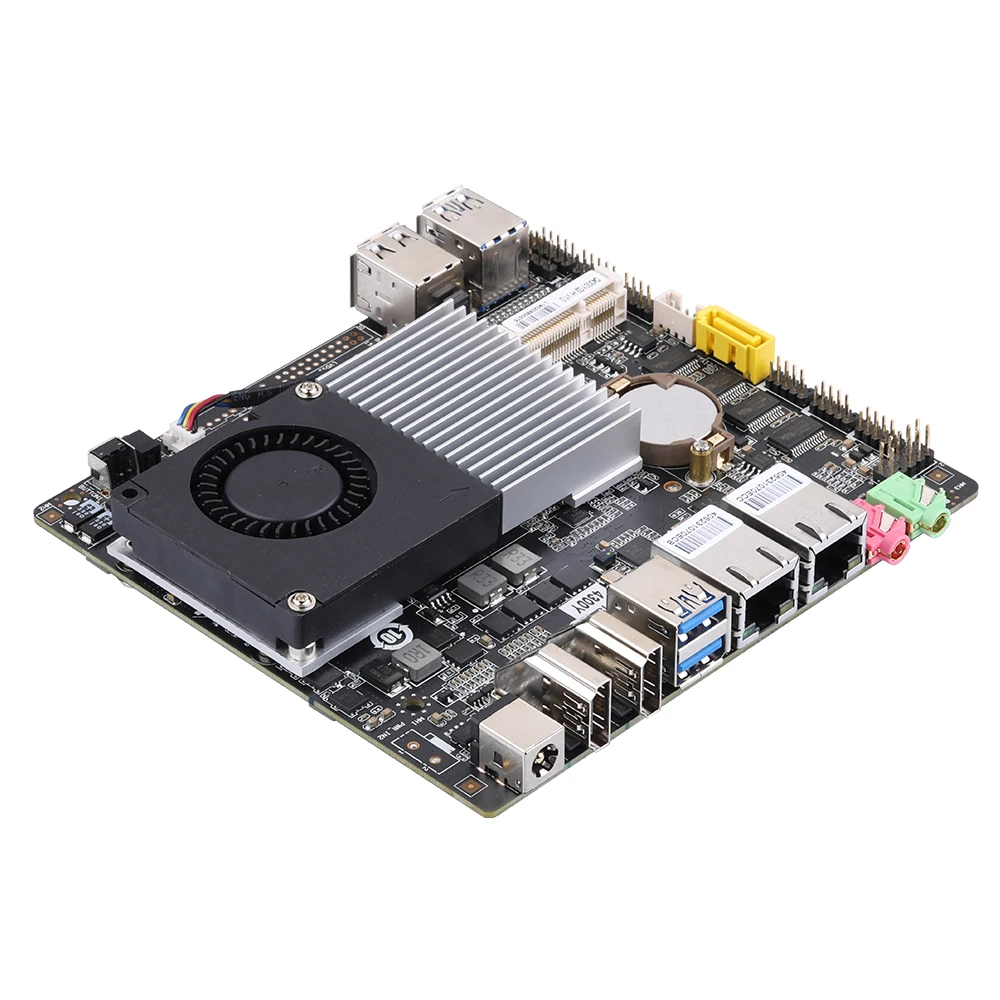

If you wanna buy the motherboard, it will come with CPU fan by default. Please click below picture to get more information.

Packing
1 x Mini PC
1 x Power supply
1 x VESA bracket & screws
1 x Color box
Contact us if you need motherboard user manual and invoice
