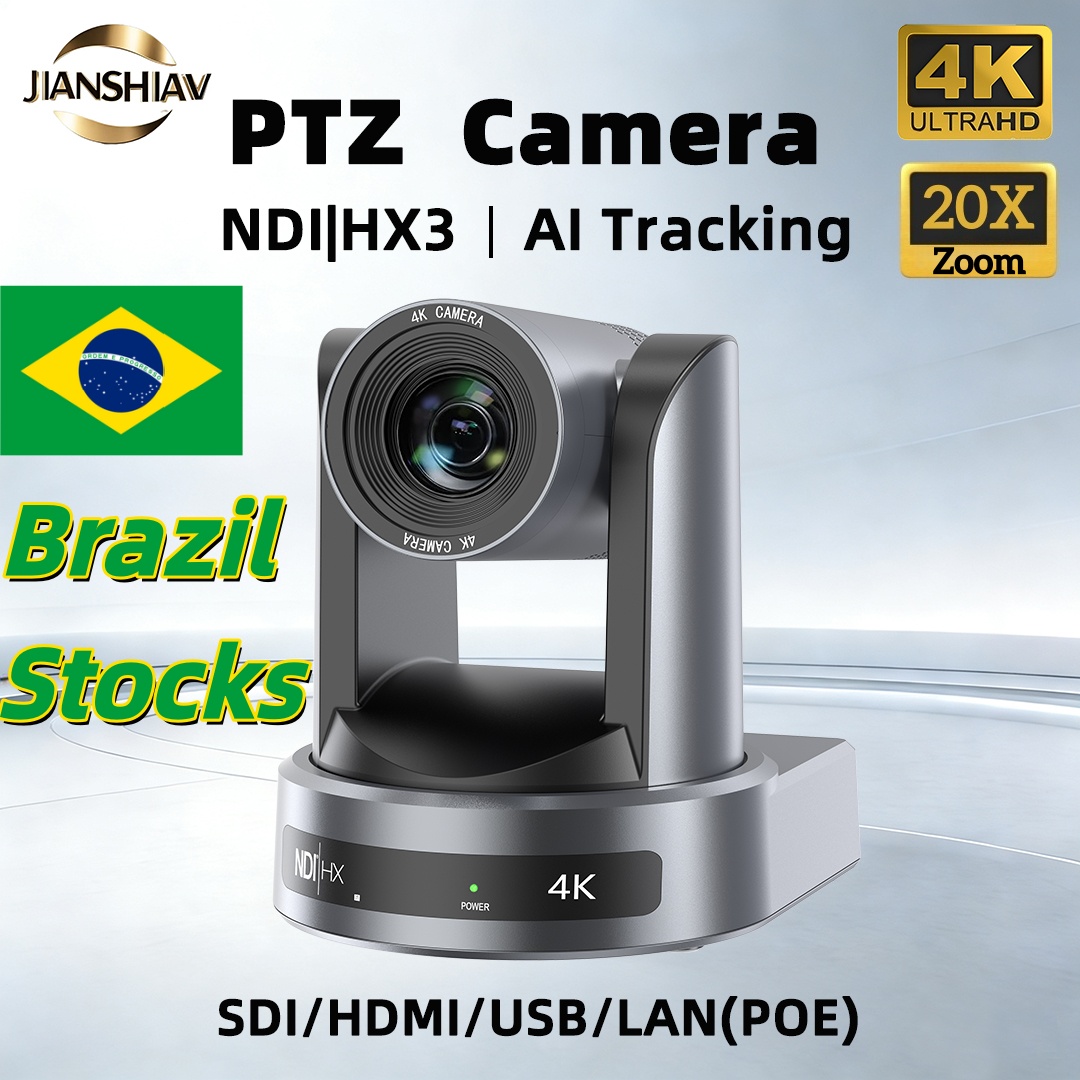

4K 1080P NDI Conference Camera PTZ Video Live Streaming SDI HDMI USB IP POE 10X 20X zoom for Church NetMeeting Broadcast Youtube
Dear customer, this product is in stock in Brazil. You can choose to have it shipped directly from Brazil. If you can’t make the selection, please contact our customer service. They will solve the problem for you at any time. Have a nice day!
|
Model No. |
JS520USH4KNDI |
|
Optical Parameter |
|
|
Sensor |
Panasonic1/2.5″ CMOS |
|
Effective Pixels |
8.51Megapixels |
|
SignalSystem |
PAL/NTSC |
|
Resolution |
4KP30,1080P60, 1080P30, 1080P25, 720P60, 720P50 |
|
OpticalLens |
20XOptical Zoomf＝5.2mm～110mm |
|
Horizontal ViewAngle |
2.9°（W）–58°（T） |
|
Shortest View Distance |
10mm(W)～1000mm(T) |
|
Minimum Illumination |
0.5Lx |
|
Exposure Control |
Auto, Manual, AE Priority, Compensation |
|
Shutter Speed |
1/1～1/10000S |
|
Gain |
Auto, Manual |
|
White Balance |
Auto, Manual |
|
Noise-Signal Ratio |
≥55db |
|
Image Effect |
Color/Electronic Flip |
|
OSD Menu |
Support |
|
Mechanical Parameter |
|
|
Pan-Tilt |
Horizontal Angle:±170°(Maximum speed: 100°/s); Vertical Angle: -30°to +90°(Maximum speed: 60°/s) |
|
No. of PresetPositions |
255 |
|
Preset Positions |
Support |
|
Interface |
|
|
Video Output |
HD:RJ45(POE),HDMI,USB,SDI |
|
Control Interface |
RS-232/RS-485/RS422(VISCA) |
|
Control Protocol |
VISCA, PELCO P/D |
|
Baud Rate |
9600bps, 4800, 2400bps |
|
Network Parameter |
|
|
Video Compression |
H.264Baseline，Main Profile，High profile，H.265 Mainfile，MJPEG |
|
Frame Rate |
3840*2160@30fps，1920*1080@30fps，1280*720@30fps；720*576@30fps |
|
Video Compression Rate |
32kbps-16MbpsContinuouslyAdjustable，Support CBR/VBR |
|
Data Storage |
Video and Photos |
|
Storage Mechanism |
Auto, Manual(Loop, Timing, Alarm switch, Motion Detect) |
|
Protocols |
TCP/IP，UDP，RTP，RTSP，RTCP，HTTP，DNS，DDNS，DHCP，FTP，NTP，PPPOE，SMTP，UPNP, NDI(Optical) |
|
ONVIF |
Support |
|
Browser |
Higher Version than IE6.0, IOS, Android |
|
Others |
|
|
Power Adapter |
AC110V-AC220V to DC12V/2A, DC12V(DC11.5-DC12.5V) |
|
Working Temperature |
0℃～45℃ |
|
StorageTemperature |
-10℃～+60℃ |
|
PowerConsumption |
18W(MAX) |
|
Dimensions |
(Length)155 × (Width)186 x (Height)172mm |
|
Weight |
1000g |
|
Casing Color |
Black/silver |
|
Accessories |

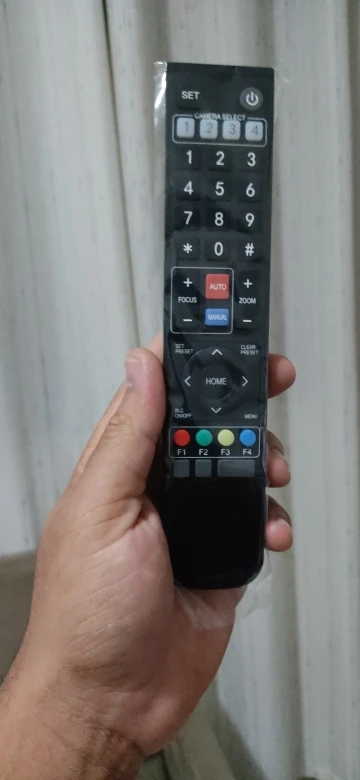

ACPowerAdapter, IRRemoteCommander, Ceiling/WallBracket, RS232Ccable, UserManual |
Focus Your Streaming

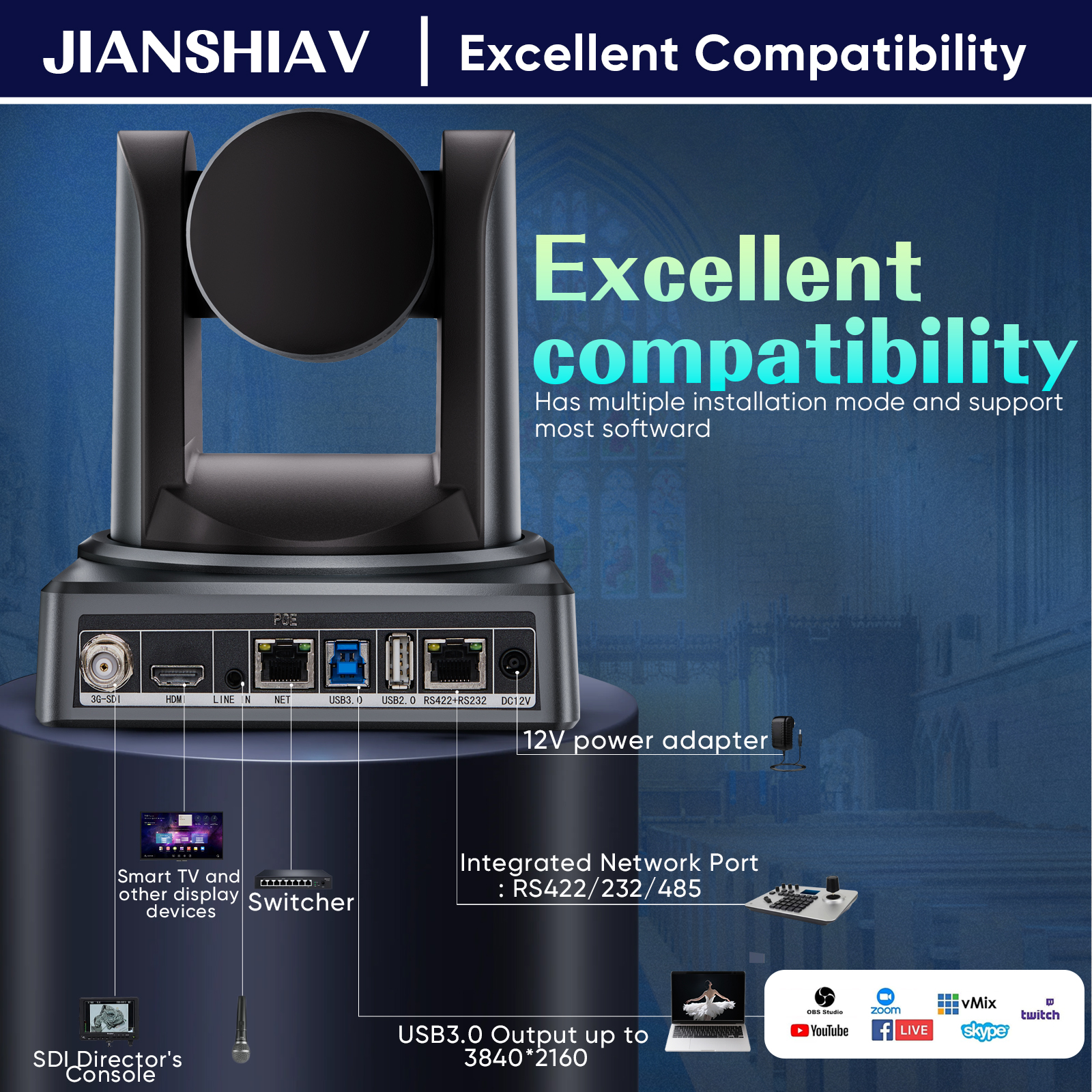

HDMI/3G-SDI/ USB /IP /POE True to life colors 20x optical zoom
NDI HX3
Low latency-suitable for real-time video production.
High compression ratio-Suitable for environments with limited bandwidth.
Compatibility-Compatible with NDl, but specifcally optimized for low bandwidth.
AI HUMAN AUTO-TRACKING
Supports remote control and gesture control
Easy Preset Seeting
The camera can set 255 preset positions through the serial port, and the remote control can set 10 preset positions. The preset data can be saved even if the camera is turned off.
The advanced fast-focusing algorithm ensuresthat even while adjusting thecamera’s pan,tilt, and zoom, you can maintain high-defnitionimage `quality.
Pan·Tilt·Zoom Speed Adjustable
The video format can be adjusted
Change the parameters of the camera through MENU
For Live Streaming and Video Productions
Multiple scenarios available
|
Support SONY VISCA, PELCO P/D 1/2.5 Panasonic CMOS, 4K 8.51Megapixels The whole series supports automatic face tracking The interfaces are abundant and have a large wide angle 20x optical zoom,clear from near and far It supports 20x ultra-far optical zoom, which can output high-qualityimages even if the picture is zoomed in, capture clear meeting detailsand be sharp with a wide range of rotating mechanical gimbalsCapture every detail of the venue’s near and far location for an immersive viewing experience
|
Q&A
Q：Is this PTZ camera 4K? Because I bought one from a different seller (not from you) which was advertised as 4K, but when I used it, it could only achieve a resolution of 1080p.
A:Yes, our product is a genuine 4K product, and its highest resolution is 3840*2160.Of course, we also have 1080P products. Please select the products according to your needs.
Q：Does it support NDI and PoE?
A：All of our products support PoE (Power over Ethernet) power supply. Only one network cable is needed to achieve power supply, control, and image transmission. Regarding the NDI issue, you can choose to directly purchase products with NDI functionality. Of course, we can also activate the NDI feature at a later stage.
Q：What brand are you?
A：We are the brand of JIANSHIAV. We are a well-known Chinese company integrating production, research and development, and sales. We can provide you with our existing products. Most importantly, we can customize products according to your needs. Meanwhile, we also have a great advantage in terms of price.
Q：The quality of your products?
A：We are a factory that manufactures cameras. We have professional production lines and dedicated quality inspectors to ensure that each product meets the standards. Please feel free to make a purchase with confidence. Meanwhile, we also have professional customer service staff who are available online 24 hours a day, ready to solve customers’ problems at any time.
Q：Is there a warehouse in Brazil? And do we need to pay taxes?
A：Yes, our products are in the local warehouse in Brazil, and there is no need to pay taxes. If you have any questions, please consult our customer service staff.
Q：What are the differences between the silver-white products and the black products?
A : The silver-white products and the black products are of the same model. Different appearances are designed to meet the needs of different customers. The functions and performance of the two versions are identical. Please feel free to make a purchase.
Contact US
Address : 404, Unit 2, Building 4, Ziyufu, Dingxing County, Baoding City, Hebei Province
Sales Manager : 13381126623 Mr. Liu
QQ: 354695129
WeChat:+ 8613381126623
Youtube:jianshiav@gmail.com
WhatsAPP: + 8613381126623

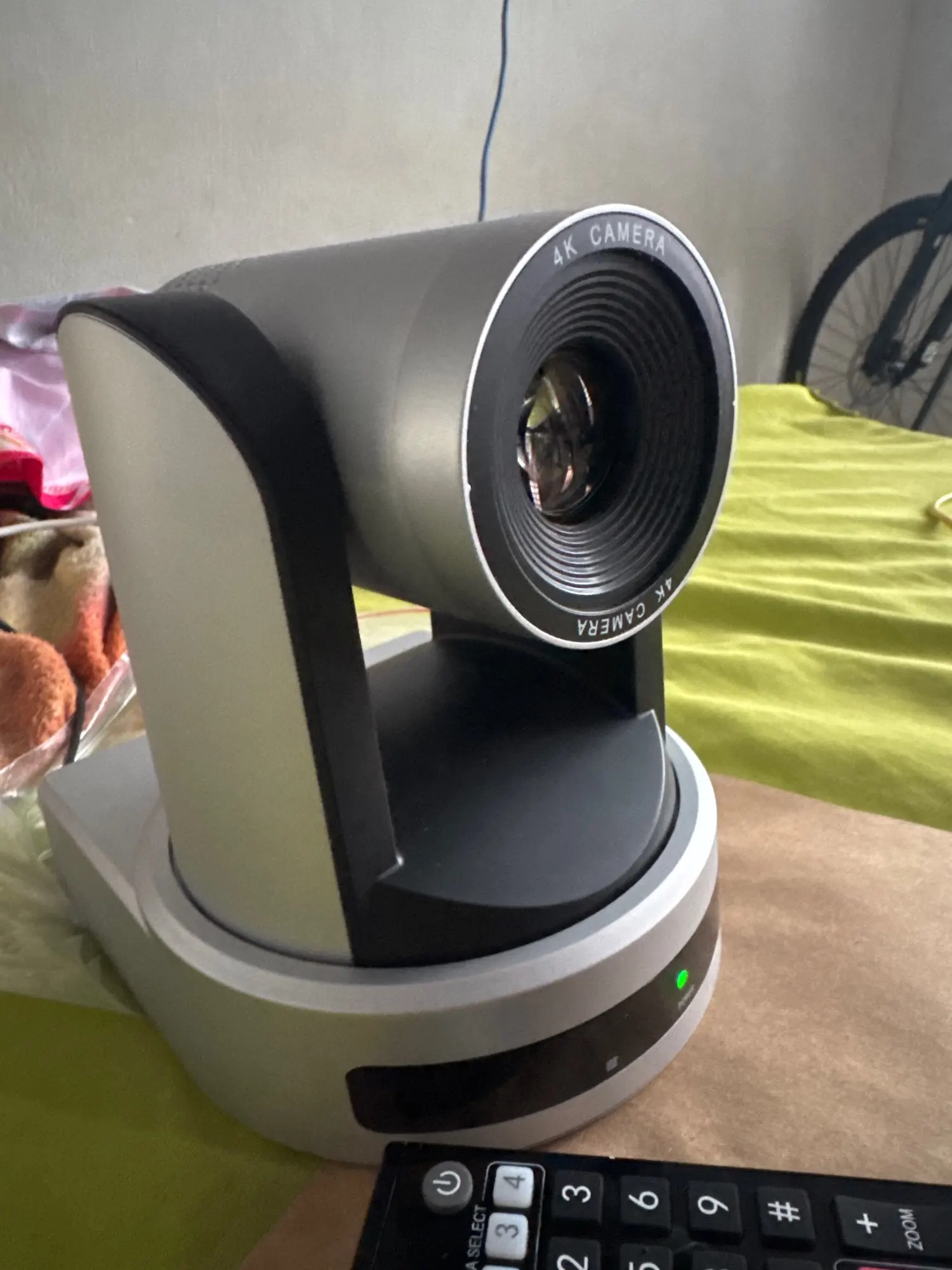

very good camera
THE PRODUCT ARRIVED SUPER FAST, AMAZING QUALITY. YOU CAN BUY WITHOUT ANY WORRY. HIGHLY RECOMMEND!!!
excellent service arrived in record time. Greetings from Guatemala
It's a great product and arrived incredibly fast, you can buy with confidence.
the product has a very good build quality. The PoE feature is great as it does not rely on an external power source. I am still testing its use in OBS. I haven't found the right plugin yet to control the PTZ through OBS. but you can access it by accessing the IP through the browser. The zoom and image quality are surprising. I recommend the purchase.
Excellent camera, it fully meets my expectations, but the added value is the after-sales service which is of excellent quality, very concerned about helping and responding to everything that is needed. I loved the product, and I will continue buying more...
The camera arrived on time as agreed, it has good image quality. Happy with the purchase.
Very good equipment, I was surprised by the quality. I highly recommend it, and the delivery was very fast!!!
I didn't like that the cabinet is made of plastic; the equipment becomes fragile and very light.
Item received even though it went through customs duty and taxes charges so after holding for a while, i had to pay for it. The item came clean but on the operation, hdmi cannot capture 4k mode, only usb 3.0 but even that, it has so many lags so the video cannot flow well as preferred. I would have to contact the seller for more education on how to operate the item so that i can buy more of this because i need to change all my came and get ptz ones along side its controller.
Someone help me install the camera, I can't do it! Send a WhatsApp here to 91984748692.
The camera does not have PoE, otherwise everything is okay, functioning perfectly.
We purchased 3 units of the JS520USH4K 4KP30 POE NDI camera and were extremely satisfied with the entire experience, from customer service to delivery. Firstly, the quality of the product is impeccable. The cameras deliver exactly what they promise. The equipment arrived very well packaged, protected, and with an above-average delivery speed, which surprised us positively. What deserves special mention is the excellent after-sales service of the Jianshiav team. High-level customer service: politeness, patience, efficiency, and total willingness to answer all questions, even after the purchase is completed. It's rare to find support as committed to customer satisfaction as theirs. I strongly recommend the purchase. Reliable product, serious company, and exemplary service. An experience of purchase that inspires confidence and professionalism from start to finish.
