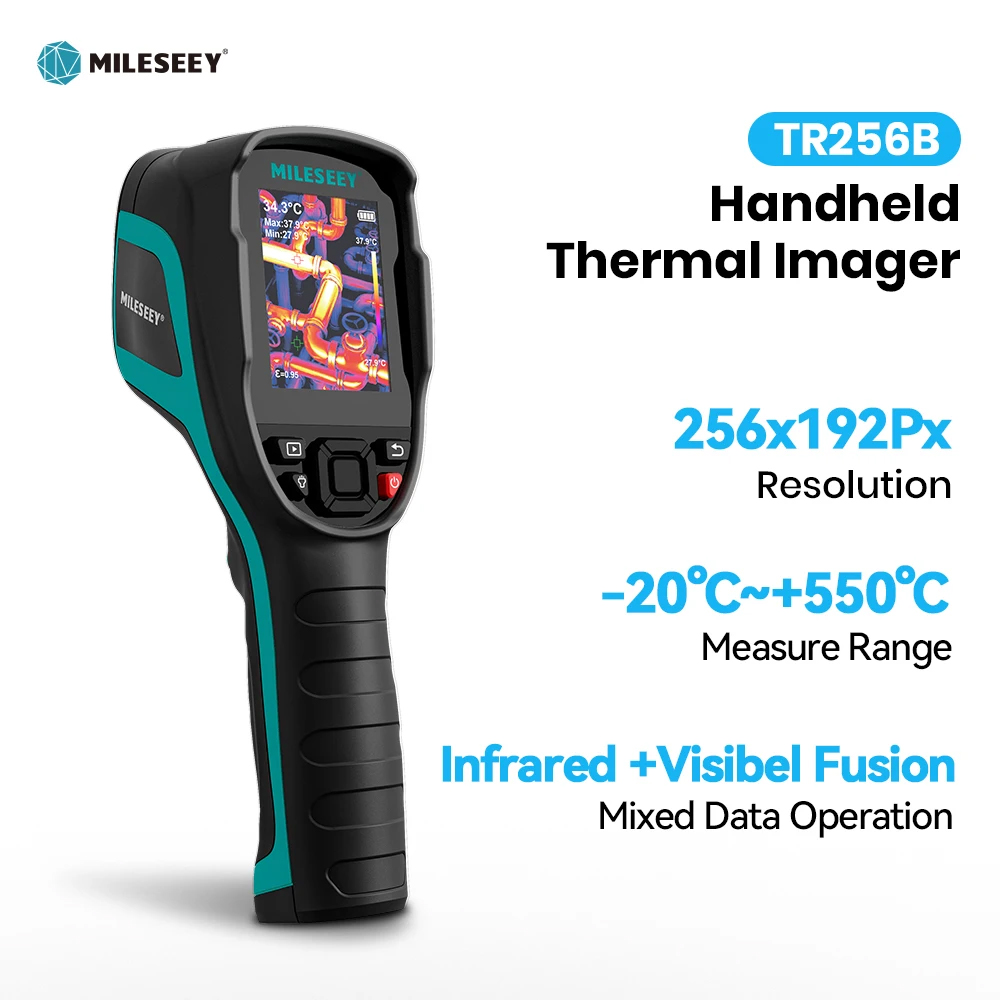

Mileseey TR256B TR256E IR Thermal Imager Camera 256*192 Resolution 7 Palettes with 2MP Visual Light 25HZ 13 Languages NETD 40mK
|
Model |
TR256B |
TR256E |
|

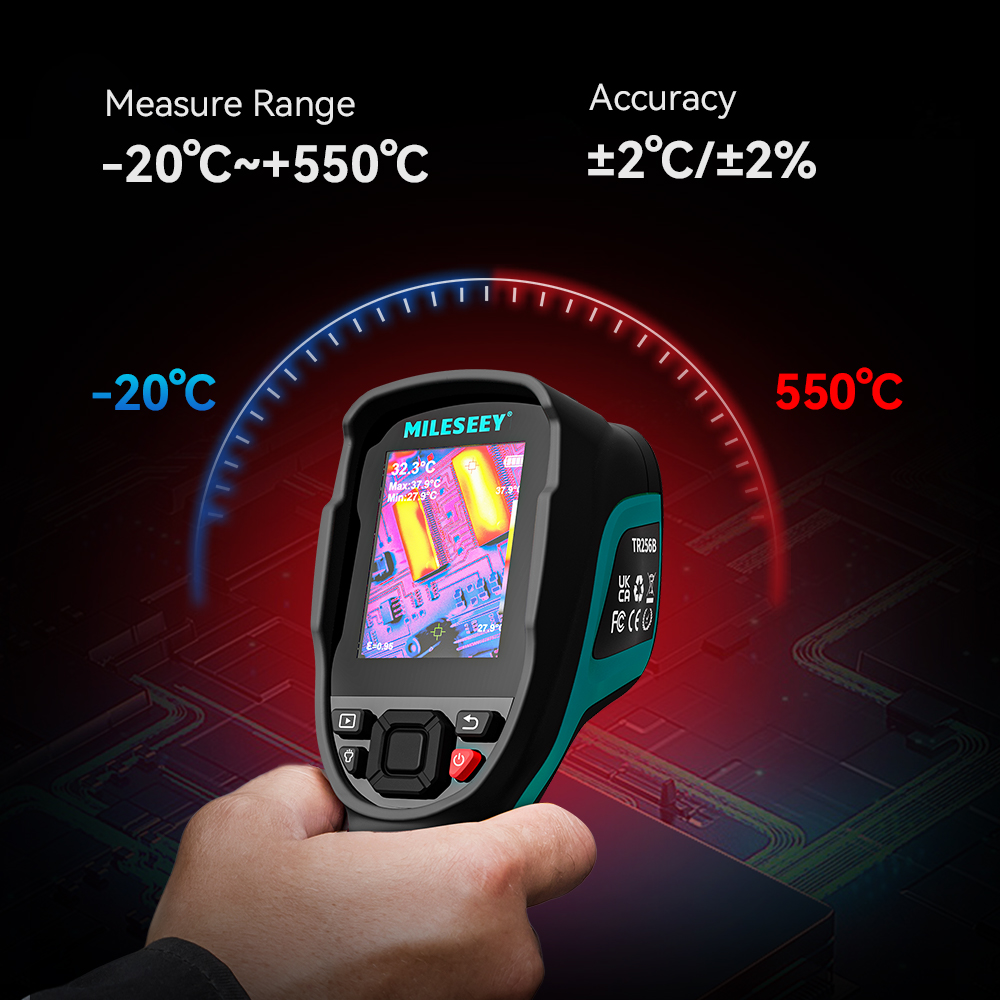

Temperature range |
-20℃~+550℃ |
-20℃~+350℃ |
|
Temperatureunit |
℃/℉/ K |
℃/℉/ K |
|
Temperatureresolution |
0.1℃ |
0.1℃ |
|
Emissivity |
0.1~1.0 Adjustable |
0.1~1.0 Adjustable |
|
Display |
2.8LCD (320×240) |
2.8LCD (320×240) |
|
Temperature Alarm |
LED flash/screen tip |
LED flash/screen tip |
|
Accuracy |
±2℃/ ±2% |
±2℃/ ±2% |
|
Response time |
<10ms |
<10ms |
|

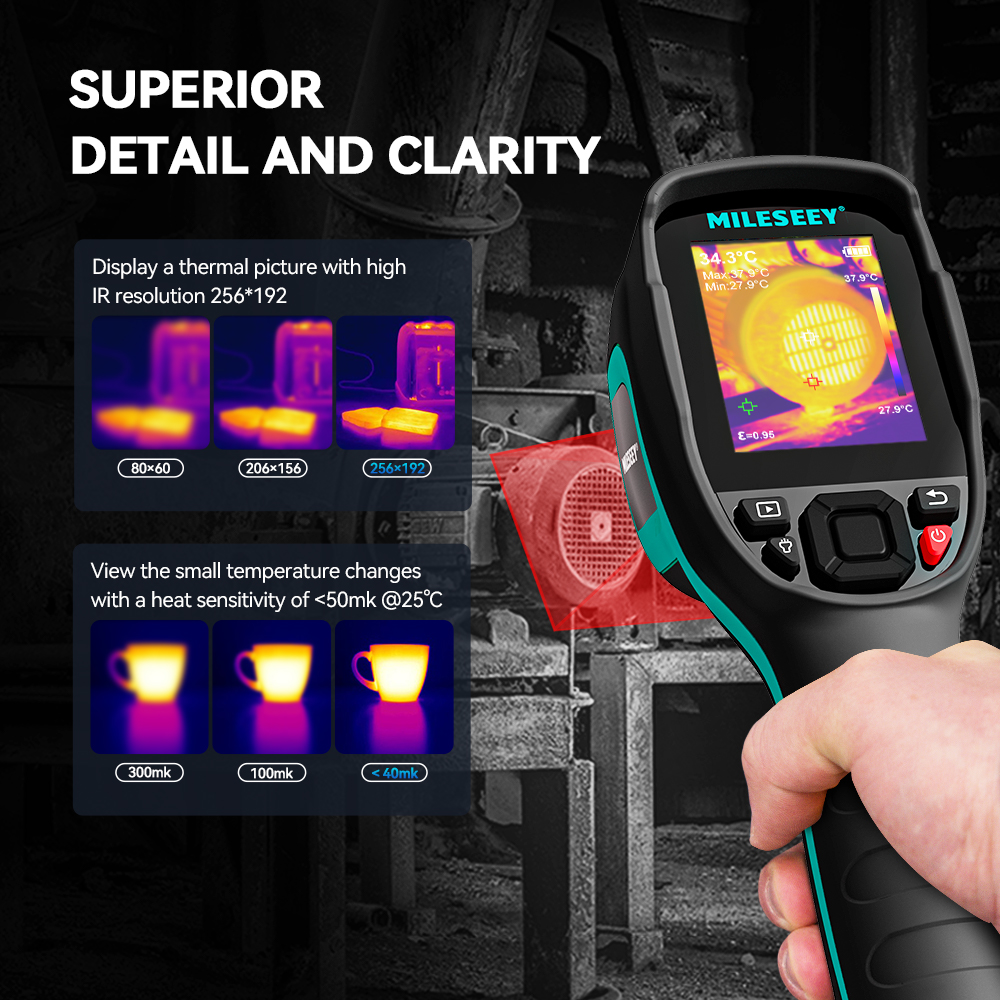

IR resolution |
256×192 |
256×192 |
|
Visual Resolution |
200W |
/ |
|

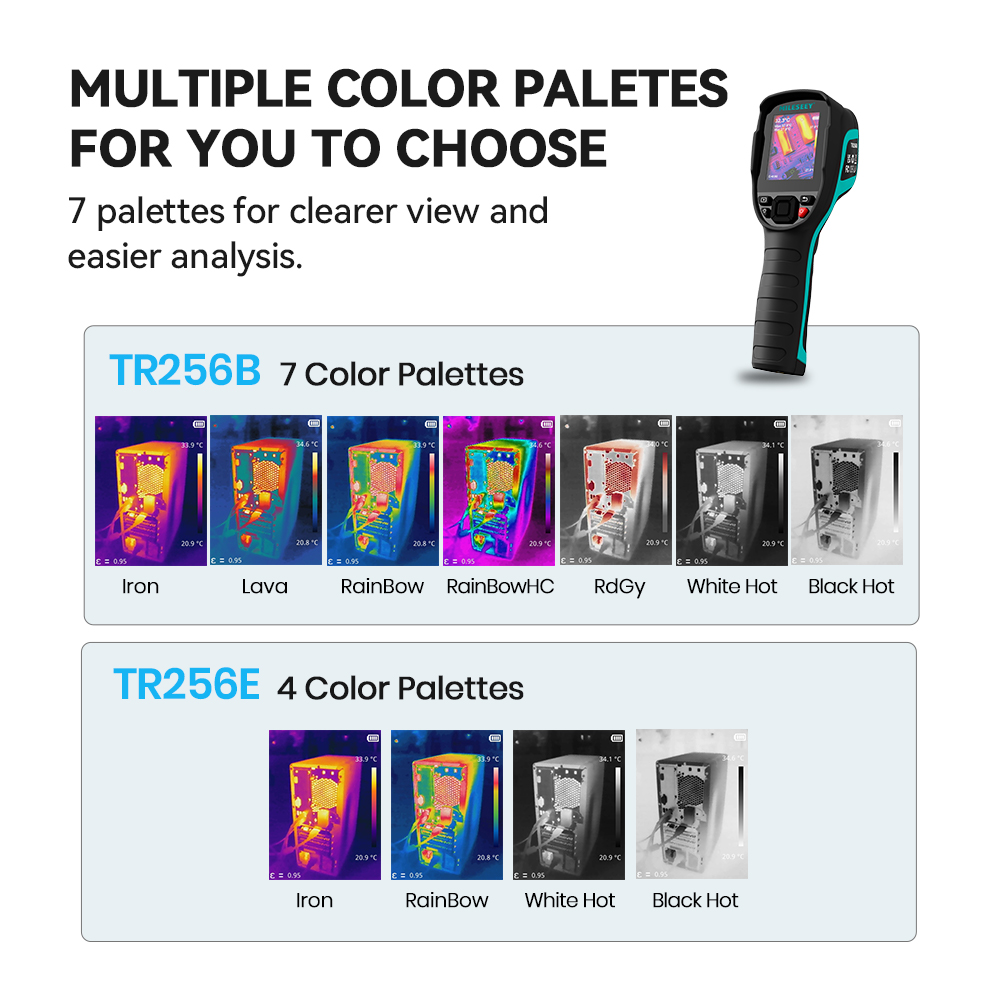

Color Palette |
White Hot,Black Hot,Iron,Lava,RainBow,RainBowHC, RdGy |
White Hot,Black Hot,Iron,RainBow |
|
Image mode |
IR,Fuse,PIP,Visble,Alignment |
IR |
|
Pixel size |
12μm |
12μm |
|
Infrared spectral bandwidth |
8-14μm |
8-14μm |
|
Field of view (FOV) |
56º×42º |
56º×42º |
|
NETD |
40mK |
40mK |
|
Focus Mode |
focus-free |
focus-free |
|
Frame rate |
50hz |
50hz |
|

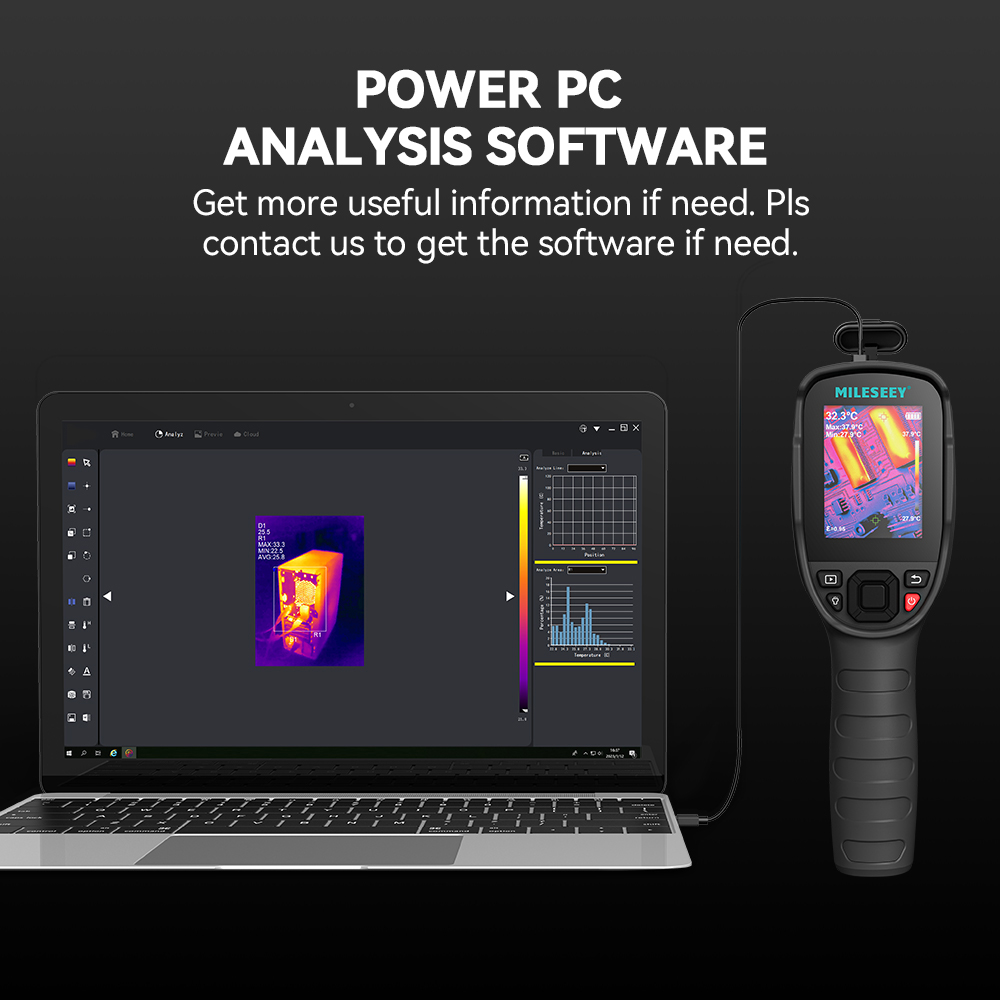

PC software |
Yes |
Yes |
|
Real-time image transmission |
Yes |
Yes |
|
USB connection |
U disk |
U disk |
|
Battery |
5000mah Li-ion battery 26650 |
5000mah Li-ion battery 26650 |
|
Battery life |
12h |
12h |
|
Charging time (Power off state) |
4 h |
4 h |
|
Charging voltage/current |
5V 1A or 5V 2A |
5V 1A or 5V 2A |
|
Image storage |
Micro SD Card |
Micro SD Card |
|
Transportation/storage environment |
’-20℃~60℃(-4℉~140℉)10%-95% RH (non-condensing) |
’-20℃~60℃(-4℉~140℉)10%-95% RH (non-condensing) |
|
Operating environment |
‘-10℃~50℃ |
‘-10℃~50℃ |
|
IP rating |
IP54 |
IP54 |
|
Drop test |
2M |
2M |















Mileseey TR 20 TR 20 Pro Thermal Camera 320×240 Infrared resolution, Thermal Imager For PCB repair and water leak detector wall
Model : TR20/TR20Pro
Display size : 2.8inch LCD, 480×640
Display resolution : 320*240
“Thermal
imaging pixel” : 480×640
NETD : <40mK
IFOV : 3.428 mrad
Measuring range : -20°℃~550°C
Alarm Method : “1. LCD Screen Alarm
2. Audible Alarm (Buzzer)”
Display Mode : (TR20/Thermal image);(TR20Pro/Thermal image, Digital, Fusion Rate, PIP, Fusion Offset)
Palette : Eight color palettes
Memory capacity : Internal EMMC 8GB
Battery Life : 8 h<, 5000mAh
Temperature accuracy : ±2℃
Frame rate : 25Hz
Protection Rating : IP65
Size(mm) : 224*91.6*76
