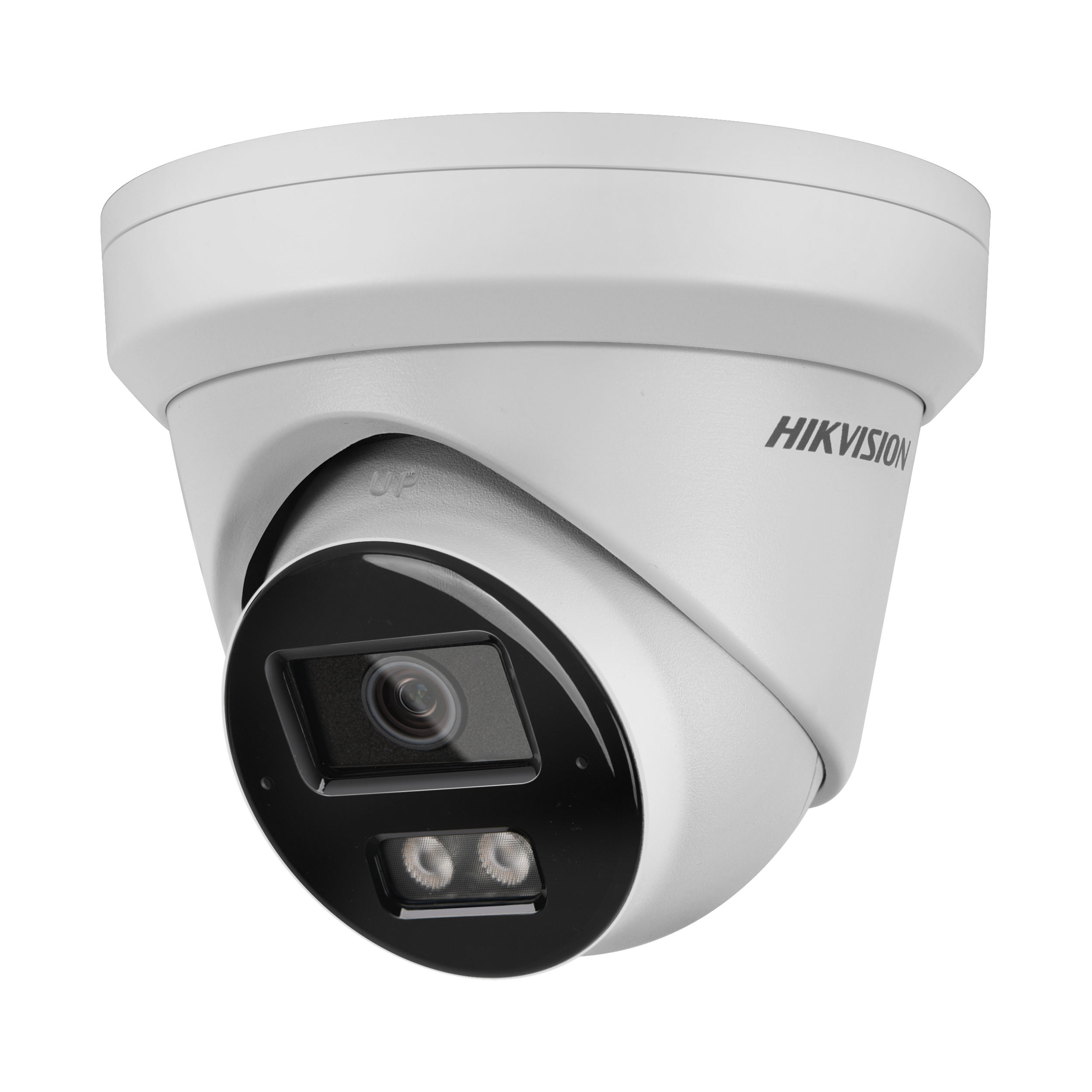

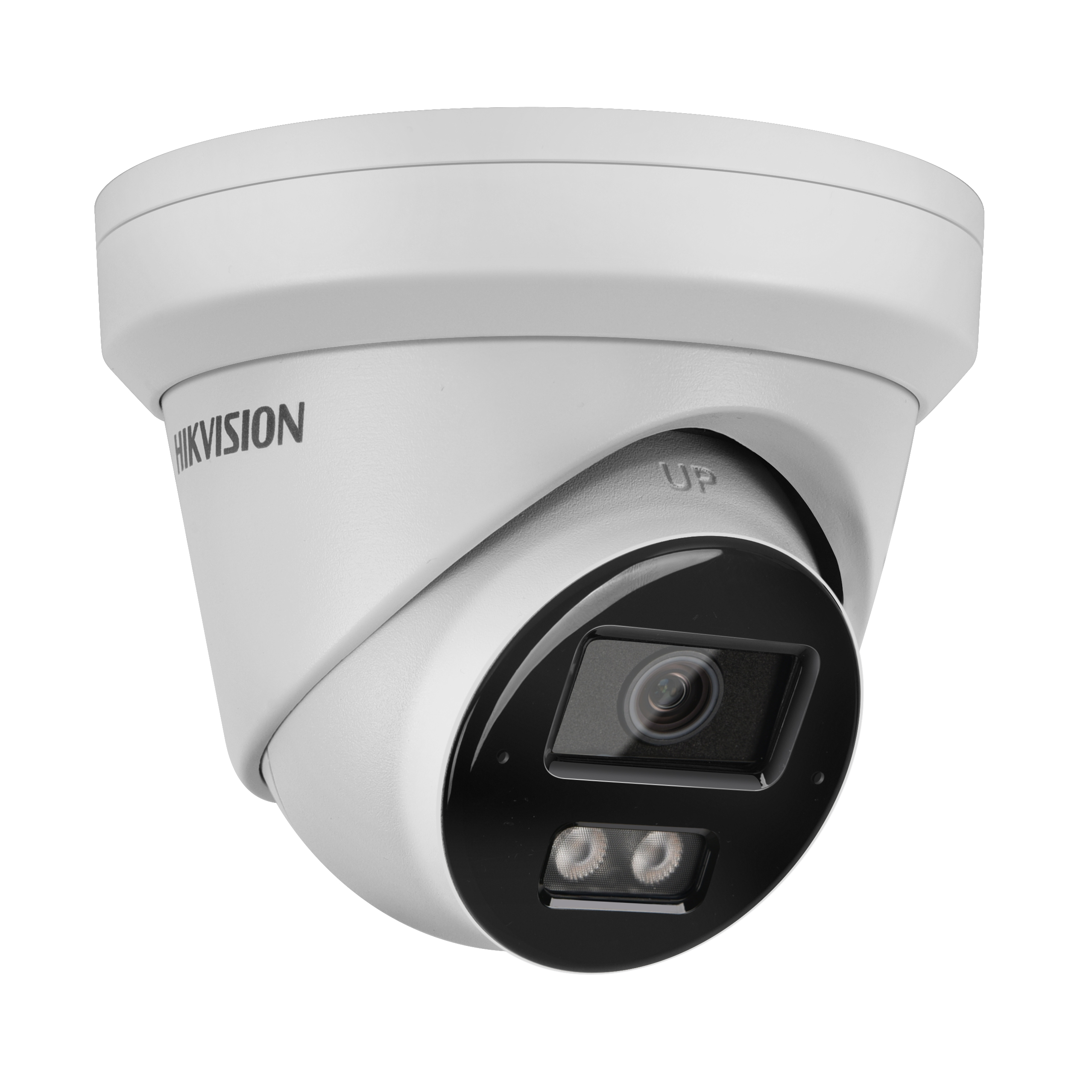

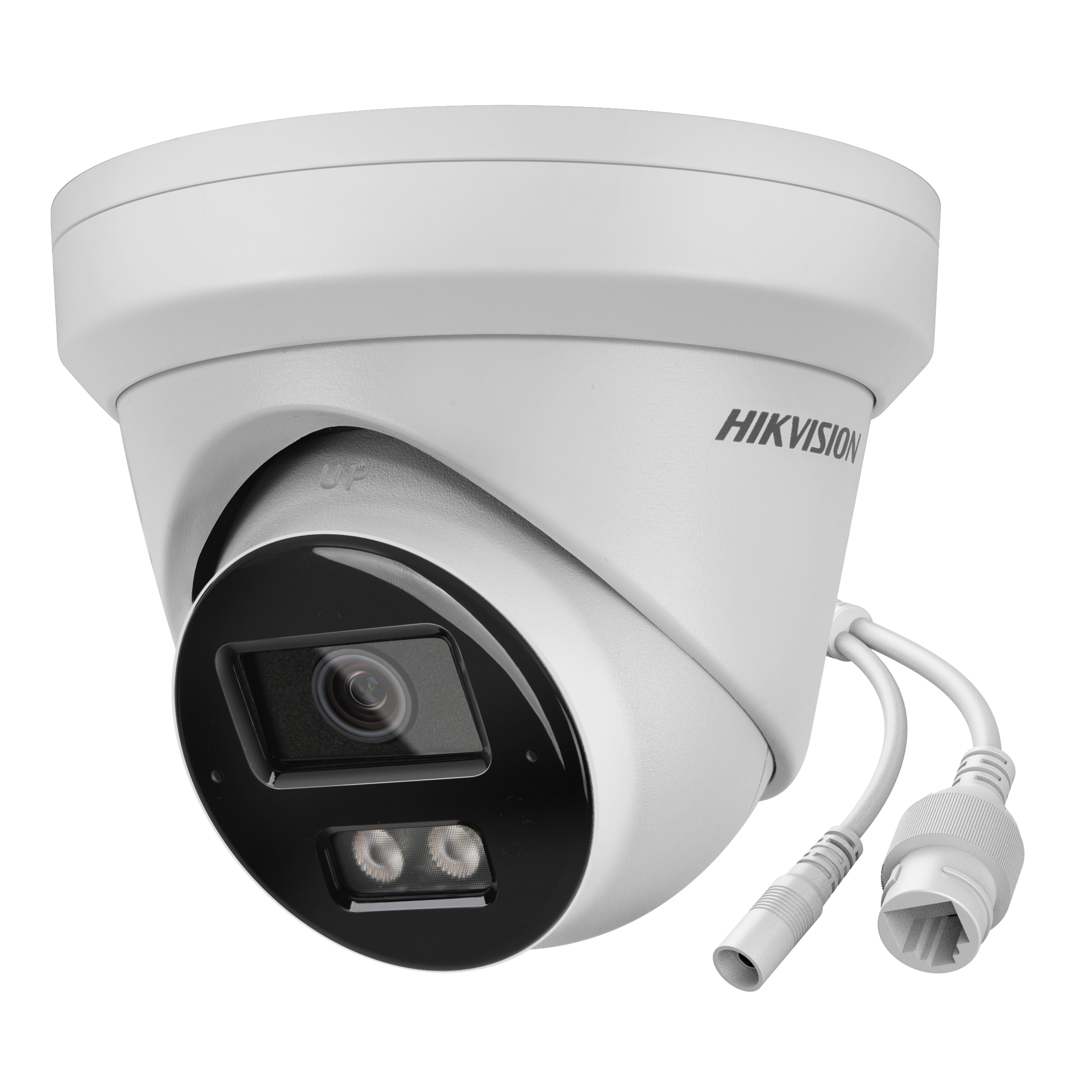

4K Ultra HD Surveillance Camera – Professional Security Solution

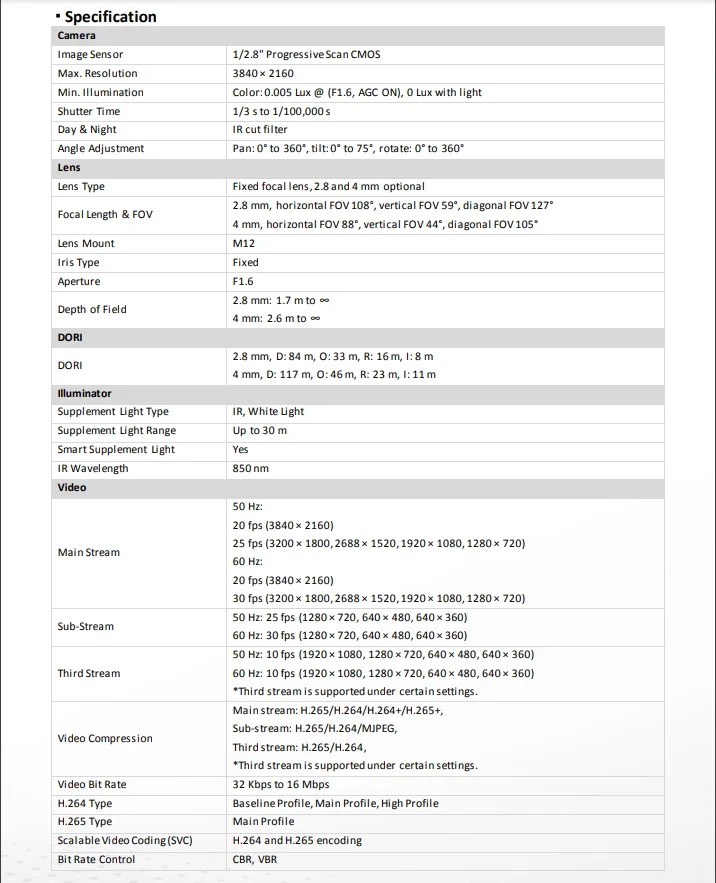

• Camera

• Image Sensor1/2.8″ Progressive Scan CMOS

• Max. Resolution3840 × 2160

• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light

• Shutter Time1/3 s to 1/100,000 s

• Day & NightIR cut filter

• Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

• Lens

• Lens TypeFixed focal lens, 2.8 and 4 mm optional

• Focal Length & FOV

  2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°

  4 mm, horizontal FOV 88°, vertical FOV 44°, diagonal FOV 105°

• Lens MountM12

• Iris TypeFixed

• ApertureF1.6

• Depth Of Field

  2.8 mm: 1.7 m to ∞

  4 mm: 2.6 m to ∞

• DORI

• DORI

  2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

  4 mm, D: 117 m, O: 46 m, R: 23 m, I: 11 m

• Illuminator

• Supplement Light TypeIR,White Light

• Supplement Light RangeUp to 30 m

• Smart Supplement LightYes

• IR Wavelength850 nm

• Video

• Main Stream

  50 Hz:

  20 fps (3840 × 2160)

  25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (3840 × 2160)

  30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Third Stream

  50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  *Third stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264,

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps

• H.264 TypeBaseline Profile,Main Profile,High Profile

• H.265 TypeMain Profile

• Scalable Video Coding (SVC)H.264 and H.265 encoding

• Bit Rate ControlCBR,VBR

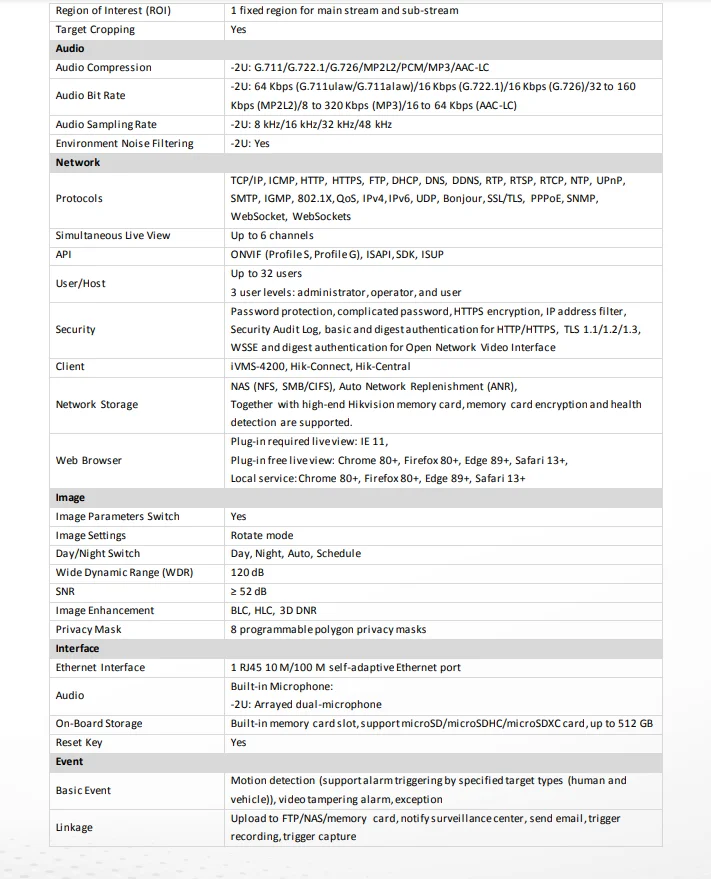

• Region Of Interest (ROI)1 fixed region for main stream and sub-stream

• Target CroppingYes

• Audio

• Audio Compression-2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Bit Rate-2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

• Audio Sampling Rate-2U: 8 kHz/16 kHz/32 kHz/48 kHz

• Environment Noise Filtering-2U: Yes

• Network

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

• Simultaneous Live ViewUp to 6 channels

• APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• ClientiVMS-4200,Hik-Connect,Hik-Central

• Network Storage

  NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Web Browser

  Plug-in required live view: IE 11,

  Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,

  Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

• Image

• Image Parameters SwitchYes

• Day/Night SwitchDay,Night,Auto,Schedule

• Image SettingsRotate mode

• Wide Dynamic Range (WDR)120 dB

• SNR≥ 52 dB

• Image EnhancementBLC,HLC,3D DNR

• Privacy Mask8 programmable polygon privacy masks

• Interface

• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

• Audio

  Built-in Microphone:

  -2U: Arrayed dual-microphone

• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Reset KeyYes

• Event

• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

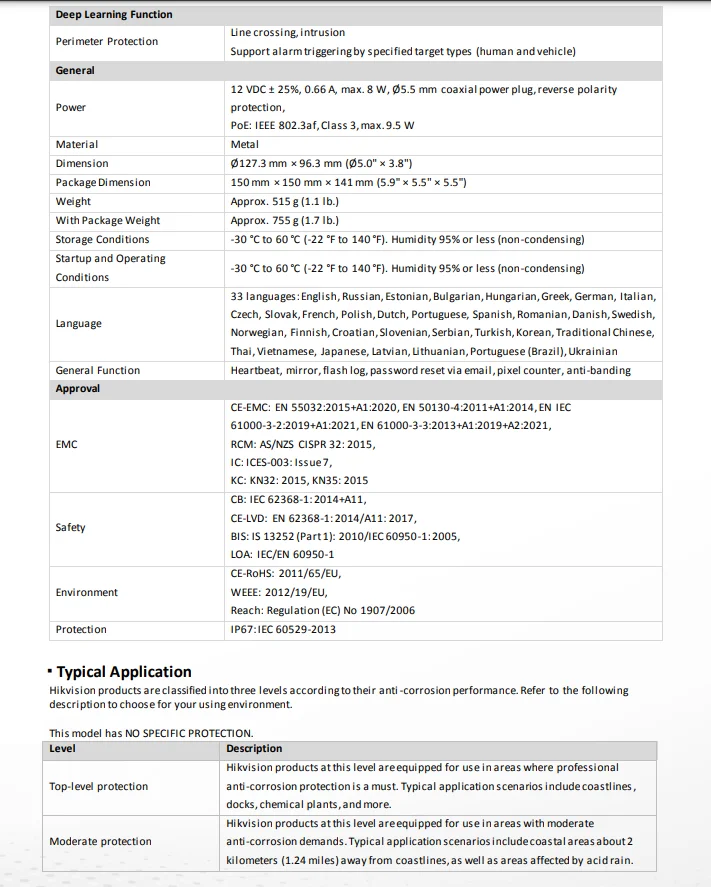

• Deep Learning Function

• Perimeter Protection

  Line crossing, intrusion

  Support alarm triggering by specified target types (human and vehicle)

• General

• Power

  12 VDC ± 25%, 0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 9.5 W

• MaterialMetal

• DimensionØ127.3 mm × 96.3 mm (Ø5.0″ × 3.8″)

• Package Dimension150 mm × 150 mm × 141 mm (5.9″ × 5.5″ × 5.5″)

• WeightApprox. 515 g (1.1 lb.)

• With Package WeightApprox. 755 g (1.7 lb.)

• Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

• Approval

• EMC

  CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety




  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

  LOA: IEC/EN 60950-1

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013

1.DS-2CD2387G3-LI2UY 8 MP

2.Wiring cap*1

3.Screw driver*1

4.Screw* 1 lot
5.Location hole paper*1
