CCTV Outdoor Smart Home Security Protection PTZ Coaxial Camera 1080P 2.0MP Pan and Tilt Control For house surveillance cameras

(16 reviews)
(%)
View Cart

Please note: 1.This PTZ camera only can work PTZ function on AHD mode by use XMEYE or HiEasy DVR.other App DVR can not work with PTZ function. 2.if you want use PTZ function on TVI mode(Only TVI mode support microphone can hear the sound,other camera mode can not use this…

Product Details

Please note:

1.This PTZ camera only can work PTZ function on AHD mode by use XMEYE or HiEasy DVR.other App DVR can not work with PTZ function.
2.if you want use PTZ function on TVI mode(Only TVI mode support microphone can hear the sound,other camera mode can not use this function)you need buy our HiEasy DVR) it from same company and have more function that use other company DVR can not use.
3.We have not tested the PTZ function of this camera on any other brand of DVR except for XMEYE and HiEasy App DVR. Therefore, if you are not using XMEYE or HiEasy App DVR but want to use the PTZ function of this camera, I suggest you not purchase it because it may not be able to deliver the PTZ function through your DVR.
4.You’d better have a multi-mode DVR that supports AHD/Tvi/Cvi/CVBS modes. This way, you can display the camera as needed and change the camera mode through the coaxial control function of the DVR to better meet your needs. Because the camera defaults to AHD mode. If your DVR is in Tvi mode, then this AHD mode camera will display black and white images on your Tvi mode DVR, and you cannot change the camera to Tvi mode through coaxial control mode.

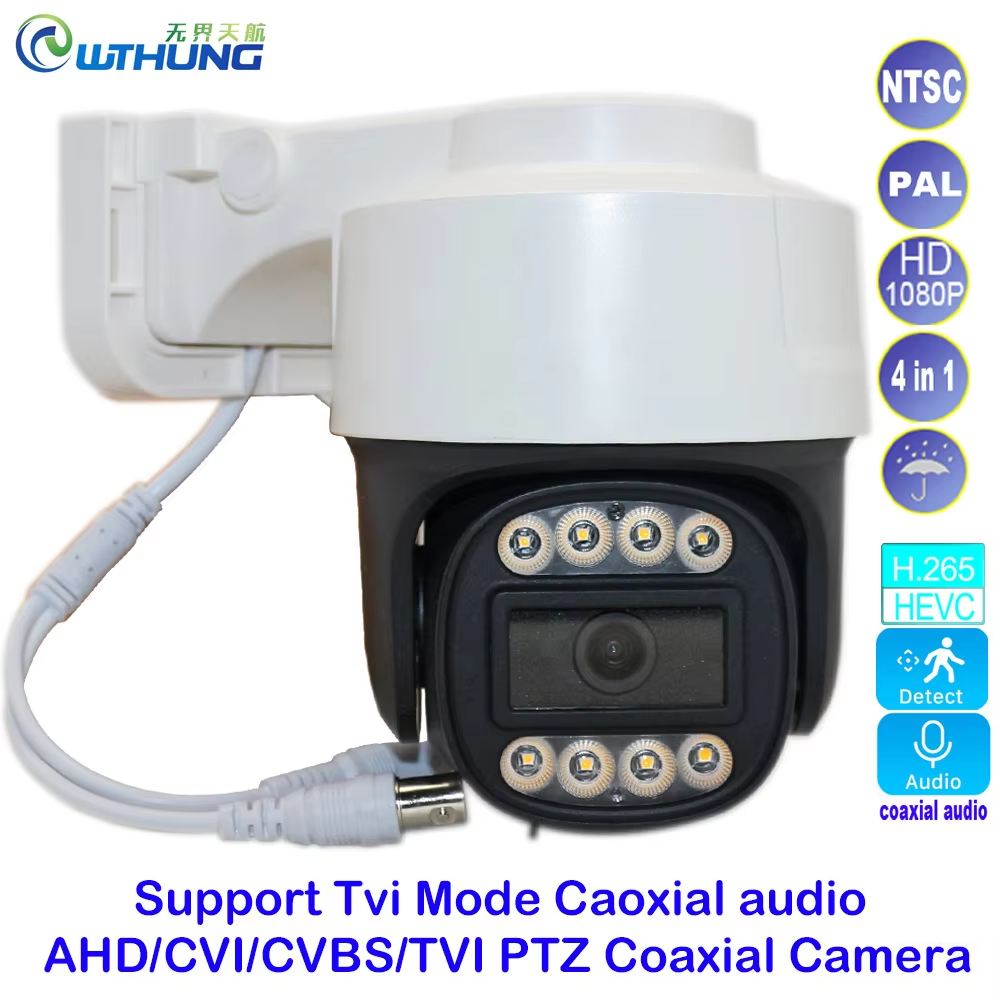

Default AHD mode Camera Tvi/Cvi/CVBS 1080P PTZ Dome outdoor built in Microphone for CCTV Home Use

Product introduction:

This is foreign trade Tvi/AHD/Cvi/CVBS coaxial camera which is suitable for home, office, shop, bank, factory and school. The product takes DVR as the carrier,
presents the camera high-definition picture through DVR, and takes the coaxial menu to control the ball machine rotation as the selling point.

Million high definition CMOS photosensitive chip provides high-quality picture, built-in night vision function, built-in DVR coaxial control omni-directional

rotation function (about 355 degrees, up and down 90 degrees), built-in microphone,support audio



Main Features:

1.1/2.9 inch CMOS sensor for 1080P

2. 2MP resolution :1920(H)×1080(V)

3.8 PCS Array IR LEDS With 30M Distance night vision view iamge

4. Built in microphone which support coxial audio out(only in Tvi mode)

5.White color plastic ABS housing,suitable for both indoor and outdoor use

6.3.6 lens 90 disgrees wide angel

7. Default HD mode which can transport coaxial audio,can switch to AHD/Cvi/Cvbs mode too(but not transport audio)

8. HD Tvi camera is an over-coaxial-cable analog HD video transmission standard, allowing
long-distance HD transmission at a lower   cost to meet the requirements for a complex andlarge installation.

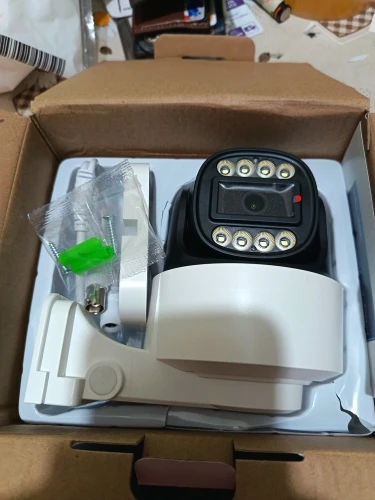

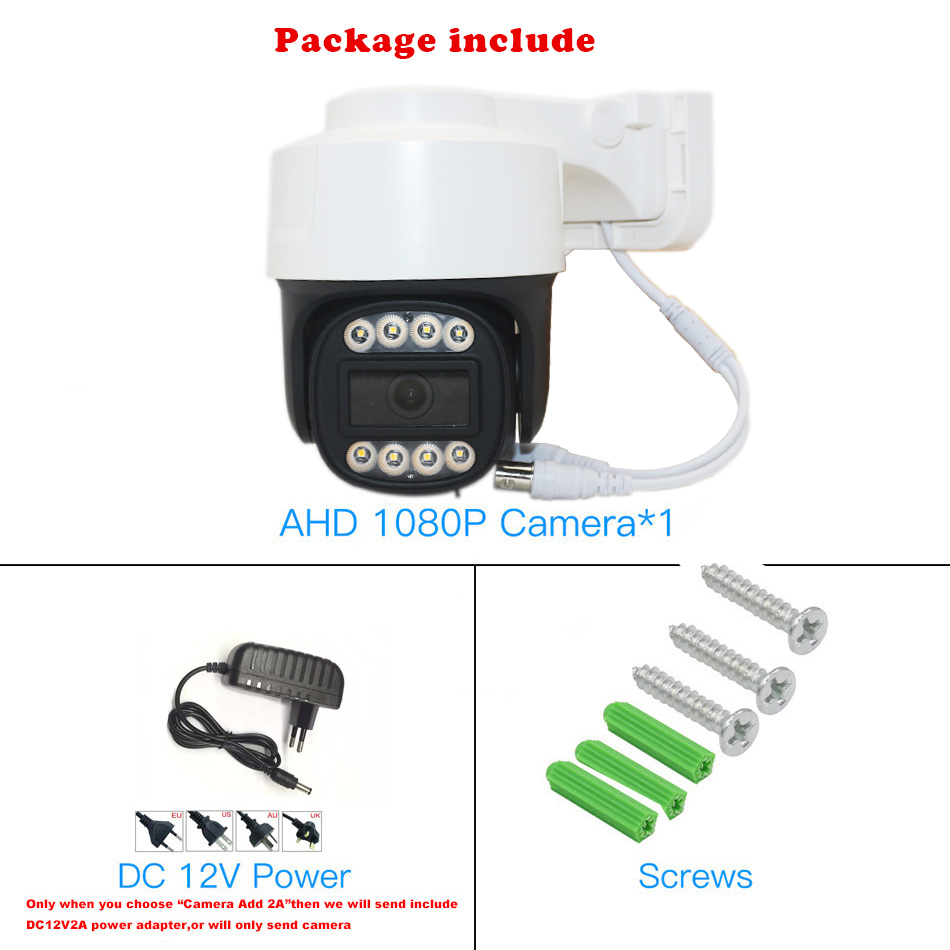

Package included:

1*PTZ coaxial camera
1*bag of screws
Power adapter is optional,only when you choose “Camera Add 2A” will send,choose only camera will not include power adapter



Specifictions:

Connection mode: AHD&Tvi and shaft BNC are connection

image sensor :1/2.7 inch CMOS F37 sensor

pixel: 2MP

resolving power: 1920*1080P

Lens parameters: Fixed focal length:3.6mm

viewing angle: 90°

Night vision effect :support

Image adjustment Brightness, contrast, saturation, chroma adjustable,

Minimum illumination: 0.4 LUX

Signal to noise ratio: >48dB

Electric machinery: Built in motor control

Rotation angle: Horizontal: 355 degrees, vertical: 90 degrees

Appearance and material: Plastics (ABS)

Use environment” :Outdoor and indoor use

Power consumption: DC12V/ 2A

Working temperature: – 20°C~+ 50°C

Working humidity: 10%~80%

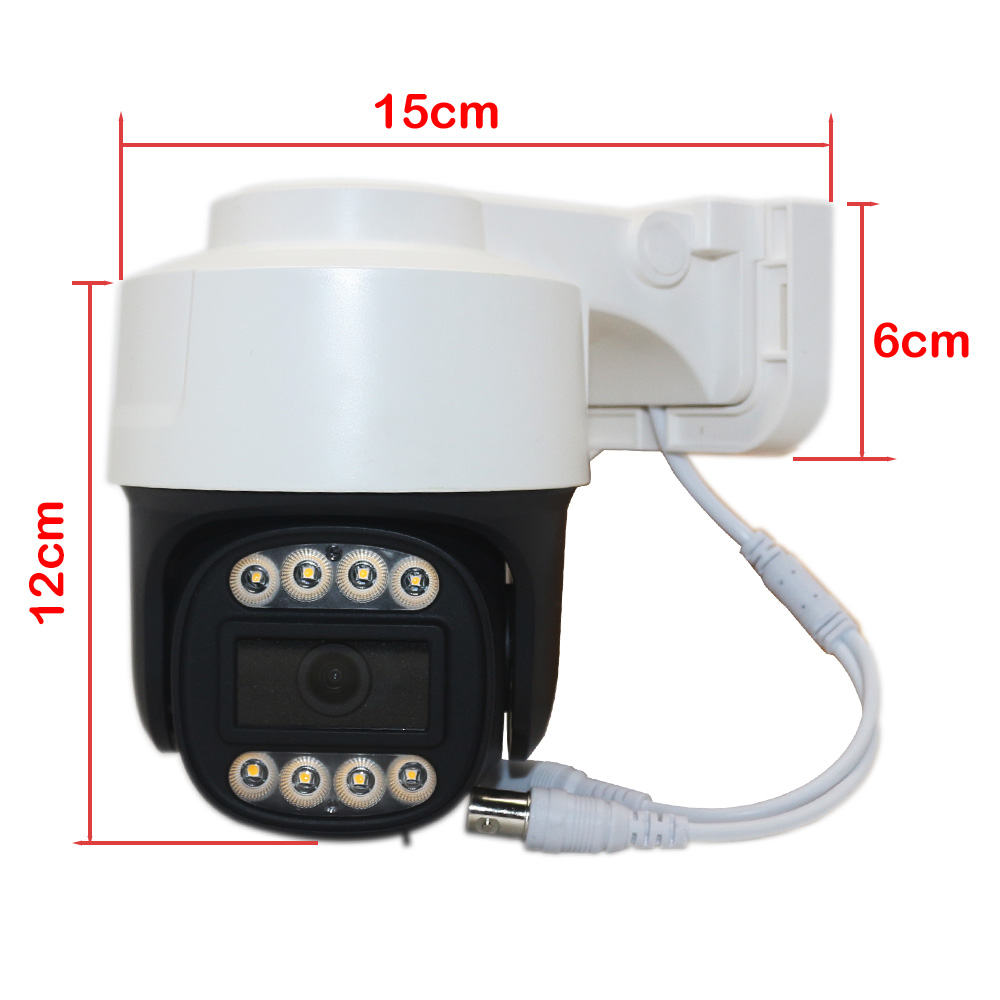

Product size: 120MM*150MM*60MM

Weight of finished product: 0.418KG(with retail box)

Accesries parts Instructions and installation screws

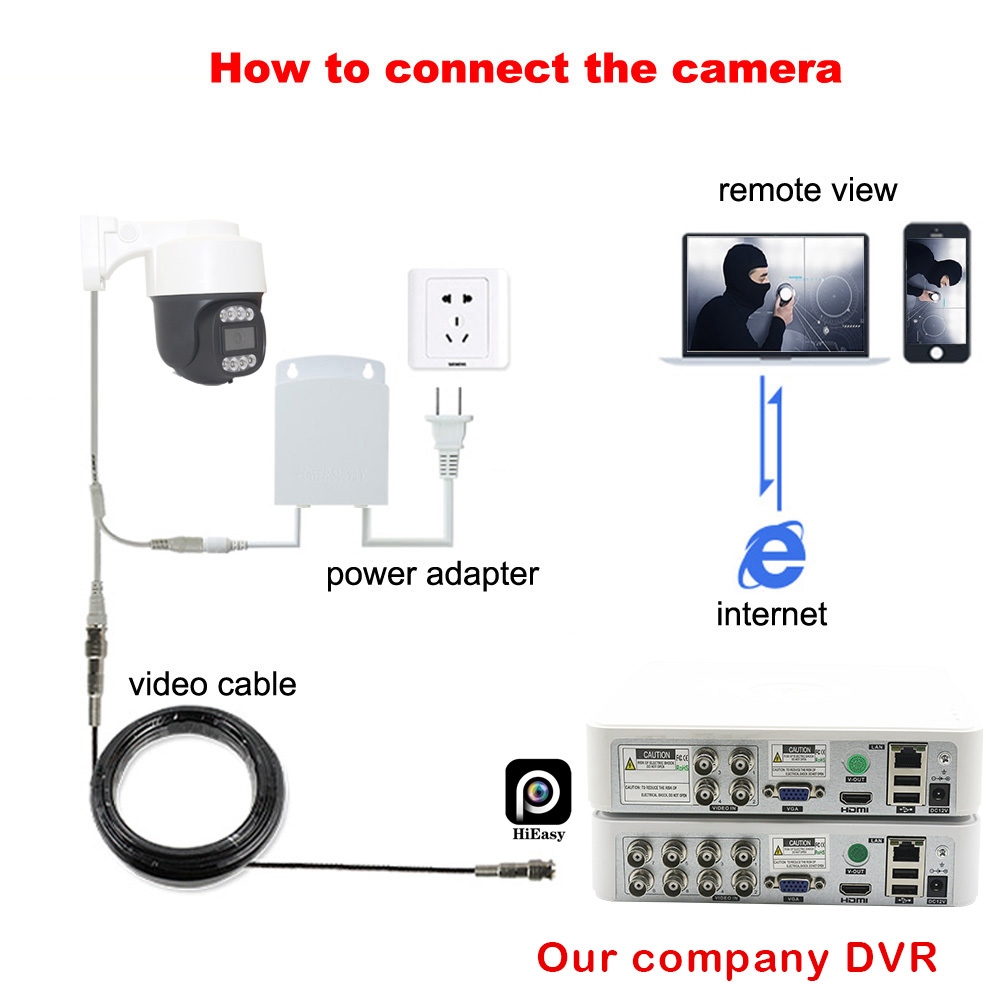

How to connect with this camera?

Must be connect with DVR,1080P need DVR support 1080P



Quality control

We are committed to strict 100% test quality and life,and inspection before delivery.
services and support our company momentarily responds to customer service demand within 24 hours and provides 8 hours each working day the hot line service
OEM/ODM
We work closely with all customers in design phase to reduce products cost and improve the quality and manufac-turability.We focus on close communication and partnering between design and manufacturing engineers to optimize manufacturability.We are fully understanding of customer’s needs and provide our resources,expertise and labor to meet the requirement of the client’s products
About us
WThung Co.,LTD,specialize in integrated electronic security solutions. We provide security solutions to the customer all over the world in retail,commerical and industrial sectors.By providing impartial advice and leading edge technology along with access to the latest products and services,We offer security products include CCTV camera,DVR,NVR,wifi IP camera and CCTV Accessories.
Feedback

Your positive feedback and 5 stars ratting will be highly appreciated.

Troubleshooting

Please feel free to contact us through Aliexpress message center or order page for any problem. Our customer service and tech support  will do our best to help you out.

Shipping

Shipping from China might come with additional Custom Taxes & Remote Area Fees, please to learn about your country’s custom policies, we are not responsible for those charges.

Warranty

We provide 1 year warranty for DVR and Camera. Any question please feel free to contact us, communication is much more efficiently than opening a dispute.

Return Policy

If the product has some using problem, pls do not open a dispute or leave us a positive feedback, just contact us first(email, skype, or WhatsApp), we will responsible for our product, give you the solution, return, exchange, products or return the money.

Products may be returned for refund or replacement within 30 days from the purchase date. Returned merchandise must be unused, in original packaging and include all accessories. Shipping costs are non-refundable.


Item Specifics
Brand Name:
WTHUNG
WTHUNG Model:
PTZ-314R-W
Zoom type:
None
Megapixels:
2 MP
Zoom:
NONE
Origin:
Mainland China
High Definition:
1080P(Full-HD)
High-concerned chemical:
None
Lens Quantity:
Single Lens
Supported Operating Systems:
Windows 98
Supported Operating Systems:
Windows XP
Supported Operating Systems:
Windows Vista
Supported Operating Systems:
Windows 7
Supported Operating Systems:
Windows 8
Supported Operating Systems:
Windows 10
Supported Operating Systems:
Windows 2000
Supported Operating Systems:
Windows 2008
Supported Operating Systems:
Windows 2003
Lens (mm):
3.6mm
Power Supply:
Normal
Style:
Dome Camera
Connectivity:
Closed System/CCTV Wired
Installation:
Wall Mounted
Minimum Illumination(Lux):
0.01LUX
Scene:
Indoor and outdoor
Special Features:
Waterproof / Weatherproof
Internal Storage:
None
Video Compression Format:
H.264
Video Compression Format:
H.265
IR Distance(m):
30M
Certification:
NONE
Dimensions (L x W x D)(mm):
150*120(mm)
Shell Material:
Plastic
Color:
WHITE
Power Mode:
Mains Electricity
Alarm Action:
Email Photo
Alarm Action:
Local Alarm
Movement Range(Tilt):
-10°-180°
is_customized:
No
Model Number:
PTZ-314R-W
Supported Mobile Systems:
Android
Supported Mobile Systems:
iOS
Smart home platform:
NONE
Optical Zoom:
NONE
AI Functions:
Human Detection

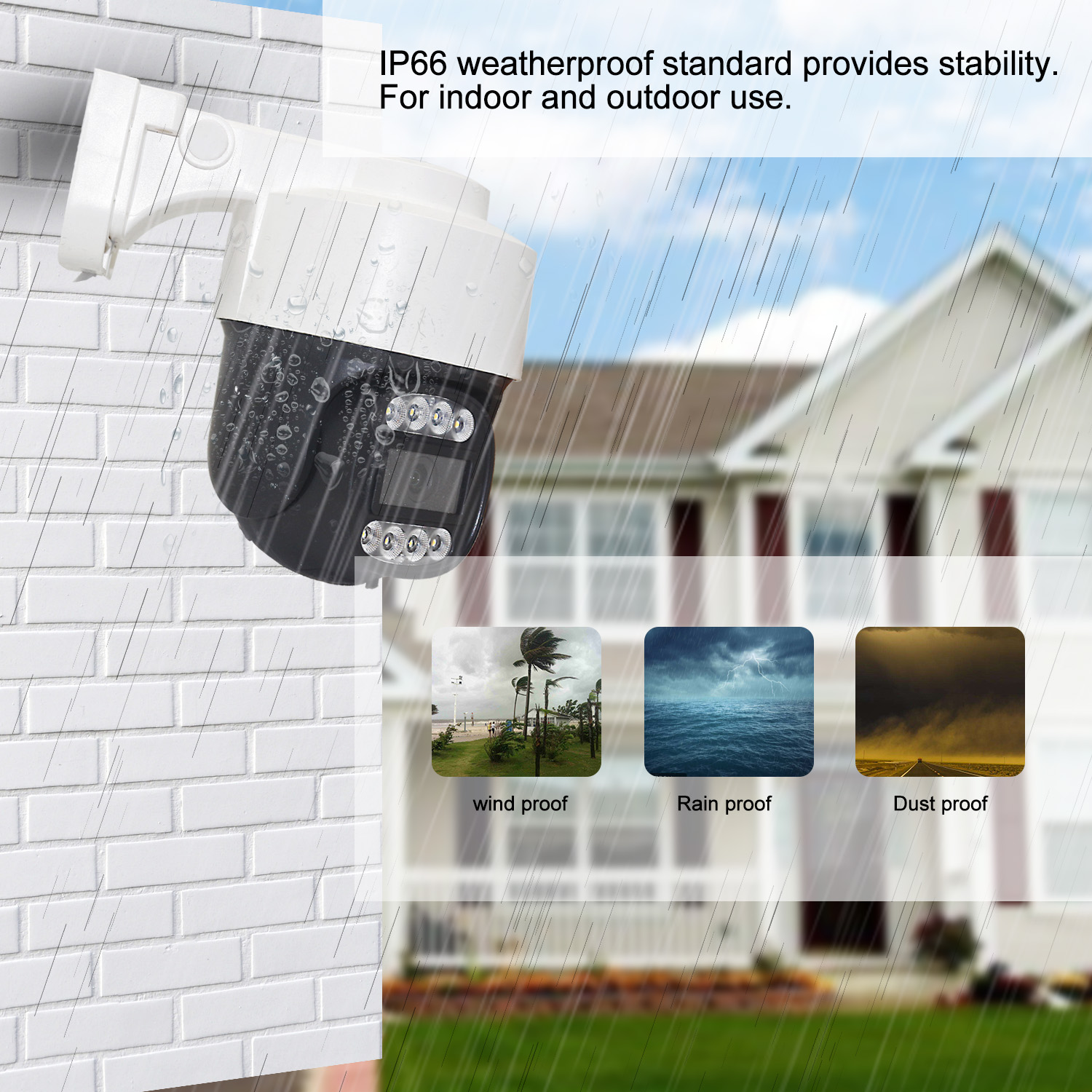

IP Rating:
IP66
App name:
Other
TF Card:
None
Power Supply(V):
DC12V
Audio Output:
None
Power Consumption(W):
12W
Sensor:
CMOS
Sensor Brand:
SmartSens
Operating Temperature:
-10°-60°
Viewing Angle:
90°
Movement Range(Pan):
0°-360°
Rechargeable Battery:
NONE
Power Source:
Normal
Coaxial audio:
support
Camera mode:
Default AHD mode
Camera mode:
support AHD/Tvi/Cvi/CVBS mode
Choice:
yes
Shipping & Payment

SHIPPING

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have been shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:
Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
Asia 10-20 Business days
Africa 15-45 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says “no information available at the moment”.

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you've specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

RETURNS

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

  • If you did not receive the product within the guaranteed time( 45 days not including 2-5 day processing) you can request a refund or a reshipment.
  • If you received the wrong item you can request a refund or a reshipment.
  • If you do not want the product you’ve received you may request a refund but you must return the item at your expense and the item must be unused.

We do not issue the refund if:

  • Your order did not arrive due to factors within your control (i.e. providing the wrong shipping address)
  • Your order did not arrive due to exceptional circumstances outside the control of Exquisite Goods (i.e. not cleared by customs, delayed by a natural disaster).
  • Other exceptional circumstances outside the control of https://techtreasurstore.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on Contact Us page

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

Reviews
(16 reviews)
Write a Review
Verified Buyer
a***r
23 Apr 2026 00:00

Good camera smarth and good quality but it is a pity that there is no instruction manual to set the parameters ,same with the dvr/nvr that i bought from the same sellers .

Verified Buyer
Customer
13 Mar 2026 00:00

All that's left is to install it.

Verified Buyer
P***t
2 Mar 2026 00:00

It's really crap. Received it on Friday, installed it on Saturday and Sunday, and it doesn't work anymore. What is this? It doesn't like Quebec winters. Not cheap, but it's not worth being cheap either. Too bad.

Verified Buyer
Customer
23 Jan 2026 00:00

I haven't used it yet. I will leave a detailed review after installation.

Verified Buyer
G***n
21 Jan 2026 00:00

Super professional thank you! ⭐ ⭐ ⭐ ⭐ ⭐ ▒ ▓ ▓ ▒ I really hope for further honest cooperation. Fast shipping . Good service. Good price . Very high quality product . I wish you future prosperity for your business ▒ ▓ ⭐ ⭐ ⭐ ⭐ ⭐ ▒ ▓ ▓ ▒ ▒ ▓ ▓ ⭐ ⭐ ⭐ ⭐ ⭐ 18.01.2026 reminder order delivered. Hello, dear seller. Thanks for the good quality of the goods i received today ▓ ▓ ⭐ ⭐ ⭐ ⭐ ⭐ ▒ ▓ ▓ ▓ ▓ ⭐ ⭐ ⭐ ⭐ ⭐ ▒ ▓ ▓ ▓ ▓ ⭐ ⭐ ⭐ ⭐ ⭐ ▒ ▓ ▓ 18.01.2026 your product . Very satisfied with all my heart i thank you for your attention and your efforts

Verified Buyer
Customer
4 Jan 2026 00:00

I couldn't test the item because it was incompatible with my system, so I returned it.

Verified Buyer
Customer
27 Dec 2025 00:00

I received it well. I will test it and leave a review.

Verified Buyer
Customer
10 Dec 2025 00:00

👍🏻 👍🏻 👍🏻 👍🏻 👍🏻 👍🏻

Verified Buyer
y***o
10 Sep 2025 00:00

I loved it, it works well and has full visualization. It arrived on time in good condition.

Verified Buyer
R***o
17 Aug 2025 00:00

Good, image is good but I really bought it because of the audio and it didn't pick up on my device. I don't know if it's because of my JProtec DVR, rotation is very slow and buggy, but the image is very good, it records in color at night, the LEDs are strong and noticeable, and there's no way to turn off the LEDs. I didn't ask for a refund because of the bureaucracy of going to a post office.

Verified Buyer
r***n
16 Aug 2025 00:00

Fast delivery, reliable seller. Well-organized package. Recommended seller.

Verified Buyer
s***r
15 Aug 2025 00:00

👌 Awesome

Verified Buyer
Customer
7 Aug 2025 00:00

I received order very. Thank u very much team

Verified Buyer
Customer
2 Aug 2025 00:00

Well received.

Verified Buyer
P***h
9 Jul 2025 00:00

Ok

Verified Buyer
R***h
6 Jun 2025 00:00

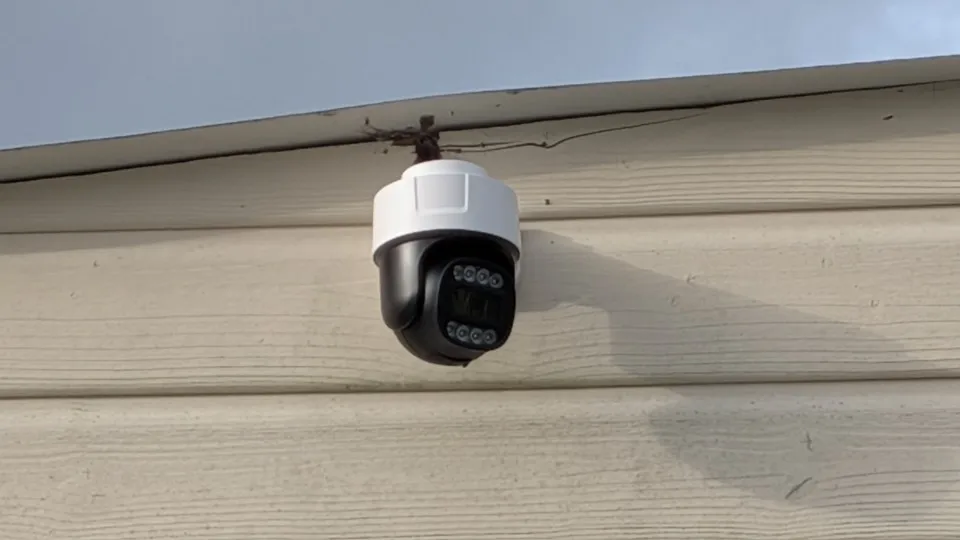

Good camera, seems waterproof, PTZ can be controlled with AIHVR.
