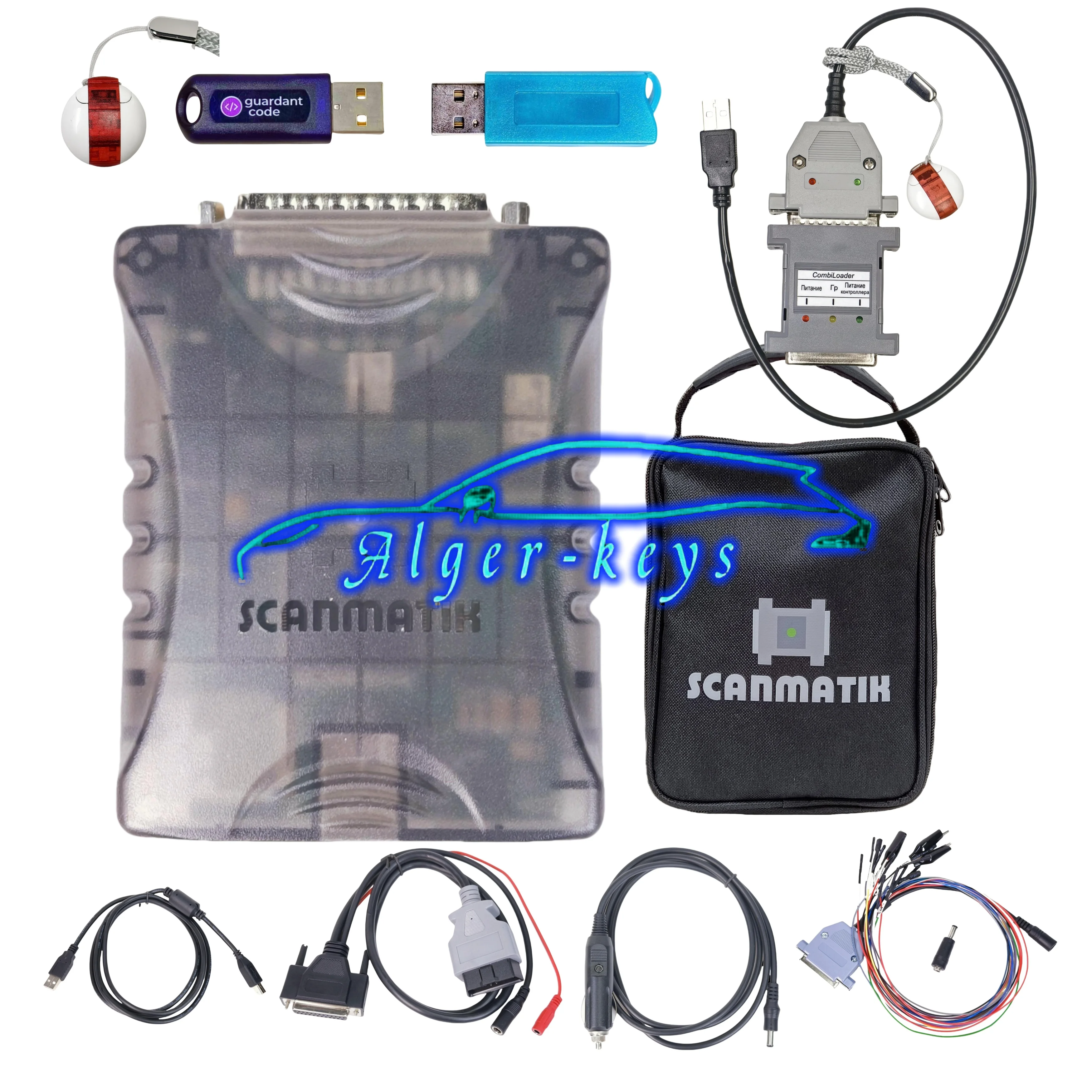

Algernon-keys Scanmatik 3 New Upgrade Genuine Original j2534 Diagnostic chip-tuning MMC FLASH PCMFLASH BITBOX software
You need both the dongle (basic equipment) and at least one module at the initial purchase. The modules will not work without a dongle.
Before purchasing a dongle: Please contact customer service or +Wasap +86 15323754301
Please note: The purchase of dongle must be accompanied by the purchase of one of the module authorization services
Hi, This product only includes all original hardware displayed in the accessories, not software.
Product origin: Russia.
Only supports English and Russian
If need, please contact customer service.
Professional multi-brand auto scanner is designed for diagnostics of electronic control systems of modern cars. Works with a PC, tablet or smartphone, programs for Windows and Android included. When installing the driver (included in the kit), it works with third-party diagnostic software made for SAE J2534 and RP1210 standards, as well as with bootloaders, supplying programming permission voltages to various contacts of the diagnostic connector.
To connect to the adapter, you can use either USB or Wi-Fi interfaces (built into the SM3 adapter)
All kits include the full current version of the program (all currently available software modules):
VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2.
Works with a large number of diagnostic programs and loaders made for standard SAE J2534 and RP1210 interfaces.
Technical characteristics of the SM3 adapter
Interfaces for communication with a PC (Tablet, Smartphone) — USB or Wi-Fi
Supply voltage: 5…35V from the vehicle’s on-board network or USB (galvanic isolation with power supply)
Current consumption, no more than 350mA
Internal pulse power supplies of our own design (no heating + wide range of input voltages from 5 to 55V)
Wi-Fi transceiver standard: IEEE 802.11b/g/n
Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE)
1 x J1850VPW
1 x J1850PWM
4 x CAN 2.0/CAN-FD
1 x Single Wire CAN
1 x Ethernet 10/100BASE-TX
Built-in multiplexer for switching diagnostic lines
The widest support for J2534-½ standards
Programming voltage supply (5-20V) — to OBD2 connector pins: 6, 8, 9, 11, 12, 13, 14
AUX programming voltage output
Adapter dimensions (L x W x H), no more than: 97×75×22mm
Weight of the device in the basic configuration, no more than: 0.7 kg
Genuine Scanmatik 3 Scanner + Aux Specs:
This Weight Product: 650g
Manufacturer: Scanmatik
Condition: New
Genuine Scanmatik 3 + Aux is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
Note: To use add. voltage output for programming enable OBD2 cable with additional Aux socket included.

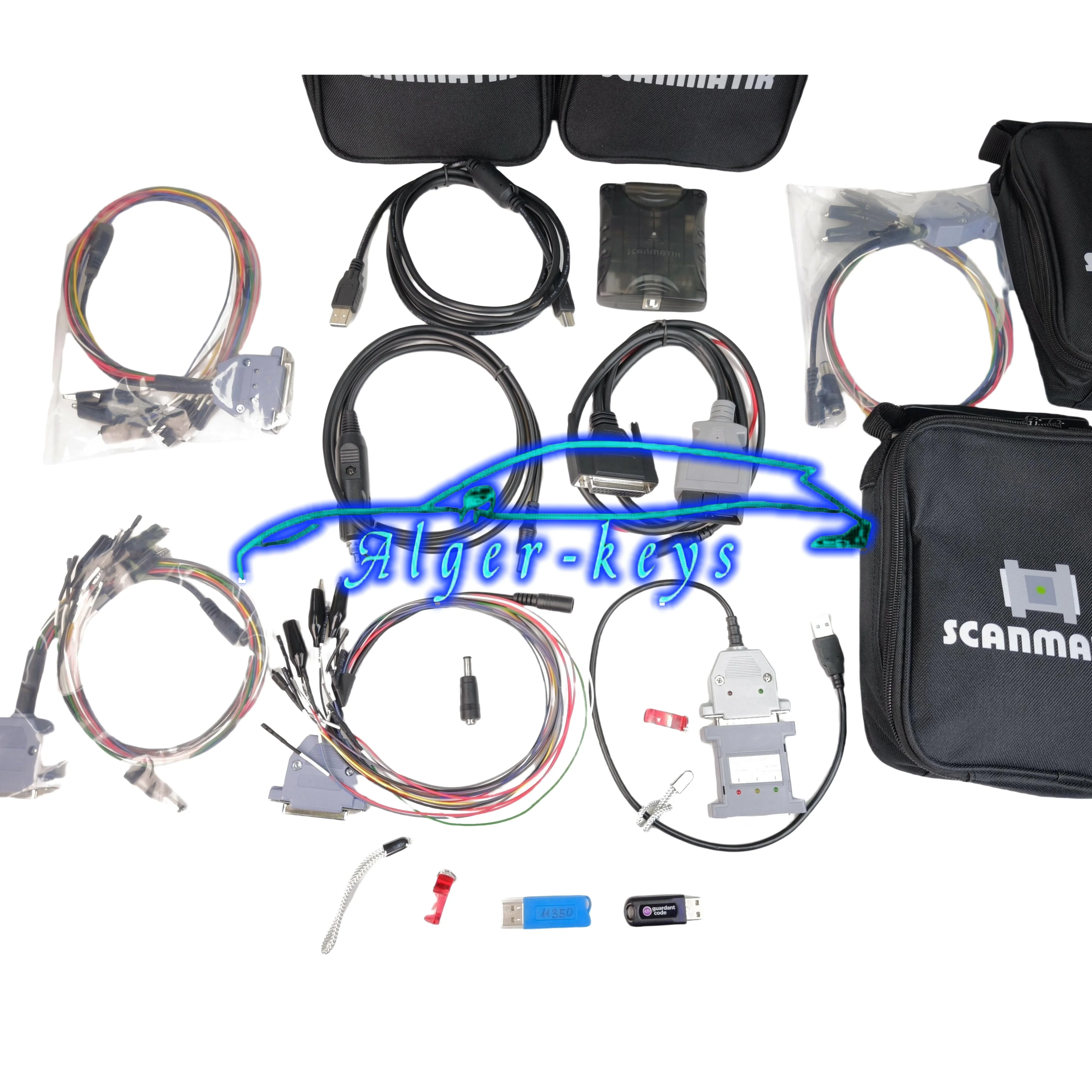

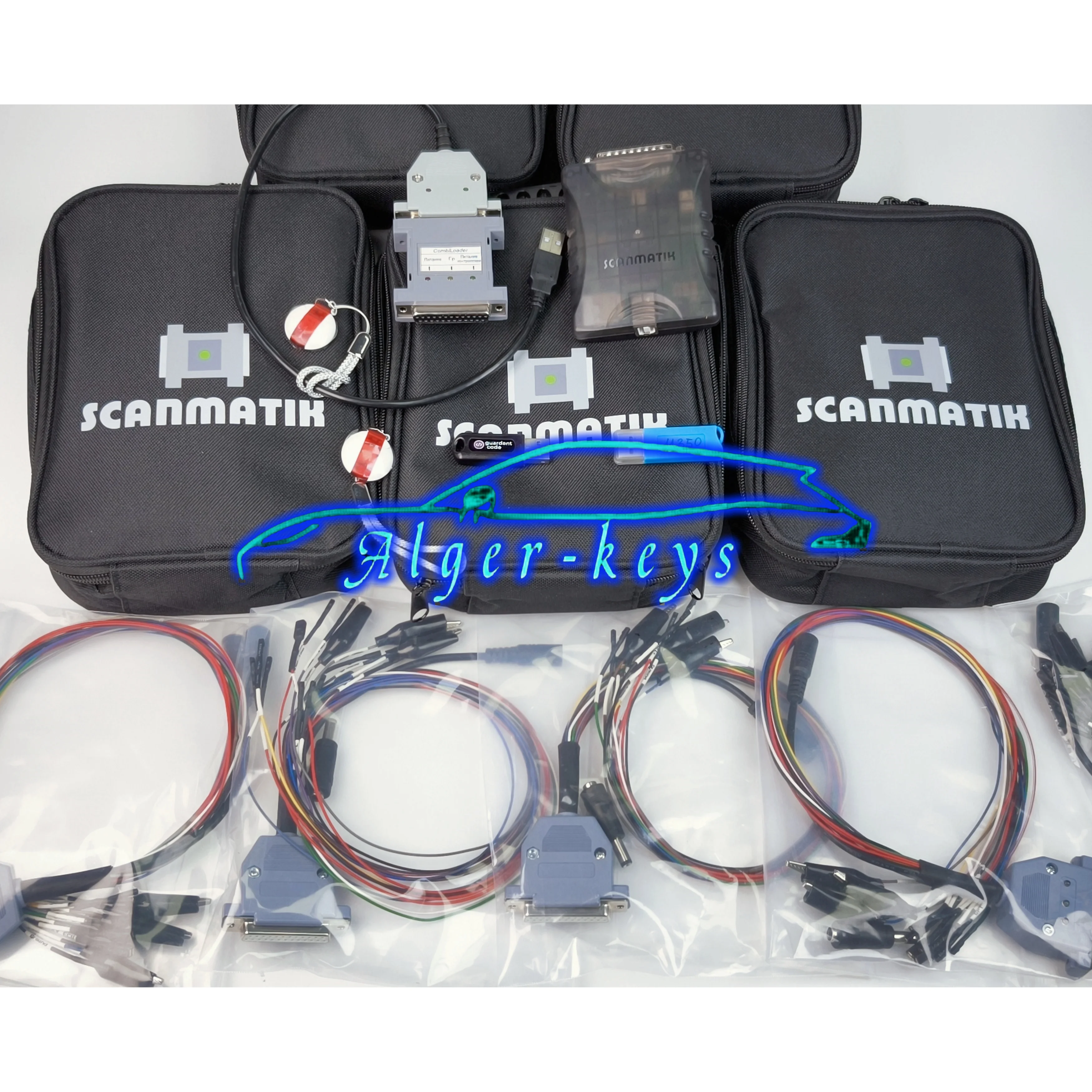

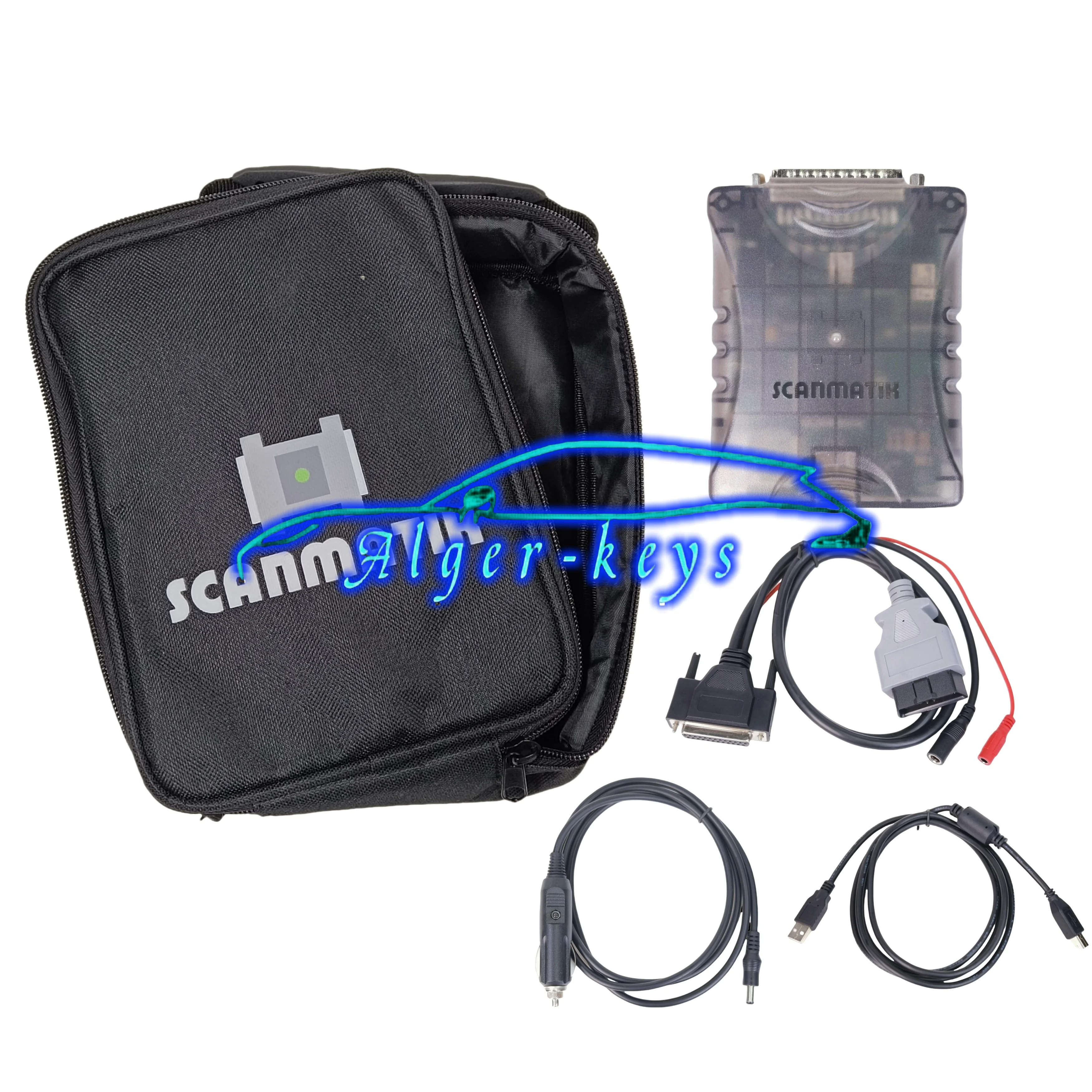

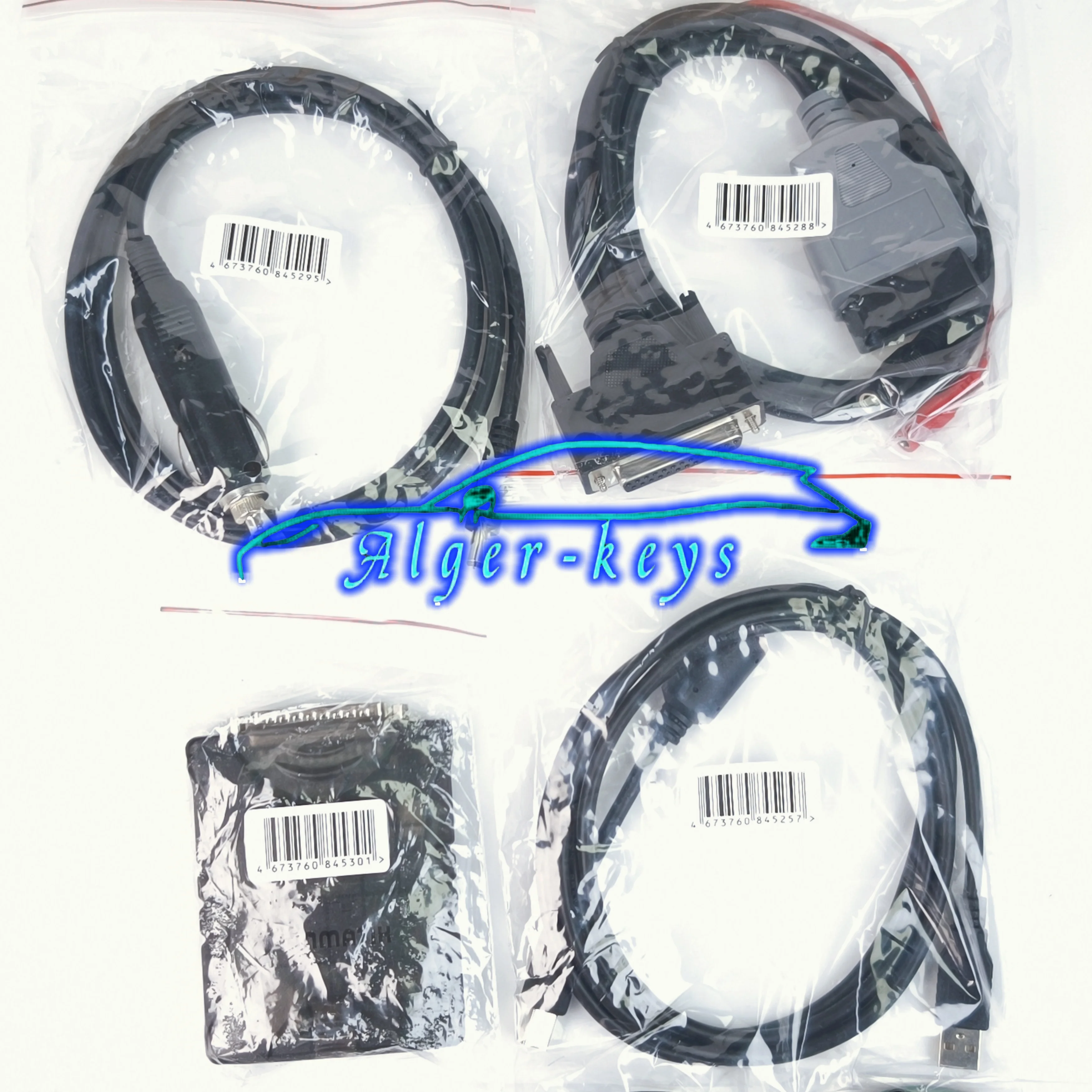

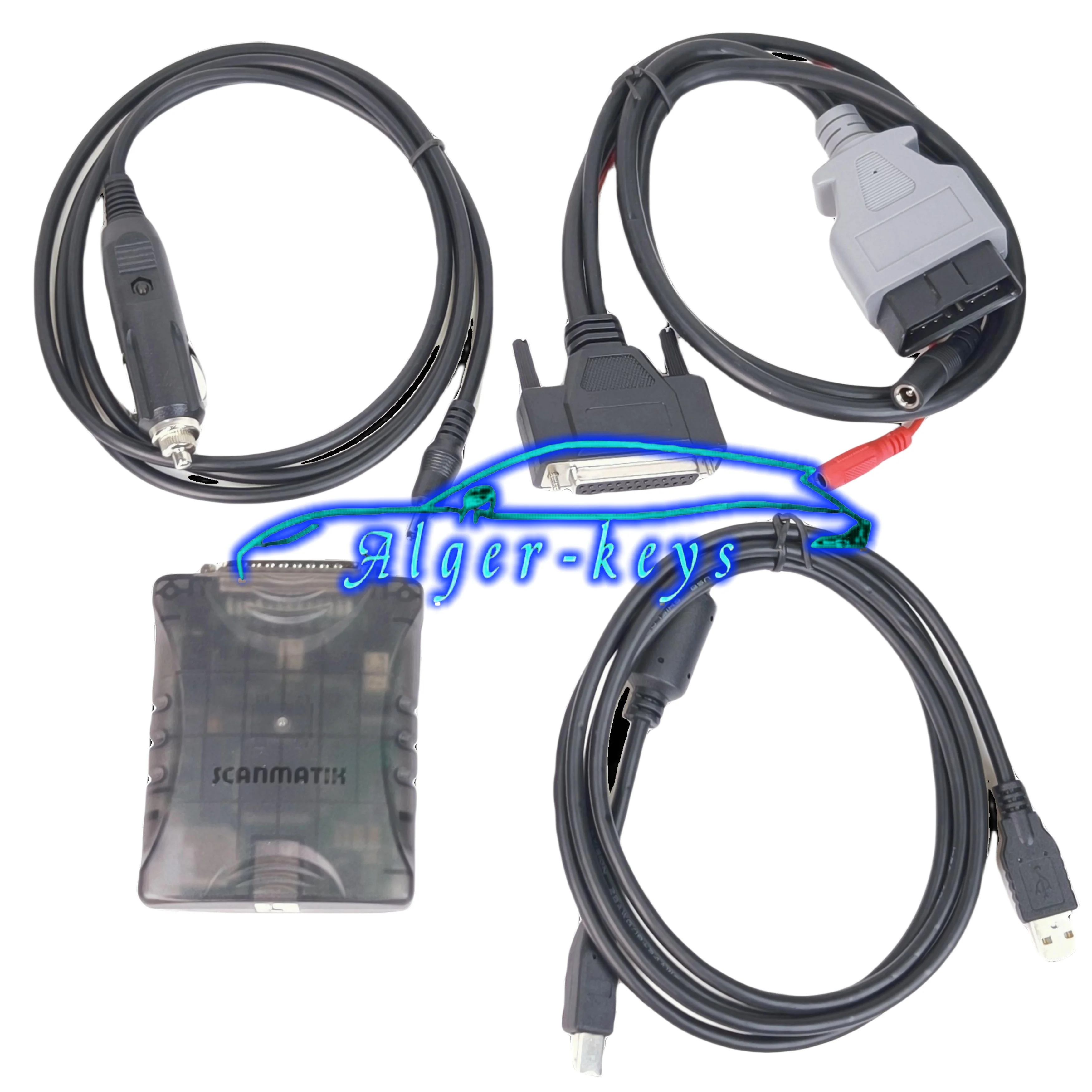

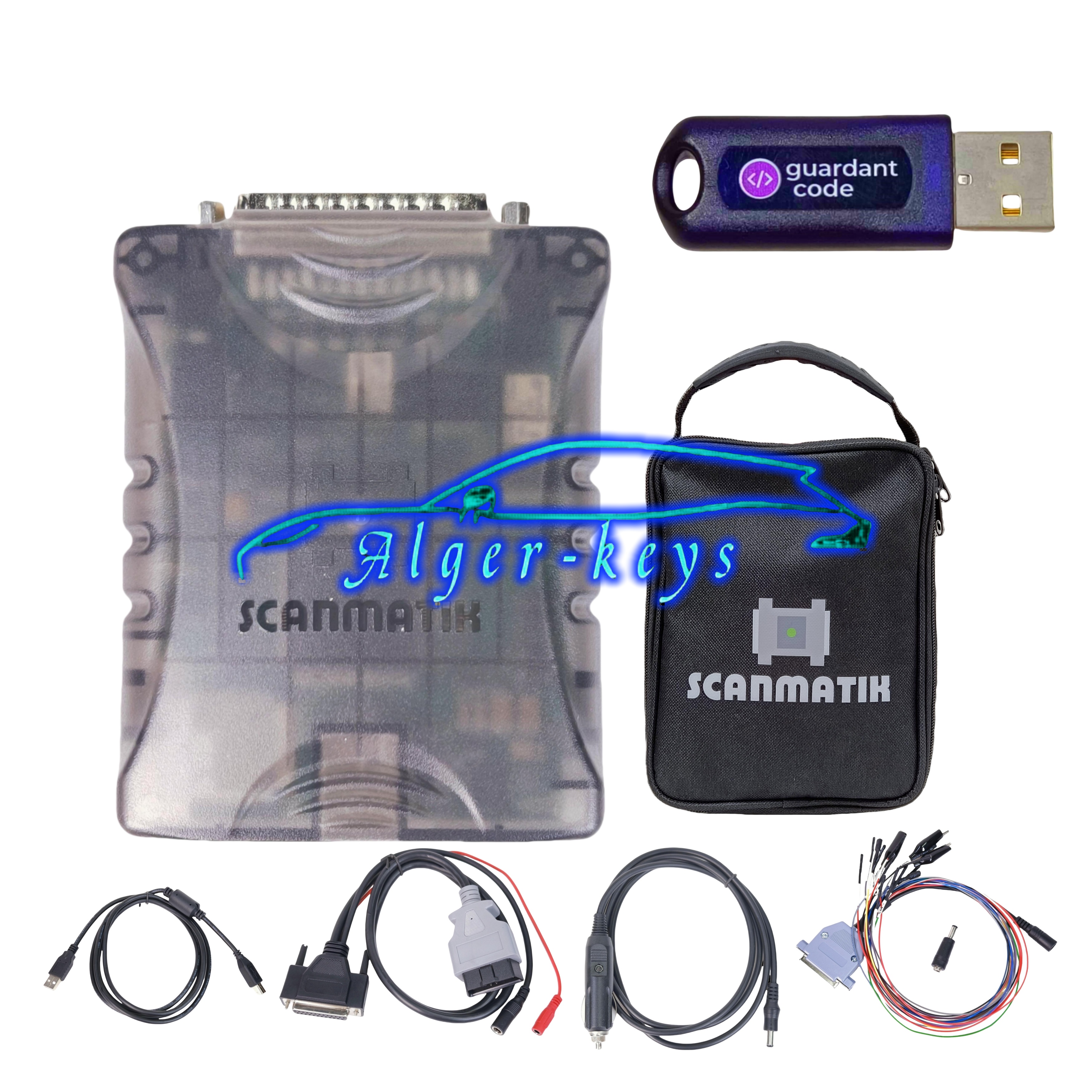

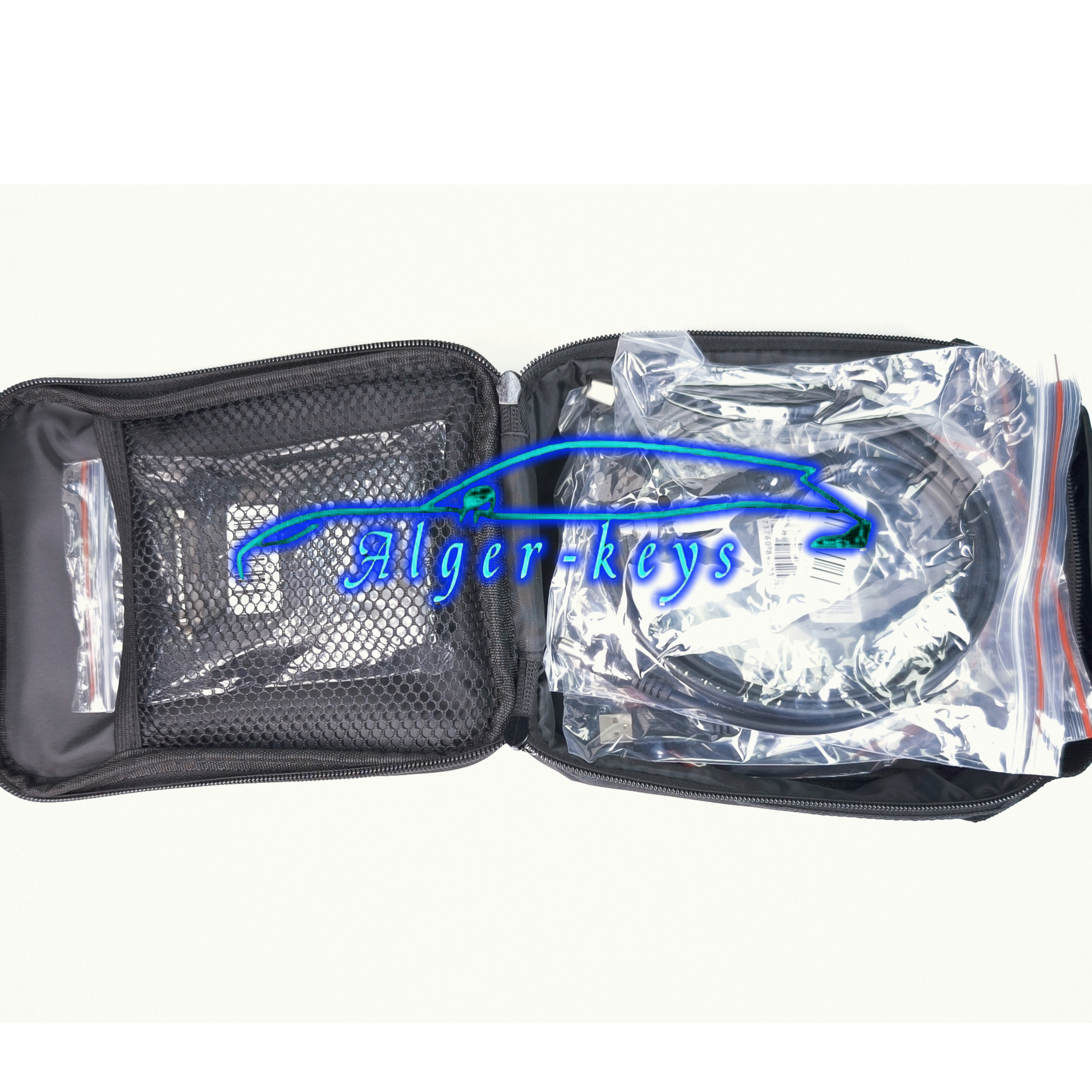

Scanmatik 3 + Aux Contents :

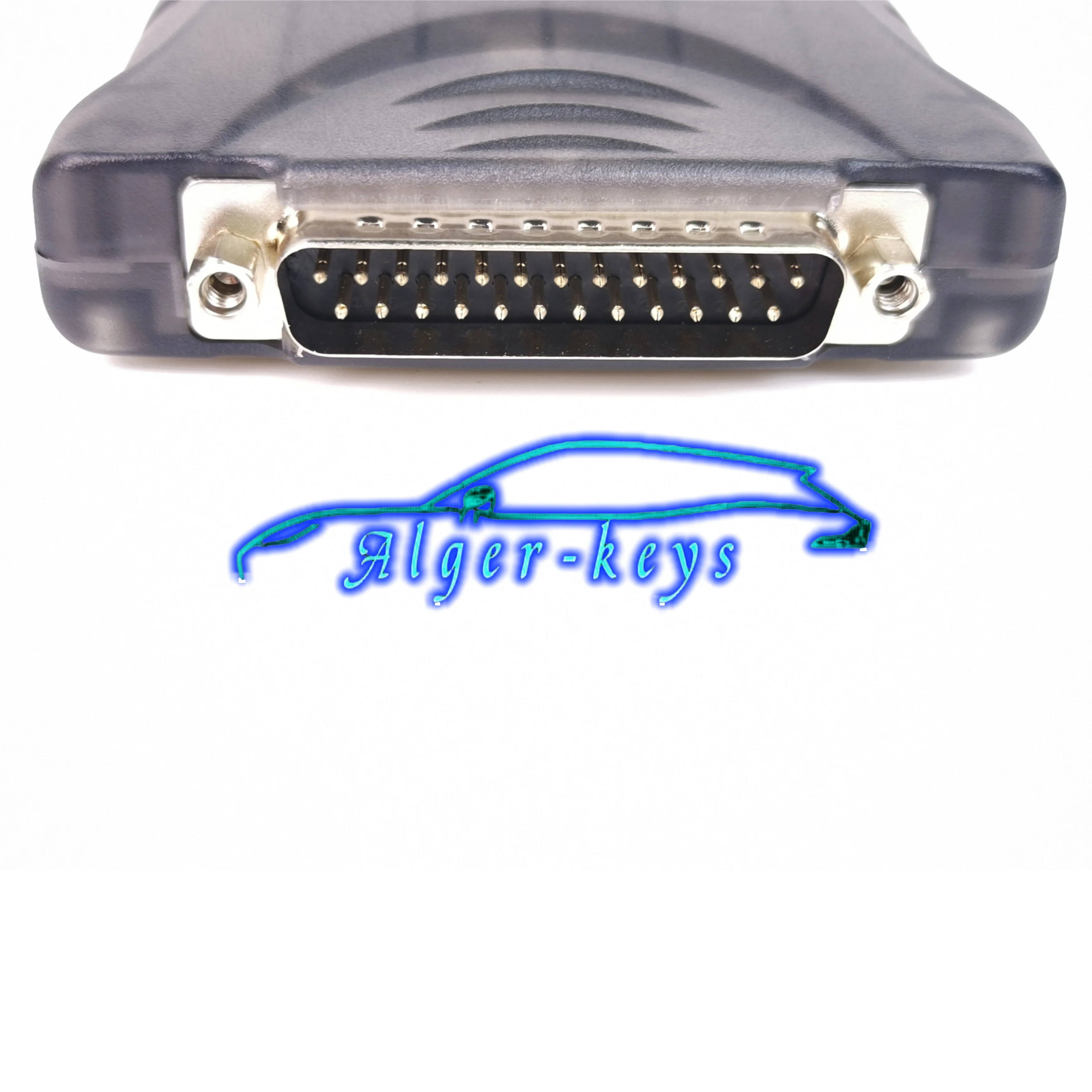

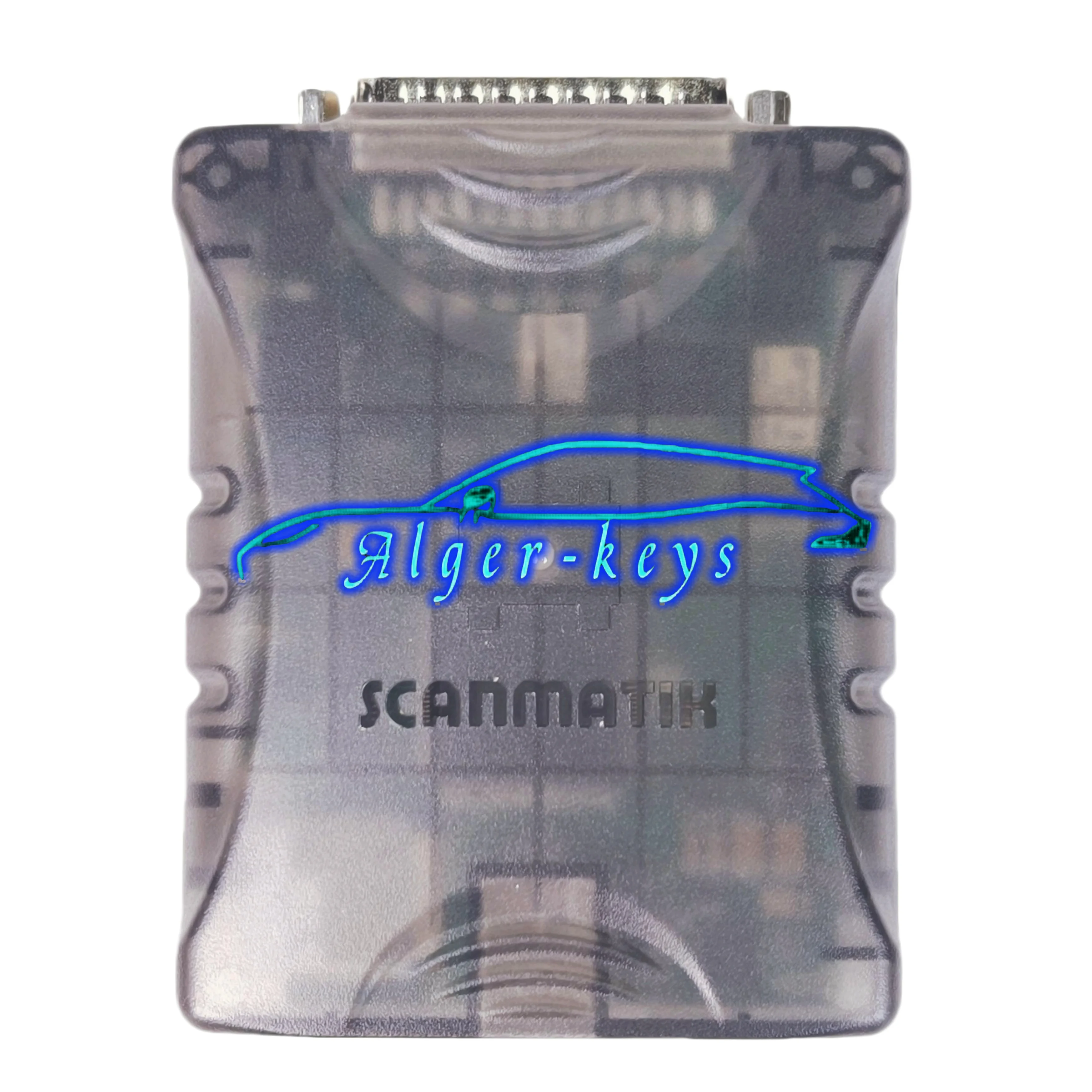

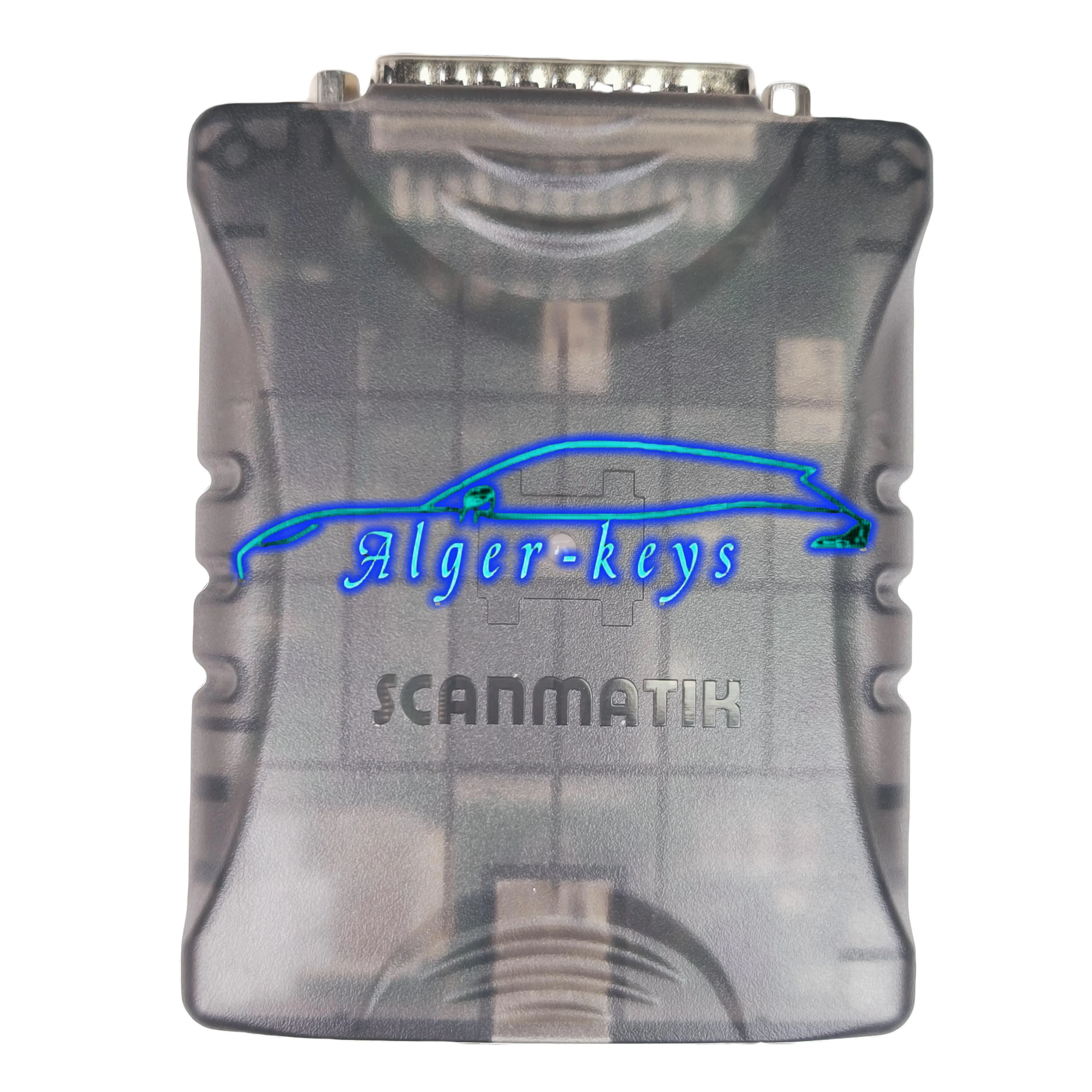

Scanmatik 3 adapter

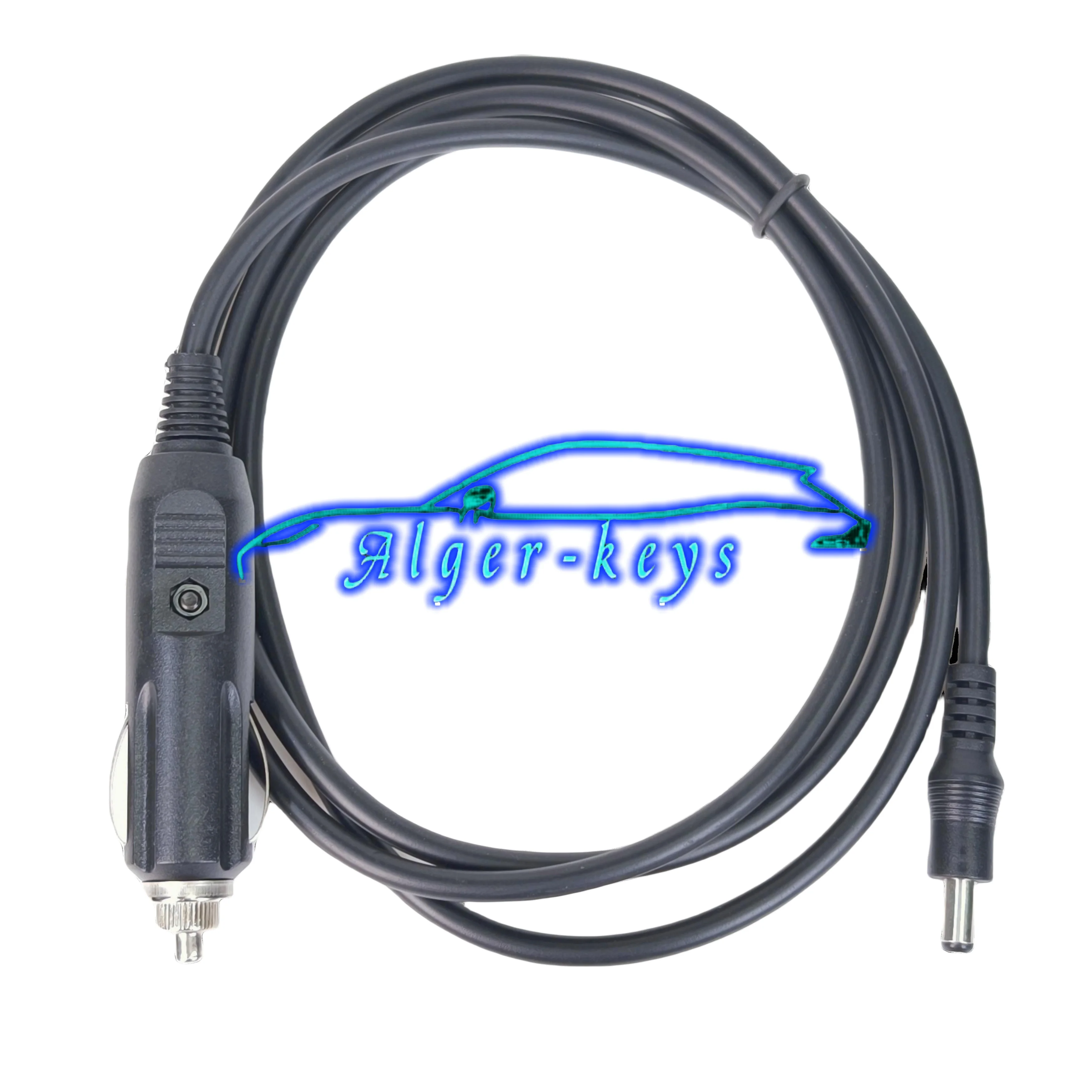

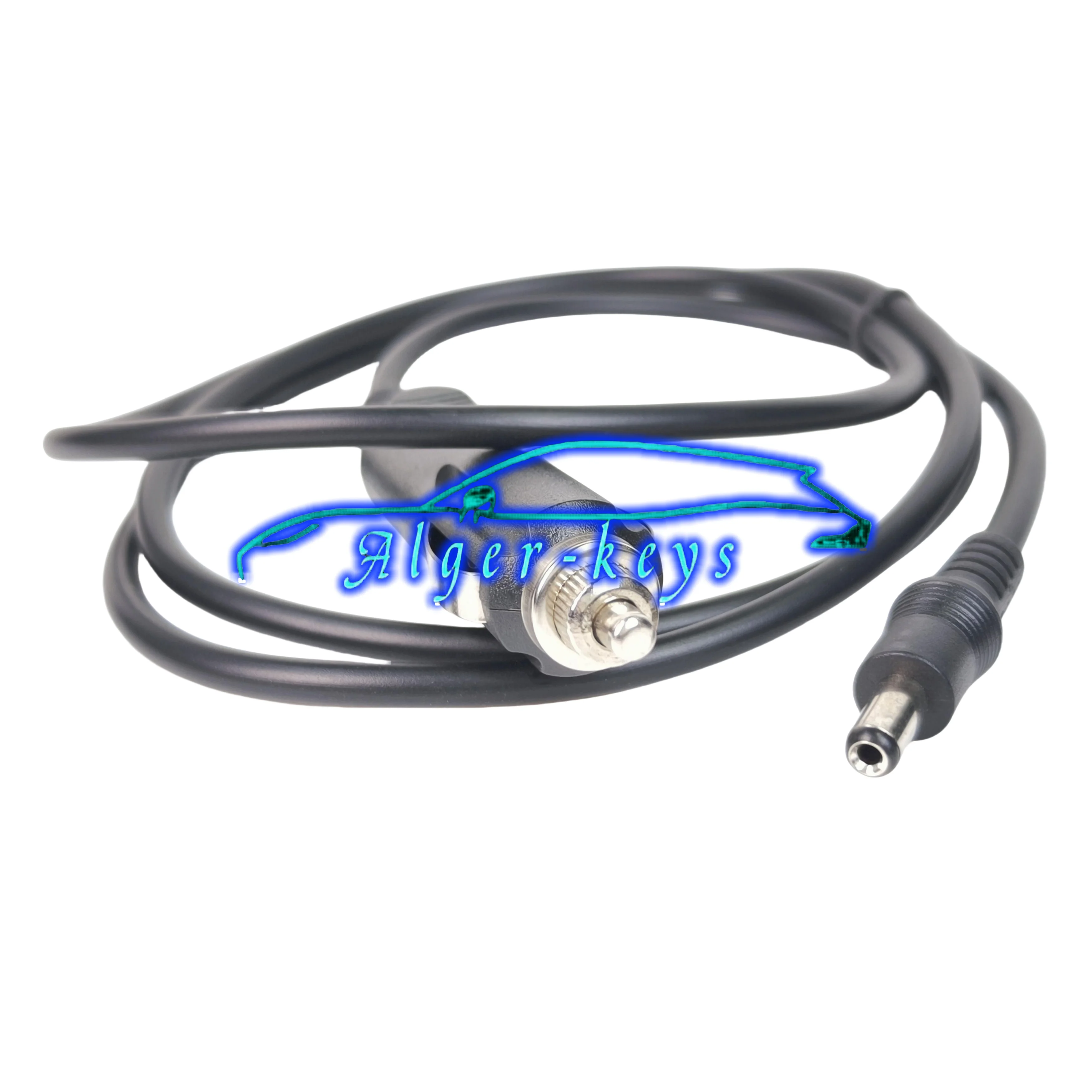

Power supply cable from the cigarette lighter

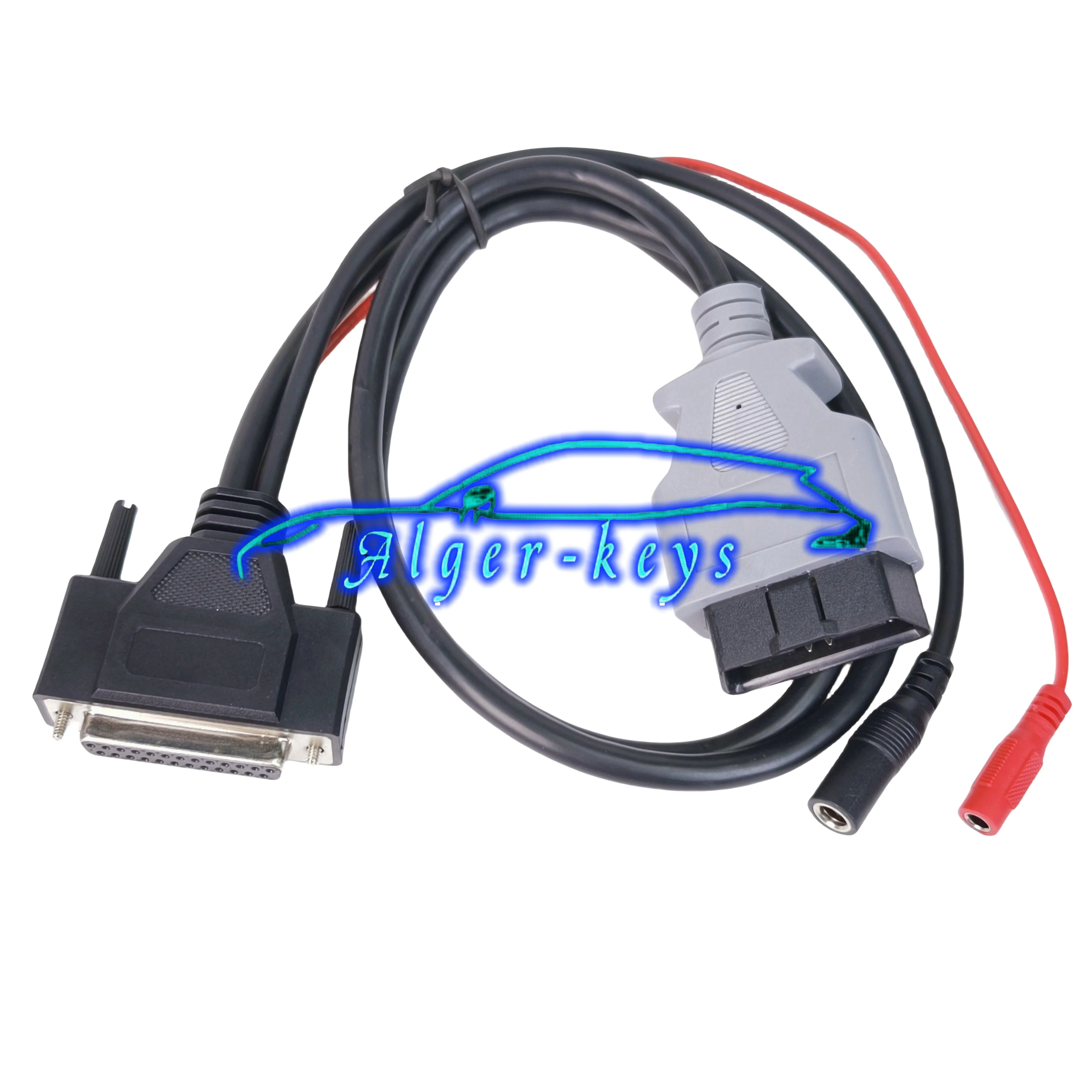

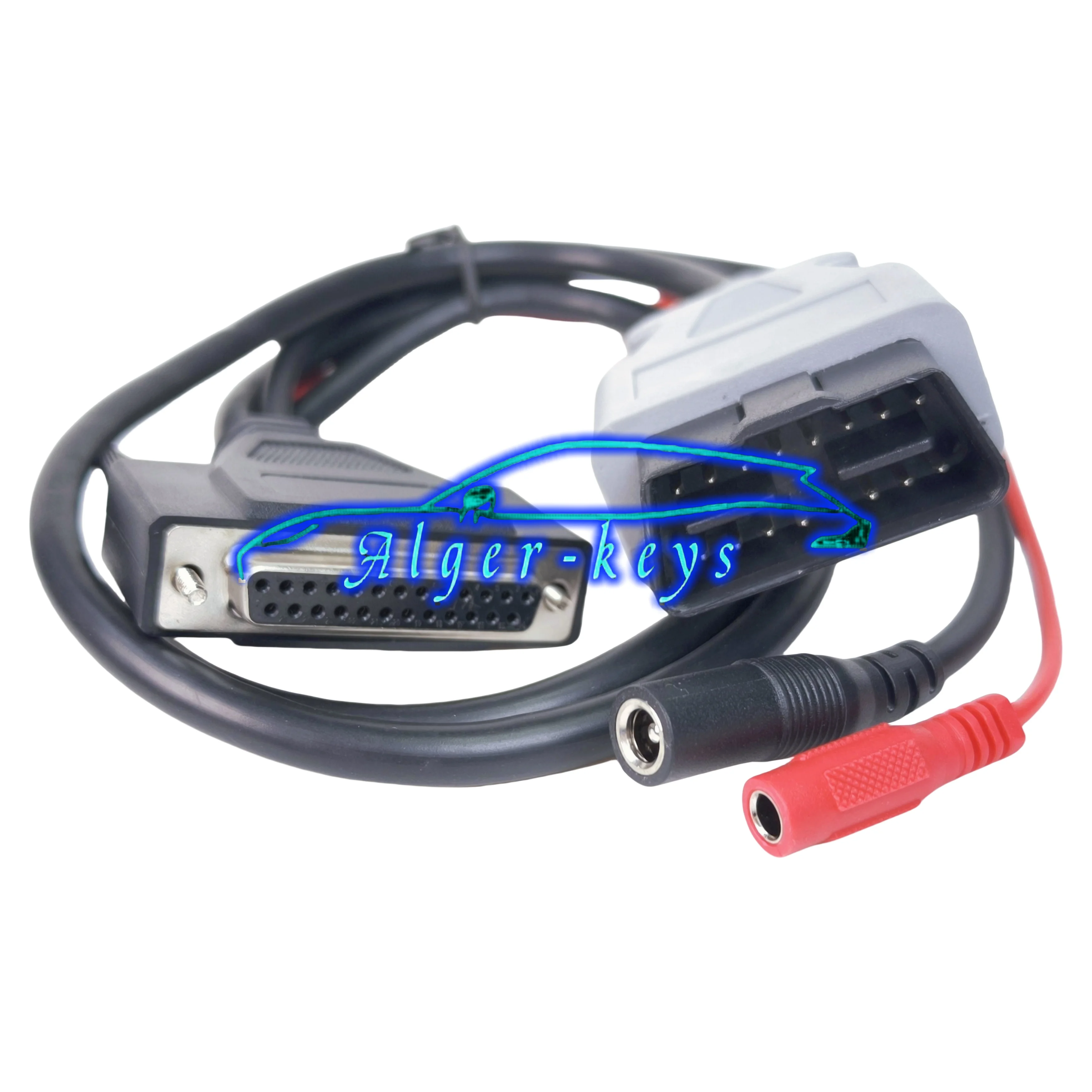

OBD II cable + Aux

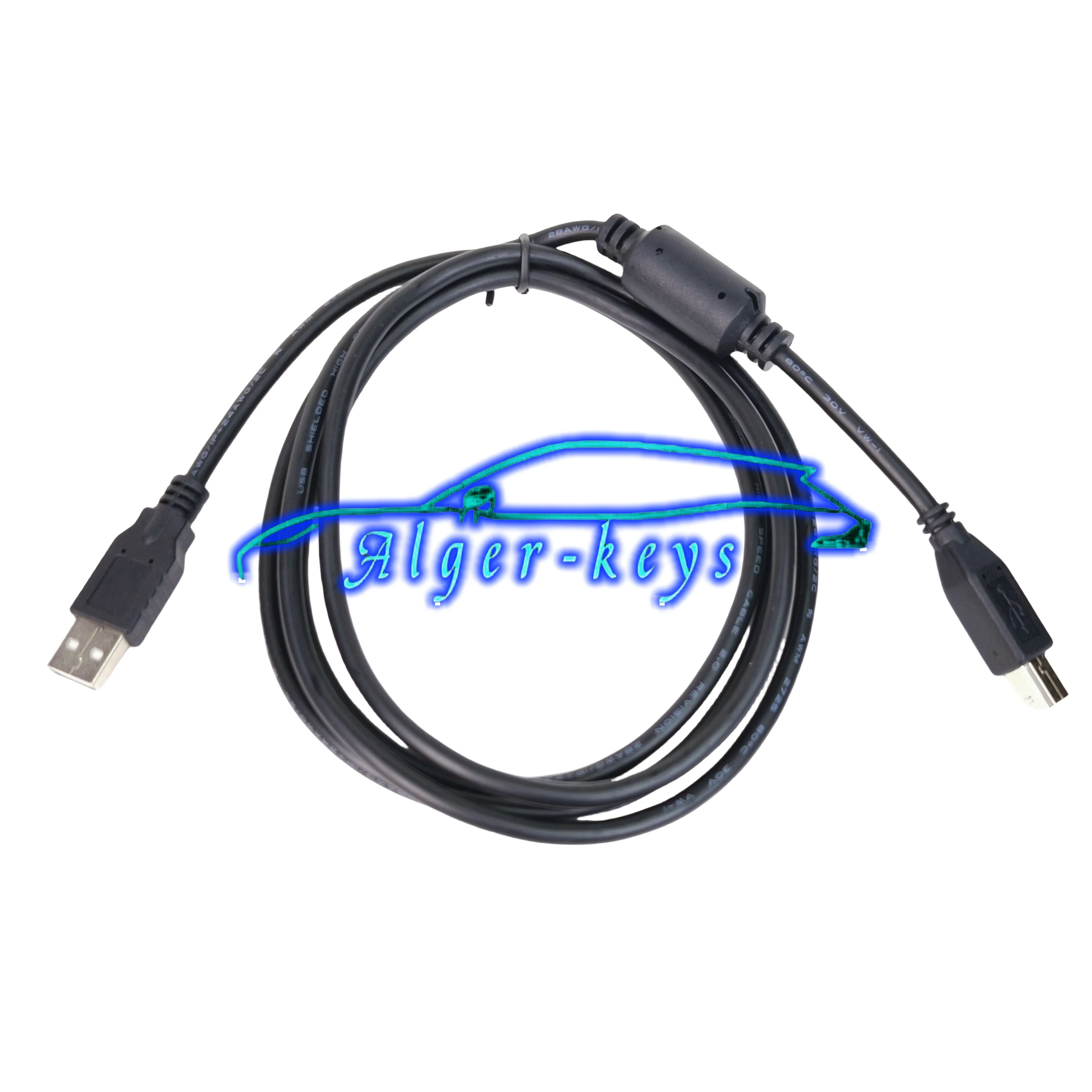

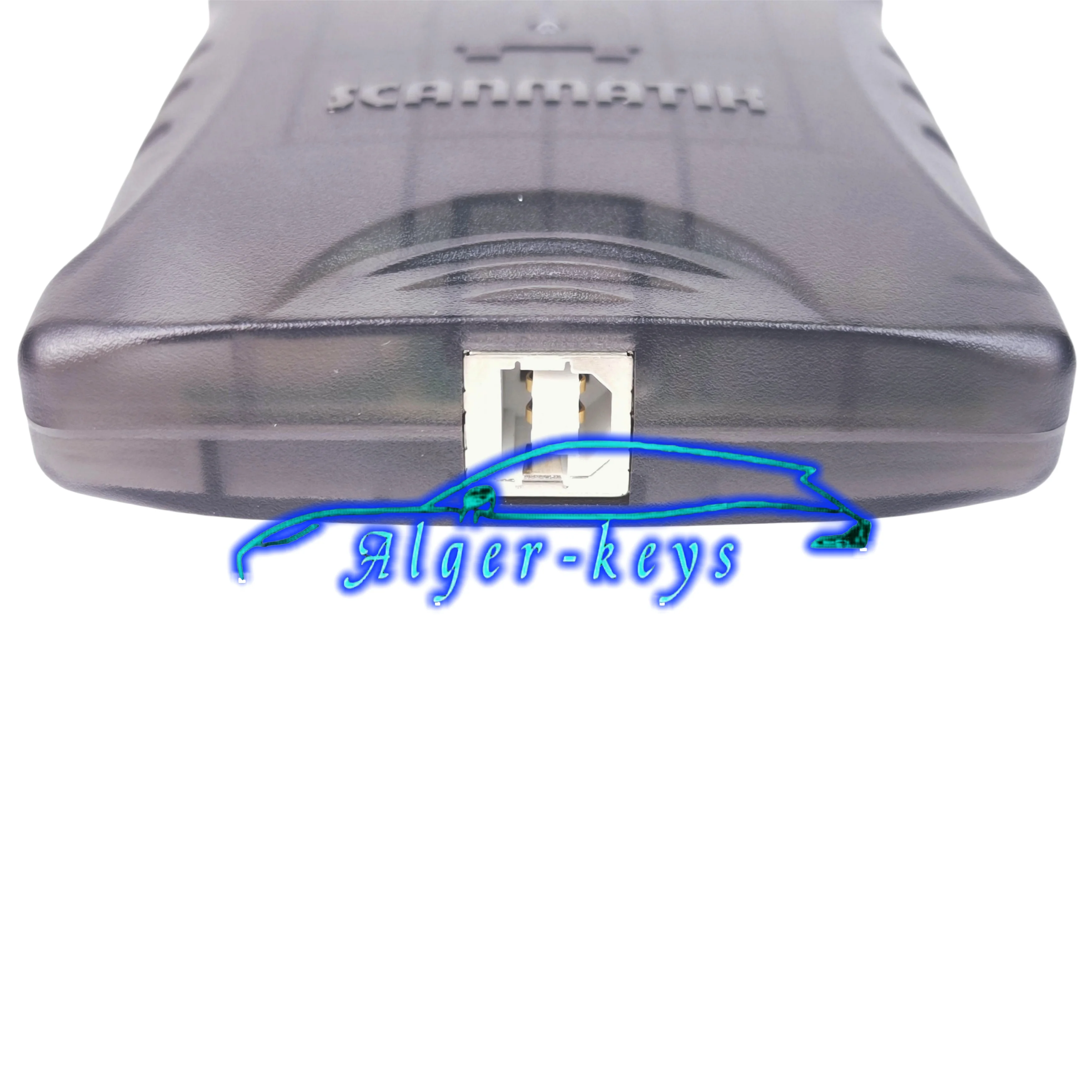

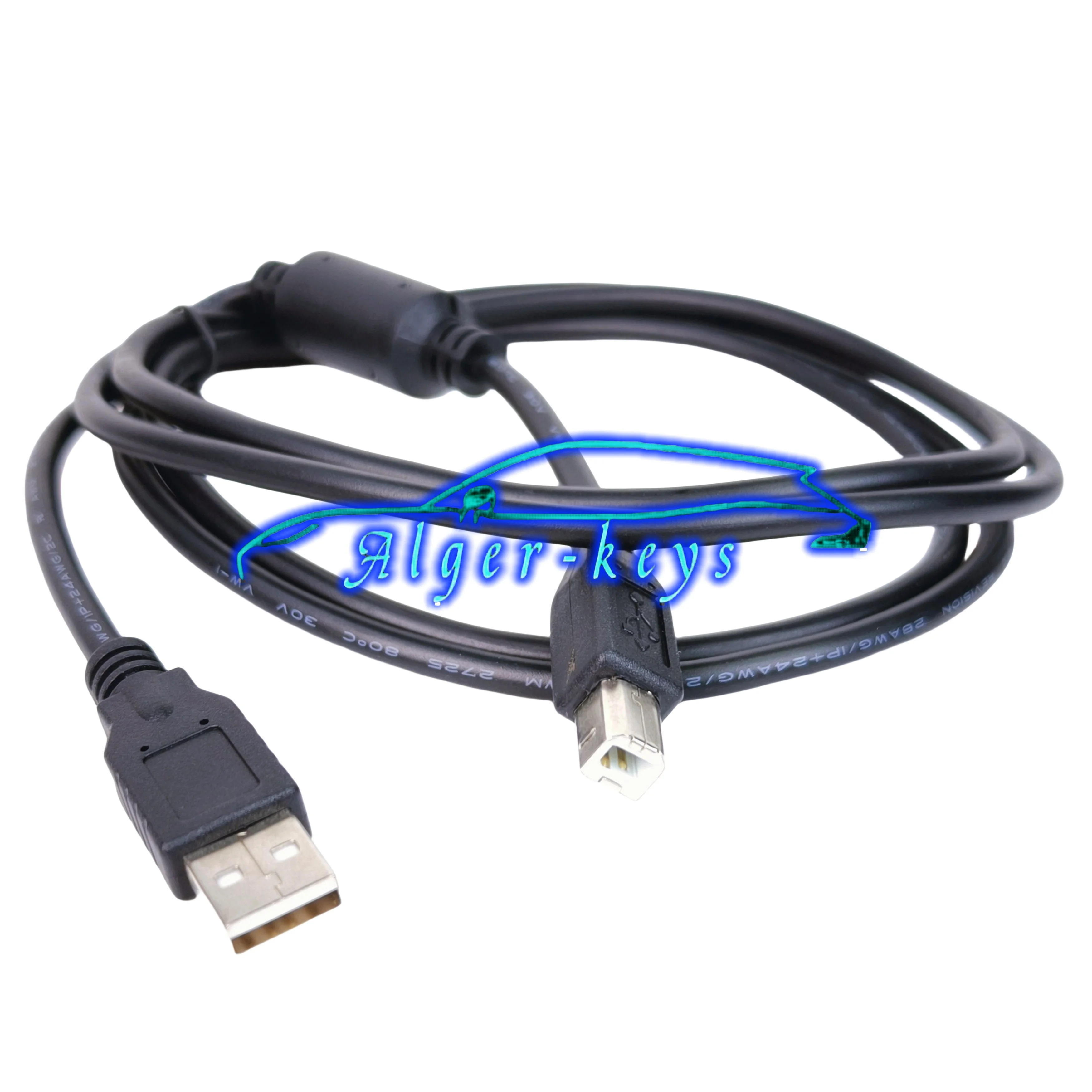

USB cable (1.8 m)

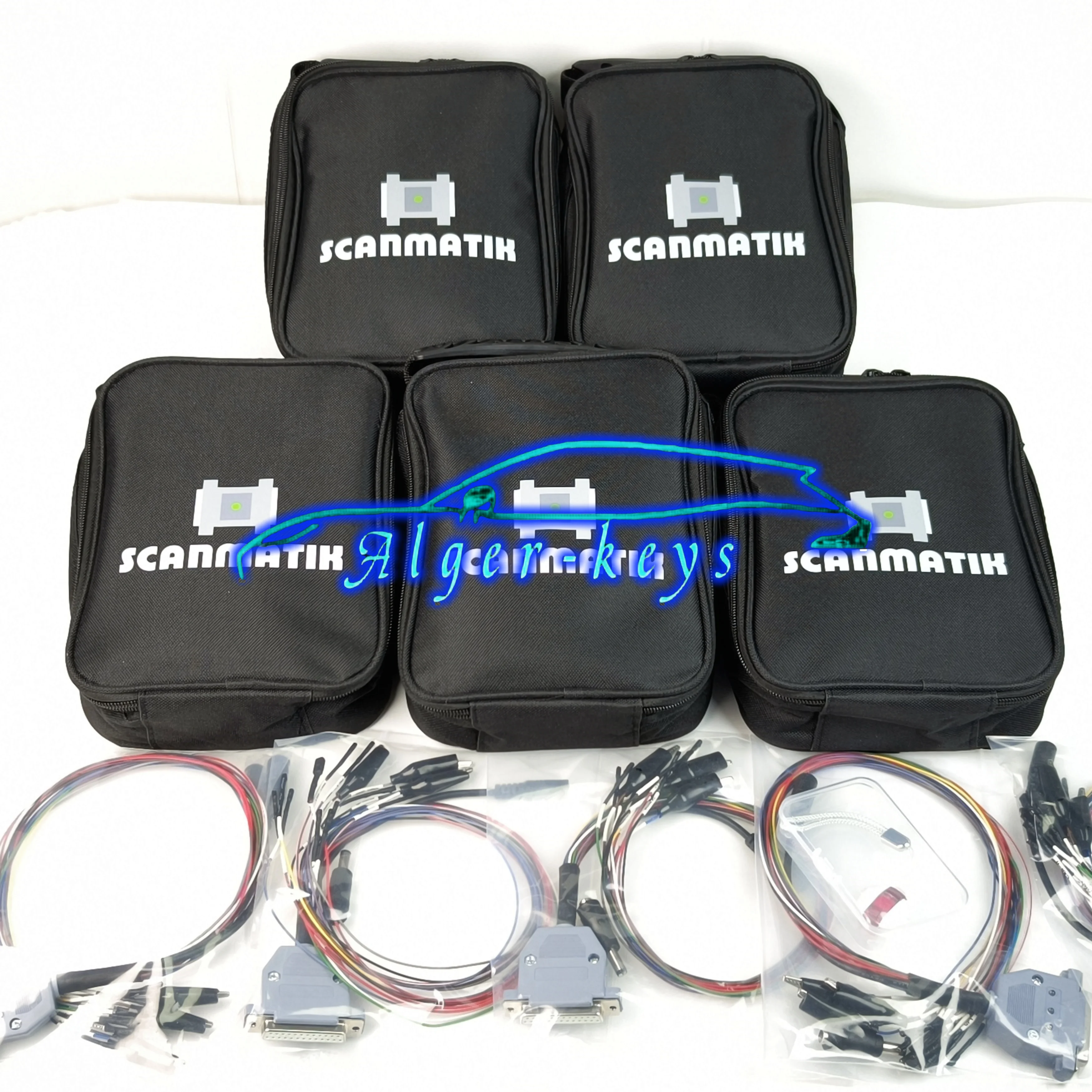

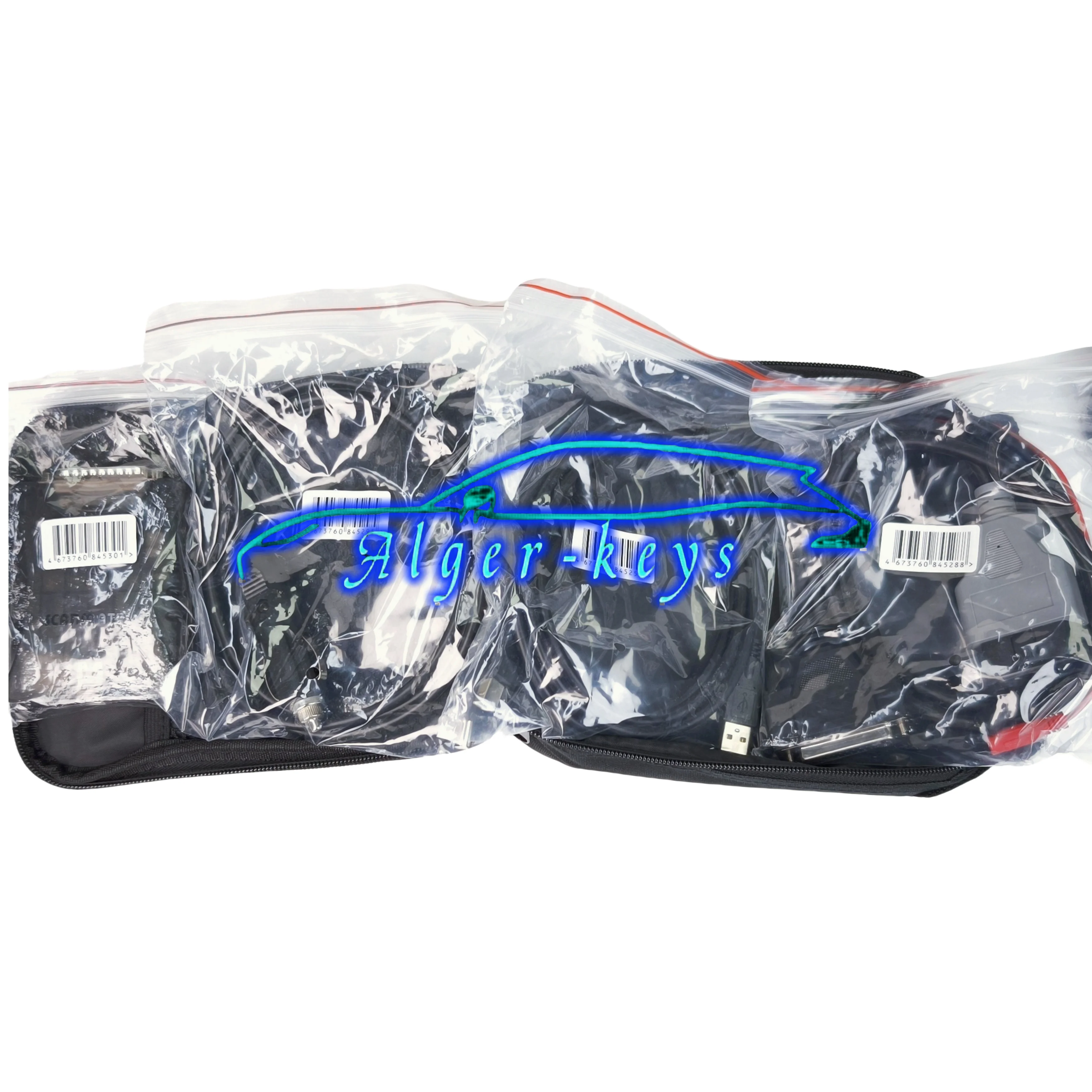

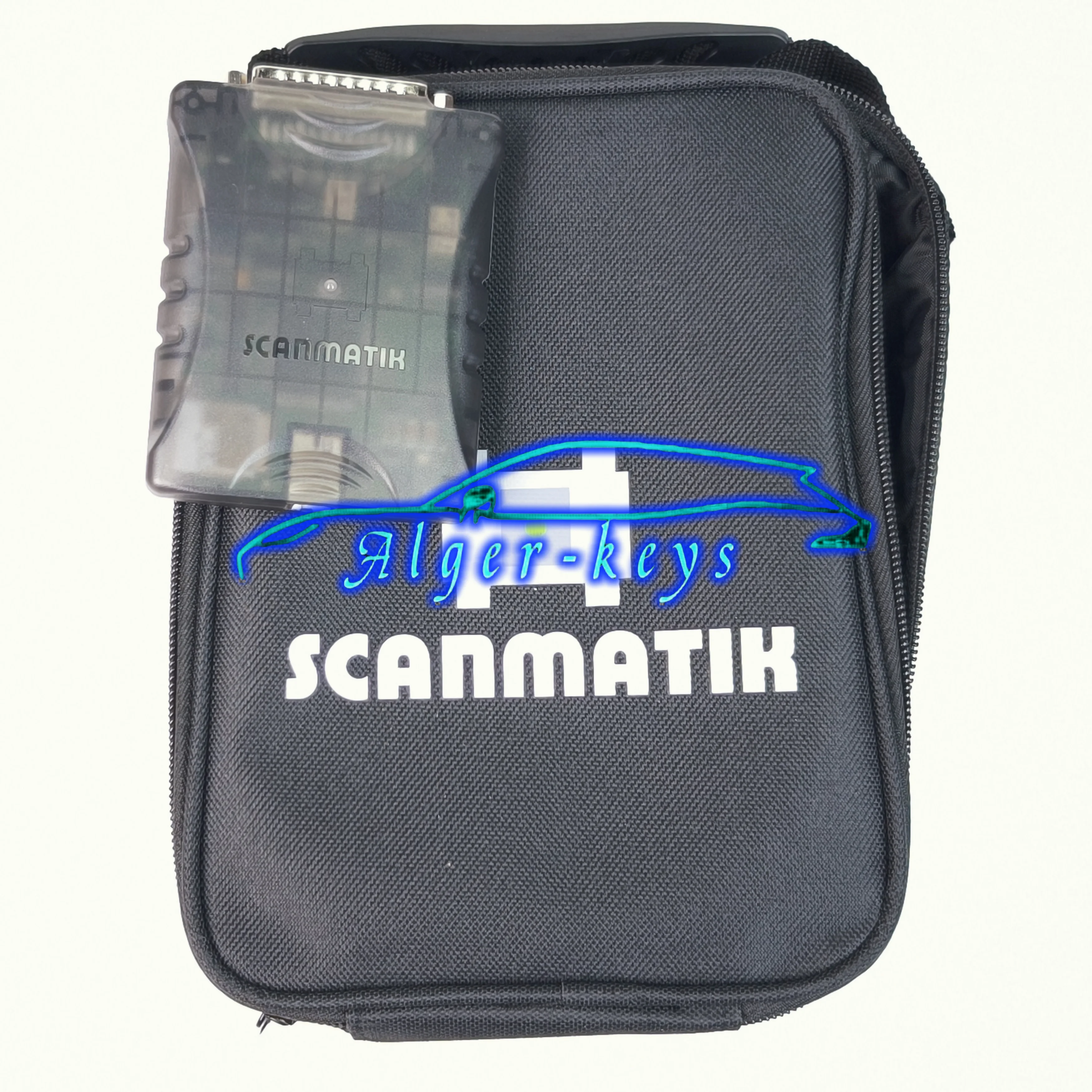

Case
New features of Scanmatik 3+ Aux:
Galvanic isolation of the USB port (with power);
Redesigned protection of K-lines and CAN buses on a new element base;
Increased speed of work via Bluetooth by about 20%;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
The widest support of J2534-1/2 standards:
Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable).
For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:
An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.
The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
SM2-PRO Adapter Specifications
Interfaces for communication with PC (Tablet, Smartphone) – USB or Bluetooth;
Power supply voltage: 5… 36V from the vehicle network or USB (galvanic isolation with power supply);
Current consumption, not more than 350mA;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE);
1 x J1850VPW;
1 x J1850PWM;
4 x CAN;
1 x Single Wire CAN.
Built-in multiplexer for switching diagnostic lines;
The widest support of J2534-1/2 standards;
Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable);
Bluetooth range, not less than: 10m (Class 2);
Adapter dimensions (L x W x H), not more than: 97×75×22mm;
Scanmatik Boot / Bench Cable for Scanmatik 2 Pro Specs:
This Weight Product: 80g
Manufacturer: Scanmatik
Condition: New
The adapter has reverse polarity protection
Power supply indicator (green),
Power supply for ECU indicator (red),
Boot mode indicator (blue).
Automatic power supply switching for ECU by (L-line)
Automatic generation Boot (2 pc.) and CNF(for 53 module).

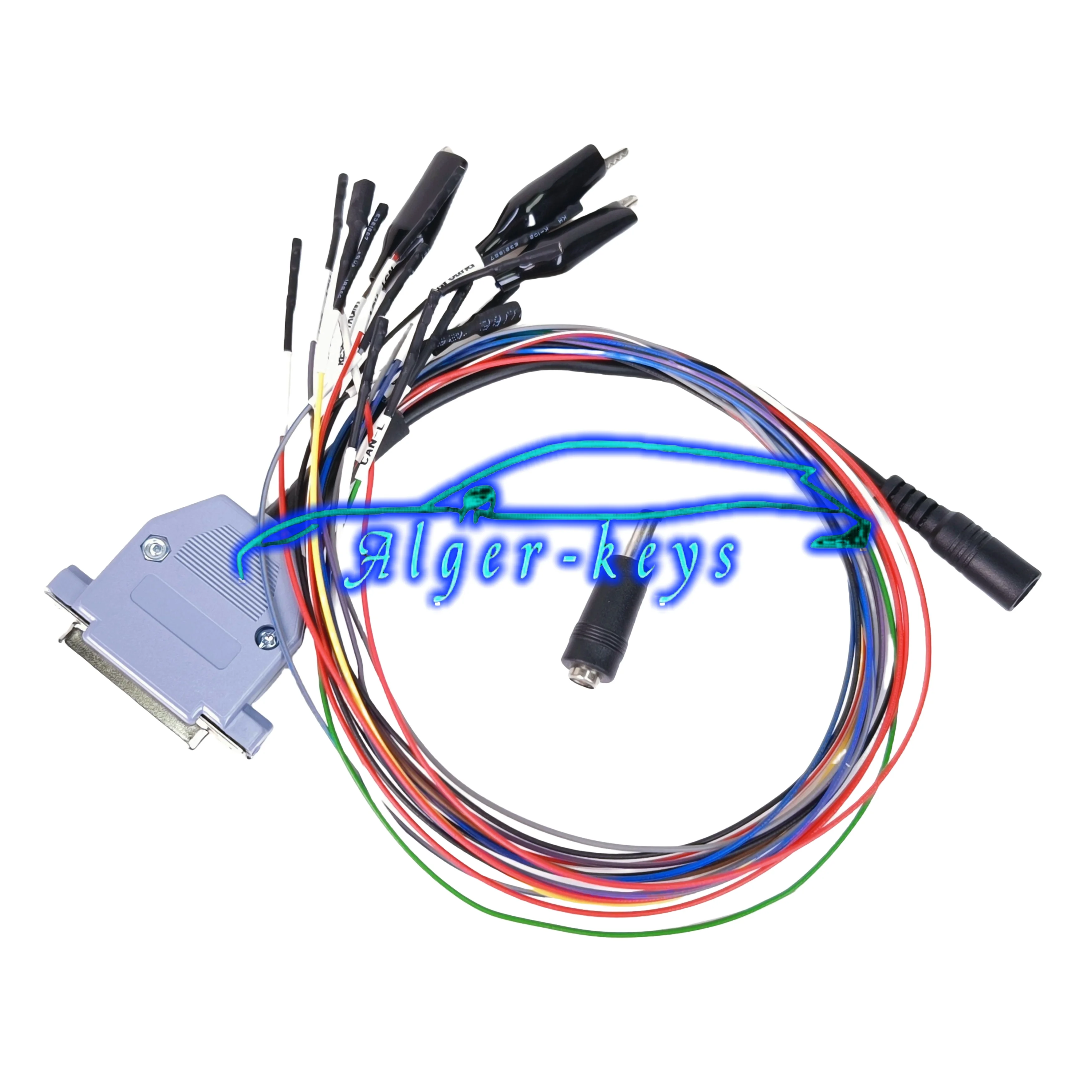

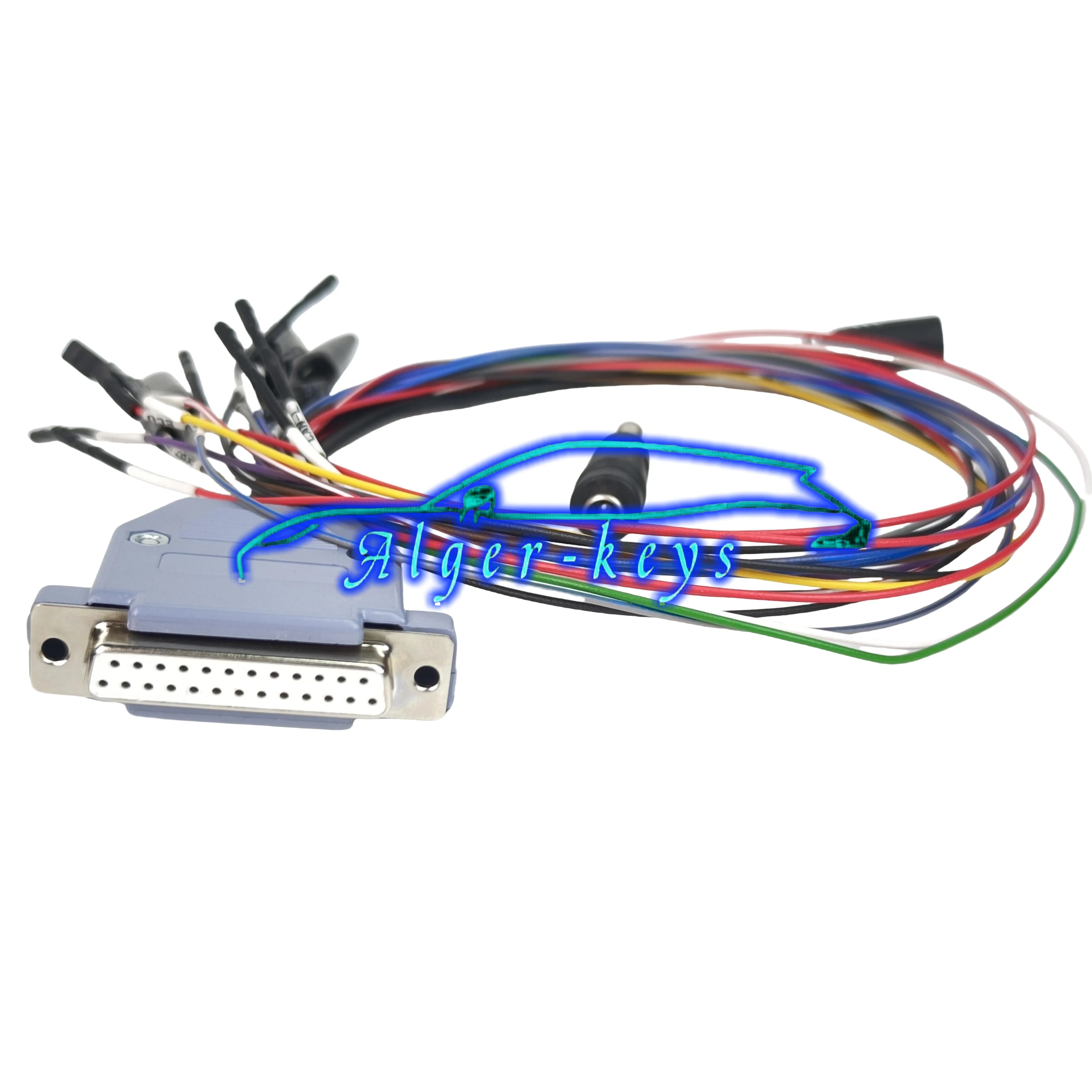

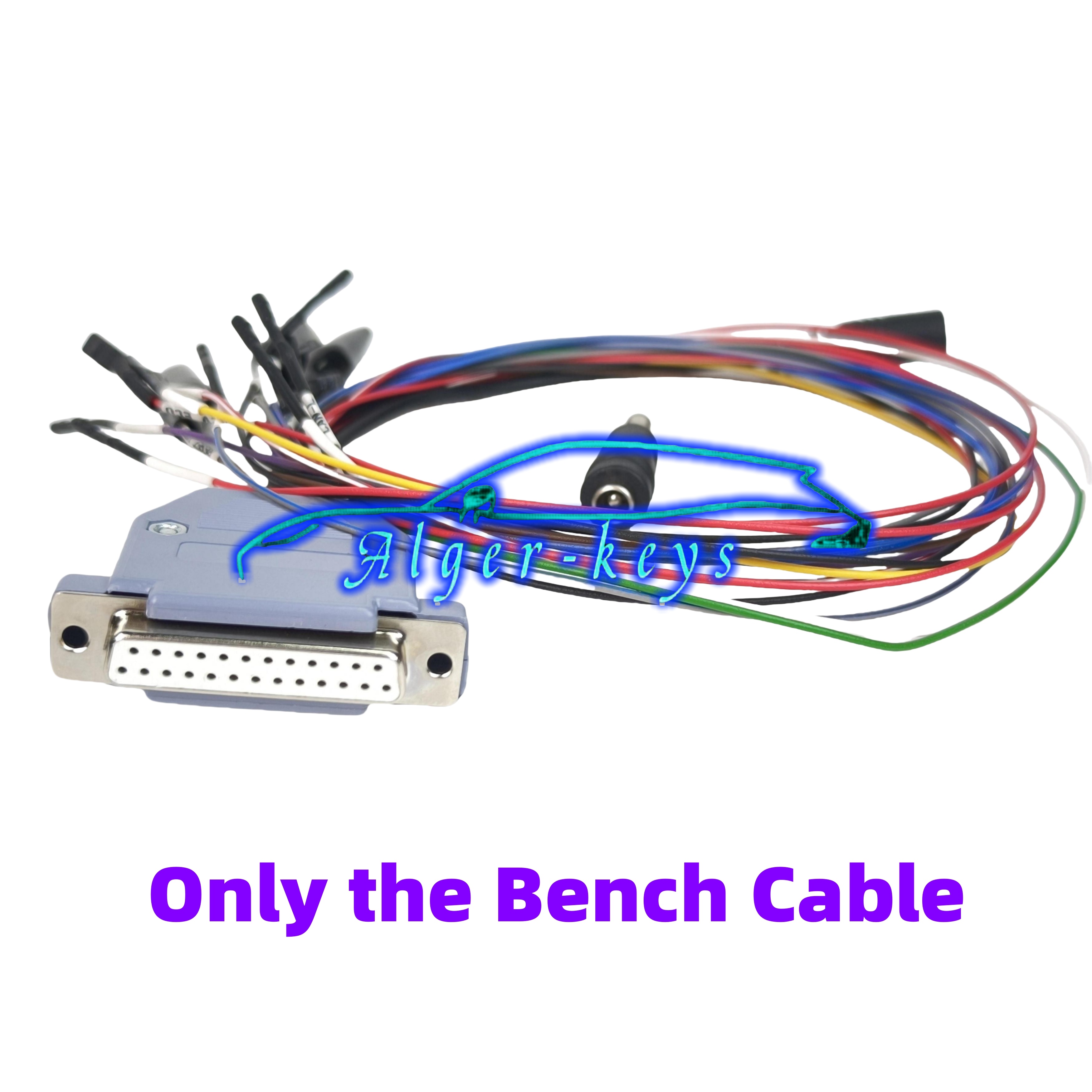

Boot cable PINOUT:
red +12V (1 big connector(2.5mm) и 2 small connectors)
black GND (1 big connector (2.5mm) и 1 small connector)
white CAN H (1 small connector)
green CAN L (1 small connector)
yellow + black line (with green shield) K-Line(1 small connector)
yellow GPT1(1 small connector)
orange GPT2(1 small connector)
violet VPP
blue CNF1(for 53)( crocodile terminal, 1KOhm)
grey boot1(for 53)( crocodile terminal, 1kOhm)
brown boot2(for 53 )( crocodile terminal, 1kOhm)
Dongle
This Weight Product: 25g
Specs:
Manufacturer: Scanmatik
Note: Dongle is selling only with one or more modules of the PCMflash software
