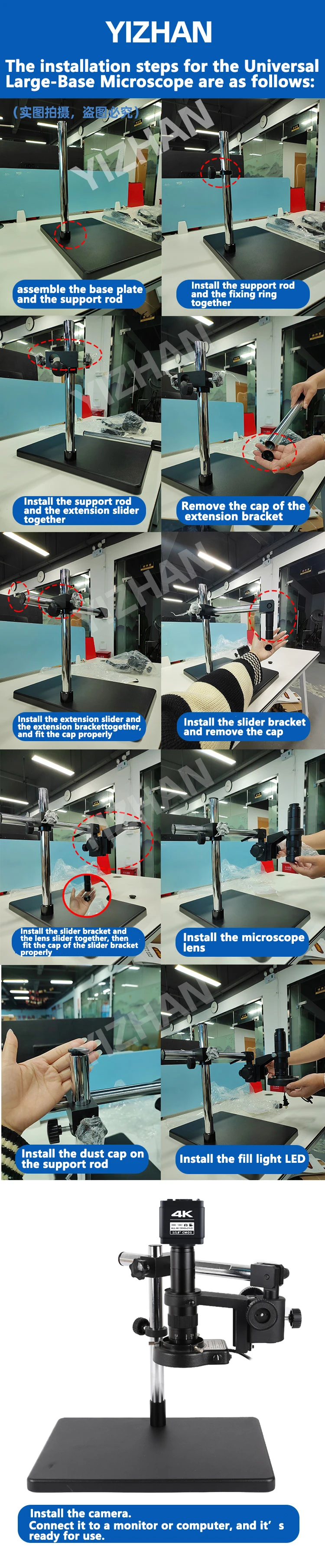

🔥The first step to operate after installing the microscope
After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don’t forget to turn on the LED light)
🔥Application Scenarios:
PCB inspection, electronic component documentation, mobile phone PCB repair, SMD soldering repair, PCB rework and repair, PCB dimensional inspection, PCB solder joint defect detection, SMT assembly inspection, PCB manufacturing quality control, PCB repair, Electronics rework, Phone motherboard repair, Soldering, SMT inspection, SMD component inspection, PCBA inspection, FPC inspection, PCB solder joint inspection, PCB trace inspection, metalworking, Tool inspection, Tool edge inspection, Die & mold inspection, Mechanical parts inspection, Bearing inspection, Gear inspection, Metal surface inspection, Plating layer inspection, Jewelry microscope, Gemstone microscope, Watch repair, Precision jewelry inspection, Gem grading, Watch movement inspection, Dentistry, SA care, Vet care, Pet care, Animal med, Vet med
🔥Why choose this microscope camera？
◆imx678 Chip
◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;
🔥Specifications:
Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm
Connect Display Via HDMI
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available
Connect computer via Type-C

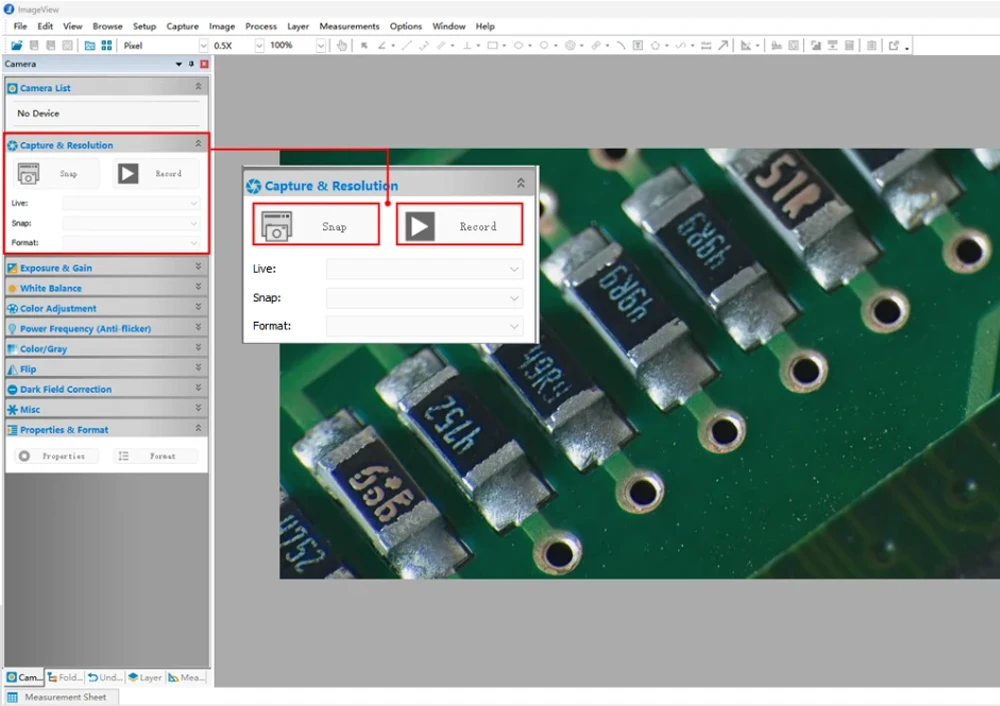

1. Install the ImageView on your computer

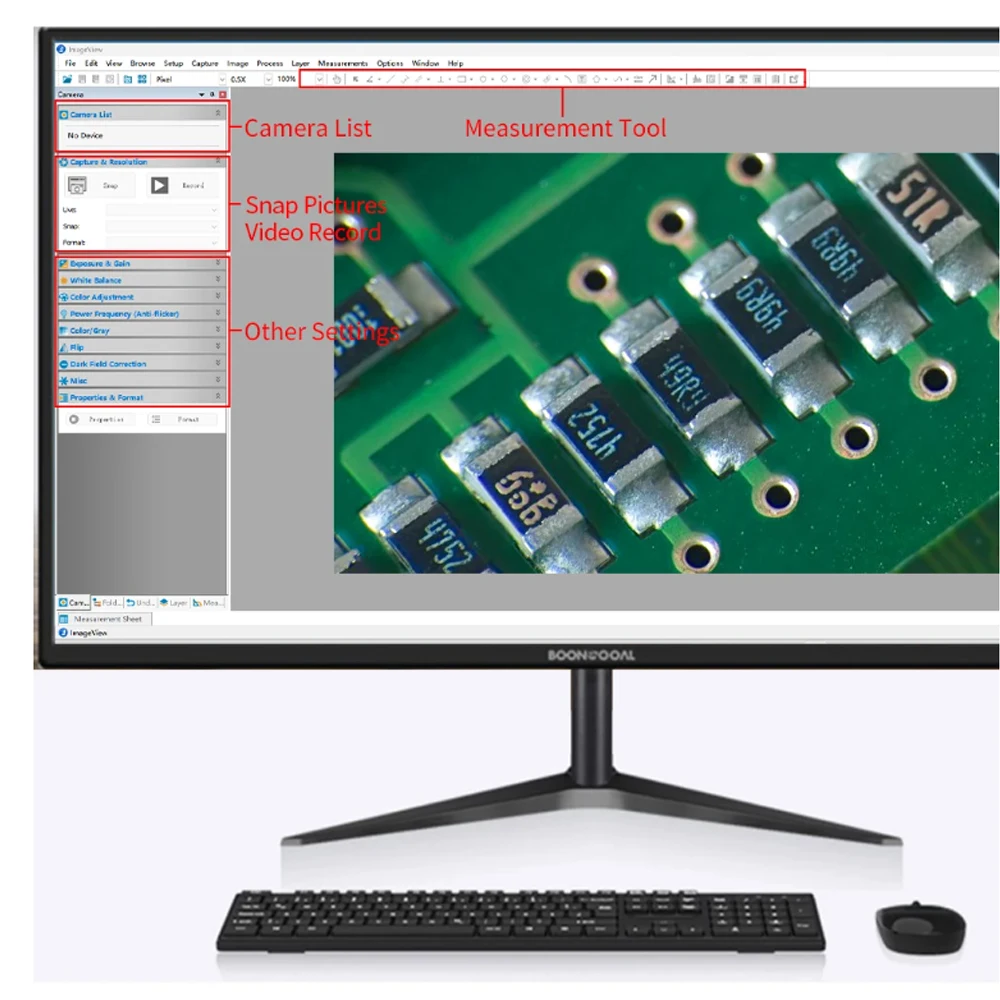

2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.
Type-c Connects to PC Photo Vide Measurement Data Analysis
After installing the ImageView program on your computer and connecting it to your computer through your Type-c camera
It can achieve image capture, video recording and high-precision multi-type measurement
The data is stored in the SD card and can be named twice
One Click HD Photo/Video

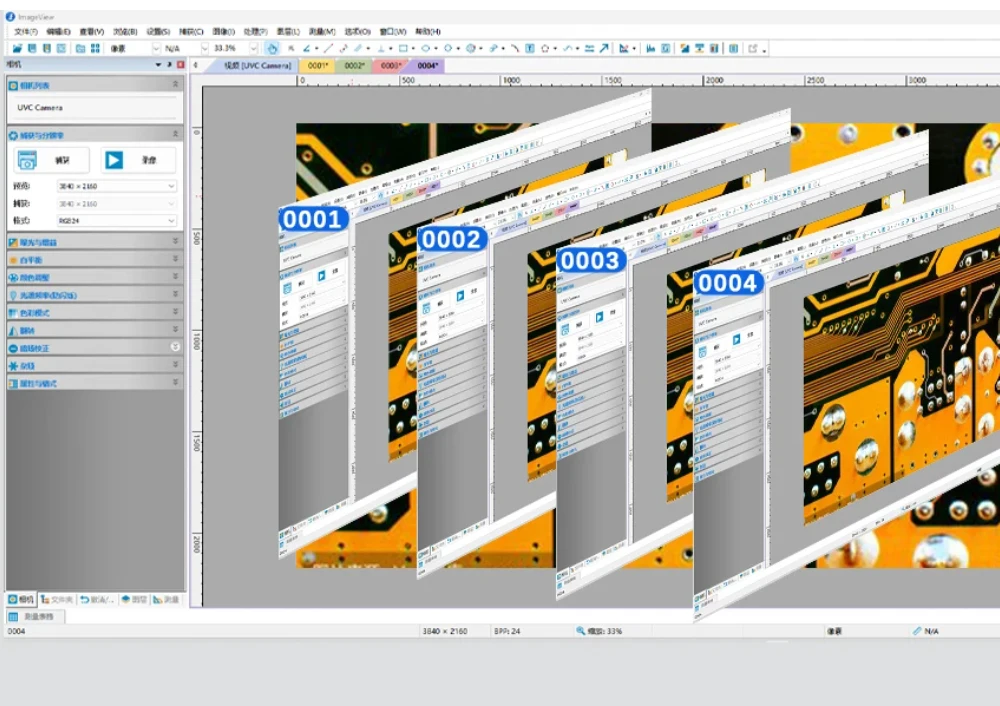

Multi-Window Preview of Captured Images
Take multiple pictures, generate a separate editing window, Multiple images can be processed and compared simultaneously in batches
215X Optical Focus Lens
Working Distance : 100mm
Magnification : 35X-215X(21in displayer)
X-axis Visual Field :2.2mm-14mm
mounting dimensionr : Φ50mm
Optical Zoom: 0.7X-4.5x
zooming ratio: 1：6.5
View of field : 2.67-22.85mm
lens diameter Φ25.5mm
180X Optical Zoom Lens
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 – 4.5X(about 1 – 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm
Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 570g
150X Optical Focus Lens
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 – 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

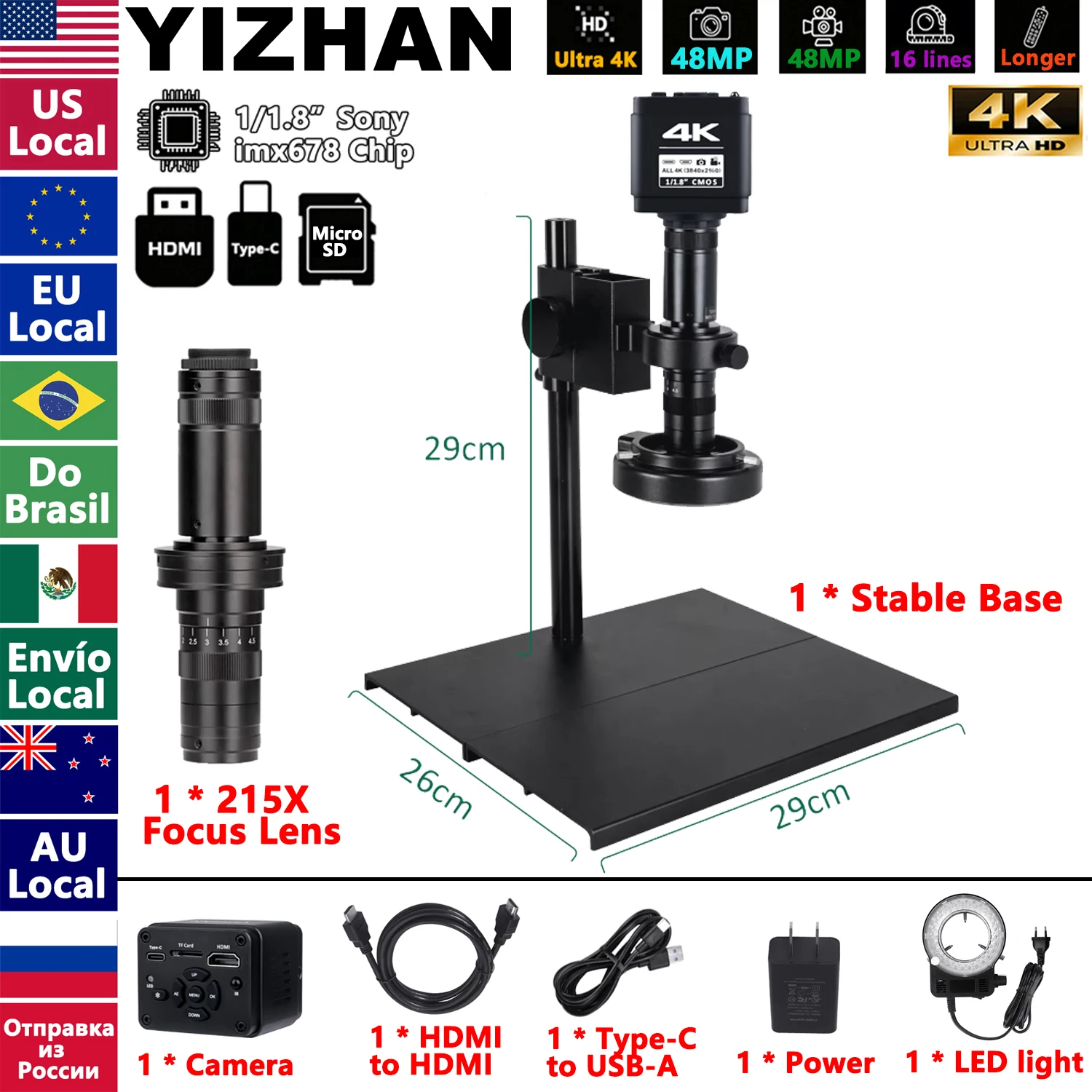

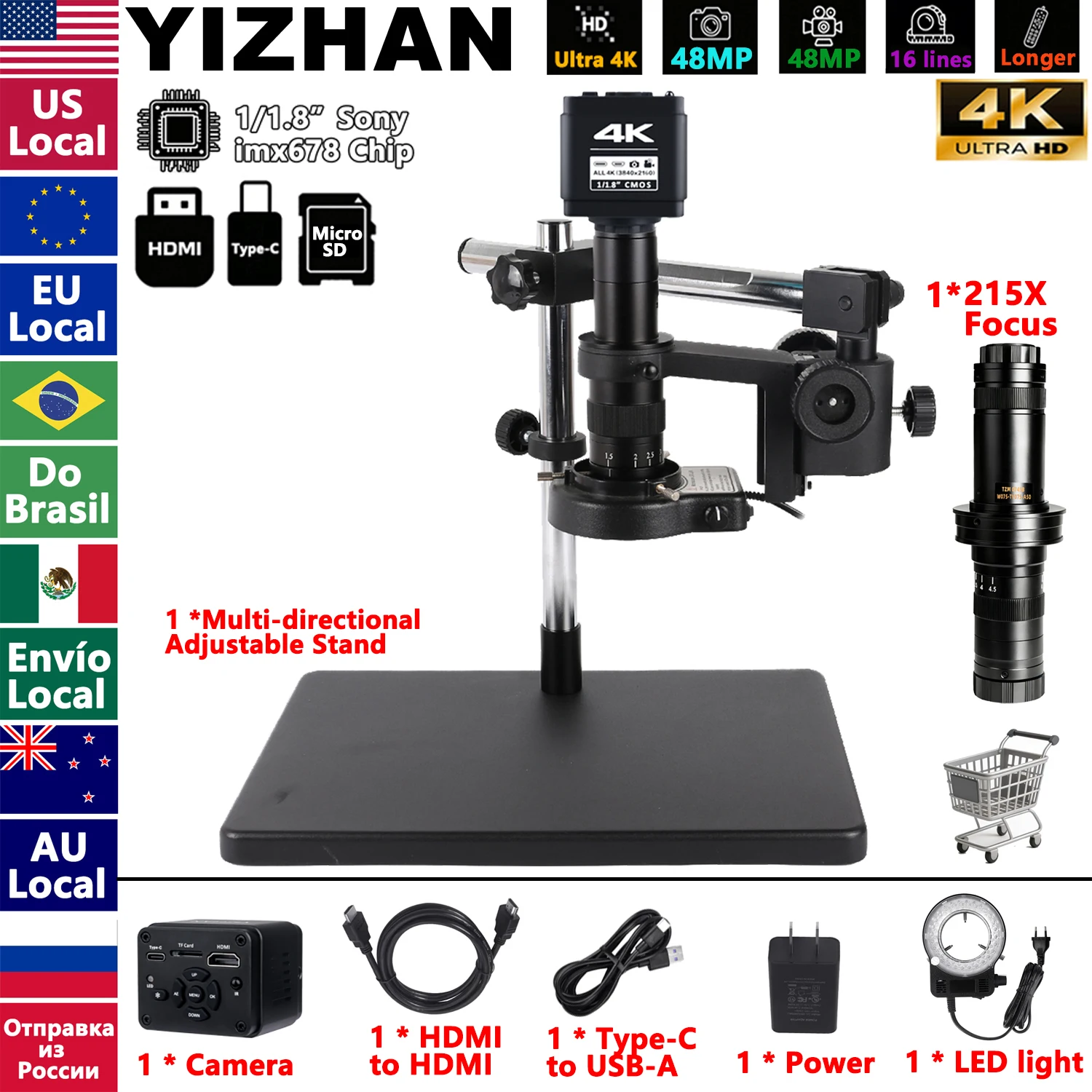

215x or 180X Large Base Package includes:
List of packing：
1 * Microscope camera
1 * 215x Microscope lens(or 180x zoom lens)
1 * LED light
1 * 360 degree rotating large base（There is a dimension diagram at the end of the link）
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Free Software (not included in the package, please contact customer service for assistance)

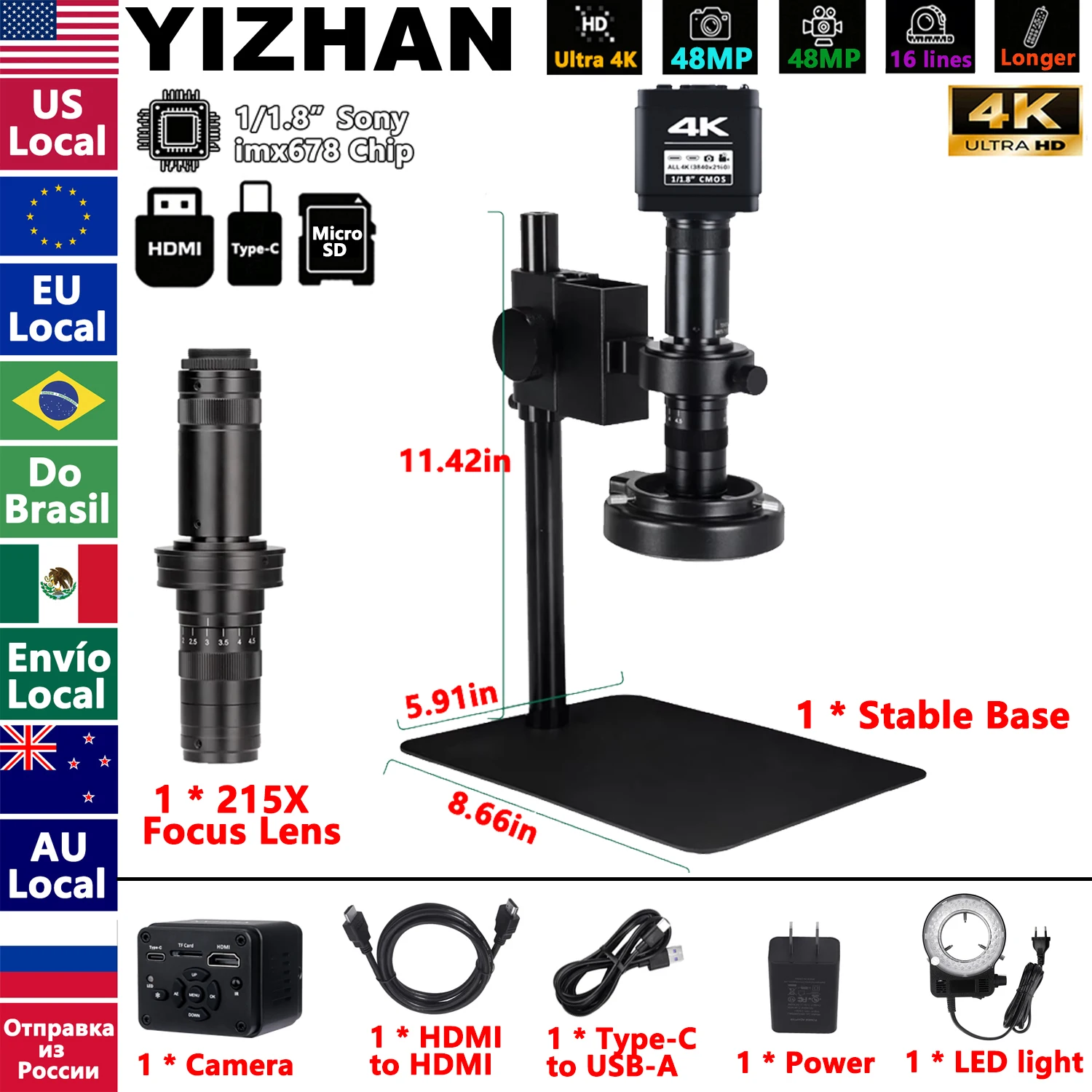

215x or 180x Middle Base Package includes:
1 * Microscope camera
1 * 215x Microscope lens(or 180x zoom lens)
1 * LED light
1 * medium-size Base（There is a dimension diagram at the end of the link）
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Free Software (not included in the package, please contact customer service for assistance)
215x or 180x Small Base Package includes:
1 * Microscope camera
1 * 215x Microscope lens(or 180x zoom lens)
1 * LED light
1 * small-size Base（There is a dimension diagram at the end of the link）
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Free Software (not included in the package, please contact customer service for assistance)
150x or 180x Folding Base Package includes:
List of packing：
1 * Microscope camera
1 * 150x Microscope lens(or 180x zoom lens)
1 * LED light
1 * Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Free Software (not included in the package, please contact customer service for assistance)

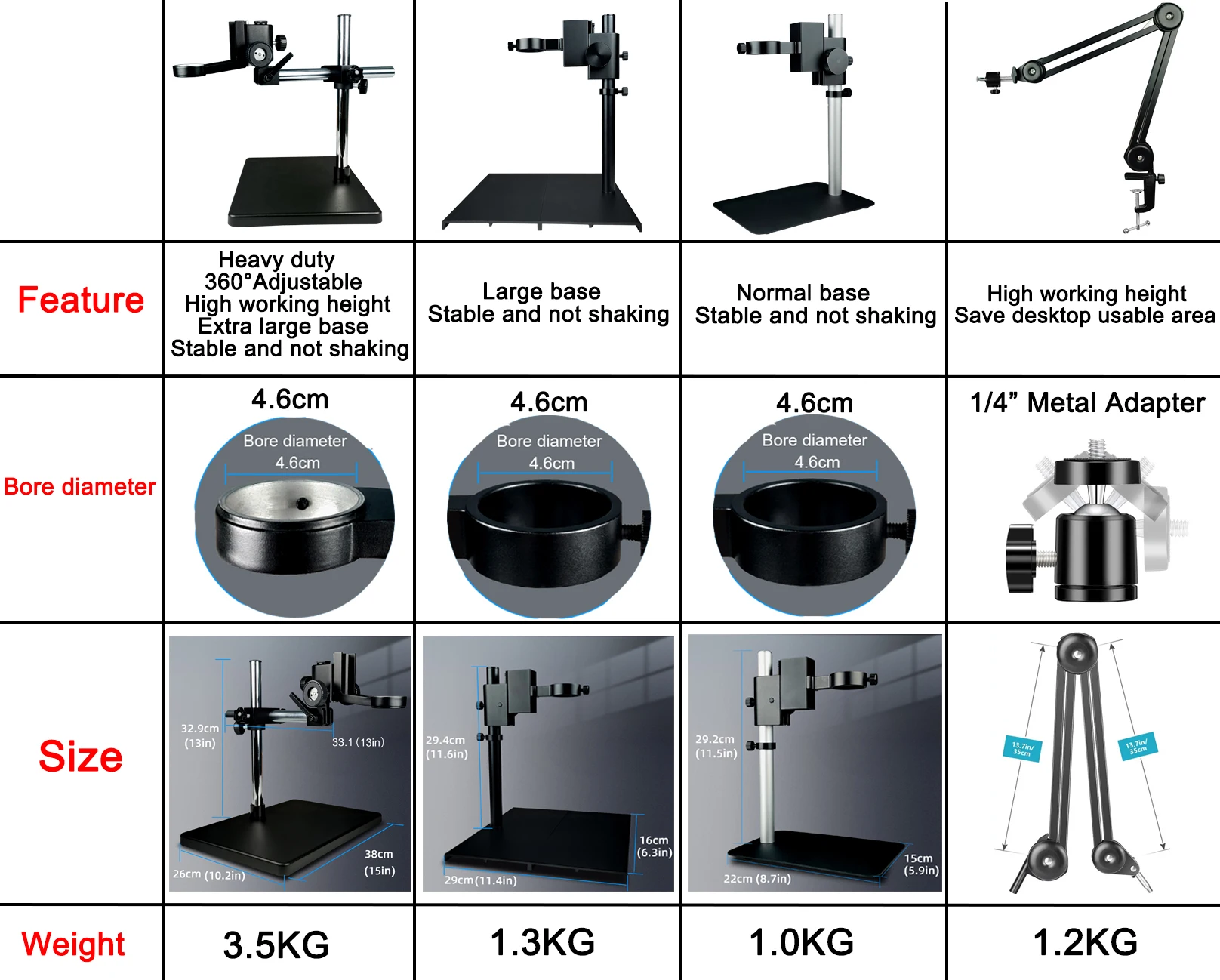

Four different sizes of microscope mounts
Microscope LED light
Power: 4.5W
Mains Input:110-220V
Output Voltage: DC12V/1A
LED Quantity: 56PCS
Working Life: 100000 hr
Color Temperature: 6500K
Effective Distance: 50-300mm
Inside Diameter:63mm
External Diameter:97mm
Color of Light: White light
